Ford F150 Pickup. Instruction - part 3

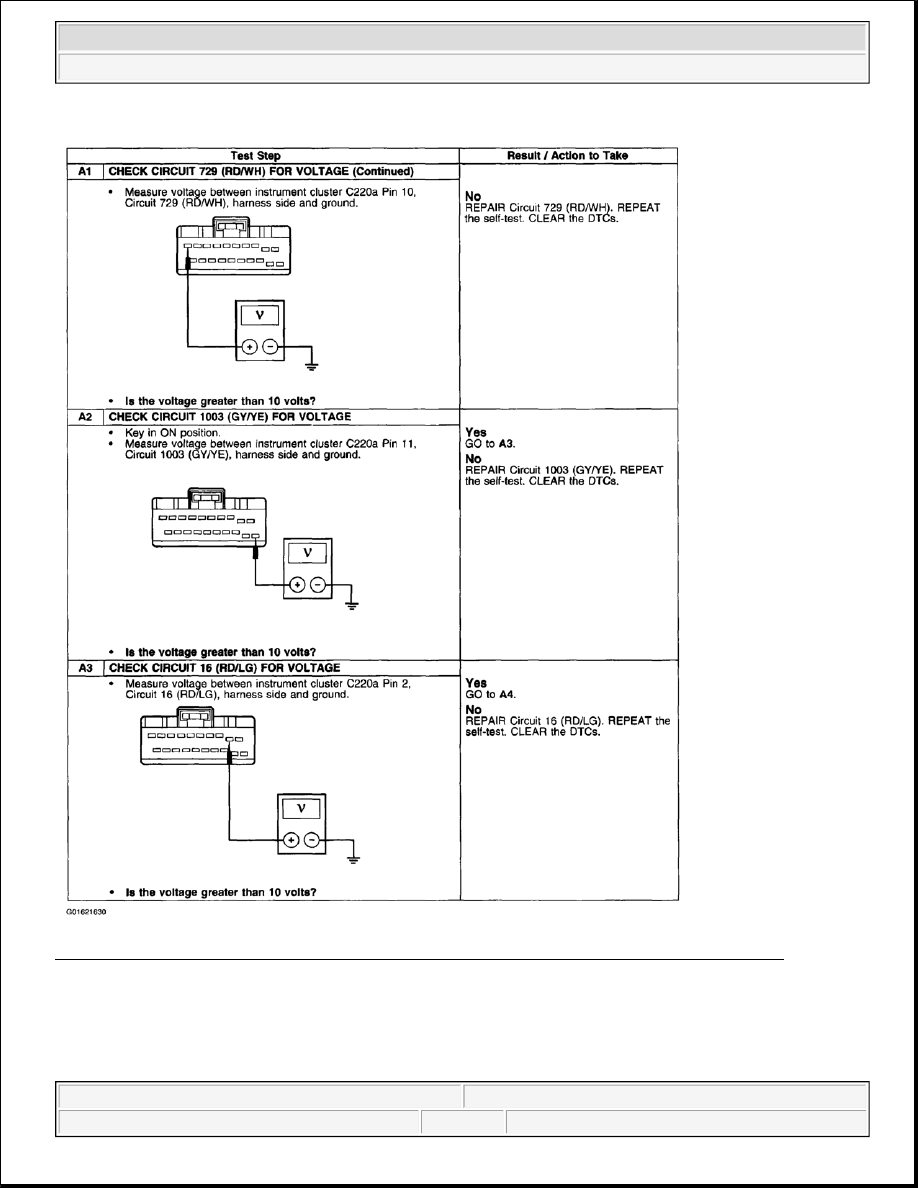

Fig. 8: Pinpoint Test A: No Communication With Module - Instrument Cluster (A1 Cont. - A3)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Anti-Theft-PATS - F150 Pickup

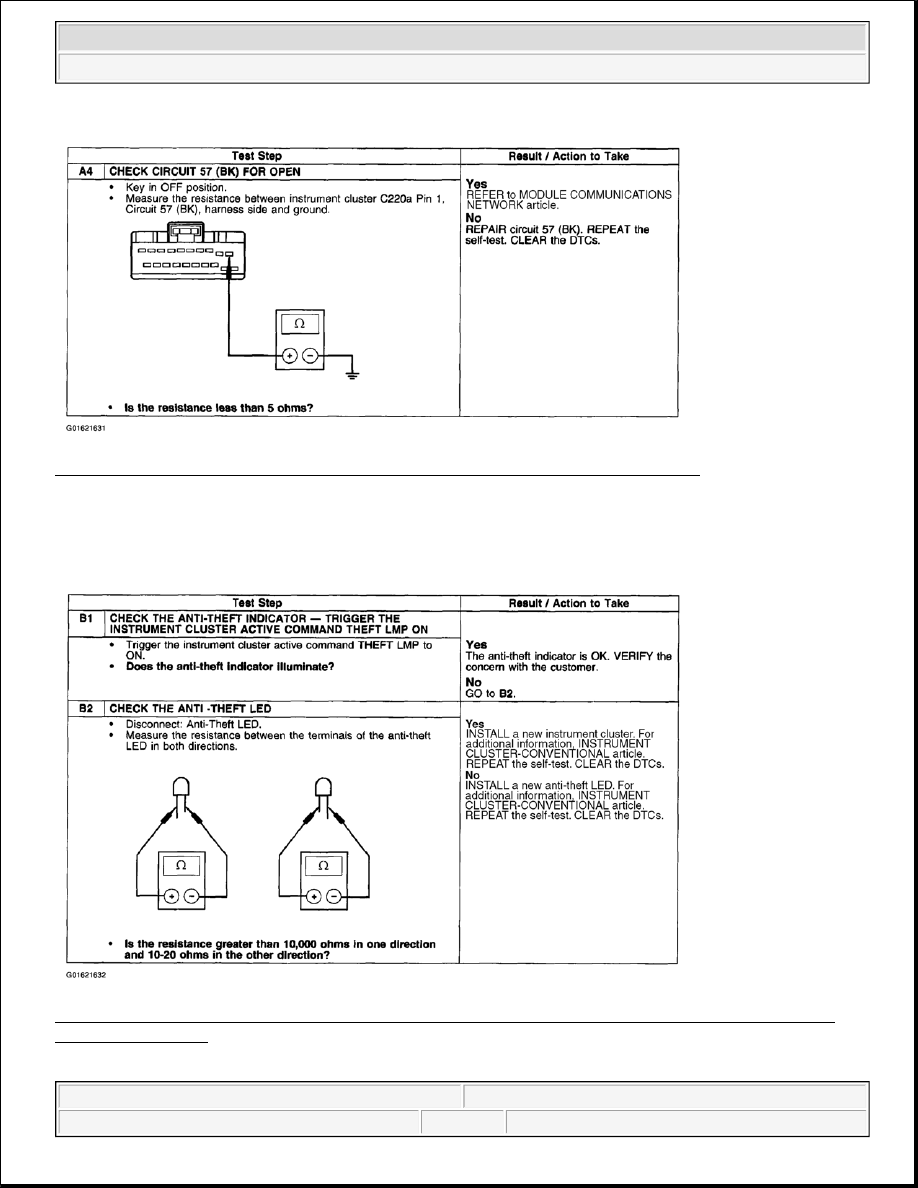

Fig. 9: Pinpoint Test A: No Communication With Module - Instrument Cluster (A4)
Courtesy of FORD MOTOR CO.

PINPOINT TEST B: ANTI-THEFT INDICATOR IS ALWAYS/NEVER ON - NO THREE SECOND THEFT INDICATOR
PROVE OUT

Fig. 10: Pinpoint Test B: Anti-Theft Indicator Is Always/Never On - No Three Second Theft Indicator
Prove Out (B1 - B2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Anti-Theft-PATS - F150 Pickup



PINPOINT TEST C: ANTI-THEFT SYSTEM DOES NOT OPERATE CORRECTLY - ANTI-THEFT NUMBER OF
PROGRAMMED KEYS IS BELOW MINIMUM

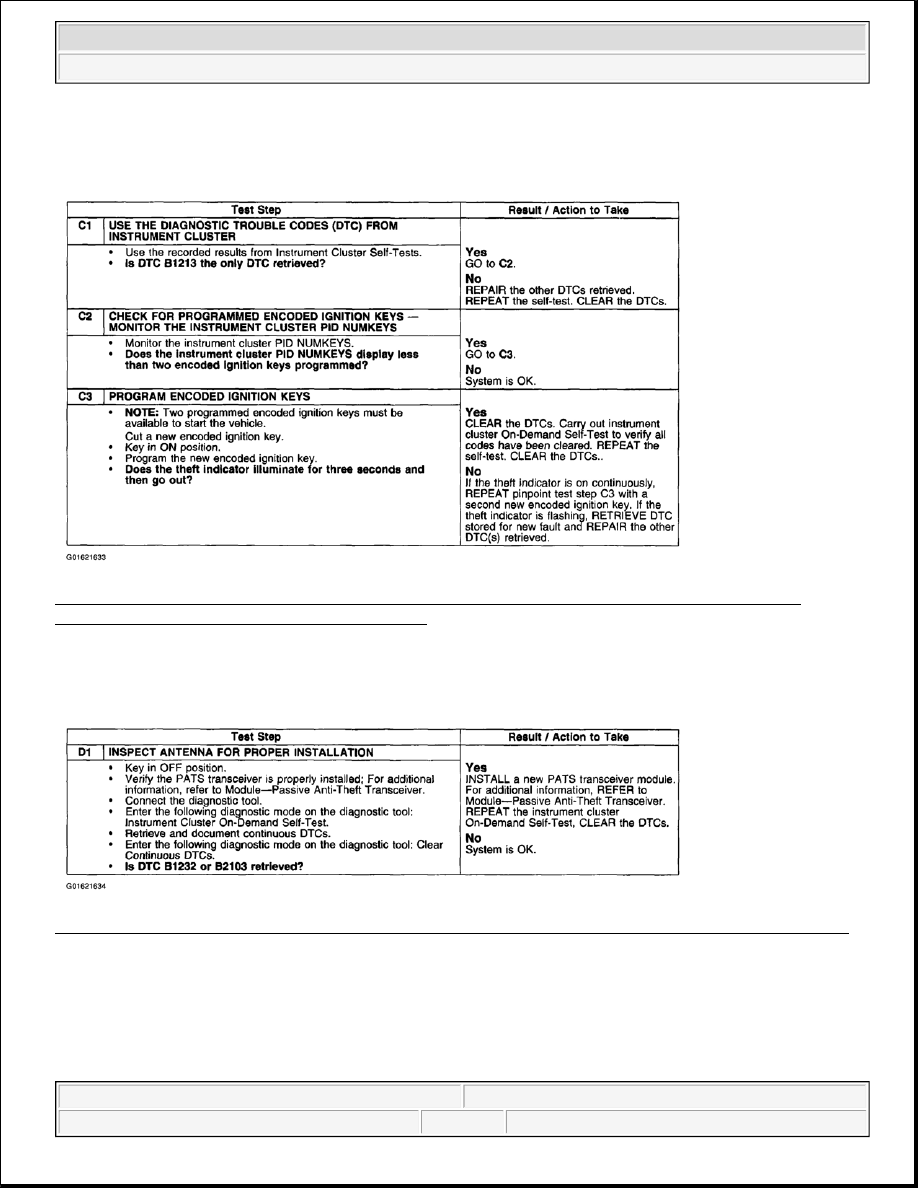

Fig. 11: Pinpoint Test C: Anti-Theft System Does Not Operate Correctly - Anti-Theft Number Of
Programmed Keys Is Below Minimum (C1 - C3)
Courtesy of FORD MOTOR CO.

PINPOINT TEST D: ANTI-THEFT SYSTEM DOES NOT OPERATE CORRECTLY - ANTENNA NOT CONNECTED

Fig. 12: Pinpoint Test D: Anti-Theft System Does Not Operate Correctly - Antenna Not Connected (D1)
Courtesy of FORD MOTOR CO.

PINPOINT TEST E: THE ANTI-THEFT SYSTEM DOES NOT OPERATE CORRECTLY - PATS IGNITION KEY
TRANSPONDER SIGNAL IS NOT RECEIVED DAMAGED OR NON-PATS KEY

NOTE:

Large metallic objects or devices such as the Mobil Speedpass or a second key
on the same key ring as the PATS ignition key may cause vehicle starting



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Anti-Theft-PATS - F150 Pickup

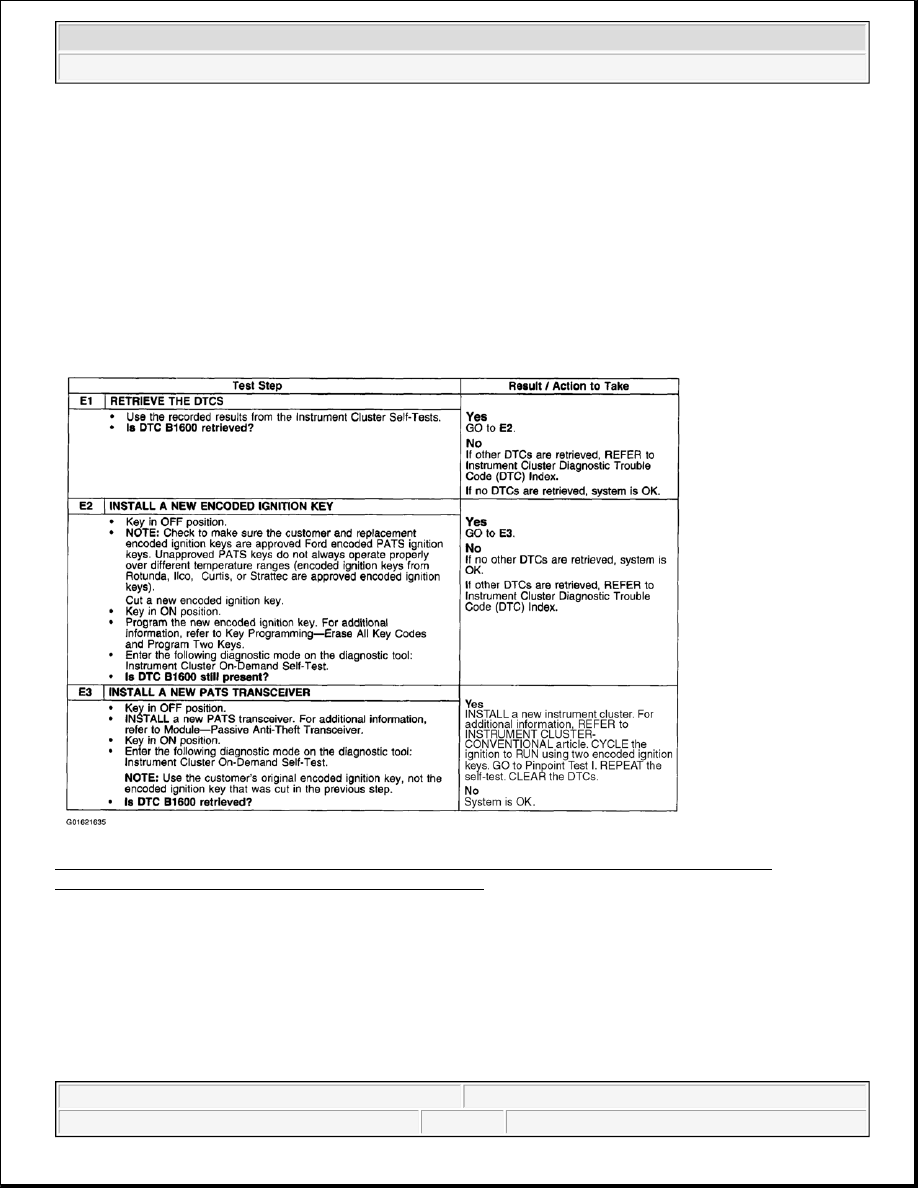

Fig. 13: Pinpoint Test E: Anti-Theft System Does Not Operate Correctly - PATS Ignition Key
Transponder Signal Is Not Received Damaged (E1 - E3)
Courtesy of FORD MOTOR CO.

PINPOINT TEST F: THE ANTI-THEFT SYSTEM DOES NOT OPERATE CORRECTLY - PATS RECEIVED INCORRECT
KEY-CODE FROM IGNITION KEY TRANSPONDER (UNPROGRAMMED ENCODED IGNITION KEY)

problems and record DTCs under certain conditions. If a fault cannot be
identified, examine the customer's key for such objects or devices. If present,
inform the customer that they need to keep these objects from touching the
PATS ignition key while starting the engine. These objects and devices cannot
damage the PATS ignition key, but can cause a momentary problem if they are
too close to the key during engine start. If a problem occurs, turn ignition OFF
and restart the engine with all other objects on the key ring held away from the
ignition key. Check to ensure the encoded ignition key used by the customer is
an approved Ford encoded ignition key (encoded ignition keys from Rotunda,
Ilco, Curtis, or Strattec are approved Ford encoded ignition keys).

NOTE:

Large metallic objects or devices such as the Mobil Speedpass or a second key
on the same key ring as the PATS ignition key may cause vehicle starting
problems and record DTCs under certain conditions. If a fault cannot be
identified, examine the customer's key for such objects or devices. If present,



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Anti-Theft-PATS - F150 Pickup
