Dongfeng DFA1063DJ10 (14)-301/303. Manual - part 33

Electric System

EL-13

Horn

Horn

Press the horn button, the normal-open contact of the horn relay is connected and make the electric horn

work.

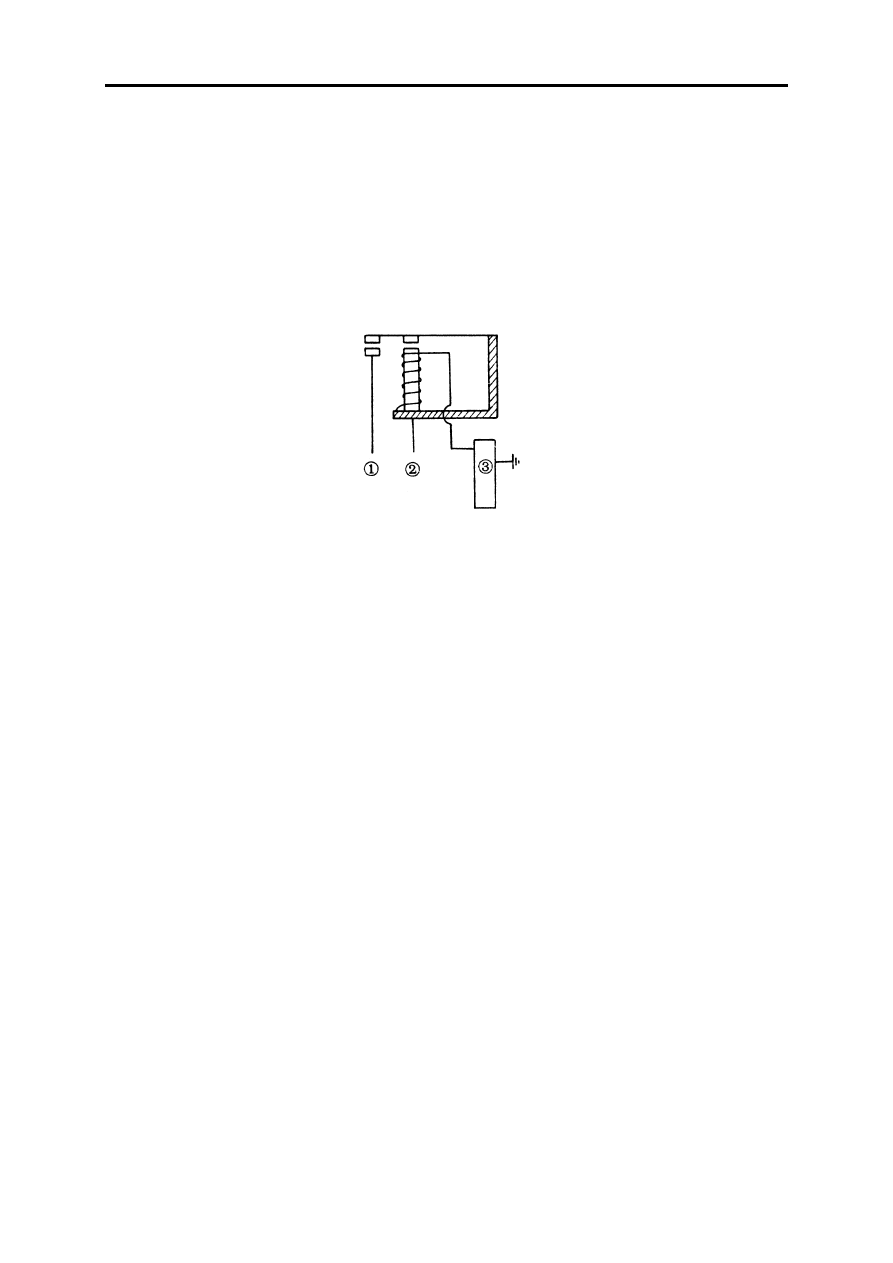

Horn relay

Decrease the current flowing through horn button via an iron core with high resistance so as to prevent the

horn button from burning out.

1.To horn
2.To power supply
3.To horn button

Electric  System

EL-14

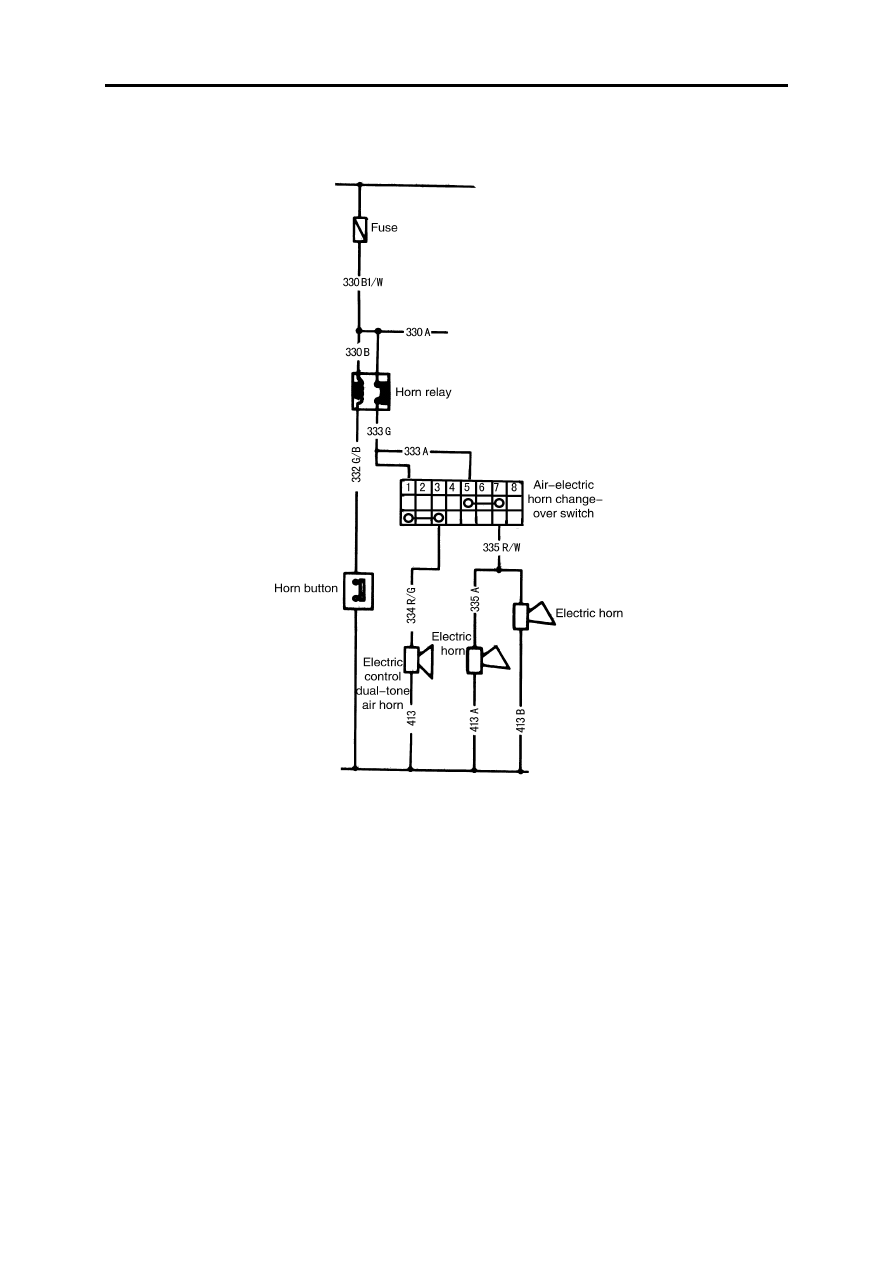

Electric wiring diagram

Electric System

EL-15

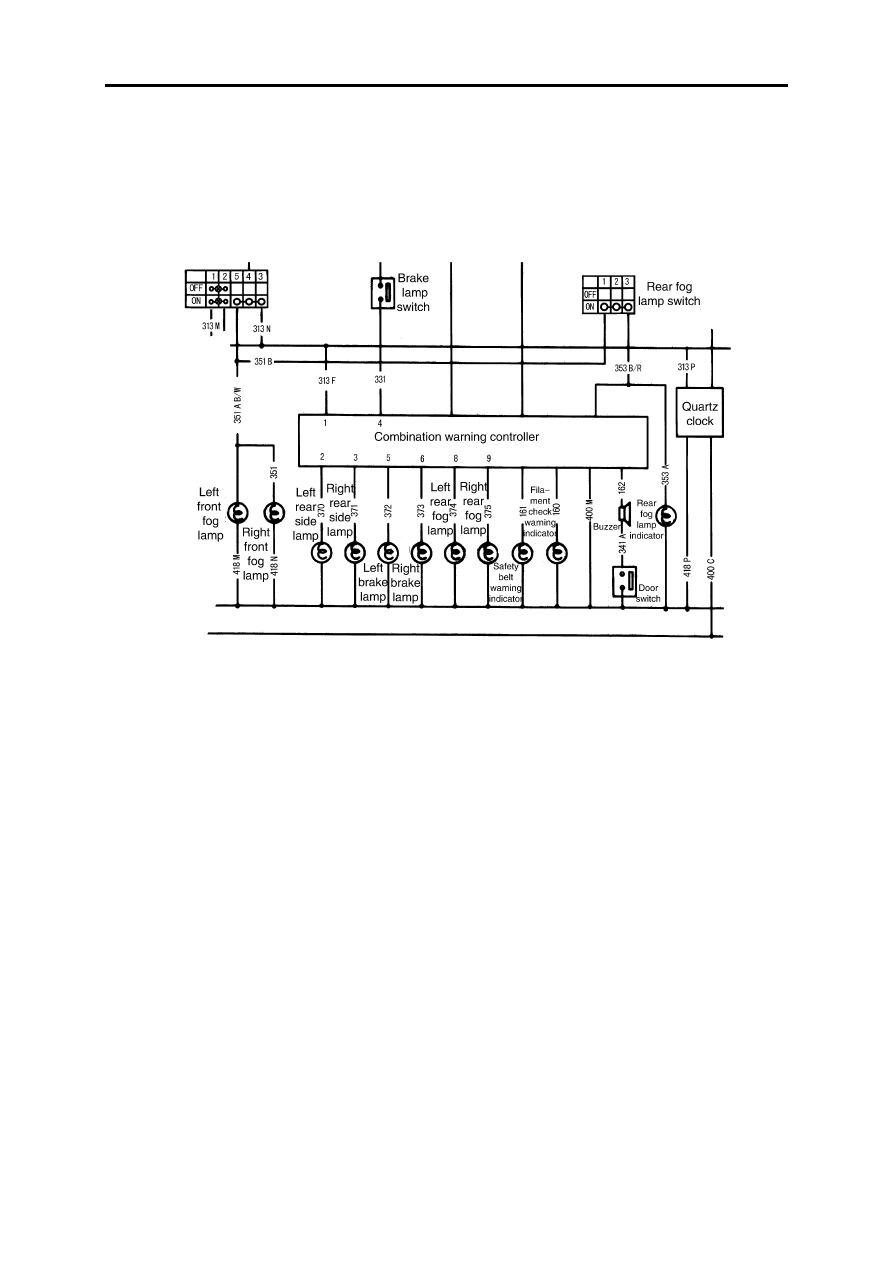

Fog Lamps

Double rocker switch in parallel is used as a fog switch. That is because when the front lamps go on, the tail

lamps, license lamp, instrument and quartz clock illuminators should be all lighted simultaneously, while the
foglamp is not included, but when the foglamp goes on, the front lamps, tail lamps, license lamp, instrument and
quartz clock illuminator should be all lighted.

Electric  System

EL-16

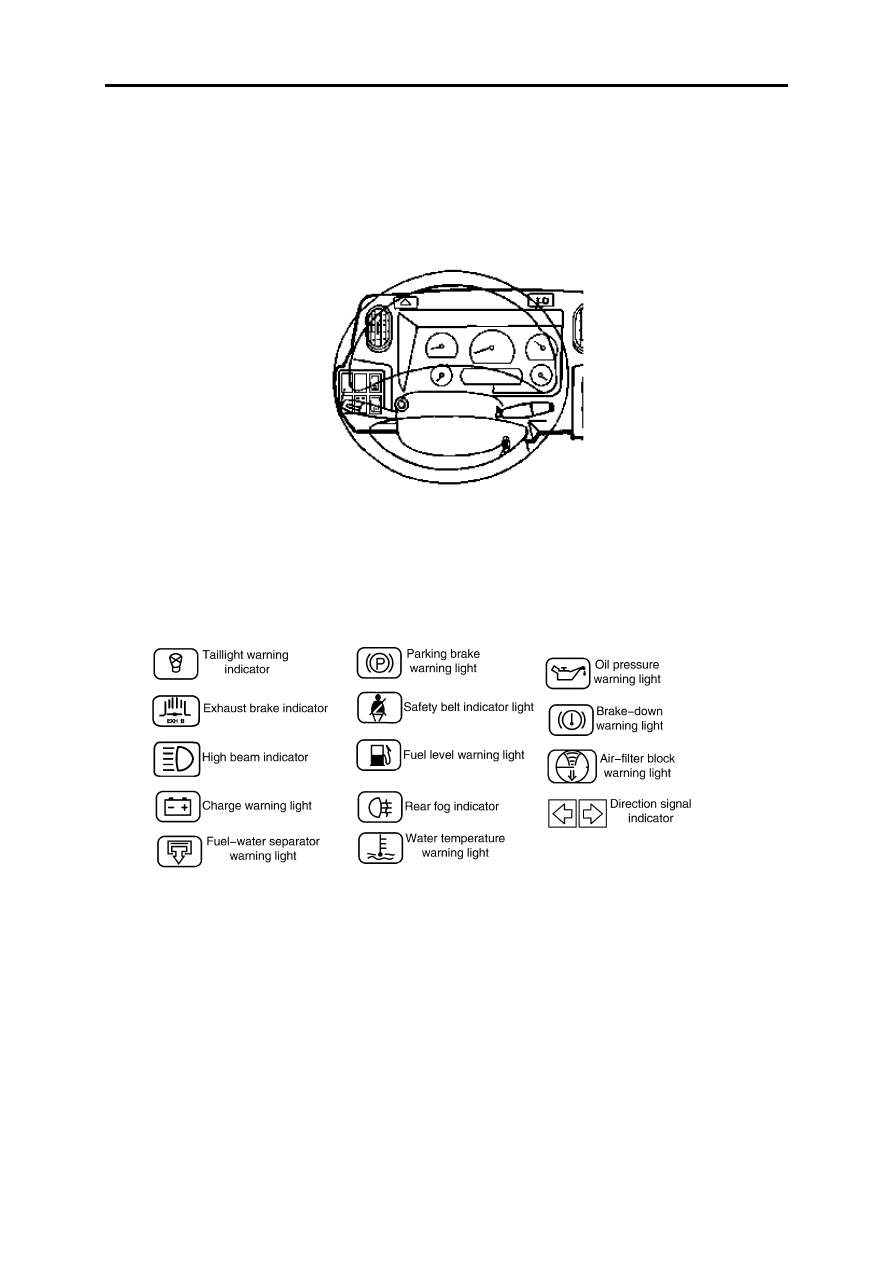

Instruments

Structure

This part consists of air pressure meter, fuel meter, water temperature meter, tachometer and speedometer.

Name of the indicators and warning lights
