HEADLAMP EXIT DELAY

 (IF EQUIPPED)

After you switch the ignition off, you can
switch the headlamps on by pulling the
direction indicator lever toward you. You will
hear a short tone. The headlamps will switch
off automatically after three minutes with any
door open or 30 seconds after the last door
has been closed. You can cancel this feature
by pulling the direction indicator toward you
again or switching the ignition on.

DAYTIME RUNNING LAMPS -
VEHICLES WITH: CONFIGURABLE
DAYTIME RUNNING LAMPS

WARNING: The daytime running

lamps system does not activate the rear
lamps and may not provide adequate
lighting during low visibility driving
conditions. Make sure you switch the
headlamps on, as appropriate, during all
low visibility conditions. Failure to do so
may result in a crash.

Switch the daytime running lamps on or off
using the touchscreen:

1. Select Settings.  See Settings (page 488).

2. Select Vehicle.

3. Select Lighting.

The daytime running lamps turn on when:
1. The lamps are on in the information

display.

2. You switch the ignition on.
3. The transmission is not in park (P) for

vehicles with automatic transmissions or
you release the parking brake for
vehicles with manual transmissions.

4. The lighting control is in the autolamps

position.

5. The headlamps are off.

The other lighting control switch positions
do not turn on the daytime running lamps.

If the daytime running lamps are off in the
information display, the lamps stay off in all
switch positions.

DAYTIME RUNNING LAMPS -
VEHICLES WITH: DAYTIME
RUNNING LAMPS (DRL)

WARNING: The daytime running

lamps system does not activate the rear
lamps and may not provide adequate
lighting during low visibility driving
conditions. Make sure you switch the
headlamps on, as appropriate, during all
low visibility conditions. Failure to do so
may result in a crash.

The system turns the lamps on in daylight
conditions.

To switch the system on, switch the lighting
control to any position except headlamps.

FRONT FOG LAMPS

 (IF EQUIPPED)

Switching the Front Fog Lamps On or
Off

Only switch the front fog lamps on during
reduced visibility.

105

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Lighting

You can switch the front fog lamps on if any
of the following occur:
•

You set the lighting control to the parking
lamps position.

•

You set the lighting control to the
headlamps position.

•

You set the lighting control to the
autolamps position and the headlamps
are on.

The front fog lamp button is on the lighting
control.

Press the button to switch the front
fog lamps on or off.

Note: The brightness of the daytime running
lamps may decrease when the front fog
lamps are switched on.

Front Fog Lamp Indicator

It illuminates when you switch the
front fog lamps on.

ADAPTIVE HEADLAMPS

 (IF EQUIPPED)

About Adaptive Headlamps

The headlamps are designed to adapt when
you are steering around a curve, or if the
camera detects lane markings indicating a
curve or traffic signs indicating an
intersection.

The system is designed to operate if all of
the following occur:
•

You switch the system on through your
vehicle settings.

•

You set the lighting control to the
autolamps position.

•

The ambient light level is low enough that
high beams are required.

106

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Lighting

Steering Around a Curve

E161714

B

A

Without adaptive headlamps.

A

B

With adaptive headlamps.

Camera Detects Lane Markings

 (If Equipped)

WARNING: Inspect and replace the

windshield wiper blades regularly to make
sure the camera sensor has a clear view.
The windshield wiper blades must be the
correct length.

E267903

107

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Lighting

Camera Detects Traffic Signs

 (If Equipped)

E292505

Note: The camera only detects traffic signs
if your vehicle speed is below 31 mph
(50 km/h).

Switching Adaptive Headlamps On or
Off

Use the touchscreen to select the following:

1. Select Settings.  See Settings (page 488).
2. Select Vehicle.
3. Select Lighting.

DIRECTION INDICATORS

E273180

Push the lever up or down to use
the direction indicators.

Indicating a Lane Change

Tap the lever up or down to make the
direction indicators flash three times to
indicate a lane change.

WELCOME LIGHTING

The Lincoln welcome mat projection lights
are on the bottom of the exterior mirror
housings. They project an image onto the
ground a short distance from your vehicle
when welcome lighting or lighted entry turns
on.

For auto-fold mirrors, the Lincoln welcome
mat turns on when welcome lighting or
lighted entry turns on and the mirrors fold in
upon locking or using the switch on the door.

Note: Moisture, frost and ice build-up or
other types of contamination on the surface
of the light lens can cause non-permanent
distortion or reduced brightness of the
image. Do not use abrasive materials to
clean the lens.

Note: If you enable auto-fold and then you
fold the mirrors in to the door window glass,
the welcome mats do not turn on.

Switching the Welcome Lighting On or
Off

Use the touchscreen to select the following:

108

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Lighting

1. Select Settings.  See Settings (page 488).

2. Select Vehicle.
3. Select Lighting.

INTERIOR LAMPS

The lamps turn on under the following
conditions:
•

You open any door.

•

You press a button on the remote control.

•

You press the all lamps on button on the
overhead console.

Front Interior Lamp

E301059

The front interior lamp switches are on the
overhead console.

Note: The position of each button on the
overhead console depends on your vehicle.

All Lamps On or Off

Press to switch all interior lamps
on or off.

Individual Map Lamps

Touch the lamp lens to switch the map lamps
on and off.

Interior Lamp Function

Press to switch the interior lamp
function on and off.

When the interior lamp function is off and
you open a door, the courtesy and door
lamps stay off.

When the interior lamp function is on and
you open a door, the courtesy and door
lamps turn on.

Note: The indicator lamp lights amber when
the door function is off.

Rear Interior Lamps

E281231

The rear interior lamps may be above the
rear seat or above the rear windows.

Press to switch the lamps on or off.

Note: If the rear lamps are switched on
through the overhead console, you cannot
switch them off with the rear lamp switch.

AMBIENT LIGHTING

 (IF EQUIPPED)

Use the touchscreen to select the following:

109

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Lighting

E280315

Select the settings option on the
feature bar.

E279027

Select ambient lighting.

E281470

Switching Ambient Lighting On

Touch a color once.

Changing the Color

Touch any color once.

Adjusting the Brightness

Drag the selected color up or down.

Switching Ambient Lighting Off

Touch the selected color once or drag the
selected color down to zero brightness.

110

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Lighting

ABOUT AUTOMATIC HIGH BEAM
CONTROL

The system turns on high beams if it is dark
enough and no other traffic is present. If it
detects an approaching vehicle’s headlamps
or tail lamps, or street lighting ahead, the
system turns the high beams off. Low beams
remain on.

A camera sensor, centrally mounted behind
the windshield of your vehicle, continuously
monitors conditions to turn the high beams
on and off.

SWITCHING AUTOMATIC HIGH
BEAM CONTROL ON AND OFF

WARNING: Do not use the system

in poor visibility, for example fog, heavy
rain, spray or snow.

Use the touchscreen to select the following:

1. Select Settings.  See Settings (page 488).

2. Select Vehicle.

3. Select Lighting.

Activating the Automatic High Beam
Control

E281240

Switch the lighting control to the
autolamps position.  See
Autolamps (page 104).

Note: The lighting control defaults to
autolamps each time you switch your vehicle
on.

When active, the high beams turn on if:
•

The ambient light level is low enough.

•

There is no traffic in front of your vehicle.

•

The vehicle speed is greater than
approximately 32 mph (51 km/h).

When active, the high beams turn off if:
•

The ambient light level is high enough
that high beams are not required.

•

The system detects an approaching
vehicle's headlamps or tail lamps.

•

The system detects severe rain, snow or
fog.

•

The camera is blocked.

•

The vehicle speed falls below
approximately 27 mph (44 km/h).

Note: The deactivation speed is lower on
curves.

Note: High beam reactivation may be
delayed in certain curvy road situations.

Note: The system may not operate properly
if the sensor is blocked. Keep the windshield
free from obstruction or damage.

Note: The system may not operate properly
in cold or inclement conditions. You can
switch on the high beams by overriding the
system.

Note: If the system detects a blockage, for
example bird droppings, bug splatter, snow
or ice, the system goes into low beam mode
until you clear the blockage. A message may
appear in the information display if the
camera is blocked.

Note: Using much larger tires or equipping
vehicle accessories such as snowplows can
modify your vehicle's ride height and
degrade automatic high beam control
performance.

111

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Automatic High Beam Control

AUTOMATIC HIGH BEAM
CONTROL INDICATORS

The indicator illuminates to confirm
when the system is ready to assist.

OVERRIDING AUTOMATIC HIGH
BEAM CONTROL

WARNING: The system does not

relieve you of your responsibility to drive
with due care and attention. You may need
to override the system if it does not turn
the high beams on or off.

WARNING: You may need to

override the system when approaching
other road users.

WARNING: You may need to

override the system during inclement
weather.

E273182

Push the lever away from you to switch
between high beam and low beam.

112

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Automatic High Beam Control

POWER WINDOWS

WARNING: Do not leave children

unattended in your vehicle and do not let
them play with the power windows. Failure
to follow this instruction could result in
personal injury.

WARNING: When closing the power

windows, verify they are free of obstruction
and make sure that children and pets are
not in the proximity of the window
openings.

E295317

Note: You may hear a pulsing noise when
just one of the windows is open. Lower the
opposite window slightly to reduce this
noise.

Press the switch to open the window.

Lift the switch to close the window.

One-Touch Down

Press the switch fully and release it.  Press
again or lift it to stop the window.

One-Touch Up

Lift the switch fully and release it. Press or
lift it again to stop the window.

Resetting One-Touch Up

Start the engine.

1. Lift and hold the window switch until you

fully close the door window. Continue to
hold the switch for a few seconds after
you close the window.

2. Release the window switch.

3. Press and hold the window switch until

you fully open the door window.

4. Release the window switch.

5. Lift and hold the window switch until you

fully close the window.

6. Test for correct window operation by

carrying out the one-touch down and
one-touch up features.

Bounce-Back

The window will stop automatically while
closing.  It reverses some distance if there
is an obstacle in the way.

Overriding the Bounce-Back Feature

WARNING: If you override

bounce-back, the window does not reverse
if it detects an obstacle. Take care when
closing the windows to avoid personal
injury or damage to your vehicle.

Pull up the window switch and hold within a
few seconds of the window reaching the
bounce-back position.  The window travels
up with no bounce-back protection.  The
window stops if you release the switch
before the window fully closes.

113

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Windows and Mirrors

Window Lock

E295318

Press the control to lock or unlock the rear
window controls.  It illuminates when you
lock the rear window controls.

Accessory Delay

You can use the window switches for several
minutes after you switch the ignition off or
until you open either front door.

GLOBAL OPENING AND CLOSING

You can use the remote control to operate
the windows with the ignition off.

Note: You can enable or disable this feature
in the information display or see an
authorized dealer.  See Remote Control
(page 64).

Note: To operate this feature, accessory
delay must not be active.

Opening the Windows

You can only open the windows for a short
time after you unlock your vehicle with the
remote control. After you unlock your vehicle,
press and hold the remote control unlock
button to open the windows. Release the
button once movement starts. Press the lock
or unlock button to stop movement.

Closing the Windows

WARNING: When closing the power

windows, you should verify they are free
of obstructions and make sure that children
and pets are not in the proximity of the
window openings.

To close the windows, press and hold the
remote control lock button. Release the
button once movement starts. Press the lock
or unlock button to stop movement.

EXTERIOR MIRRORS

Power Exterior Mirrors

WARNING: Do not adjust the mirrors

when your vehicle is moving. This could
result in the loss of control of your vehicle,
serious personal injury or death.

114

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Windows and Mirrors

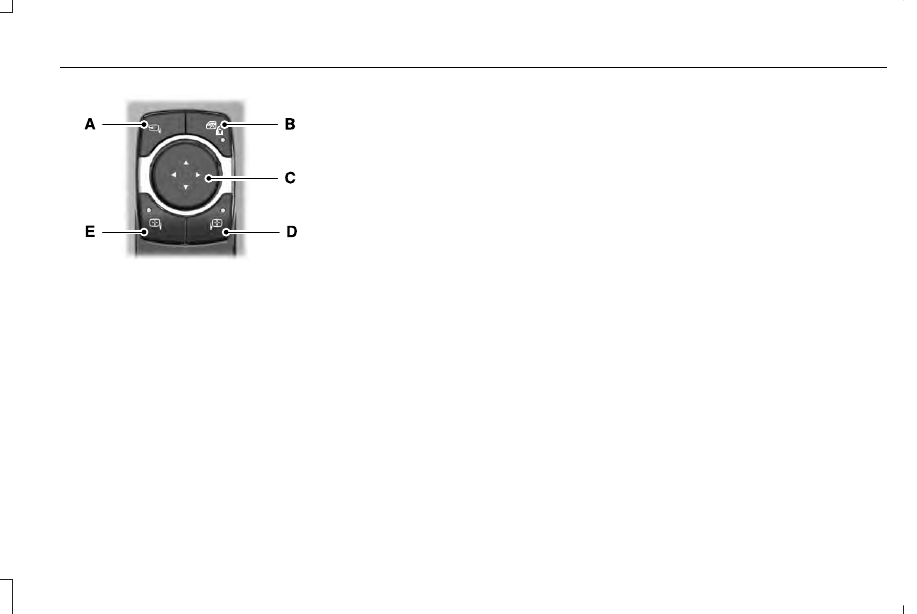

E295322

Power-folding mirror control.

A

Window lockout.

B

Adjustment control.

C

Right-hand mirror.

D

Left-hand mirror.

E

To adjust your mirrors, switch your vehicle
on (with the ignition in accessory mode or
the engine running) and then:
1. Select the mirror you want to adjust. The

control lights.

2. Use the adjustment control to adjust the

position of the mirror.

3. Press the mirror control again. The

control light turns off.

Fold-Away Exterior Mirrors

Push the mirror toward the door window
glass.  Make sure that you fully engage the
mirror in its support when returning it to its
original position.

Auto-Folding Mirrors

The exterior mirrors automatically fold in
toward the glass after you place the
transmission into park (P), turn off the vehicle,
open and close the driver's side door and
lock the vehicle. The exterior mirrors
automatically unfold and return to their
driving position after you unlock the vehicle
and open and close the driver's side door.

You can switch this feature on and off
through the information display. See General
Information (page 127).

You can fold the mirrors on demand by
pressing the power-folding mirror control on
the door.  The control lights and the mirrors
fold in toward the glass.  Press the control
again to unfold the mirrors.  The control light
turns off.

Note: If you use the power-folding control to
fold the mirrors on demand with the auto
fold feature on, you must use the control
again to unfold them.

Loose Mirror

If you manually fold your power-folding
mirrors, they may not work properly even
after you re-position them. You need to reset
them if:
•

The mirrors vibrate when you drive.

•

The mirrors feel loose.

•

The mirrors do not stay in the folded or
unfolded position.

•

One of the mirrors is not in its normal
driving position.

115

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Windows and Mirrors

To reset the power-fold feature, use the
power-folding mirror control to fold and
unfold the mirrors. You may hear a loud noise
as you reset the power-folding mirrors. This
sound is normal. Repeat this process as
needed each time you manually fold the
mirrors.

Heated Exterior Mirrors

See Heated Exterior Mirrors (page 164).

Memory Mirrors

You can save and recall the mirror positions
through the memory function.  See Memory
Function (page 175).

Auto-dimming Feature

The driver exterior mirror dims when the
interior auto-dimming mirror turns on.

Direction Indicator Mirrors

When the vehicle is running, the
forward-facing portion of the appropriate
mirror housing blinks when you switch on
the direction indicator.

Puddle Lamps

The lamps on the bottom part of the mirror
housing light when you use your transmitter
to unlock the doors or when you open a
door.

Blind Spot Information System

See Blind Spot Information System (page
285).

INTERIOR MIRROR

WARNING: Do not adjust the mirrors

when your vehicle is moving. This could
result in the loss of control of your vehicle,
serious personal injury or death.

Note: Do not clean the housing or glass of
any mirror with harsh abrasives, fuel or other
petroleum or ammonia-based cleaning
products.

You can adjust the interior mirror to your
preference. Some mirrors also have a second
pivot point. This lets you move the mirror
head up or down and from side to side.

Auto-Dimming Mirror

Note:  Do not block the sensors on the front
and back of the mirror.  A rear center
passenger or raised rear center head
restraint may also block light from reaching
the sensor.

The mirror dims to reduce the effect of bright
light from behind. It returns to normal when
the bright light from behind is no longer
present or if you shift into reverse (R).

116

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Windows and Mirrors

SUN VISORS

E138666

Rotate the sun visor toward the side window
and extend it rearward for extra shade.

Illuminated Vanity Mirror

E162197

Lift the cover to switch the lamp on.

MOONROOF

WARNING: Do not leave children

unattended in your vehicle and do not let
them play with the moonroof. Failure to
follow this instruction could result in
personal injury.

WARNING: When closing the

moonroof, verify that it is free of
obstruction and make sure that children
and pets are not in the proximity of the roof
opening.

The moonroof controls are located on the
overhead console and have a one-touch
open and close feature. To stop it during
one-touch operation, press the control a
second time.

117

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Windows and Mirrors

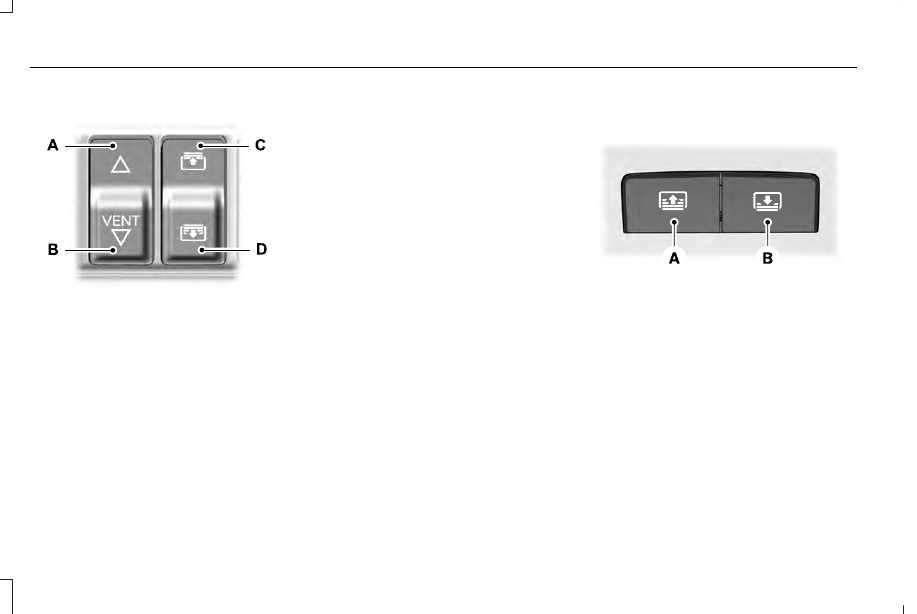

Opening and Closing the Moonroof

E295253

Moonroof open. Press and release
to open the moonroof.

A

Moonroof vent/close. Press and
release to vent or close the
moonroof.

B

Sunshade open. Press and release
to open the sunshade. The
sunshade opens automatically with
the moonroof. You can also open
the sunshade with the moonroof
closed.

C

Sunshade close. Press and release
to close the sunshade.

D

Note: The sunshade stops short of its fully
opened position for the comfort of rear
passengers. To open the sunshade fully,
press the control again.

Note: When closing the sunshade stops at
the first panel for the dual panel moonroof.
Press and release again to continue to fully
close sunshade.

Rear SunShade Opening and Closing

(If Equipped)

E297640

Sunshade close. Press and release
to close the sunshade.

A

Sunshade open. Press and release
to open the sunshade. The
sunshade opens automatically with
the moonroof. You can also open
the sunshade with the moonroof
closed.

B

Note: Rear sunshade open and close
controls may be located on the rear
console or fold down armrest bezel.

118

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Windows and Mirrors

Note: The sunshade stops short of its fully
opened position for the comfort of rear
passengers. To open the sunshade fully,
press the control again.

Bounce-Back

The moonroof automatically reverses some
distance if an obstacle is detected while
closing.

To override this feature, press and hold the
moonroof close control within two seconds
after the roof comes to a stop following a
bounce-back reversal.

119

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Windows and Mirrors

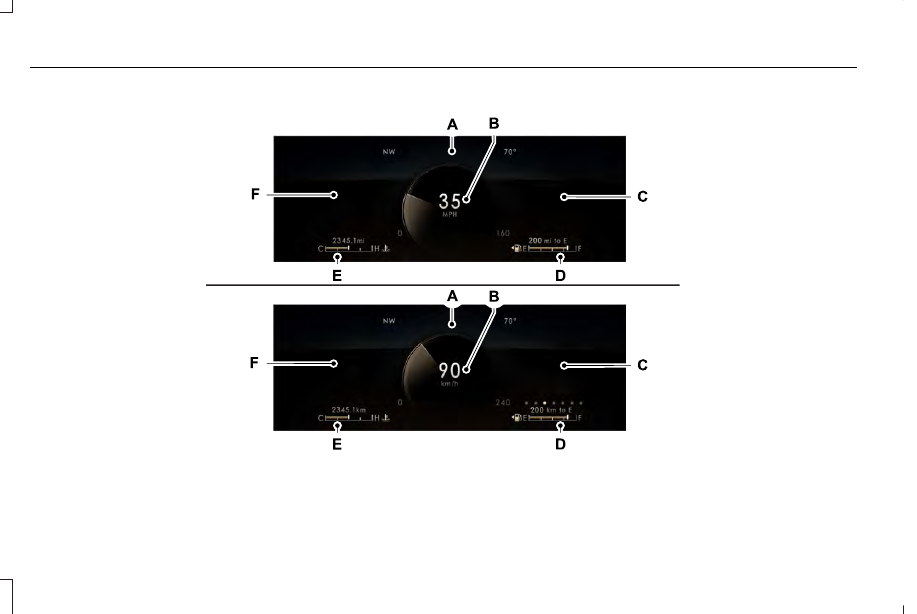

GAUGES

Note: Clusters shown in single gauge view.

E297320

Status Bar.

A

Speedometer.

B

120

Aviator (CTV) Canada/United States of America, enUSA, Edition date: 201902, Second-Printing

Instrument Cluster
