OPENING DIMENSIONS

SPECIFICATIONS

OPENING DIMENSIONS

OPENING DIMENSIONS INDEX

DESCRIPTION

FIGURE

WINDSHIELD OPENING DIMENSIONS

3

DOOR OPENING DIMENSIONS

4

CROSS BODY DIMENSIONS

5

TRUNK OPENING DIMENSIONS

6

Fig. 3 WINDSHIELD OPENING DIMENSIONS

23 - 96

BODY STRUCTURE

ZB

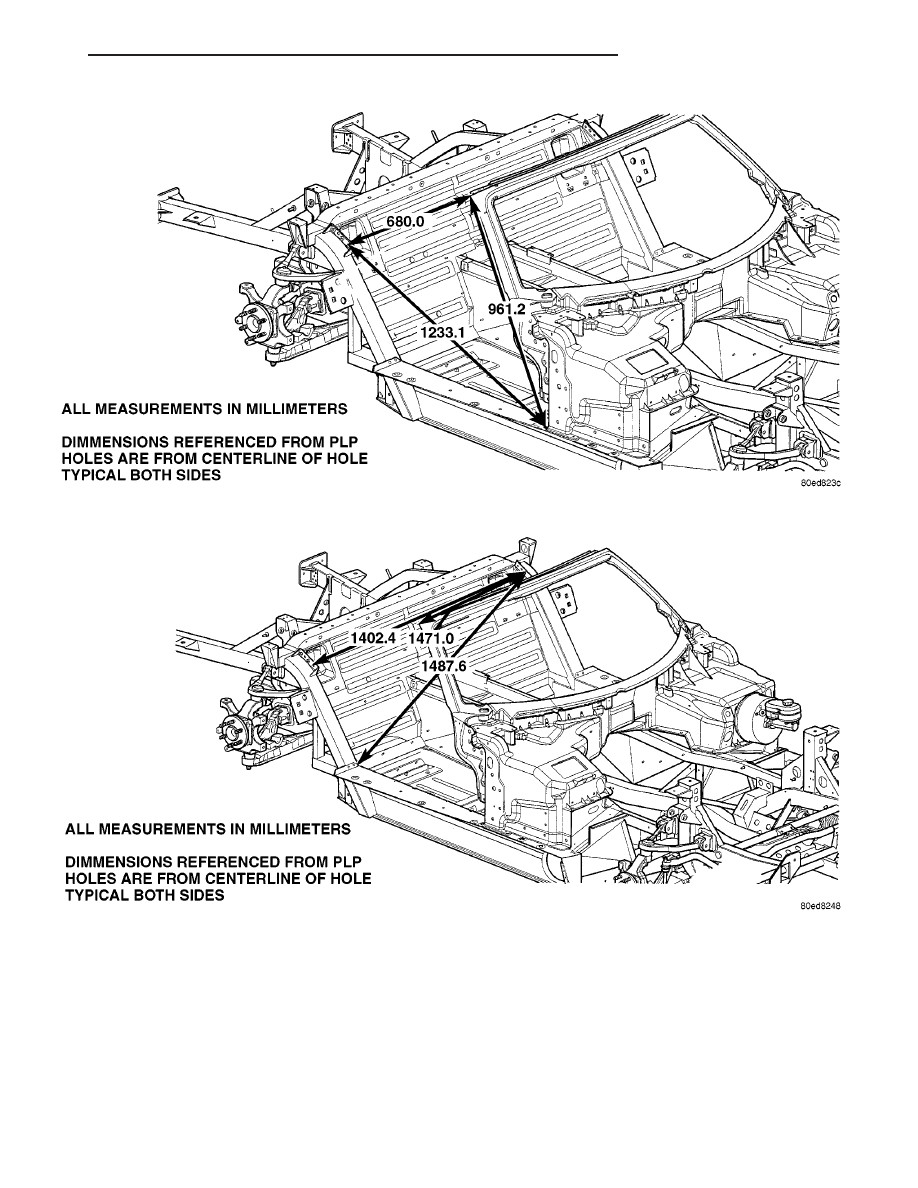

Fig. 4 DOOR OPENING DIMENSIONS

Fig. 5 CROSS BODY DIMENSIONS

ZB

BODY STRUCTURE

23 - 97

OPENING DIMENSIONS (Continued)

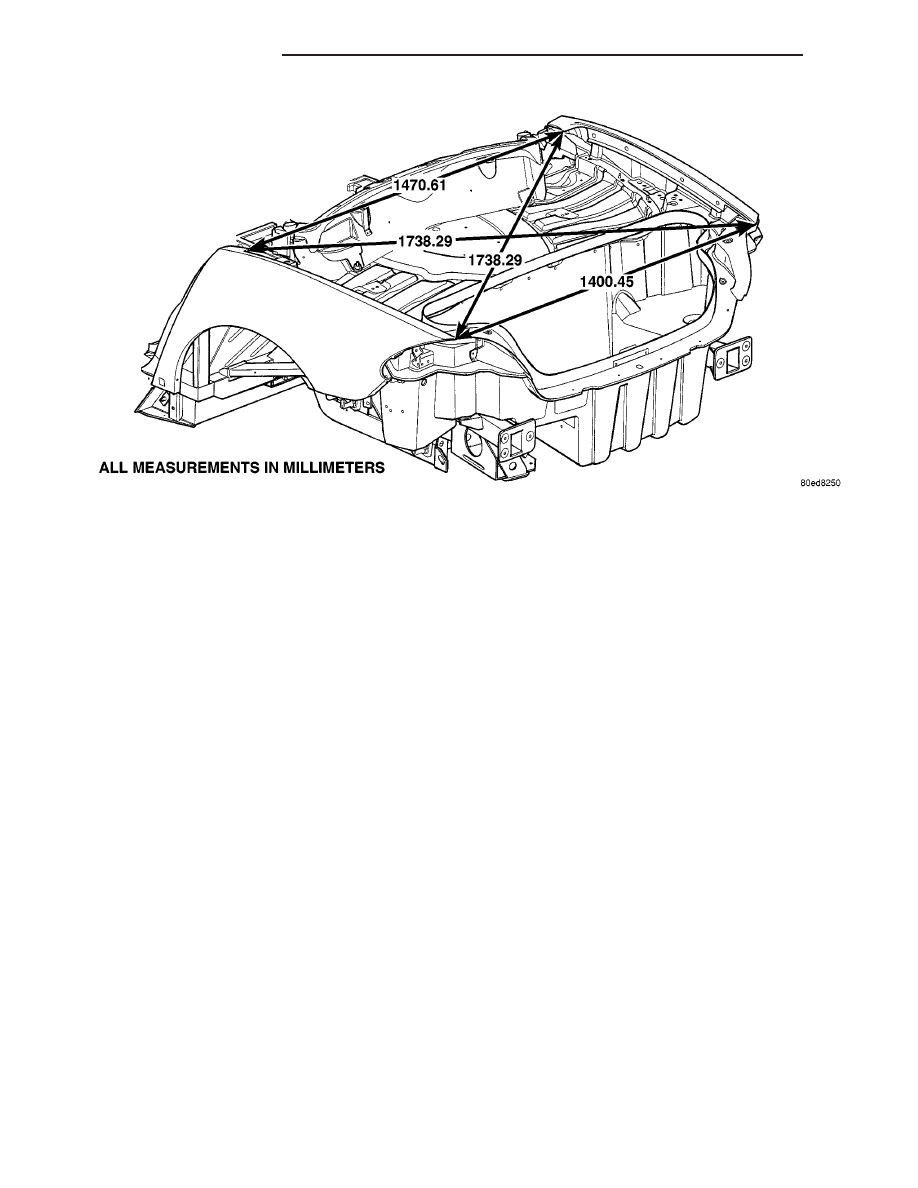

Fig. 6 TRUNK OPENING DIMENSIONS

23 - 98

BODY STRUCTURE

ZB

OPENING DIMENSIONS (Continued)

SEALER LOCATIONS

SPECIFICATIONS

SEALER LOCATIONS

SEALER LOCATION INDEX

DESCRIPTION

FIGURE

DOOR SURROUND AND DASH

ASSEMBLY

7

FRONT OF DASH PANEL AND

FRAME

8

REAR CLIP & FRAME

9

REAR QUARTER PANEL & FRAME

10

WINDSHIELD SURROUND AND

DASH ASSEMBLY

11

Fig. 7 DOOR SURROUND AND DASH ASSEMBLY

ZB

BODY STRUCTURE

23 - 99
