Dodge Caliber. Manual - part 965





3.

INTERMITTENT CONDITION

WARNING: WHEN THE ENGINE IS OPERATING, DO NOT STAND IN A DIRECT LINE WITH THE FAN. DO NOT
PUT YOUR HANDS NEAR THE PULLEYS, BELTS OR FAN. DO NOT WEAR LOOSE CLOTHING.

NOTE: The conditions that set the DTC are not present at this time. The following list may help in identi-
fying the intermittent condition.
With the engine running at normal operating temperature, monitor the scan tool parameters related to the DTC while
wiggling the wiring harness. Look for parameter values to change and/or a DTC to set.

Review the DTC When Monitored and Set Conditions. If possible, try to duplicate the conditions under which the
DTC was set.

Refer to any Technical Service Bulletins (TSB) that may apply.

Visually inspect the related wiring harness. Look for any chafed, pierced, pinched, or partially broken wires.

Visually inspect the related wiring harness connectors. Look for broken, bent, pushed out, or corroded terminals.

Were any of the above conditions present?

Yes

>> Repair as necessary.

Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

No

>> Test Complete.

4.

(B215) BRAKE SWITCH SIGNAL 2 CIRCUIT VOLTAGE

Turn the ignition off.

Disconnect the Stop Lamp Switch harness connector.

Turn the ignition on.

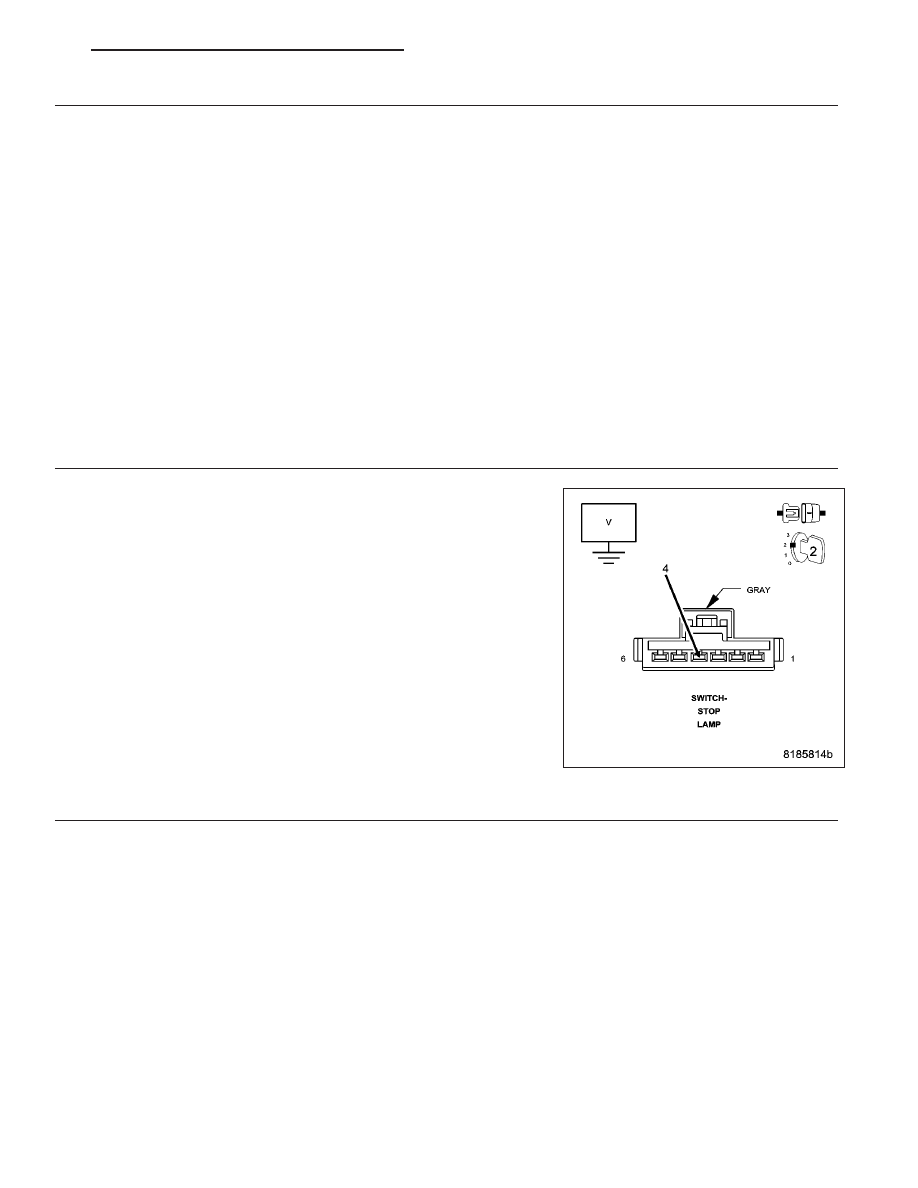

Measure the voltage between the (B215) Brake Switch Signal 2 circuit
and ground at the Stop Lamp Switch harness connector.

Is the voltage above 9.0 volts?

Yes

>> Go To 5

No

>> Go To 8

5.

STOP LAMP SWITCH - BRAKE SWITCH SIGNAL 2 CKT OPEN

While monitoring the BRAKE SWITCH 2 status with the scan tool, connect a jumper wire between ground and the
(B215) Brake Switch Signal 2 circuit.

Does the scan tool display change from PRESSED to RELEASED?

Yes

>> Adjust or replace the Stop Lamp Switch in accordance with the Service Information.

Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

No

>> Go To 6

PM

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

9 - 1147

6.

(Z967) STOP LAMP SWITCH GROUND CIRCUIT OPEN

Turn the ignition off.

Disconnect the Stop Lamp Switch harness connector.

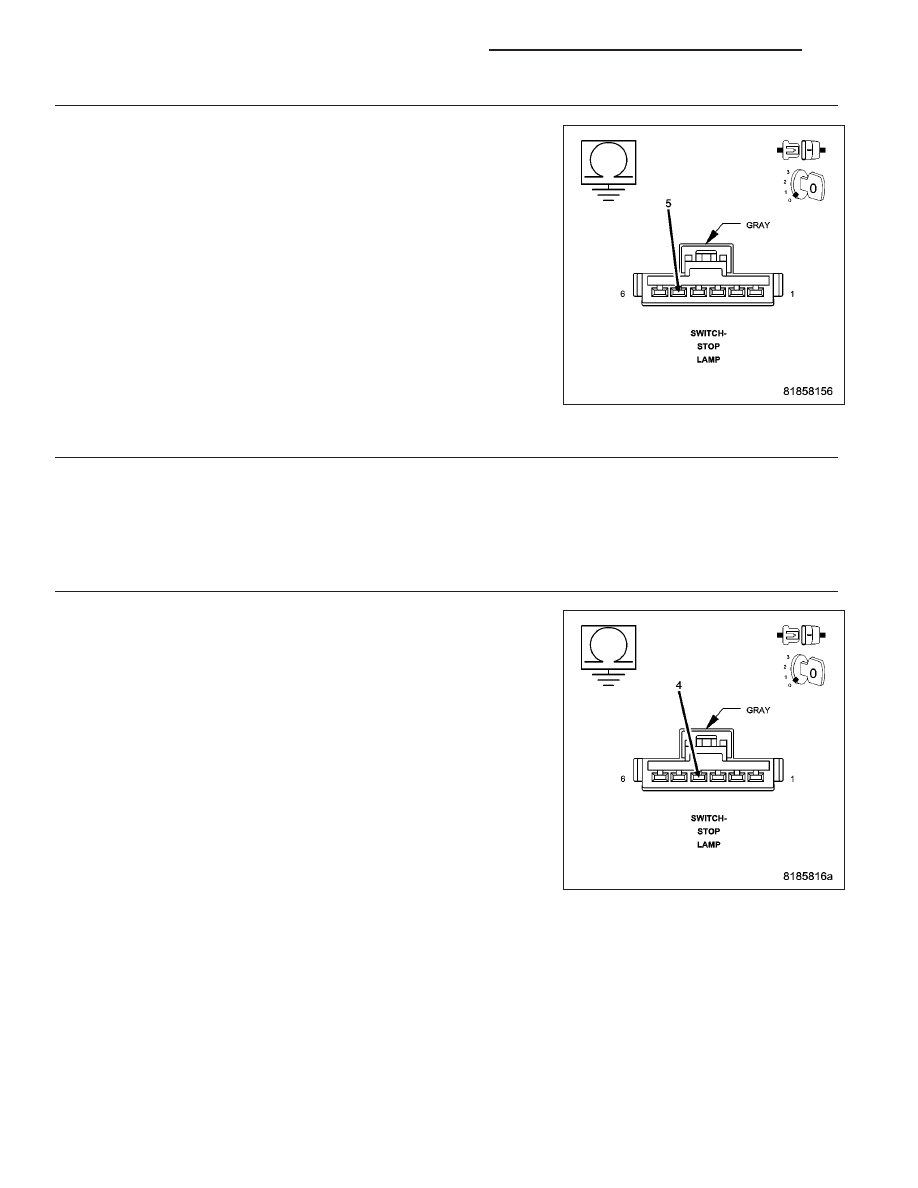

Measure the resistance between ground and the (Z967) Stop Lamp
Switch Ground circuit at the Stop Lamp Switch harness connector.

Is the resistance below 10.0 ohms?

Yes

>> Go To 7

No

>> Repair the (Z967) Stop Lamp Switch Ground circuit for an

open.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

7.

ENGINE CONTROL MODULE - INTERNAL

If there are no possible causes remaining, view repair.

Repair

Replace and program the Engine Control Module in accordance with the Service Information.

Perform the ECM VERIFICATION TEST. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

8.

(B215) BRAKE SWITCH SIGNAL 2 CIRCUIT SHORTED TO GROUND

Turn the ignition off.

Disconnect the ECM harness connectors.

Measure the resistance between ground and the (B215) Brake Switch
Signal 2 circuit at the Stop Lamp Switch harness connector.

Is the resistance above 1000 ohms?

Yes

>> Go To 9

No

>> Repair the (B215) Brake Switch Signal 2 circuit for a short

to ground.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

9 - 1148

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

PM

9.

(B215) BRAKE SWITCH SIGNAL 2 CIRCUIT OPEN

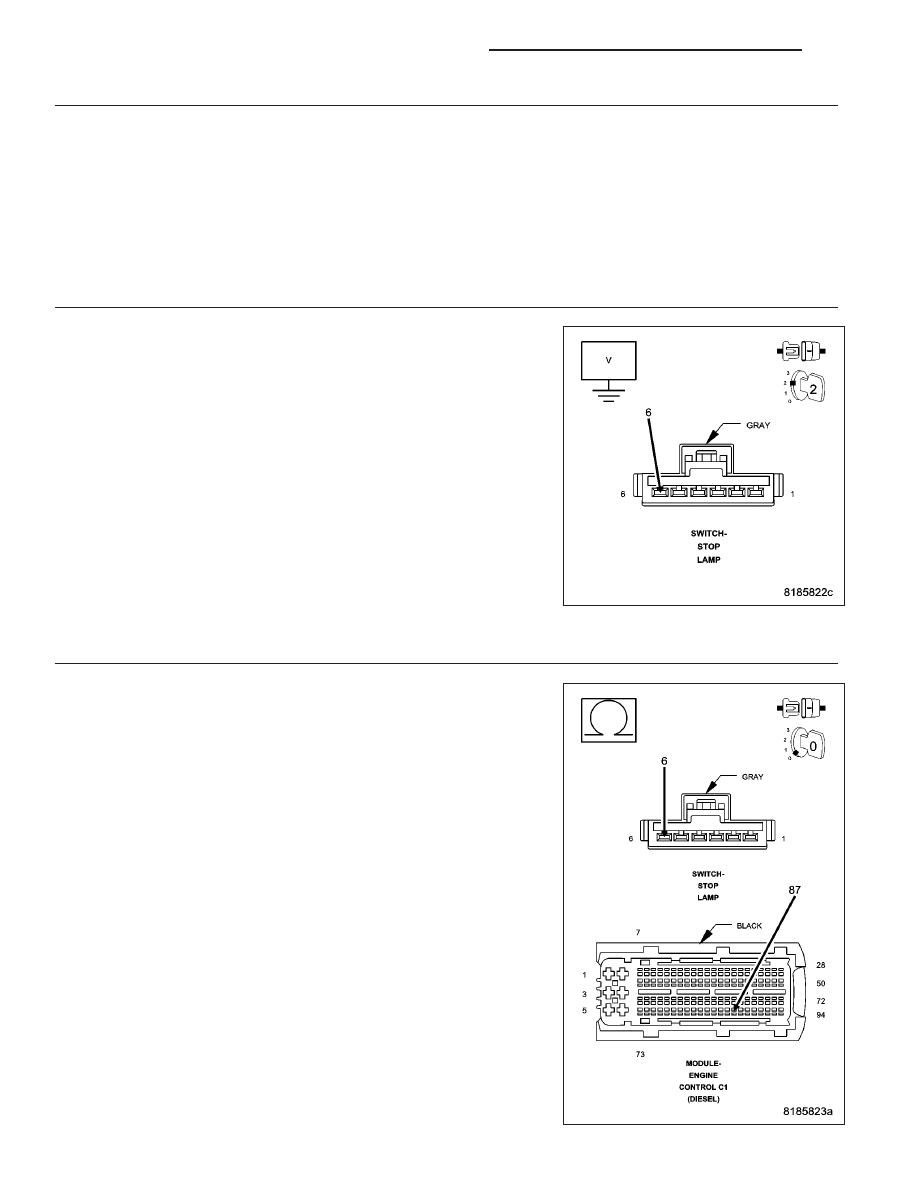

Measure the resistance of the (B215) Brake Switch Signal 2 circuit
between the Stop Lamp Switch harness connector and the ECM har-
ness connector.

Is the resistance below 10.0 ohms?

Yes

>> Go To 10

No

>> Repair the (B215) Brake Switch Signal 2 circuit for an open.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

10.

ENGINE CONTROL MODULE - BRAKE SWITCH SIGNAL 2

If there are no possible causes remaining, view repair.

Repair

Replace and program the Engine Control Module in accordance with the Service Information.

Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

11.

(A924) FUSED B+ CIRCUIT OPEN

Turn the ignition off.

Disconnect the Stop Lamp Switch harness connector.

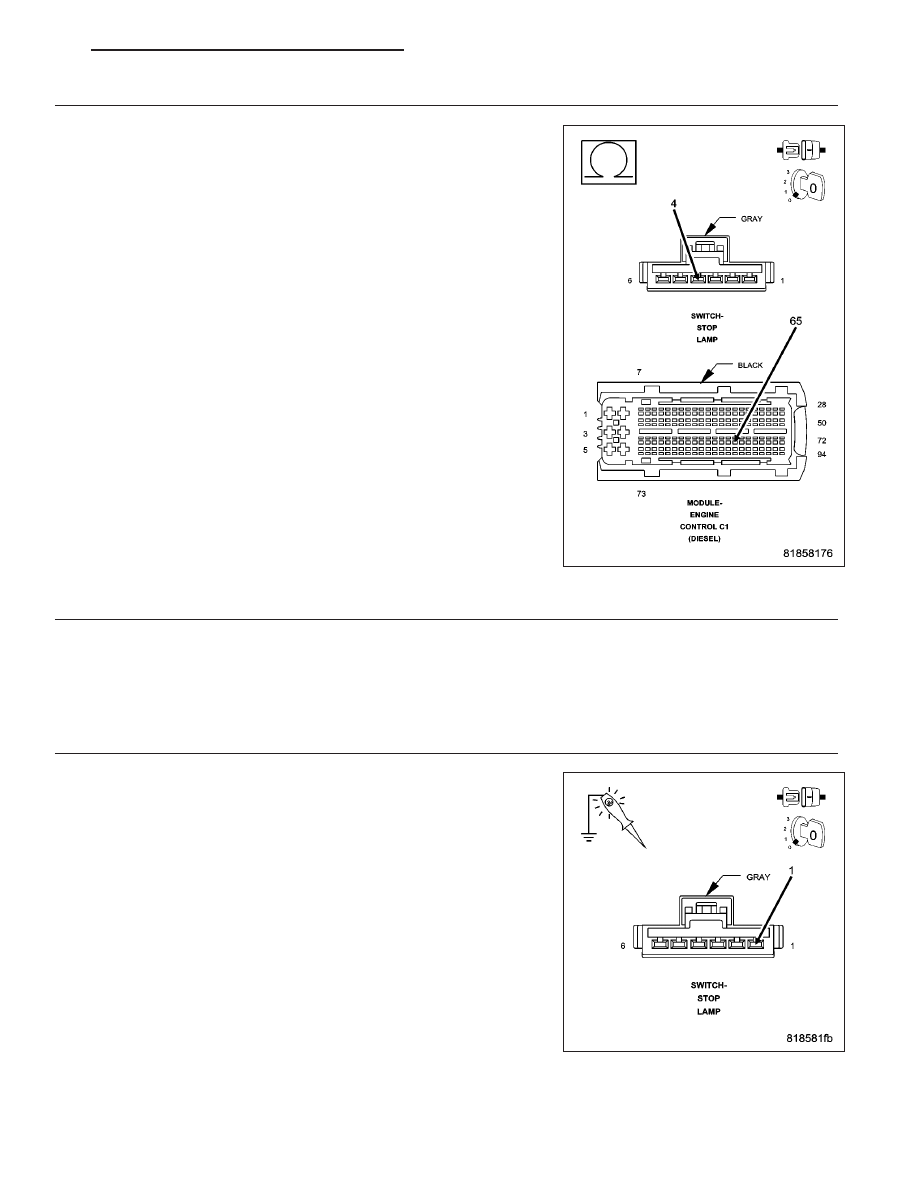

Using a 12-volt test light connected to ground, check the (A924) Fused
B+ circuit.

Does the test light illuminate brightly?

Yes

>> Go To 12

No

>> Repair the (A924) Fused B+ circuit for an open.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

PM

ENGINE ELECTRICAL DIAGNOSTICS - DIESEL

9 - 1149

12.

STOP LAMP SWITCH - BRAKE SWITCH SIGNAL 1 OPEN

Turn the ignition on.

While monitoring the BRAKE SWITCH SIGNAL 1 status with the scan tool, connect a jumper wire between the
Brake Switch Signal 1 circuit and the Fused B(+) circuit.

Does the scan tool display change from RELEASED to PRESSED?

Yes

>> Adjust or replace the Stop Lamp Switch in accordance with the Service Information.

Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)

No

>> Go To 13

13.

(B15) BRAKE SWITCH SIGNAL 1 CIRCUIT SHORTED TO VOLTAGE

Turn the ignition off.

Disconnect the ECM harness connectors.

Remove the Main Relay.

Connect a jumper wire between cavity B7 and cavity B9 of the Main
Relay connector.

Turn the ignition on.

Measure the voltage between the (B15) Brake Switch Signal 1 circuit
and ground.

Is the voltage above 1.0 volt?

Yes

>> Repair the (B15) Brake Switch Signal 1 circuit for a short to

voltage.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

No

>> Go To 14

14.

(B15) BRAKE SWITCH SIGNAL 1 CIRCUIT OPEN

NOTE: Remove the jumper wire.
Turn the ignition off.

Measure the resistance of the (B15) Brake Switch Signal 1 circuit
between the Stop Lamp Switch harness connector and the ECM har-
ness connector.

Is the resistance below 10.0 ohms?

Yes

>> Replace and program the Engine Control Module in accor-

dance with the Service Information.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)

No

>> Repair the (B15) Brake Switch Signal 1 circuit for an open.

Perform the ECM Verification Test Ver. 1. (Refer to 9 -
ENGINE - DIAGNOSIS AND TESTING)
