Dodge Caliber. Manual - part 643

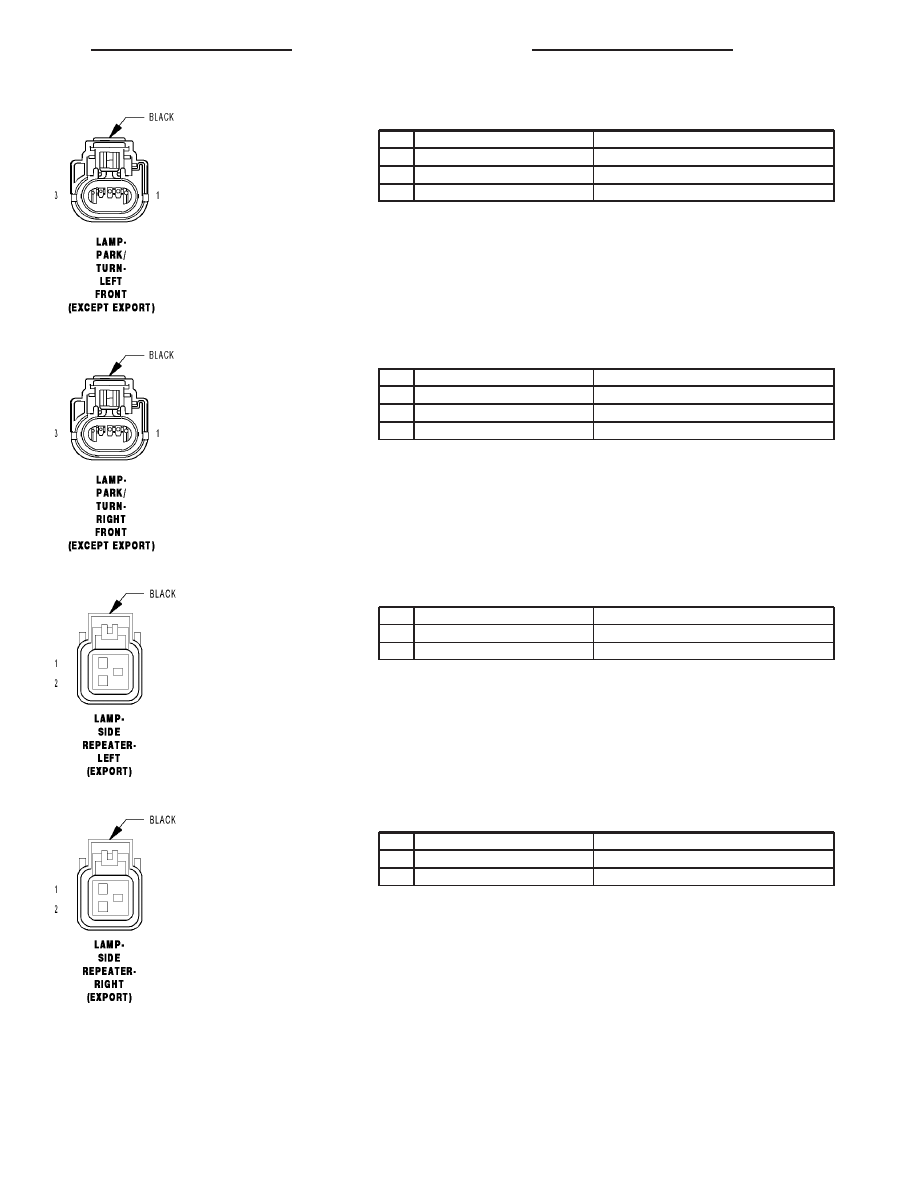

LAMP-PARK/TURN-LEFT FRONT (EXCEPT EXPORT) - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

Z904 20BK/LG

GROUND

2

L7 20WT/VT

HEADLAMP SWITCH OUTPUT

3

L61 20WT/RD

LEFT TURN SIGNAL

LAMP-PARK/TURN-RIGHT FRONT (EXCEPT EXPORT) - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

Z908 20BK/PK

GROUND

2

L70 20WT/GY

HEADLAMP SWITCH OUTPUT

3

L60 20WT/TN

RIGHT TURN SIGNAL

LAMP-SIDE REPEATER-LEFT (EXPORT) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

L161 18WT/LG

LEFT TURN SIGNAL (OUT)

2

Z960 20BK/LB

GROUND

LAMP-SIDE REPEATER-RIGHT (EXPORT) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

L160 20WT/TN

RIGHT TURN SIGNAL (OUT)

2

Z908 20BK/PK

GROUND

PM

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 49

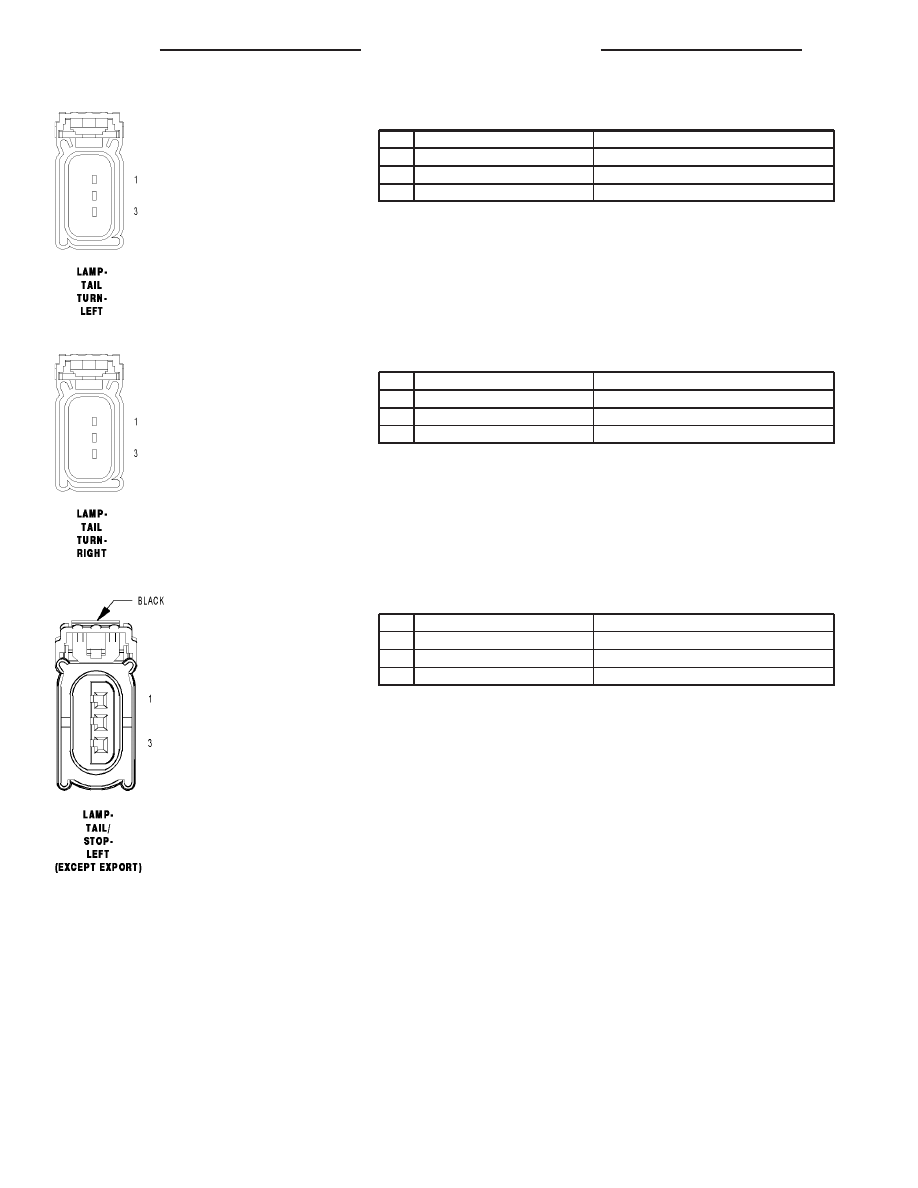

LAMP-TAIL TURN-LEFT - BROWN 3 WAY

CAV

CIRCUIT

FUNCTION

1

Z960 20BK/LB

GROUND

2

-

-

3

L63 18DG/RD

LEFT REAR TURN SIGNAL

LAMP-TAIL TURN-RIGHT - BROWN 3 WAY

CAV

CIRCUIT

FUNCTION

1

Z964 20BK/WT

GROUND

2

-

-

3

L62 18WT/YL

RIGHT REAR TURN SIGNAL

LAMP-TAIL/STOP-LEFT (EXCEPT EXPORT) - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

L55 18WT/OR

STOP LAMP CONTROL OUTPUT

2

L217 20WT/VT

PARK LAMP CONTROL OUTPUT

3

Z960 20BK/LB

GROUND

8W - 80 - 50

8W-80 CONNECTOR PIN-OUTS

PM

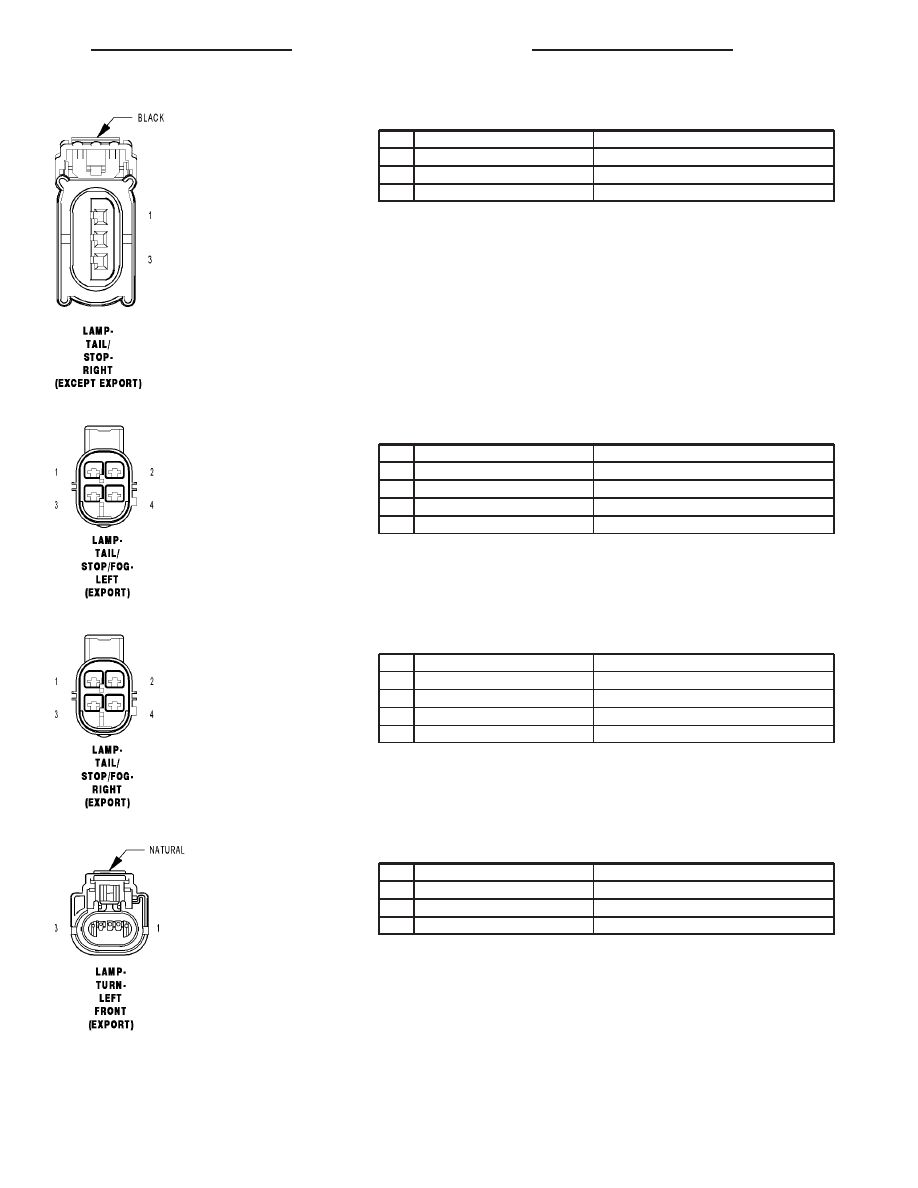

LAMP-TAIL/STOP-RIGHT (EXCEPT EXPORT) - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

L55 18WT/OR

STOP LAMP CONTROL OUTPUT

2

L217 20WT/VT

PARK LAMP CONTROL OUTPUT

3

Z960 20BK/LB

GROUND

LAMP-TAIL/STOP/FOG-LEFT (EXPORT) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

Z960 20BK/LB

GROUND

2

L55 18WT/OR

STOP LAMP CONTROL OUTPUT

3

L217 18WT/VT

PARK LAMP CONTROL OUTPUT

4

L239 18WT/DG

REAR FOG LAMP CONTROL OUTPUT

LAMP-TAIL/STOP/FOG-RIGHT (EXPORT) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

Z960 20BK/LB

GROUND

2

L55 18WT/OR

STOP LAMP CONTROL OUTPUT

3

L217 18WT/VT

PARK LAMP CONTROL OUTPUT

4

L239 18WT/DG

REAR FOG LAMP CONTROL OUTPUT

LAMP-TURN-LEFT FRONT (EXPORT) - NATURAL 3 WAY

CAV

CIRCUIT

FUNCTION

1

Z904 20BK/LG

GROUND

2

-

-

3

L61 20WT/RD

LEFT TURN SIGNAL

PM

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 51

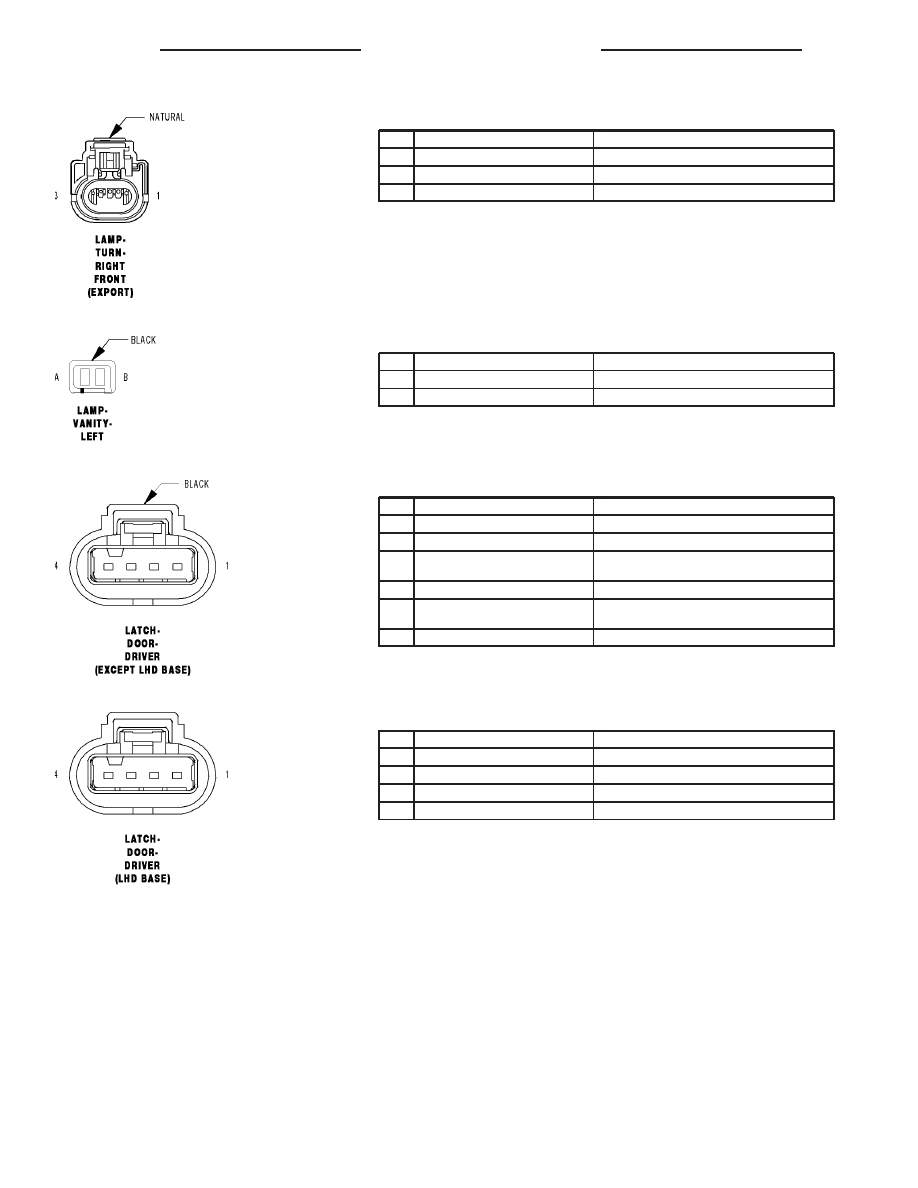

LAMP-TURN-RIGHT FRONT (EXPORT) - NATURAL 3 WAY

CAV

CIRCUIT

FUNCTION

1

Z908 20BK/PK

GROUND

2

-

-

3

L60 20WT/TN

RIGHT TURN SIGNAL

LAMP-VANITY-LEFT - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

A

A417 20RD/DG

FUSED B(+) (I.O.D.)

B

G38 18GY/BK

UGDO ENABLE CONTROL CIRCUIT

LATCH-DOOR-DRIVER (EXCEPT LHD BASE) - BLACK 4 WAY

CAV

CIRCUIT

FUNCTION

1

P238 20LG/OR

DRIVER DOOR UNLOCK DRIVER

2

P33 20LG/TN

DOOR LOCK DRIVER

3

G75 20VT/BK (EXCEPT HEATED MIR-
RORS)

LEFT FRONT DOOR AJAR SWITCH SENSE

3

G75 20VT (HEATED MIRRORS)

LEFT FRONT DOOR AJAR SWITCH SENSE

4

Z928 20BK/LG (EXCEPT HEATED MIR-
RORS)

GROUND

4

Z928 20BK (HEATED MIRRORS)

GROUND

LATCH-DOOR-DRIVER (LHD BASE) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

-

-

2

-

-

3

G75 20VT

LEFT FRONT DOOR AJAR SWITCH SENSE

4

Z928 20BK

GROUND

8W - 80 - 52

8W-80 CONNECTOR PIN-OUTS

PM
