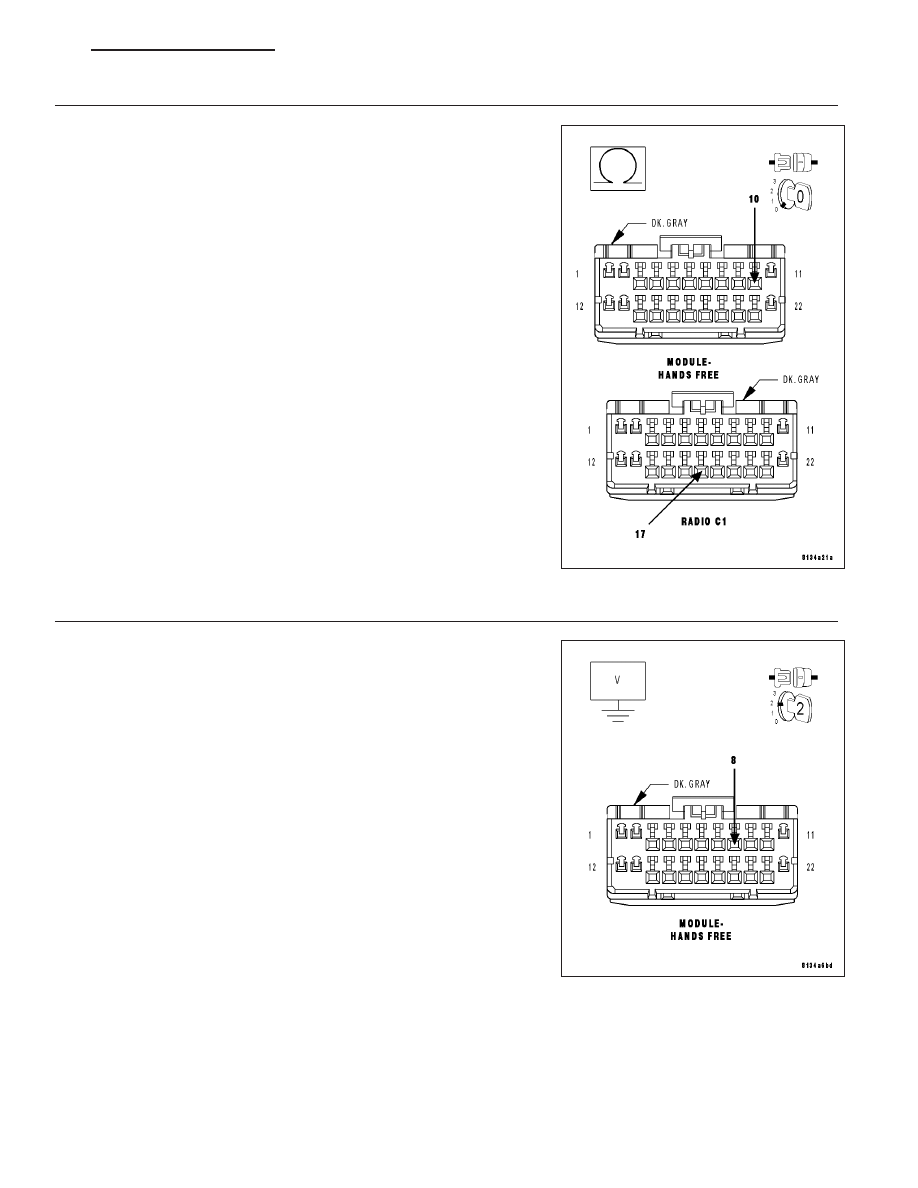

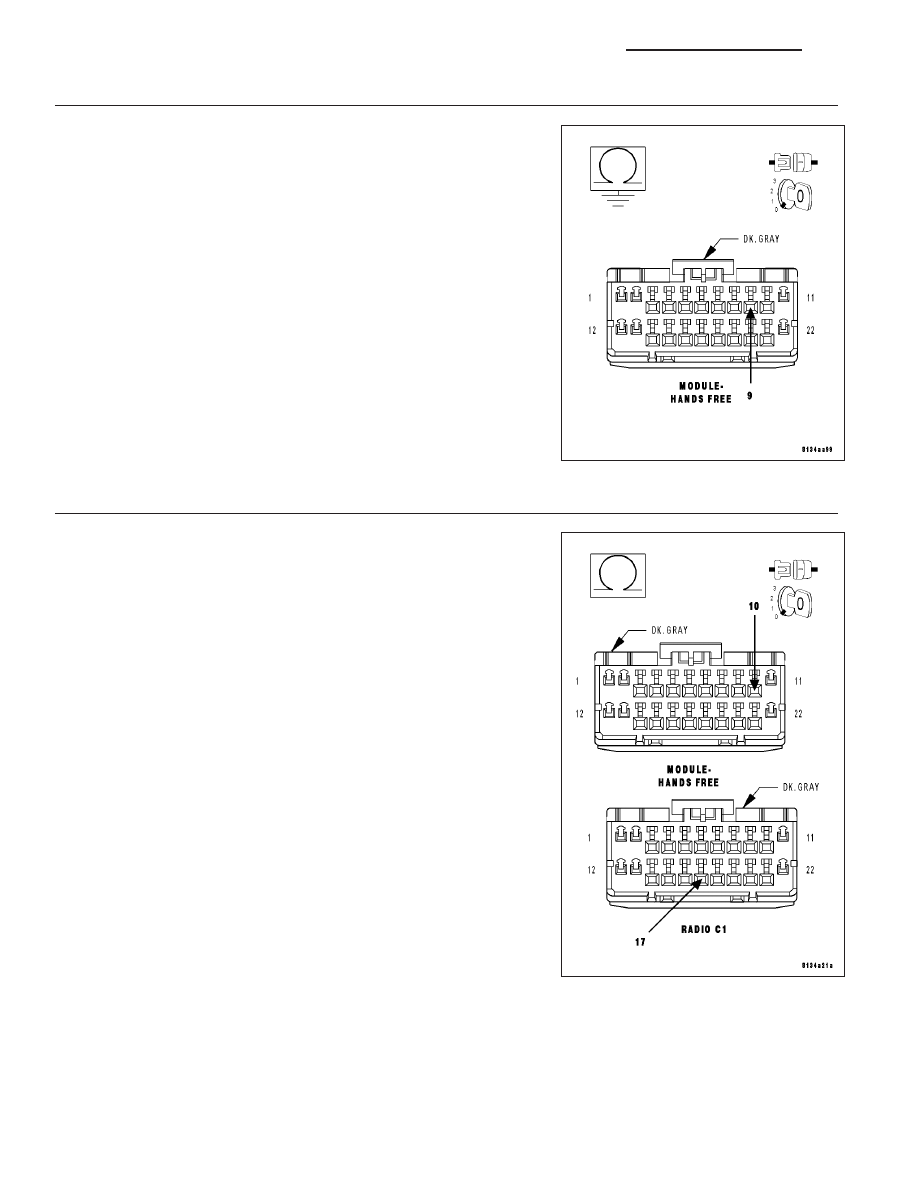

3. (X795) COMMON AUDIO OUTPUT CIRCUIT OPEN Measure the resistance of the (X795) Common Audio Output circuit Is the resistance below 5.0 ohms? Yes >> Go To 4 No >> Repair the (X795) Common Audio Output circuit for an open. Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 4. (X703) LEFT AUDIO OUTPUT CIRCUIT SHORT TO VOLTAGE Turn the ignition on. Measure the voltage of the (X703) Left Audio Output circuit. Is the voltage above 1.0 volts? Yes >> Repair the (X703) Left Audio Output circuit for a short to voltage. Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 No >> Inspect the wiring and connectors for damage or shorted circuits. If ok, replace and program the Hands Free Module Perform BODY VERIFICATION TEST – VER 1. (Refer to 8 PM NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS 8T - 9 |
