Dodge Caliber. Manual - part 484





3.

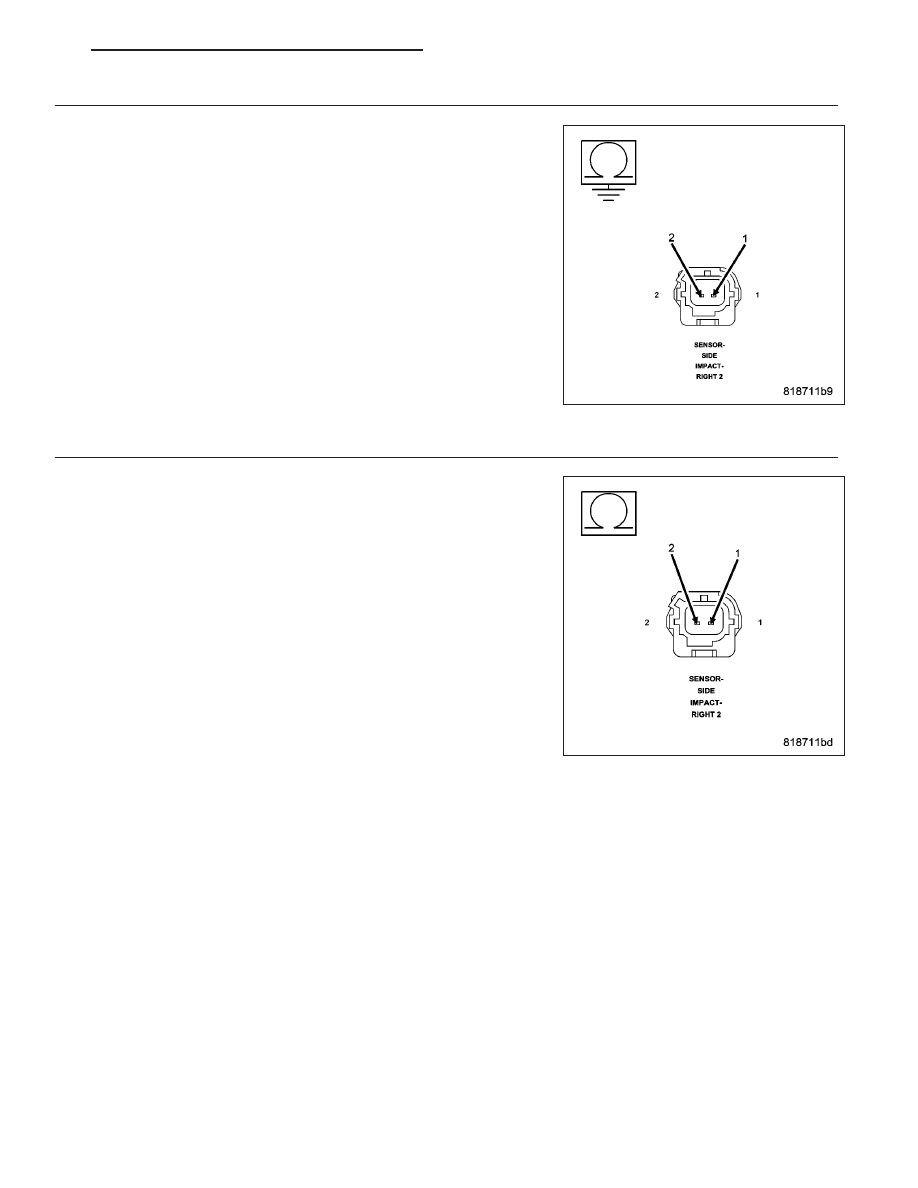

CHECK THE (R18) RIGHT SIDE IMPACT SENSOR 2 SIGNAL CIRCUIT FOR A SHORT TO GROUND

WARNING: To avoid personal injury or death, turn ignition on, then
reconnect the battery.
Measure the resistance of the (R18) Right Side Impact Sensor 2 Signal
circuit between the Right Side Impact Sensor 2 connector and ground.

Is the resistance below 100K ohms?

Yes

>> Repair the (R18) Right Side Impact Sensor 2 Signal circuit

for a short to ground.

Perform the *AIRBAG SYSTEM VERIFICATION TEST -
VER 1.

No

>> Go To 4

4.

CHECK THE (R18, R20) RIGHT SIDE IMPACT SENSOR CIRCUITS FOR A SHORT TOGETHER

Measure the resistance between the (R18) Right Side Impact Sensor 2
Signal and (R20) Sensor Ground circuits at the Right Side Impact Sen-
sor 2 connector.

Is the resistance below 100K ohms?

Yes

>> Repair the (R18, R20) Right Side Impact Sensor 2 circuits

shorted together.

Perform the *AIRBAG SYSTEM VERIFICATION TEST -
VER 1.

No

>> Go To 5

PM

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 333

5.

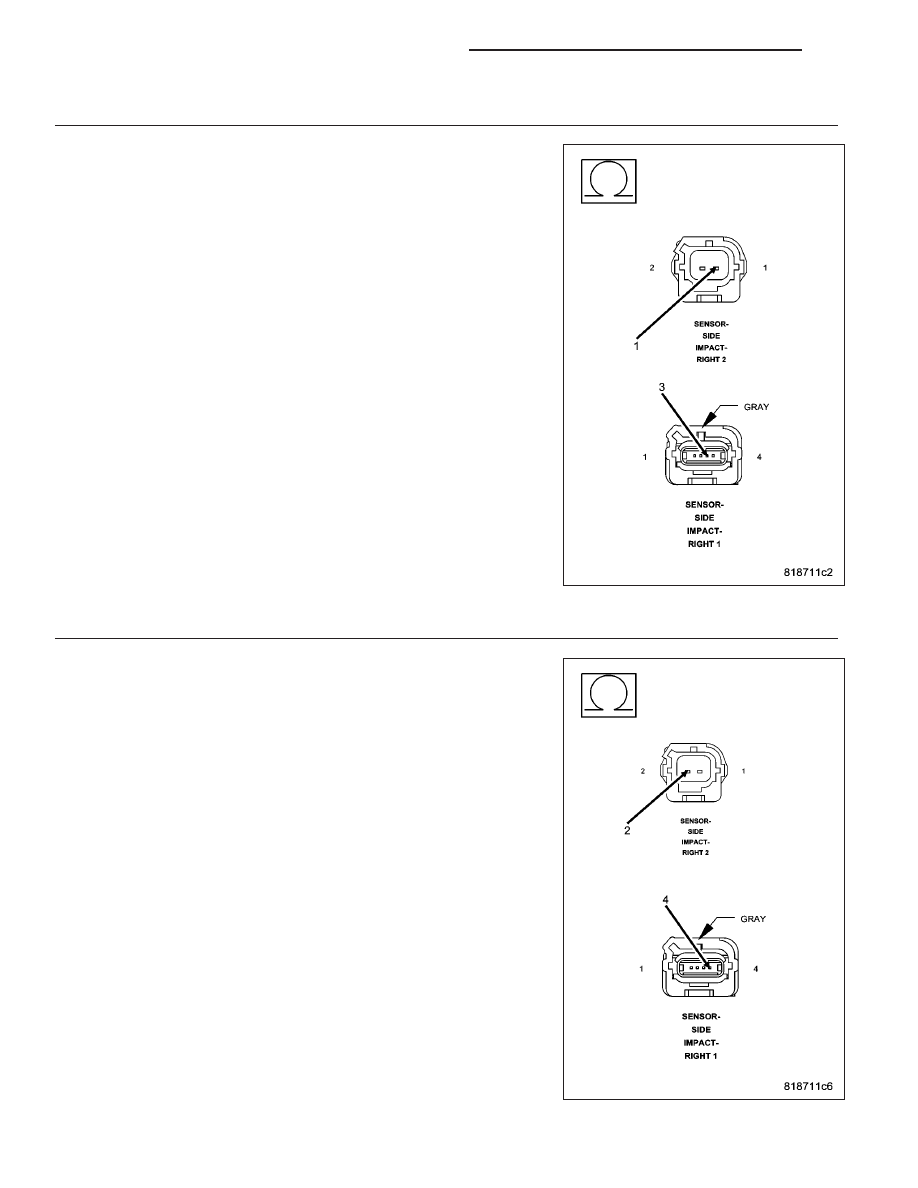

CHECK THE (R20) RIGHT SIDE IMPACT SENSOR 2 GROUND CIRCUIT FOR AN OPEN OR HIGH
RESISTANCE

Connect the 8443 Load Tool ORC Adaptor to the Occupant Control
Module connector.

Measure the resistance of the (R20) Right Side Impact Sensor 2
Ground circuit between the Right Side Impact Sensor 2 connector and
the 8443 Load Tool ORC Adaptor.

Is the resistance below 1 ohm?

Yes

>> Go To 6

No

>> Repair the (R20) Right Side Impact Sensor 2 Ground circuit

for an open or high resistance.

Perform the *AIRBAG SYSTEM VERIFICATION TEST -
VER 1.

6.

CHECK THE (R18) RIGHT SIDE IMPACT SENSOR 2 CIRCUIT FOR AN OPEN OR HIGH RESISTANCE

Measure the resistance of the (R18) Right Side Impact Sensor 2 Signal
circuit between the Right Side Impact Sensor 2 connector and the 8443
Load Tool ORC Adaptor.

Is the resistance below 1 ohm?

Yes

>> Go To 7

No

>> Repair the (R18) Right Side Impact Sensor 2 Signal circuit

for an open or high resistance.

Perform the *AIRBAG SYSTEM VERIFICATION TEST -
VER 1.

8O - 334

RESTRAINTS - ELECTRICAL DIAGNOSTICS

PM

7.

CHECK OPERATION OF THE RIGHT SIDE IMPACT SENSOR 2

Replace the Right Side Impact Sensor 2.

Reconnect the vehicle body harness to the impact sensor.

Remove any special tools or jumper wires and reconnect all previously disconnected components - except the Bat-
tery.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.
Connect the scan tool to the Data Link Connector - use the most current software available.

Use the scan tool and erase the stored codes in all airbag system modules.

Turn the Ignition Off, and wait 15 seconds before turning the Ignition On.

Wait one minute, and read active codes and if there are none present read the stored codes.

Did the active Right Side Impact Sensor 2 DTC return?

Yes

>> Go To 8

No

>> Repair is complete.

Perform the *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

8.

REPLACE THE OCCUPANT RESTRAINT CONTROLLER

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.

WARNING: If the airbag control module is dropped at any time, it must be replaced. Failure to take the
proper precautions could result in accidental airbag deployment and personal injury or death.

If there are no possible causes remaining, view repair.

Repair

Replace the Occupant Restraint Controller in accordance with Service Instructions.

Perform the *AIRBAG SYSTEM VERIFICATION TEST - VER 1.

9.

TEST FOR AN INTERMITTENT CONDITION

With the scan tool, record and erase all DTC’s from all Airbag modules.

If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.

Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or con-
taminated terminals.

The following additional checks may assist you in identifying a possible intermittent problem.

Reconnect any disconnected components and harness connector.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.
With the scan tool monitor active codes as you work through the following steps.

WARNING: To avoid personal injury or death, maintain a safe distance from all airbags while performing the
following steps.
Wiggle the wiring harness and connectors of the related airbag circuit or component.

If codes are related to the Driver Airbag circuits, rotate the steering wheel from stop to stop.

If only stored codes return continue the test until the problem area has been isolated.

In the previous steps you have attempted to recreate the conditions responsible for setting active DTC in question.

Are any ACTIVE DTCs present?

Yes

>> Select the appropriate symptom from Symptom List.

No

>> No problem found at this time. Erase all codes before returning vehicle to customer.

PM

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 335

U0184-LOST COMMUNICATION WITH RADIO

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0186-LOST COMMUNICATION WITH AUDIO AMPLIFIER

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0195-LOST COMMUNICATION WITH SDARS

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0196-LOST COMMUNICATION WITH VEHICLE ENTERTAINMENT CONTROL
MODULE

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0197-LOST COMMUNICATION WITH HANDS FREE PHONE MODULE

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0199-LOST COMMUNICATION WITH DRIVER DOOR MODULE (LEFT WINDOW
REGULATOR MODULE)

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0200-LOST COMMUNICATION WITH PASS DOOR MODULE (RIGHT WINDOW
REGULATOR MODULE)

For a complete wiring diagram Refer to Section 8W.

(Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - DIAGNOSIS AND TESTING) for the diagnostic
test procedure.

U0201-LOST COMMUNICATION WITH LEFT REAR DOOR MODULE

For a complete wiring diagram Refer to Section 8W.

8O - 336

RESTRAINTS - ELECTRICAL DIAGNOSTICS

PM
