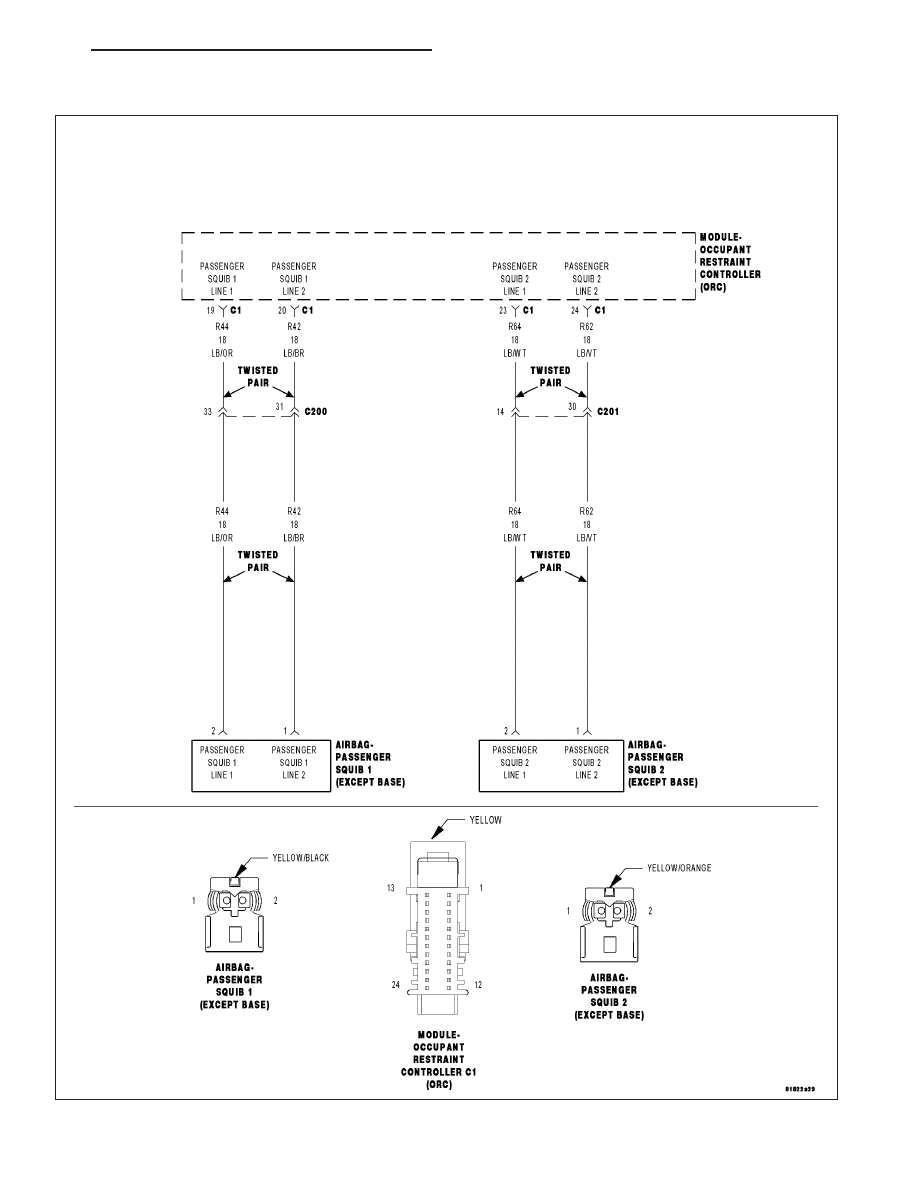

3. CHECK (R64) PASSENGER SQUIB 2 LINE 1 CIRCUIT FOR AN OPEN WARNING: To avoid personal injury or death, turn the ignition off, Disconnect the ORC connectors. NOTE: Check connectors - Clean and repair as necessary. Measure the resistance of the (R64) Passenger Squib 2 Line 1 circuit Is the resistance below 1.0 ohm? Yes >> Go to 4 No >> Repair the (R64) Passenger Squib 2 Line 1 circuit for an open. Perform AIRBAG SYSTEM VERIFICATION TEST - VER 1. 4. CHECK (R62) PASSENGER SQUIB 2 LINE 2 CIRCUIT FOR AN OPEN Measure the resistance of the (R62) Passenger Squib 2 Line 2 circuit Is the resistance below 1.0 ohm? Yes >> WARNING: If the Occupant Restraint Controller (ORC) is dropped WARNING: To avoid personal injury or death, turn the ignition off, Replace the ORC in accordance with Service Information. Perform AIRBAG SYSTEM VERIFICATION TEST - VER 1. No >> Repair the (R62) Passenger Squib 2 Line 2 circuit for an open. Perform AIRBAG SYSTEM VERIFICATION TEST - VER 1. PM RESTRAINTS - ELECTRICAL DIAGNOSTICS 8O - 57 |
