REMOTE KEYLESS ENTRY TRANSMITTER
DESCRIPTION

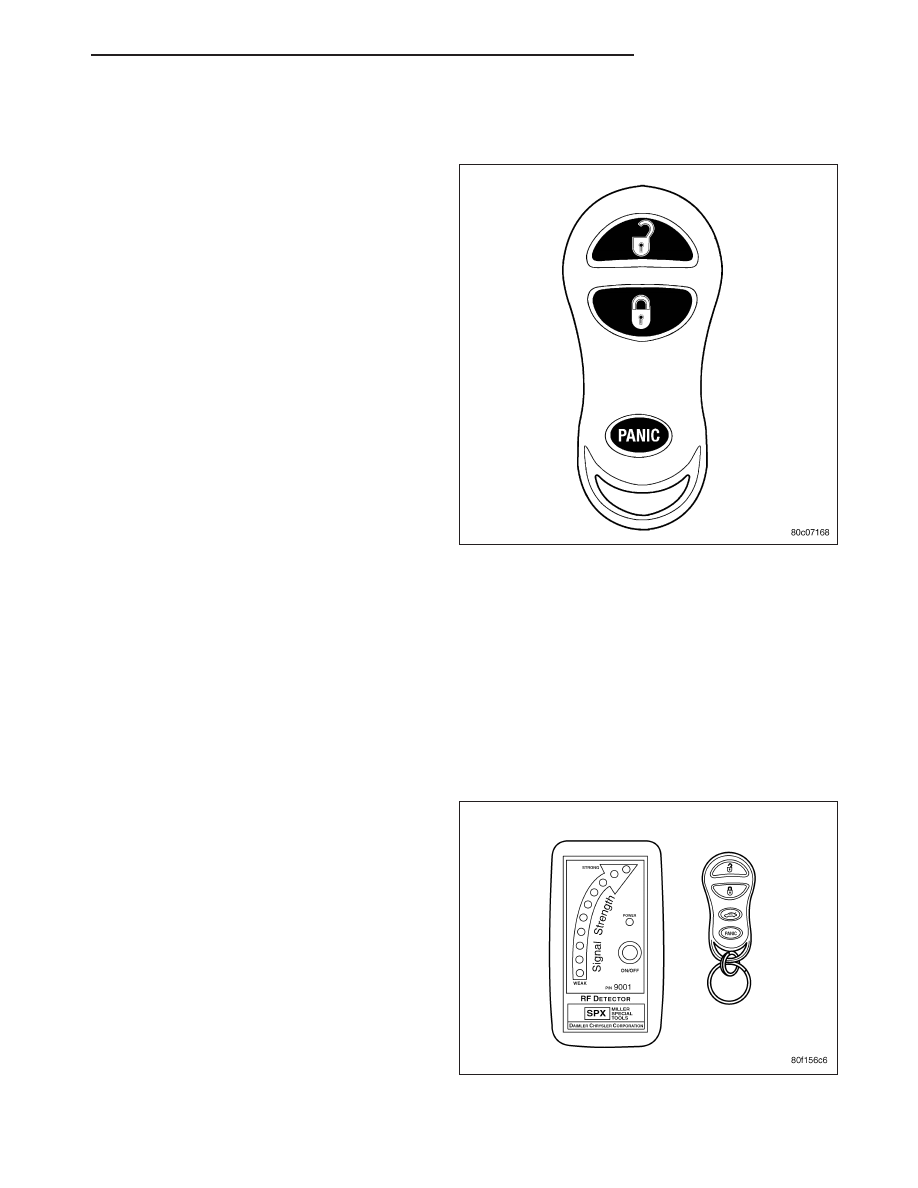

The transmitter has three buttons for operation. They
are LOCK, UNLOCK, and PANIC.
OPERATION
•
The UNLOCK button will unlock the driver door flash the Park lamps twice and enable illuminated entry. Push-
ing and releasing the button once will unlock the driver door. Pushing and releasing the button two times within
a five second period will unlock all doors (double unlock activation enabled).
•
Upon pressing the LOCK button, the horn will sound a short chirp (if enabled) and flash the park lamps to
notify that the all door lock signal was received and acted upon. Illuminated entry is cancelled and the interior
lamps are faded to off.
•
Pushing the PANIC button will cause the panic alarm to sound for three minutes, until the panic button is
pressed a second time, or until the vehicle reaches a speed of 15 mph.
DIAGNOSIS AND TESTING - REMOTE KEYLESS ENTRY TRANSMITTER
Using special tool 9001, first test to ensure that the
transmitter is functioning. Typical testing distance is
2.5 centimeters (1 inch) for Asian transmitters and
30.5 centimeters (12 inches) for all others. To test,
position the transmitter as shown. Press any transmit-
ter button, then test each button individually. The tool
will beep if a radio signal strength that lights five or
more LED’s is detected. Repeat this test three times.
If transmitter fails any of the test refer to the Diagnos-
tic Procedures manual.
