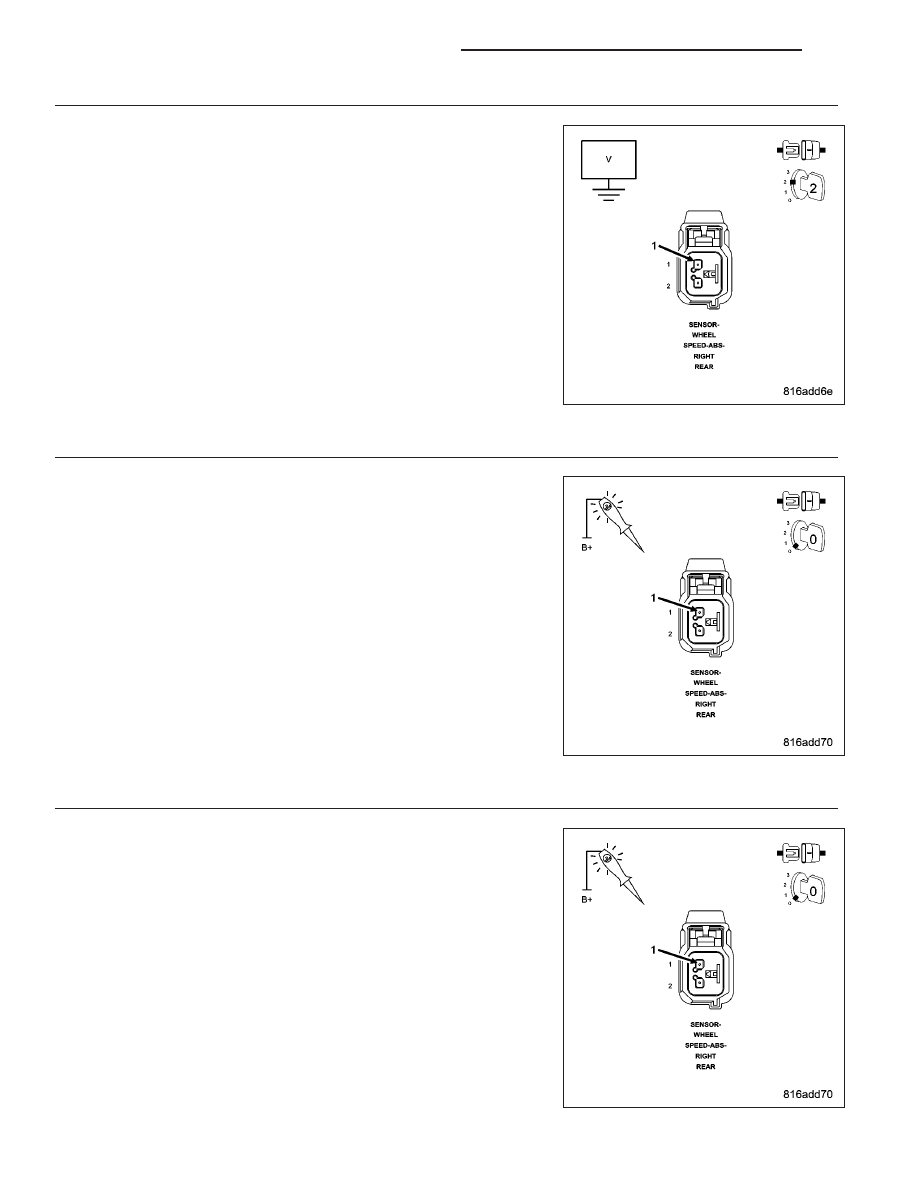

C1035-RIGHT REAR WHEEL SPEED COMPARATIVE PERFORMANCE For a complete wiring diagram Refer to Section 8W. • When Monitored: • Set Condition: Possible Causes RIGHT REAR WSS LOOSE — B1, B2 CIRCUITS/CONNECTOR/TERMINAL DAMAGE IMPROPER RIGHT REAR TIRE PRESSURE/MISMATCHED TIRES RIGHT REAR TONE WHEEL DAMAGE RIGHT REAR WSS ANTI-LOCK BRAKE MODULE Diagnostic Test 1. CHECK FOR DTC C1035-RIGHT REAR WHEEL SPEED COMPARATIVE PERFORMANCE NOTE: This DTC must be active for the results of this test to be valid. With the scan tool, record and erase DTCs. Road test the vehicle over 40 km/h (25 m.p.h.). NOTE: Vehicle must be driven above 40 km/h (25 m.p.h.) for set conditions to be meet. NOTE: The Anti-Lock Brake Module must sense ALL 4 wheels at 12 km/h (7.5 mph) before it will extinguish Does the scan tool display: C1035-RIGHT REAR WHEEL SPEED COMPARATIVE PERFORMANCE? Yes >> Go To 3 No >> Go To 2 2. CHECK WHEEL SPEED SENSOR SIGNALS Turn the ignition on. With the scan tool, monitor and graph ALL the WSS speeds and compare graph while an assistant drives the vehi- NOTE: If graph shows periodic dropouts pay close attention to the tone wheel. Is the Right Rear WSS speed showing 0 km/h (0 m.p.h.) or not matching other wheel speeds? Yes >> Go To 3 No >> The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires. Refer to the ABS-INTERMITTENT CONDITION TEST. (Refer to 5 - BRAKES - DIAGNOSIS AND TEST- PM BRAKES - ABS ELECTRICAL DIAGNOSTICS 5 - 181 |
