Dodge Caliber. Manual - part 1189





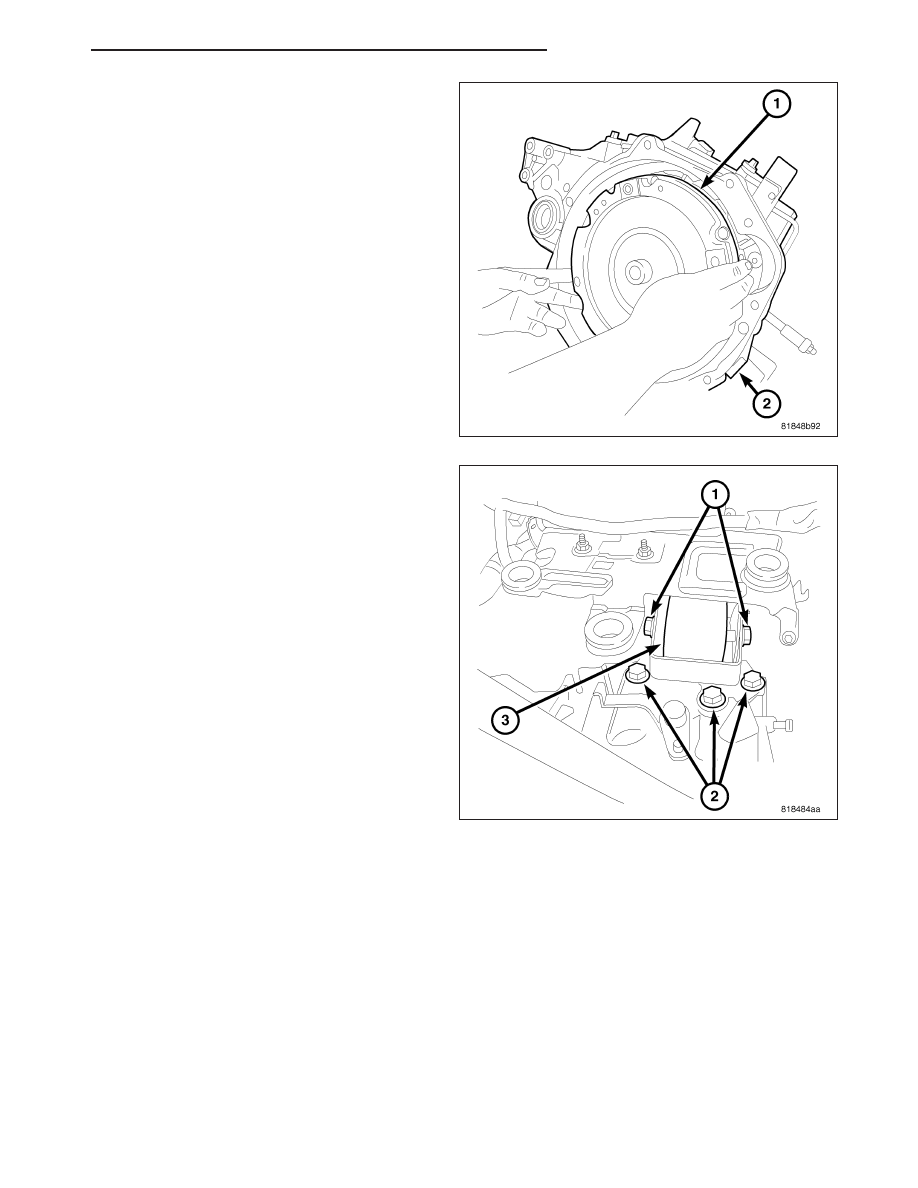

36. Remove clutch module from transaxle input shaft

(1).

37. If installing a new or replacement transaxle,

remove the upper mount (3), transfer to the
replacement unit and torque all bolts (2) to 62
N·m (45 ft. lbs.) torque.

CLEANING

Clean the gears, bearings, shafts, synchronizers, thrust washers, oil feeder, shift mechanism, gear case, and bell-
housing with solvent. Dry all parts except the bearings with compressed air. Allow the bearings to either air dry or
wipe them dry with clean shop towels.

INSPECTION

Inspect the gears, bearings, shafts and thrust washers. Replace the bearings and cups if the rollers are worn,
chipped, cracked, flat spotted, or brinnelled, or if the bearing cage is damaged or distorted. Replace the thrust
washers if cracked, chipped, or worn. Replace the gears if the teeth are chipped, cracked, or worn thin. Inspect the
synchronizers. Replace the sleeve if worn or damaged in any way. Replace the stop rings if the friction material is
burned, flaking off, or worn. Check the condition of the synchro keys and springs. Replace these parts if worn,
cracked, or distorted.

PM

T355 MANUAL TRANSAXLE

21 - 55

INSTALLATION

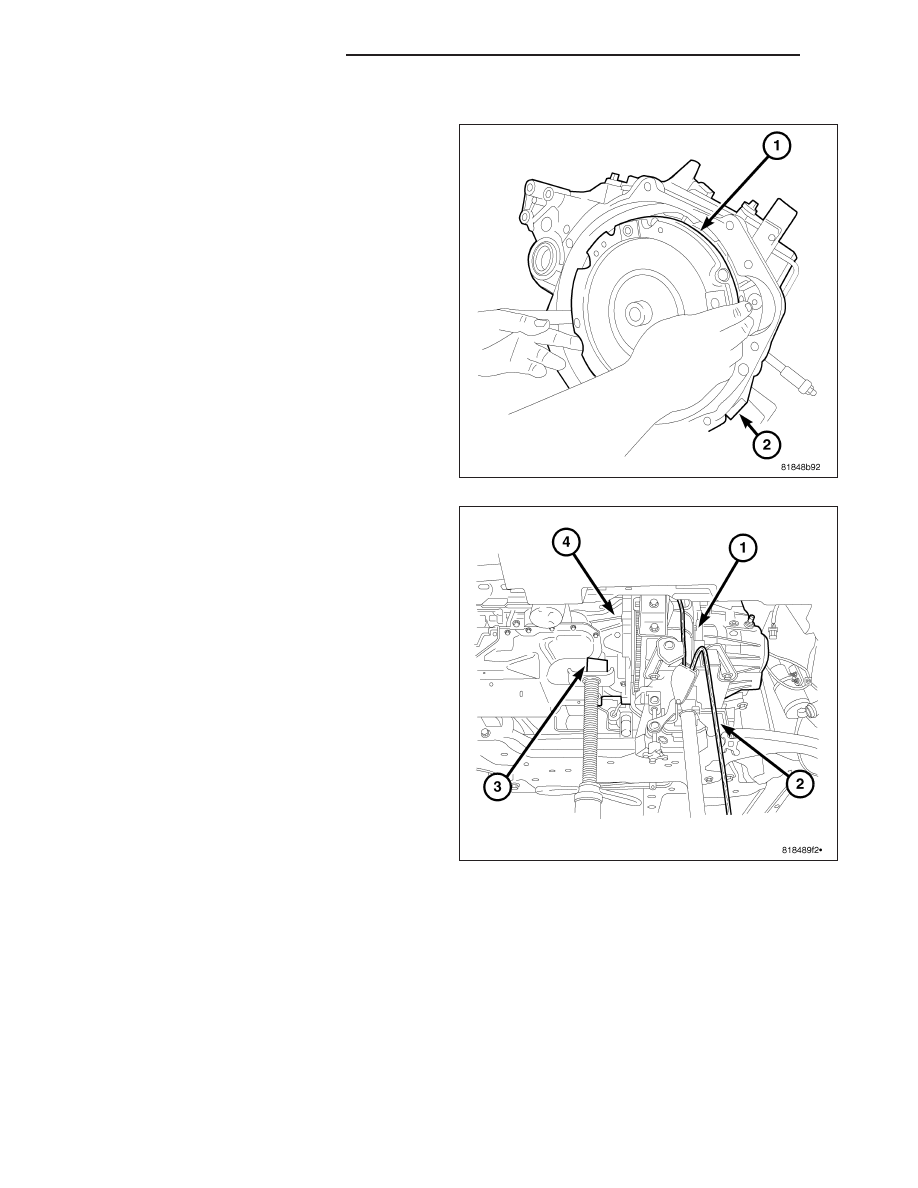

1. Install clutch module (1) (if equipped) onto input

shaft.

2. Install transaxle (1) into position.

21 - 56

T355 MANUAL TRANSAXLE

PM

3. Install

transaxle-to-engine

mounting

bolts

and

tighten to 108 N·m (80 ft. lbs.) torque.

4. Raise engine and transaxle (2) with screw jack and

transmission jack until upper mount bracket aligns
with upper mount. Install mount bolts (1) and
tighten to 68 N·m (50 ft. lbs.) torque.

5. Remove screw jack.

PM

T355 MANUAL TRANSAXLE

21 - 57

6. Install four (4) modular clutch-to-driveplate bolts

(4). Align drive plate and modular clutch alignment
marks placed upon disassembly. Start with tight-tol-
erance (slotted) hole, install and torque bolts to 88
N·m (65 ft. lbs.) torque.

7. Install starter motor and tighten bolts to 54 N·m (40

ft. lbs.) torque. Make sure to fasten ground cable to
upper starter bolt. (Refer to 8 - ELECTRICAL/
STARTING/STARTER MOTOR - INSTALLATION)

8. Install bell housing dust cover.

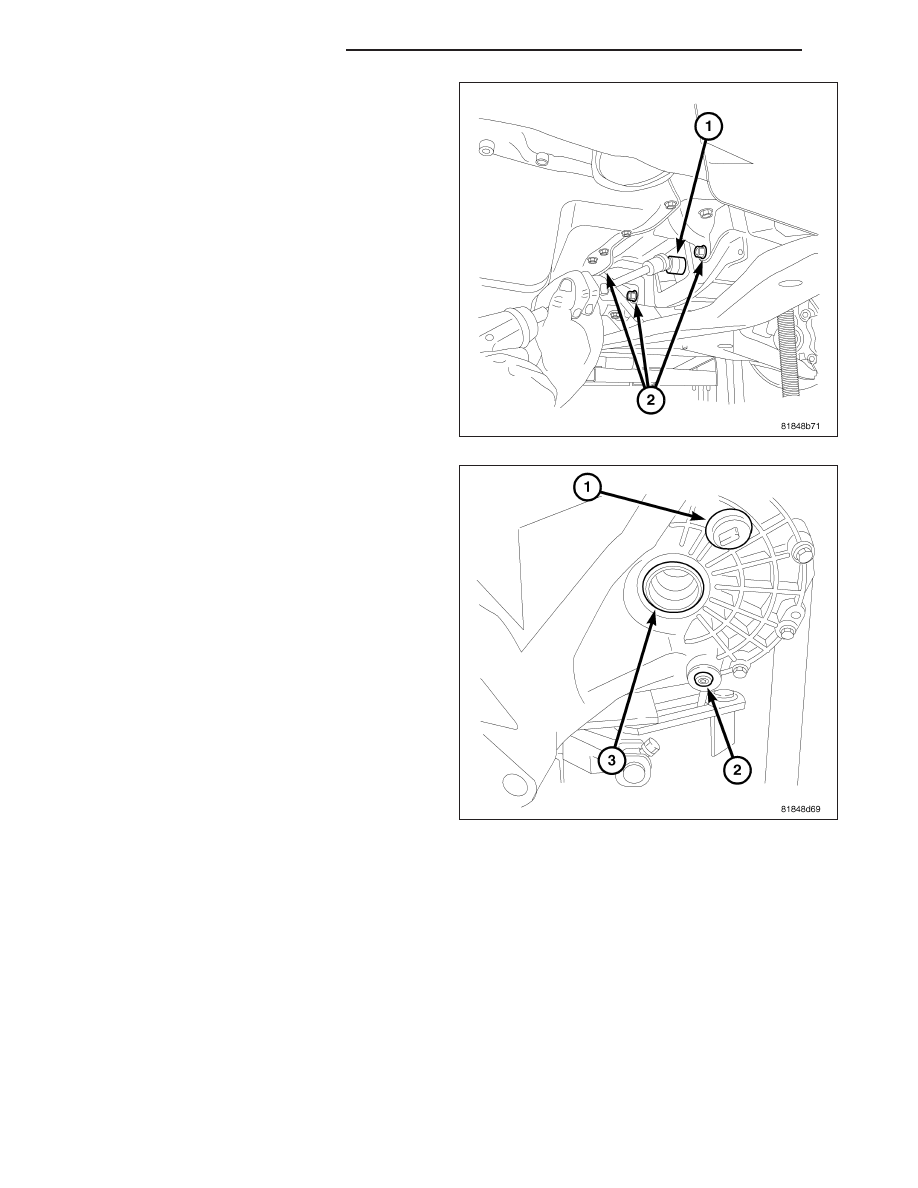

9. Install both front axle driveshafts (Refer to 3 - DIF-

FERENTIAL

&

DRIVELINE/HALF

SHAFT

-

INSTALLATION).

10. Fill transaxle with suitable amount of fluid.

11. Lower the vehicle.

12. Install the remaining bell housing bolts.

21 - 58

T355 MANUAL TRANSAXLE

PM
