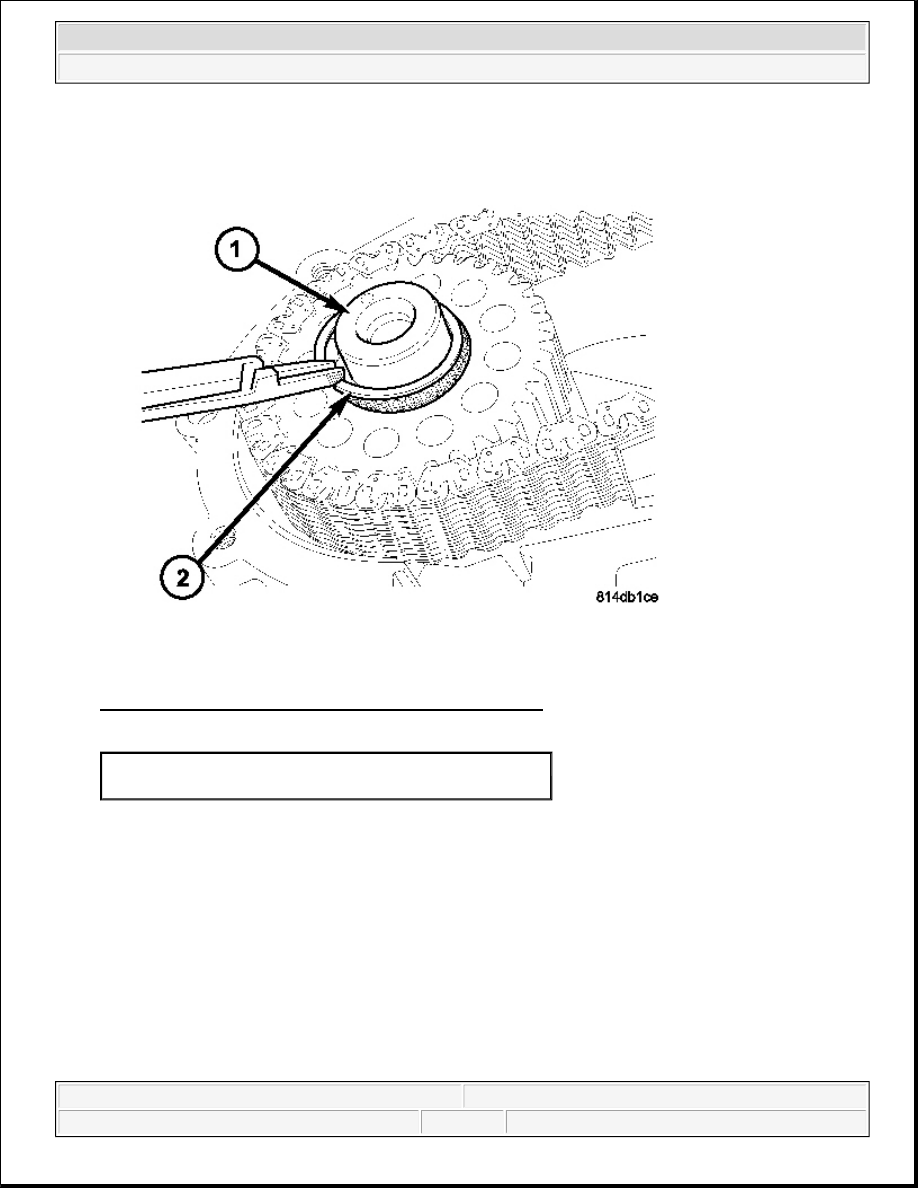

Fig. 38: Identifying Front Output Shaft & Retaining Ring
Courtesy of CHRYSLER LLC

21. Install the front output shaft (1) drive sprocket retaining ring (2).

1 - FRONT OUTPUT SHAFT
2 - RETAINING RING



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



Fig. 39: Removing/Installing Mode Hub Spacer
Courtesy of CHRYSLER LLC

22. Install the mode hub spacer (2) onto the output shaft (1) and the mode hub (3).

23. Install the mainshaft drive sprocket retaining ring onto the mainshaft.

1 - OUTPUT SHAFT
2 - MODE HUB SPACER
3 - MODE HUB



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



Fig. 40: Removing/Installing Rear Housing
Courtesy of CHRYSLER LLC

24. Install the transfer case magnet into the magnet pocket.

25. Apply bead of Mopar® Gasket Maker, or equivalent, to mating surface of front case. Keep sealer bead

width to maximum of 3 mm (0.125 inch). Do not use excessive amount of sealer as excess will be
displaced into case interior.

26. Install the rear case (1) onto the front case (2).

1 - REAR HOUSING
2 - FRONT HOUSING



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



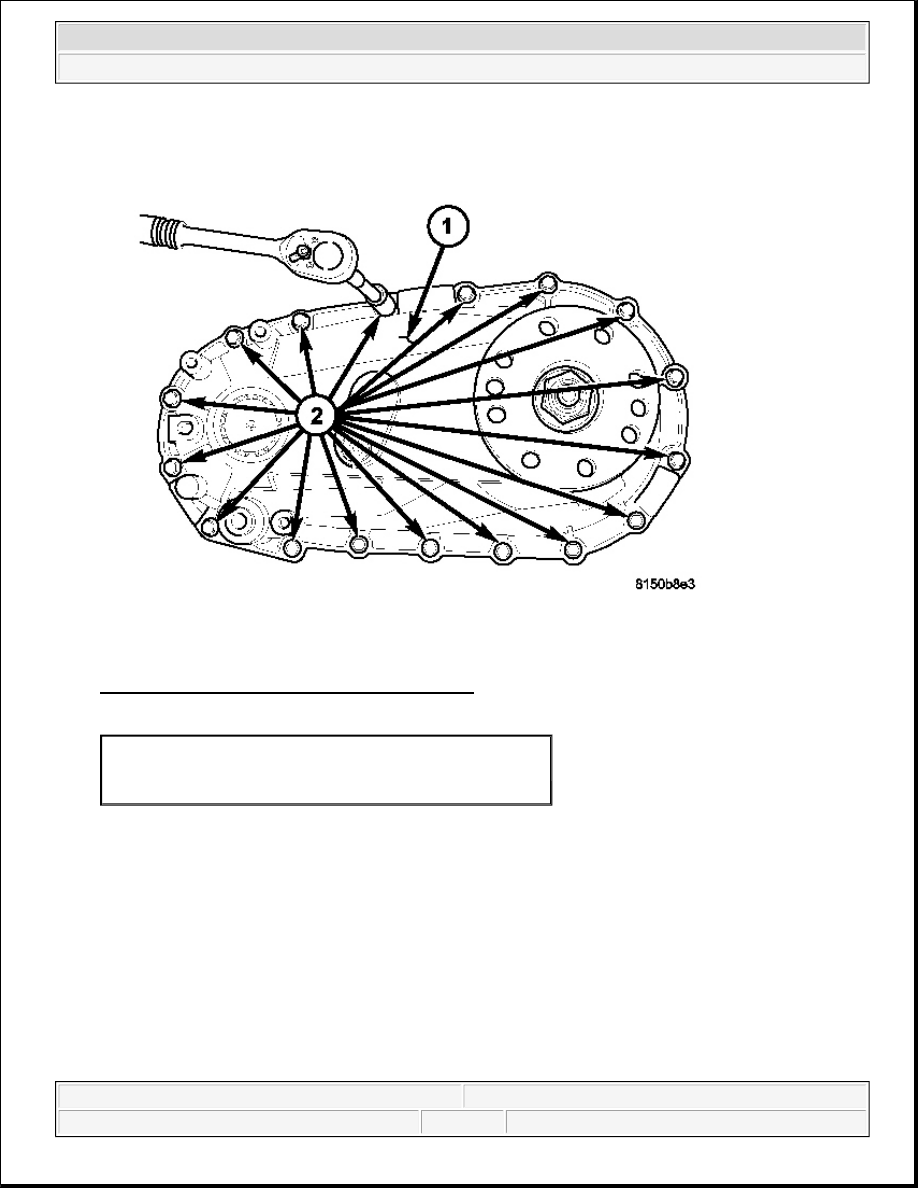

Fig. 41: Removing/Installing Rear Housing Bolts
Courtesy of CHRYSLER LLC

27. Install the bolts (2) to hold the rear case (1) to the front case (3). Tighten the bolts at the alignment dowel

locations first. Tighten the bolts to 27 N.m (20 ft.lbs.).

1 - REAR HOUSING
2 - BOLTS
3 - FRONT HOUSING
