Fig. 106: Identifying Track Bar, Flag Bolt/Nut & Frame Bracket
Courtesy of CHRYSLER LLC

1. Raise and support the vehicle. Position a hydraulic jack under the axle to support the axle.

2. Remove the track bar flag bolt and nut (1) from the frame bracket (2).

Fig. 107: Identifying Track Bar, Bolt/Nut & Axle Bracket
Courtesy of CHRYSLER LLC

3. Remove the track bar bolt and nut (2) from the axle bracket (3).

4. Remove the track bar (1).

INSTALLATION

TRACK BAR



2007 Dodge Nitro R/T

2007 SUSPENSION Suspension - Nitro



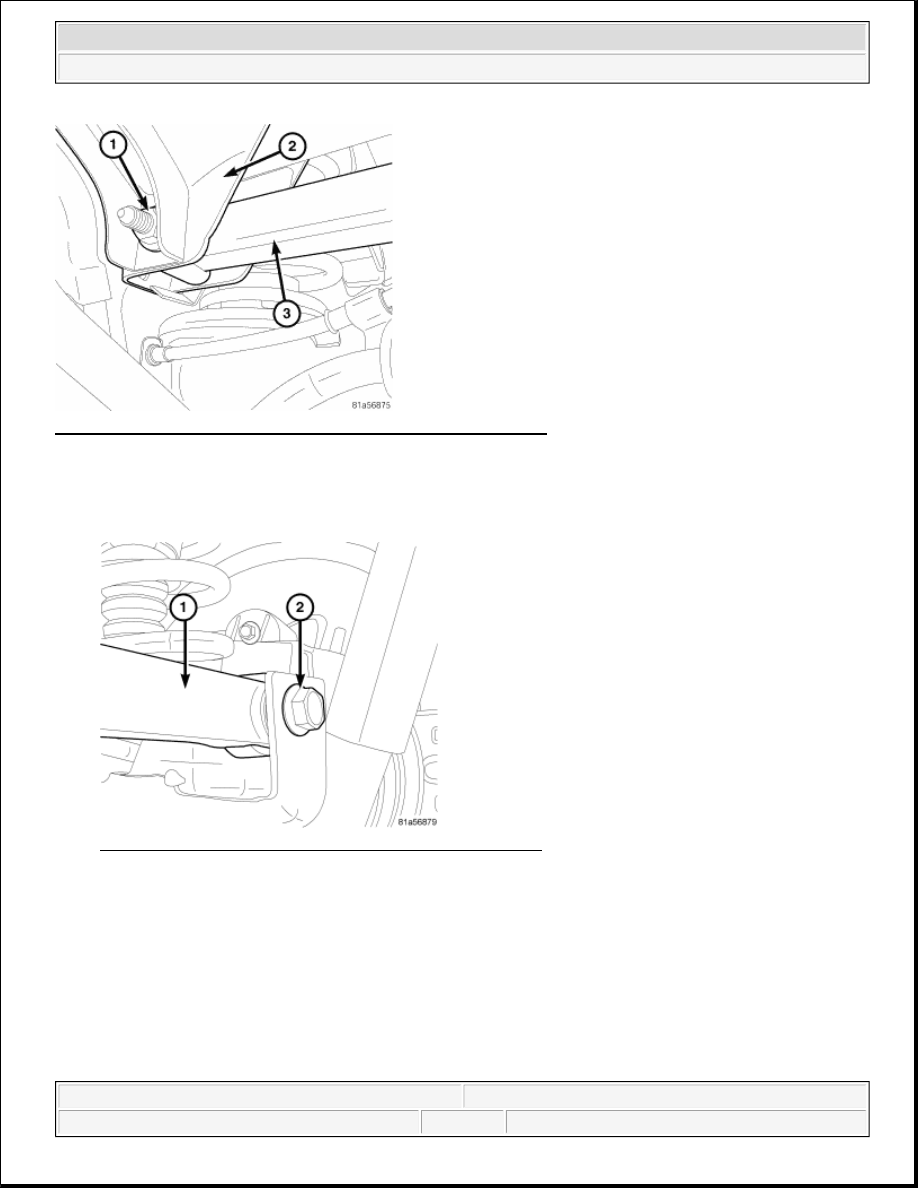

Fig. 108: Identifying Track Bar Flag Bolt/Nut & Frame Bracket
Courtesy of CHRYSLER LLC

1. Install the track bar (3) to the vehicle.

2. Install the track bar bolt and nut (1) in the frame bracket (2).

Fig. 109: Identifying Track Bar, Bolt/Nut & Axle Bracket
Courtesy of CHRYSLER LLC

3. Install the track bar (1) into the axle bracket (3).

4. Install the track bar bolt and nut (2) in the axle bracket.

5. Remove the supports and lower the vehicle.

6. Tighten the body side mounting bolt/nut to 183 N.m (135 ft. lbs.). Tighten the axle side mounting bolt/nut

to 176 N.m (130 ft. lbs.) with full vehicle weight.



2007 Dodge Nitro R/T

2007 SUSPENSION Suspension - Nitro



2007 TRANSFER CASE

MP140 - Service Information - Nitro

MP140 - SERVICE

DESCRIPTION

TRANSFER CASE - MP140

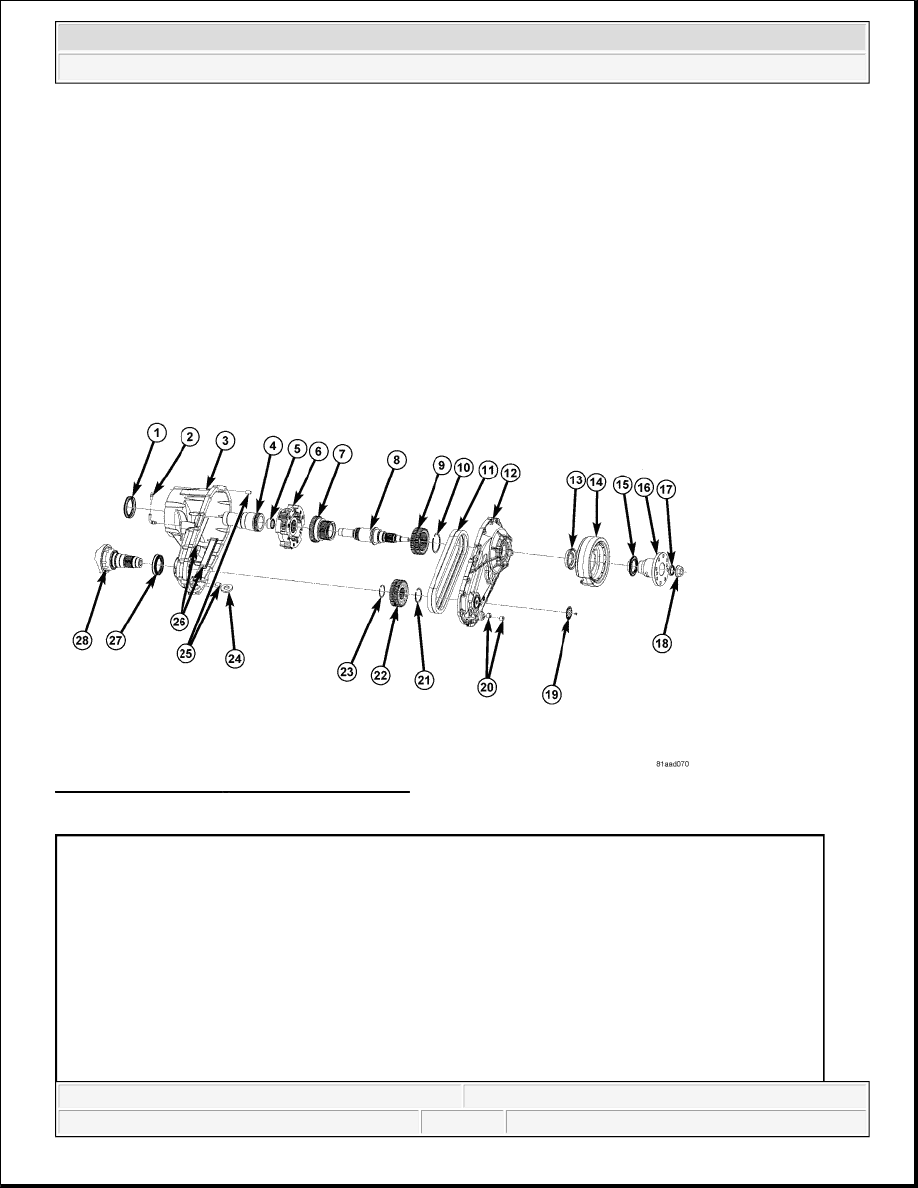

Fig. 1: Transfer Case - MP140 Exploded View
Courtesy of CHRYSLER LLC

1 - INPUT SEAL

15 - WEAR SLEEVE

2 - VENT

16 - FLANGE

3 - FRONT CASE

17 - FLANGE SEAL

4 - INPUT GEAR

18 - FLANGE NUT

5 - PILOT BEARING

19 - ID. TAG

6 - PLANETARY GEAR

20 - DRAIN/FILL PLUGS

7 - SPROCKET GEAR

21 - RETAINING RING

8 - MAINSHAFT

22 - DRIVEN SPROCKET

9 - DRIVE SPROCKET

23 - RETAINING RING

10 - SNAP RING

24 - MAGNET

11 - CHAIN

25 - DOWELS



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro





2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro



With an automatic transmission, the MP 140 single-speed transfer case is used in Nitro's new Full- Time Four-
Wheel Drive System. It provides convenient full-time four-wheel drive operation and functions seamlessly with
Nitro's standard Traction Control and ESP (Electronic Stability Program) features to provide enhanced traction
and stability on low-traction surfaces. The MP designation refers to Magna Powertrain, the successor to New
Venture Gear.

The MP140 single-speed transfer case provides the following benefits:

Convenient operation: No shift lever or driver interaction required.

Smooth operation and vehicle stability under all conditions because torque is constantly being shared
among all wheels.

Traction to maintain forward motion under most conditions through 48 front/52 rear percent torque
distribution.

Enhanced traction and stability provided by the Traction Control and Electronic Stability Program (ESP)
working in tandem with full-time four-wheel-drive. Traction Control and ESP provide resistance to any
wheel that is slipping to allow additional torque transfer to wheels with traction.

Robust design and sealing for reliability.

No maintenance required.

OPERATION

TRANSFER CASE - MP140

Full-time 4-wheel drive distributes torque to all wheels under normal driving conditions. The transfer case uses
an open (unlocked) center differential to divide engine torque nearly evenly between the front and rear axles -
48 percent to the front axle and 52 percent to the rear axle. The open differential allows the front and rear drive
shafts to rotate at different speeds to account for front and rear wheels traveling different distances when
turning. Because the drive shafts can rotate at different speeds, the vehicle can remain in full-time 4-wheel drive
mode continuously - even on dry pavement - without threat of damage to the drive train. The standard-
equipment ESP, which combines ABS, Traction Control, and Electronic Roll Mitigation, enhances traction by
modulating torque among all wheels as necessary - providing resistance to any wheel that is slipping while
allowing torque to flow to the wheels with traction.

REMOVAL

TRANSFER CASE - MP140

12 - REAR CASE

26 - CHAIN GUIDES

13 - SEAL

27 - FRONT OUTPUT SEAL

14 - DAMPENER

28 - FRONT OUTPUT SHAFT



2007 Dodge Nitro R/T

2007 TRANSFER CASE MP140 - Service Information - Nitro
