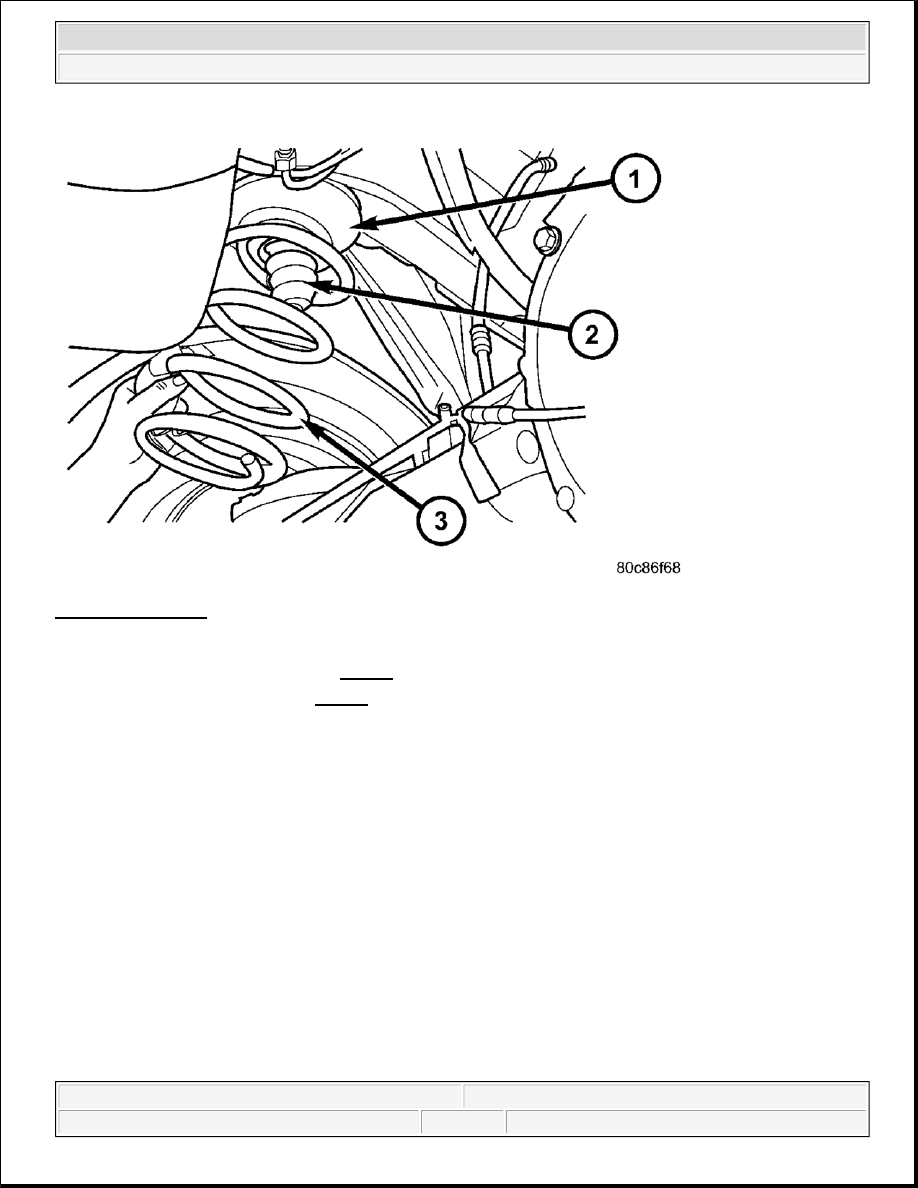

Fig. 86: Coil Spring
Courtesy of CHRYSLER LLC

1. Install the upper isolator (1). See Fig. 85.

2. Install the lower isolator. See Fig. 85.

3. Pull down on the axle and position the coil spring (3) in the lower isolator.

4. Raise the axle with the hydraulic jack.

5. Install the shock absorber to the axle bracket and tighten to 115 N.m (85 ft. lbs.).

6. Remove the supports and lower the vehicle.

JOUNCE BUMPER

REMOVAL

JOUNCE BUMPER

CAUTION: Ensure the spring is positioned on the lower isolator.



2007 Dodge Nitro R/T

2007 SUSPENSION Suspension - Nitro



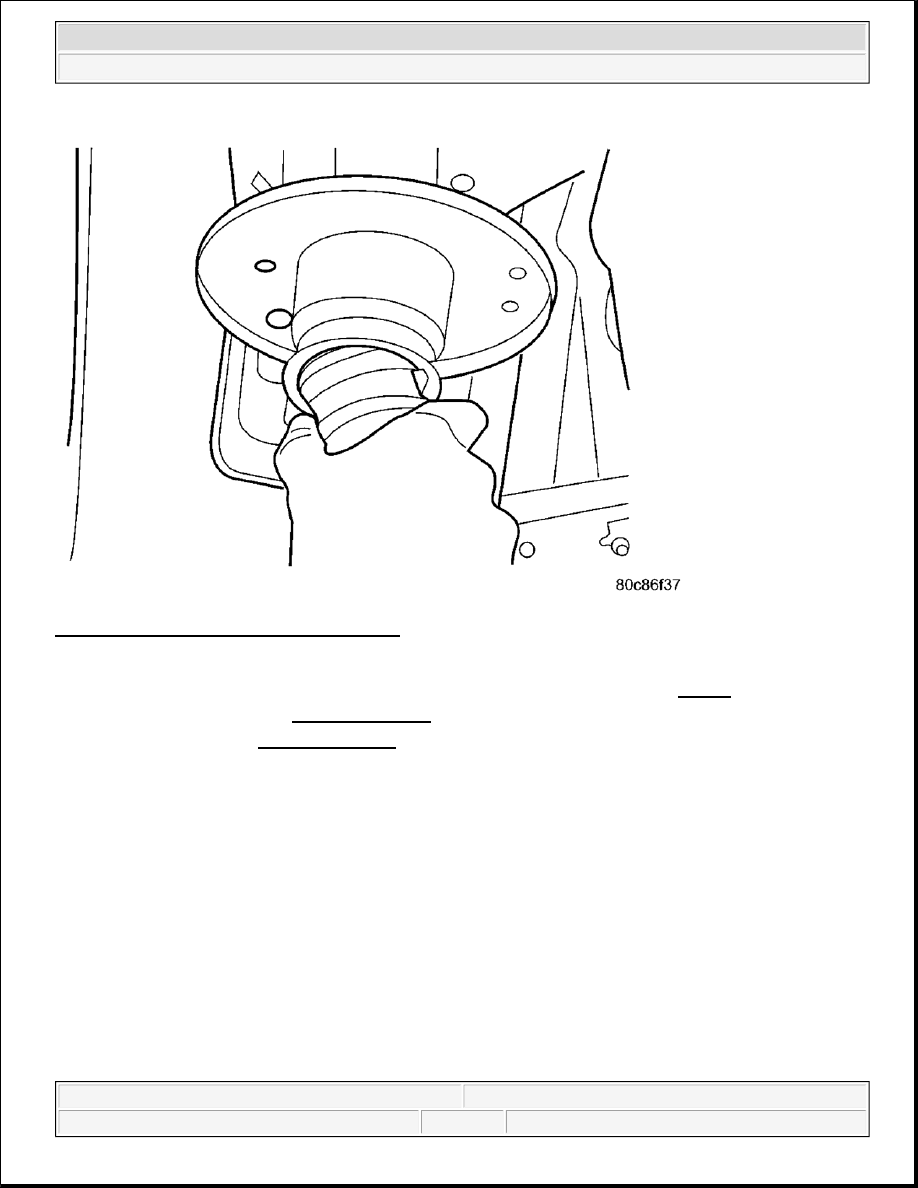

Fig. 87: Removing/Installing Jounce Bumper
Courtesy of CHRYSLER LLC

1. Remove the shock. See REMOVAL.

2. Remove the coil spring. See REMOVAL.

3. Pull the jounce bumper downwards to remove. See Fig. 87

INSTALLATION

JOUNCE BUMPER



2007 Dodge Nitro R/T

2007 SUSPENSION Suspension - Nitro



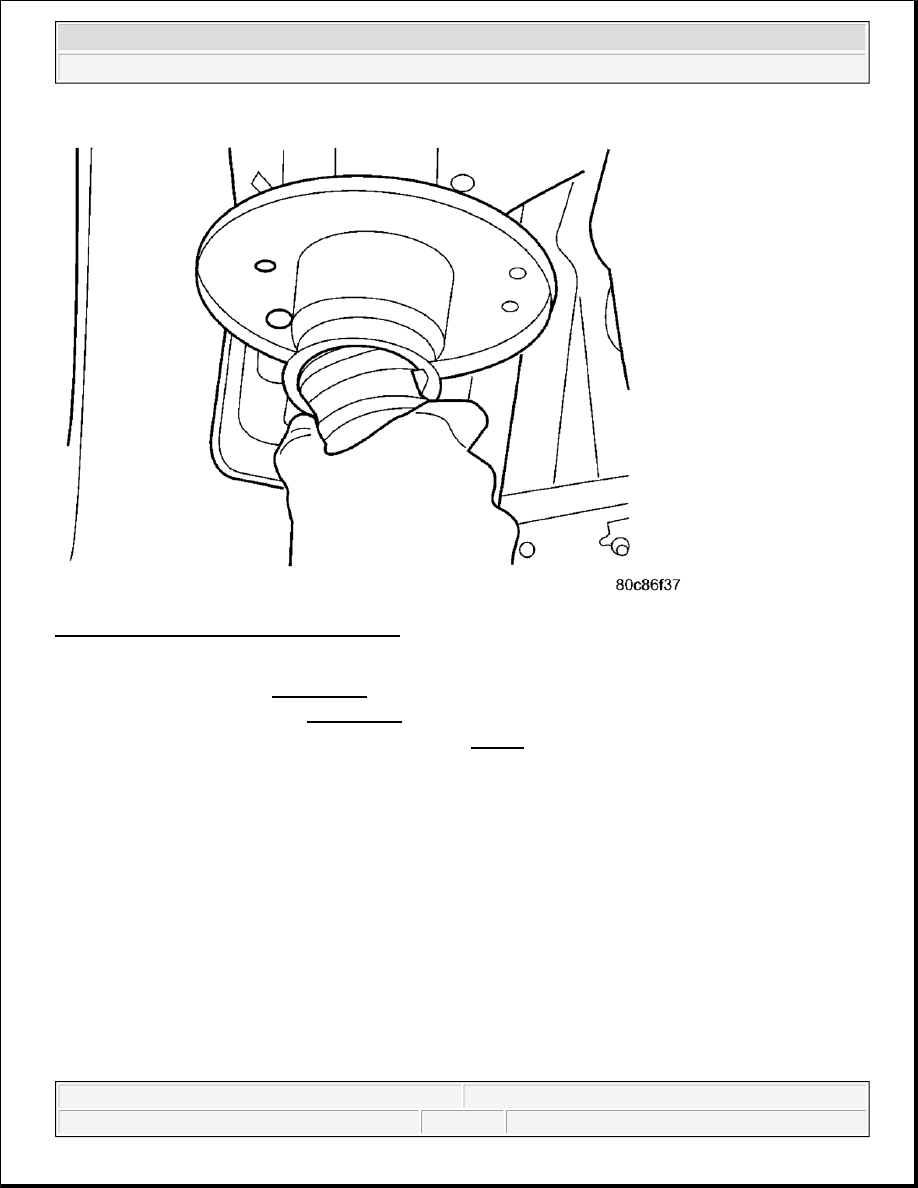

Fig. 88: Removing/Installing Jounce Bumper
Courtesy of CHRYSLER LLC

1. Install the jounce bumper into the mount by twisting the bumper into place. See Fig. 87.

2. Install the coil spring. See INSTALLATION.

3. Install the shock. See INSTALLATION.

STABILIZER BAR

REMOVAL

STABILIZER BAR



2007 Dodge Nitro R/T

2007 SUSPENSION Suspension - Nitro

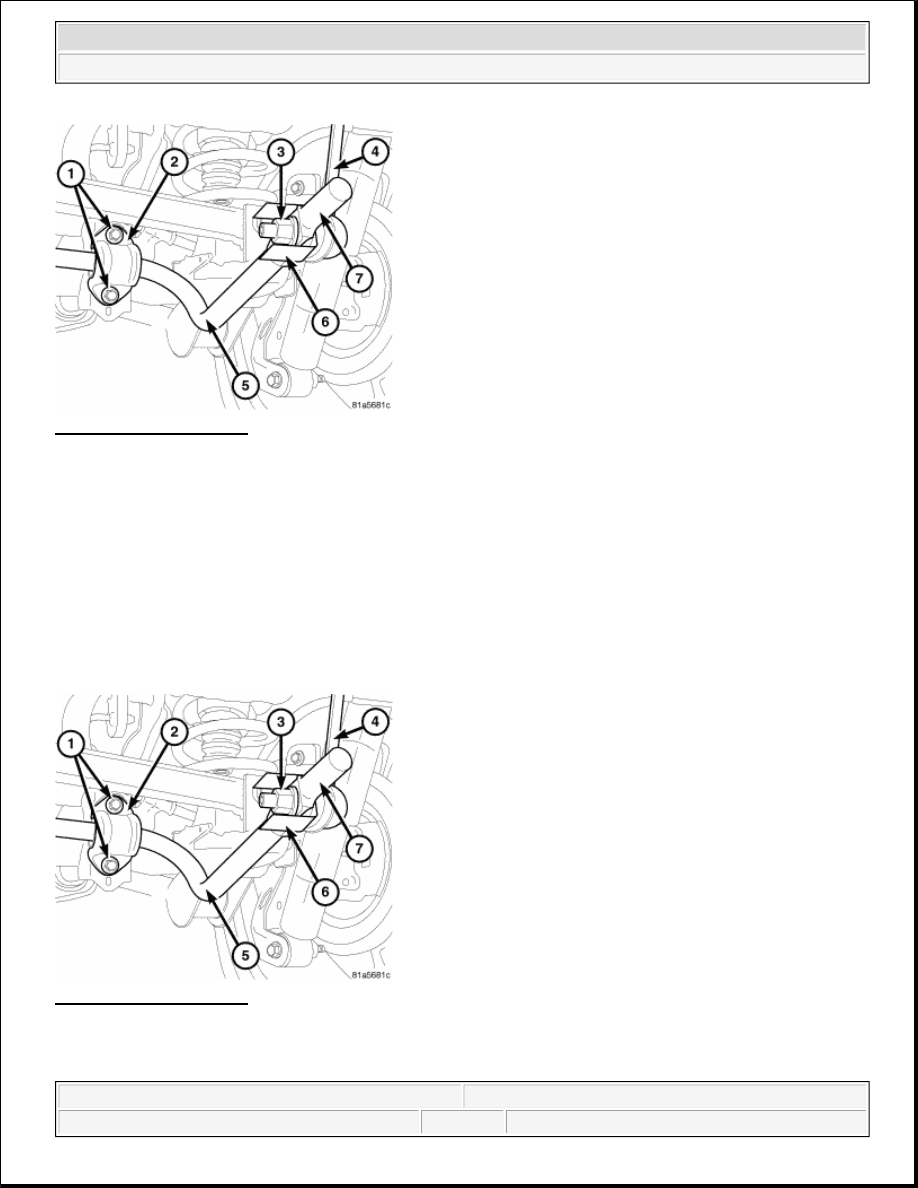

Fig. 89: Stab Bar & Link
Courtesy of CHRYSLER LLC

1. Raise and support the vehicle.

2. Remove the stabilizer nut (3) at the bar (5).

3. Remove the stabilizer links (4) from the stabilizer bar (5).

4. Remove the stabilizer bar bolts (1) from the axle.

5. Remove the stabilizer bar (5).

INSTALLATION

STABILIZER BAR

Fig. 90: Stab Bar & Link
Courtesy of CHRYSLER LLC

1. Position the stabilizer bar (5) on the axle. Ensure the bar is centered with equal spacing on both sides.

Tighten the bolts (1) to 47 N.m (35 ft. lbs.).
