CYLINDER-KEY

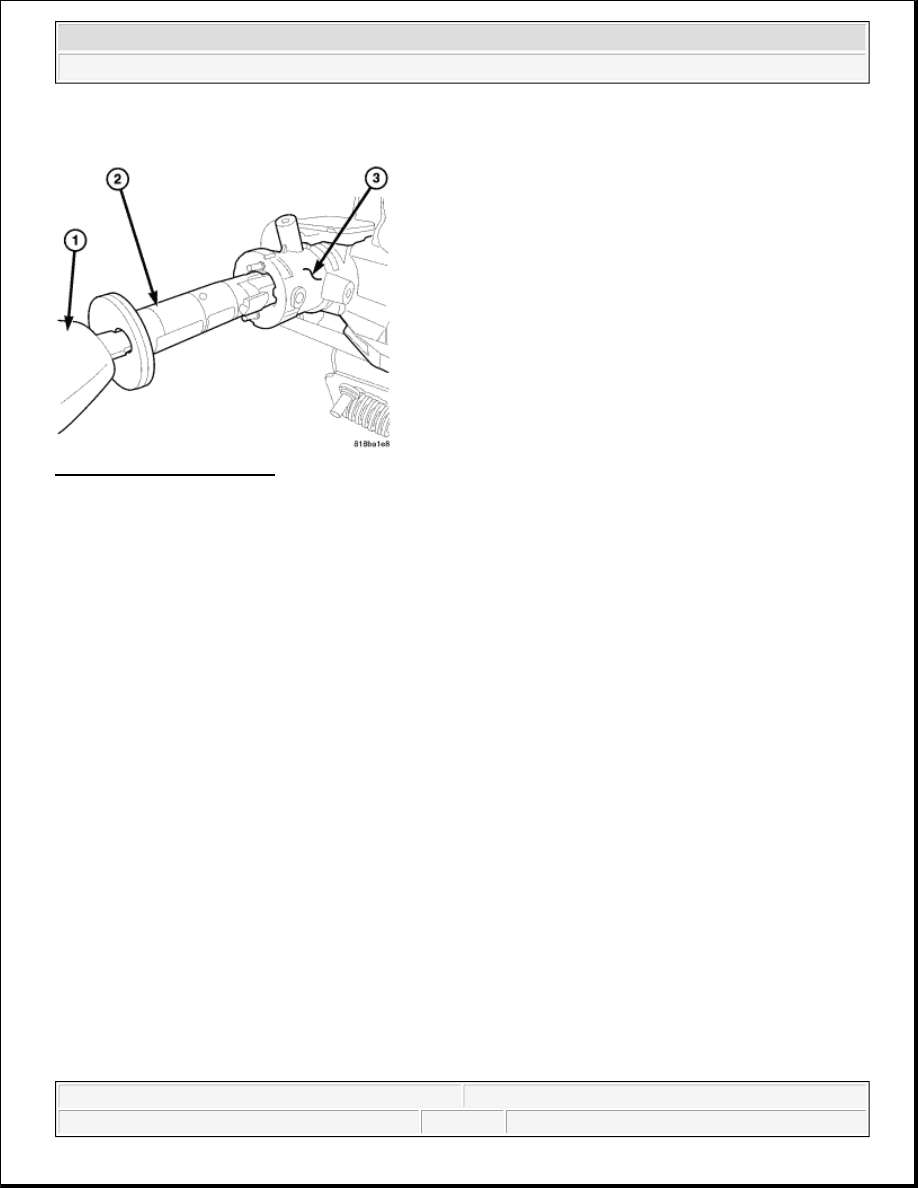

Fig. 22: Key Cylinder Install
Courtesy of CHRYSLER LLC

The ignition key (1) must be in the key cylinder (2) for cylinder installation.

1. Install the key cylinder (2) into the housing (3) using care to align the end of the key cylinder with the

ignition switch.

2. Push the key cylinder (2) in until it clicks.

3. Rotate the key to the insert position.

4. Install the halo ring around the key cylinder housing.

5. Install the (S.K.R.E.E.M) module.

6. Install the shroud covers.

HOUSING-LOCK CYLINDER

REMOVAL

LOCK CYLINDER HOUSING



2007 Dodge Nitro R/T

2007 STEERING Steering System - Nitro



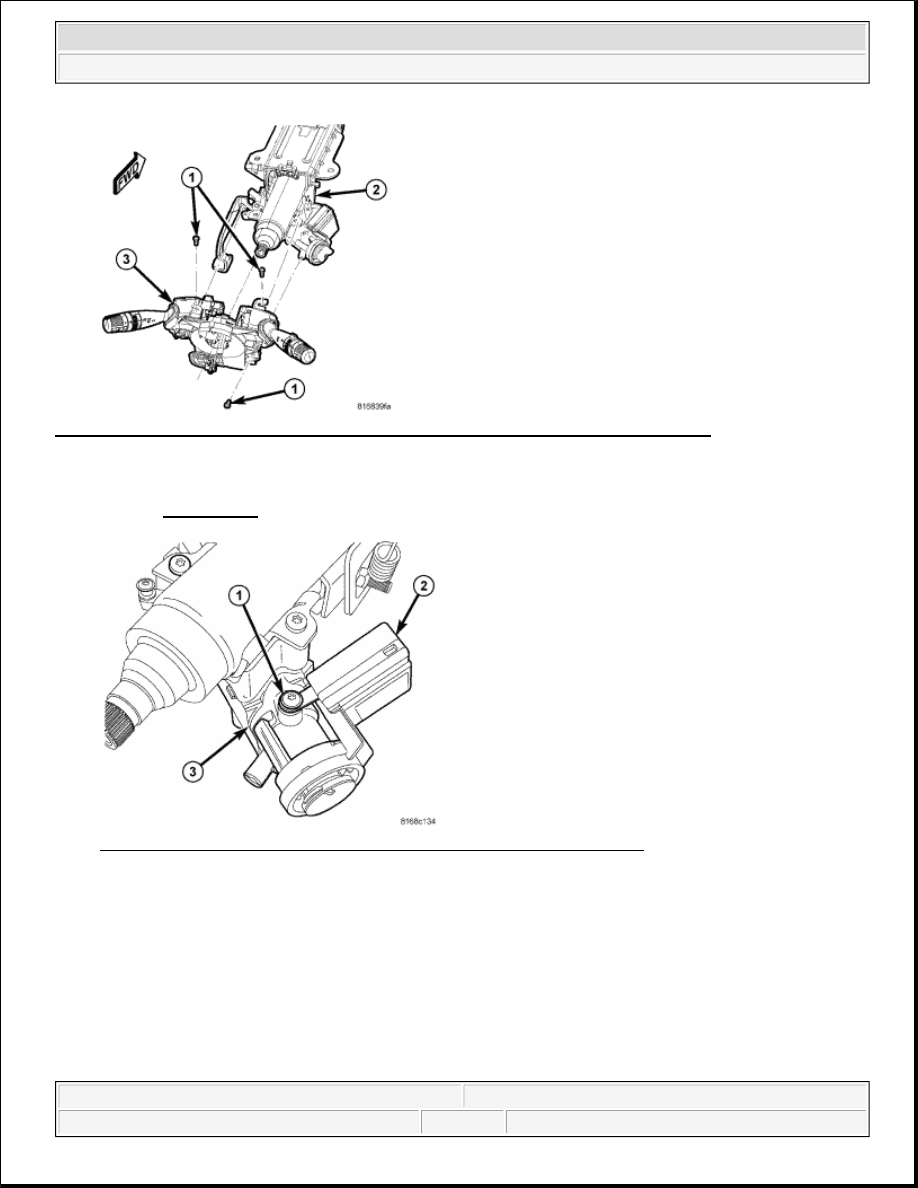

Fig. 23: Removing Steering Column Control Module (SCCM) From Steering Column
Courtesy of CHRYSLER LLC

1. Access and remove the Steering Column Control Module (SCCM) (3) from the steering column (2).

Refer to REMOVAL .

Fig. 24: Identifying Screw, SKREEM/WCM & Lock Cylinder Housing
Courtesy of CHRYSLER LLC

2. Remove the screw (1) fastening the SKREEM/WCM (2) to the lock cylinder housing (3).

3. Unhook the SKREEM/WCM (2) retainer fingers from the lock cylinder housing (3) and remove it.



2007 Dodge Nitro R/T

2007 STEERING Steering System - Nitro



Fig. 25: Identifying Slot, Key & Key Cylinder
Courtesy of CHRYSLER LLC

4. Insert the key (2) and turn the key cylinder (3) to the RUN position.

5. Insert an appropriate tool into the slot (1) formed into the lock cylinder housing depressing the key

cylinder retaining tab.

6. Pull the key cylinder and key straight out of the lock cylinder housing as one unit.

Fig. 26: Identifying Screws & Lock Cylinder Housing
Courtesy of CHRYSLER LLC

7. Using a Tamper-Proof Torx® Plus (five point) 30 bit, remove the two screws (1) fastening the lock

cylinder housing (2) to the column.

8. Remove the lock cylinder housing from the steering column.



2007 Dodge Nitro R/T

2007 STEERING Steering System - Nitro



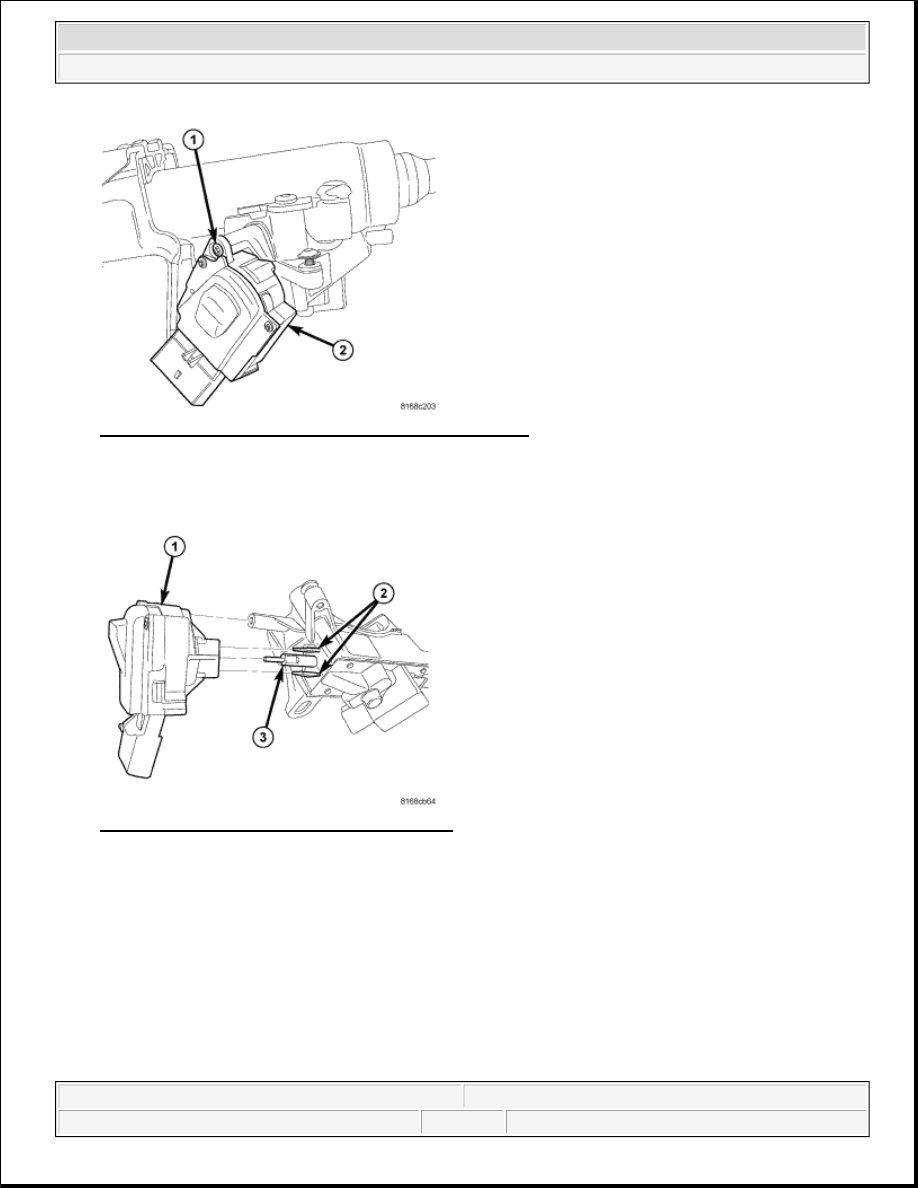

Fig. 27: Identifying Mounting Screw & Ignition Module
Courtesy of CHRYSLER LLC

9. Remove the ignition module (2) mounting screw (1).

Fig. 28: Identifying Module & Retaining Tabs
Courtesy of CHRYSLER LLC

10. Pull the module (1) straight out and off the retaining tabs (2) located on the lock cylinder housing.

INSTALLATION

LOCK CYLINDER HOUSING



2007 Dodge Nitro R/T

2007 STEERING Steering System - Nitro
