Measure the resistance of the (P910) Driver Door Unlock Driver circuit between the Latch connector and
the TIPM C6 connector.

Is the resistance below 2.0 ohms?

No

Repair the (P910) Driver Door Unlock Driver circuit for an open.

Perform BODY VERIFICATION TEST - VER 1 .

Yes

Go to step 3).

3) CHECK (P910) DRIVER DOOR UNLOCK DRIVER CIRCUIT SHORT TO GROUND

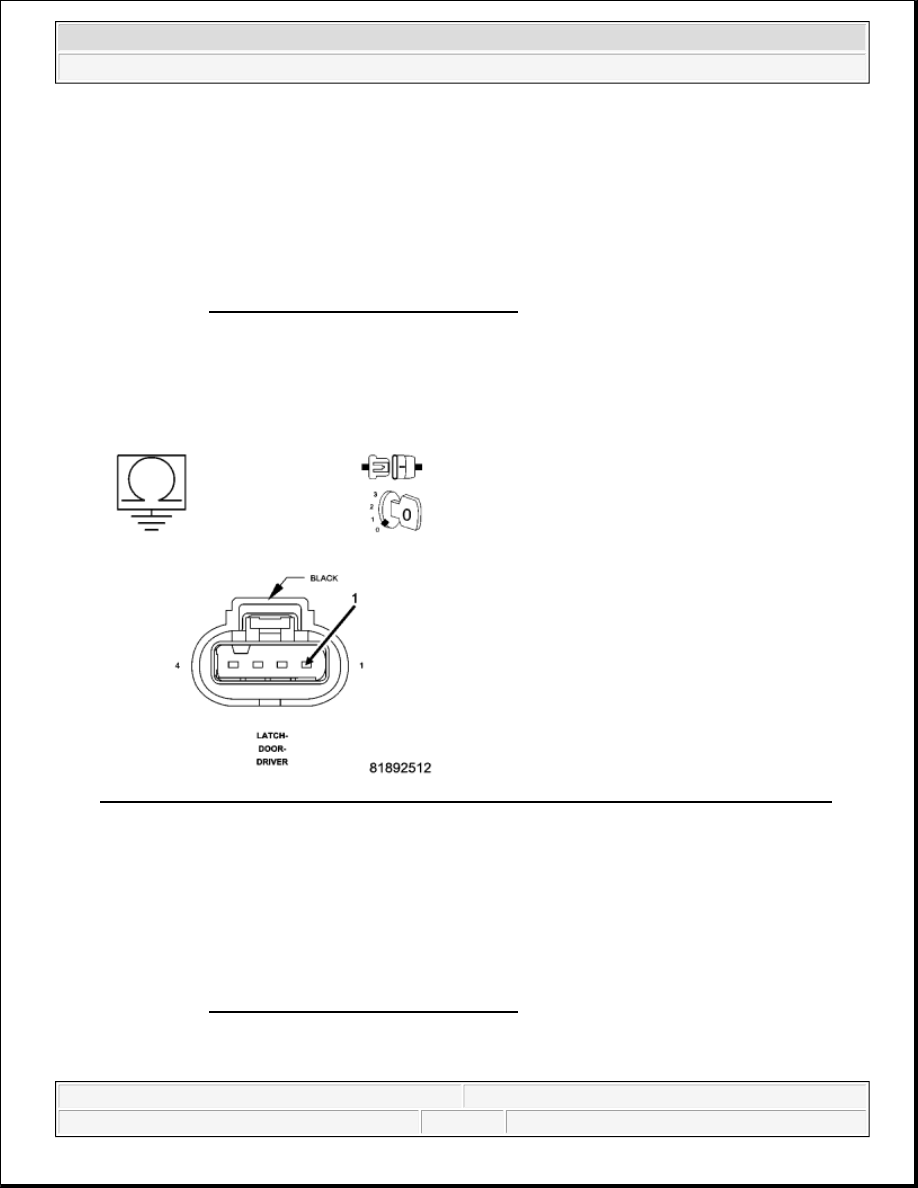

Fig. 43: Measuring Resistance Between Ground And (P910) Driver Door Unlock Driver Circuit
Courtesy of CHRYSLER LLC

Measure the resistance between Ground and the (P910) Driver Door Unlock Driver circuit.

Is the resistance below 1000.0 ohms?

Yes

Repair the (P910) Driver Door Unlock Driver circuit for a short to ground.

Perform BODY VERIFICATION TEST - VER 1 .

No



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Power Locks - Electrical Diagnostics - Nitro



Go to step 4).

4) CHECK (P930) DRIVER DOOR LOCK DRIVER CIRCUIT OPEN

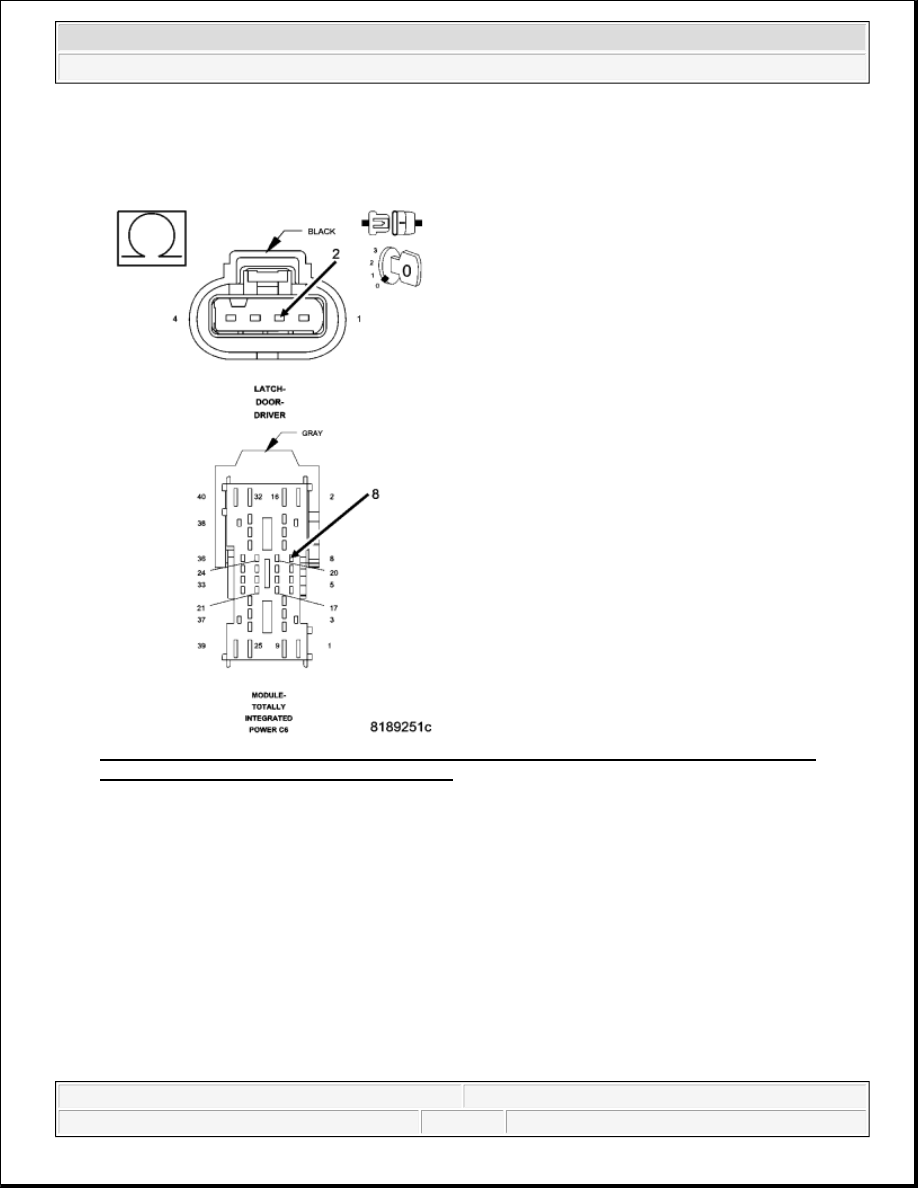

Fig. 44: Measuring Resistance Of (P930) Driver Door Lock Driver Circuit Between TIPM C6
Connector And Driver Door Latch Connector
Courtesy of CHRYSLER LLC

Measure the resistance of the (P930) Driver Door Lock Driver circuit between the TIPM C6 connector
and the Driver Door Latch connector.

Is the resistance below 2.0 ohms?

Yes

Go to step 5).

No

Repair the (P930) Driver Door Lock Driver circuit for an open.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Power Locks - Electrical Diagnostics - Nitro



Perform BODY VERIFICATION TEST - VER 1 .

5) CHECK (P930) DRIVER DOOR LOCK DRIVER CIRCUIT SHORT TO GROUND

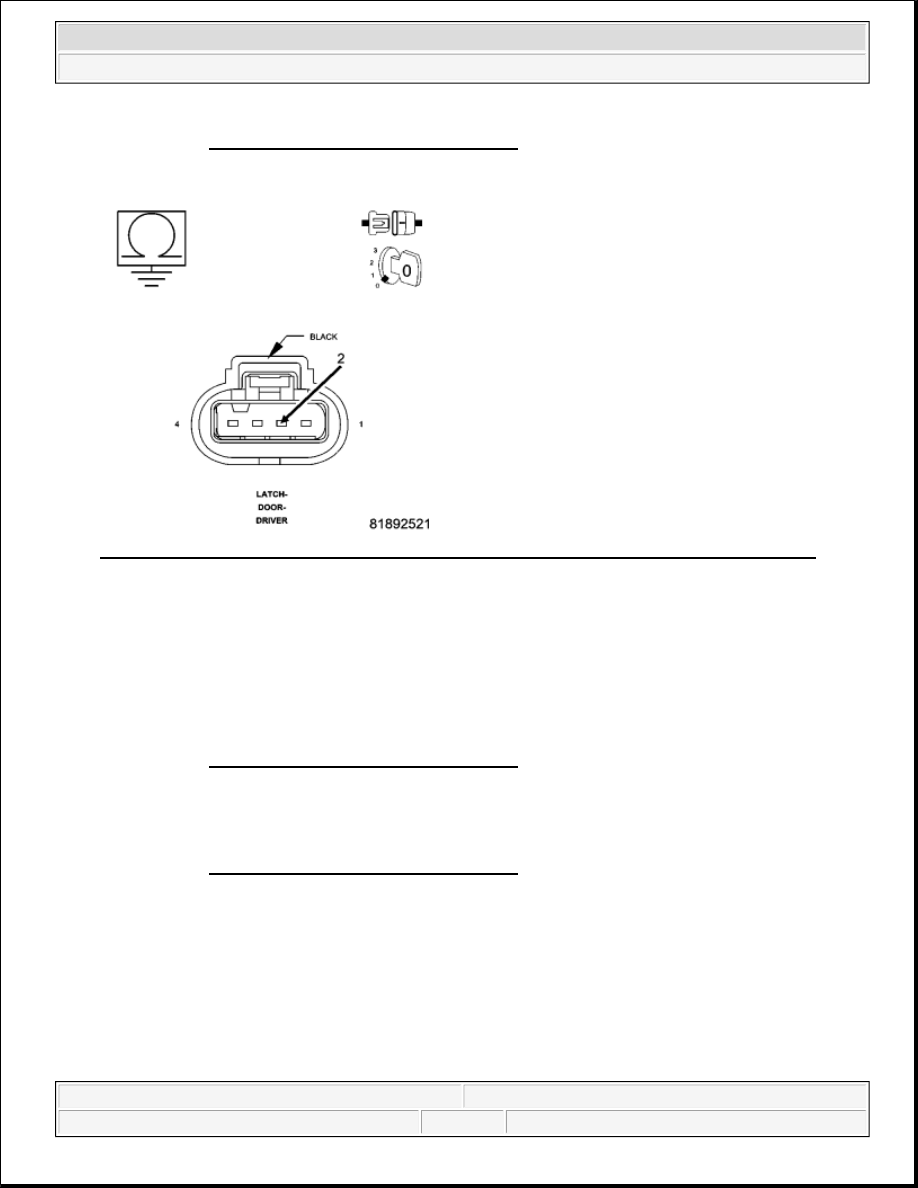

Fig. 45: Measuring Resistance Between Ground And (P930) Driver Door Lock Driver Circuit
Courtesy of CHRYSLER LLC

Measure the resistance between Ground and the (P930) Driver Door Lock Driver circuit.

Is the resistance below 1000.0 ohms?

Yes

Repair the (P930) Driver Door Lock Driver circuit for a short to ground.

Perform BODY VERIFICATION TEST - VER 1 .

No

Replace the Totally Integrated Power Module in accordance with service information.

Perform BODY VERIFICATION TEST - VER 1 .

*LIFTGATE LOCK INOPERATIVE



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Power Locks - Electrical Diagnostics - Nitro

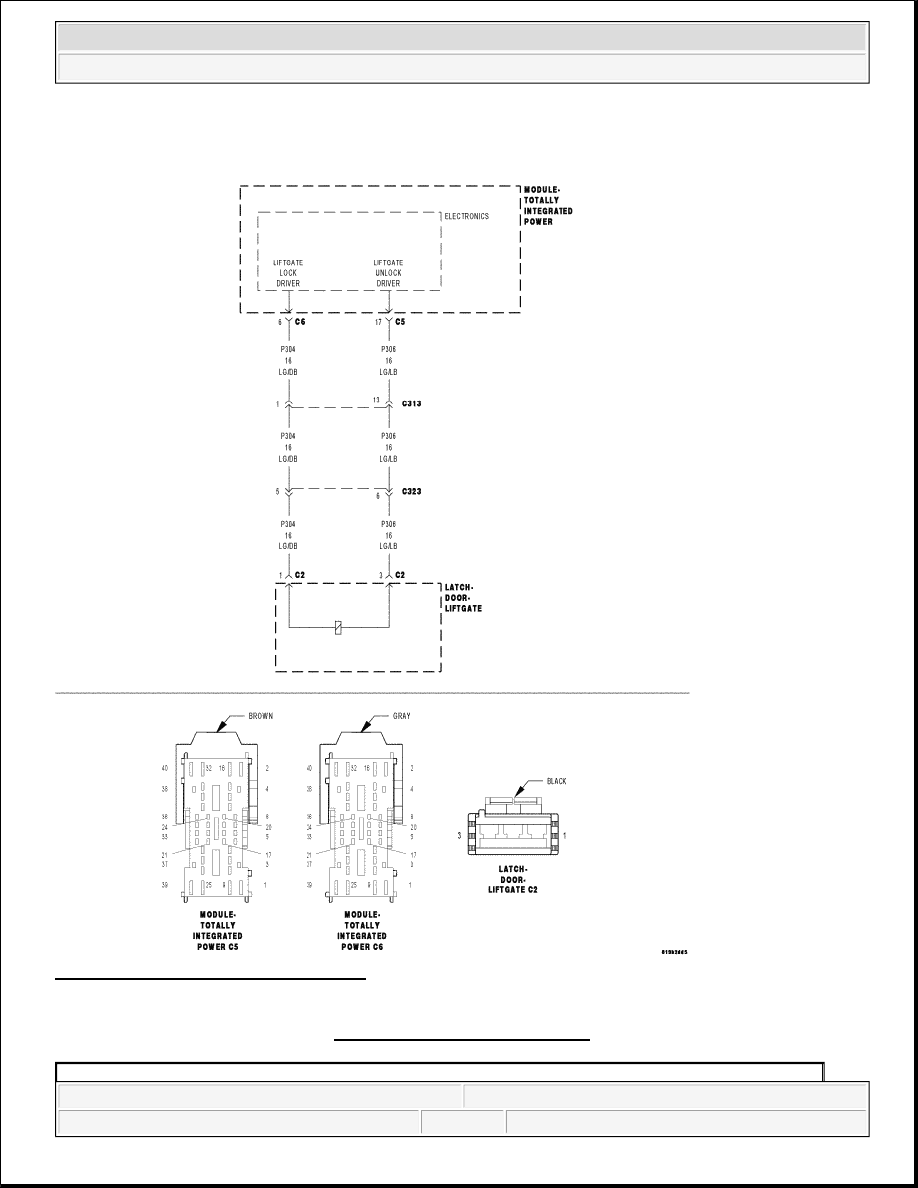

Fig. 46: Liftgate Lock Circuit Schematic
Courtesy of CHRYSLER LLC

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.
