Dodge Nitro. Manual - part 761

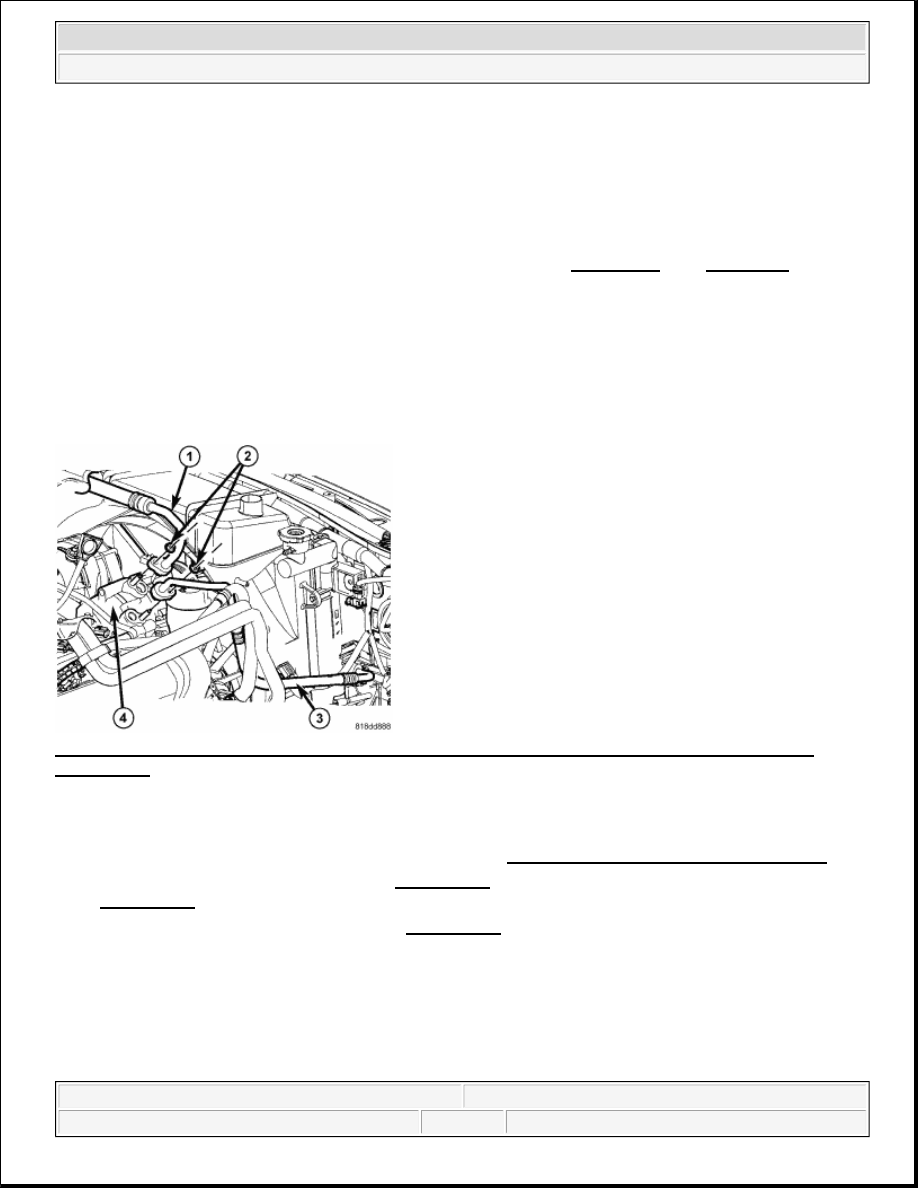

Fig. 125: A/C Discharge Line, Nuts, A/C Suction Line & A/C Compressor
Courtesy of CHRYSLER LLC

1. Disconnect and isolate the negative battery cable.

2. Recover the refrigerant from the refrigerant system. See REFRIGERANT SYSTEM RECOVERY.

3. Remove the air cleaner housing (refer to REMOVAL for 3.7L - SERVICE INFORMATION or

REMOVAL for 4.0L - SERVICE INFORMATION ).

4. Remove the accessory drive belt. Refer to REMOVAL .

5. Remove the nuts (2) that secure the A/C discharge line (1) and the A/C suction line (3) to the A/C

compressor (4).

6. Disconnect the A/C discharge and suction lines from the A/C compressor and remove and discard the O-

ring seals and gaskets.

7. Install plugs in, or tape over the opened refrigerant line fittings and the compressor ports.



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro



Fig. 126: Removing/Installing Nut From Through Bolt On Right Side Engine Mount
Courtesy of CHRYSLER LLC

8. Raise and support the vehicle.

9. Remove the nut (3) from the through bolt (1) on the right side engine mount (3).

10. Support the engine with a suitable jack and partially remove the through bolt to allow the right side of the

engine to be raised off of the motor mount.

Fig. 127: Removing/Installing A/C Compressor
Courtesy of CHRYSLER LLC

11. Remove the jack stand and lower the vehicle.

12. Disconnect the engine wire harness from the A/C clutch field coil connector (1).

13. Using a suitable floor jack and a block of wood under the oil pan to protect from damage, raise the right

side of the engine to gain access to remove the stud (3) that secures the lower front of the A/C compressor
(2) to the accessory drive belt bracket.

14. Remove the nut (4) and stud that secures the lower front of the A/C compressor to the accessory drive

belt bracket.

15. Remove the bolt (7) that secures the rear of the A/C compressor to the engine.

CAUTION: Do not completely remove the right side motor mount through bolt

when performing this procedure. The bolt supports the engine at the
lower mount and removal of the bolt will allow the engine to sit
further down in the frame, which may cause possible damage to the
engine and various other components.

CAUTION: Use care when raising the engine when performing this procedure.

Be sure to protect the bottom of the engine and various other
components from damage.



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro



16. Support the A/C compressor and remove the nut (6) and stud (5) that secures the upper front of the A/C

compressor to the accessory drive belt bracket and remove the compressor.

3.7L ENGINE

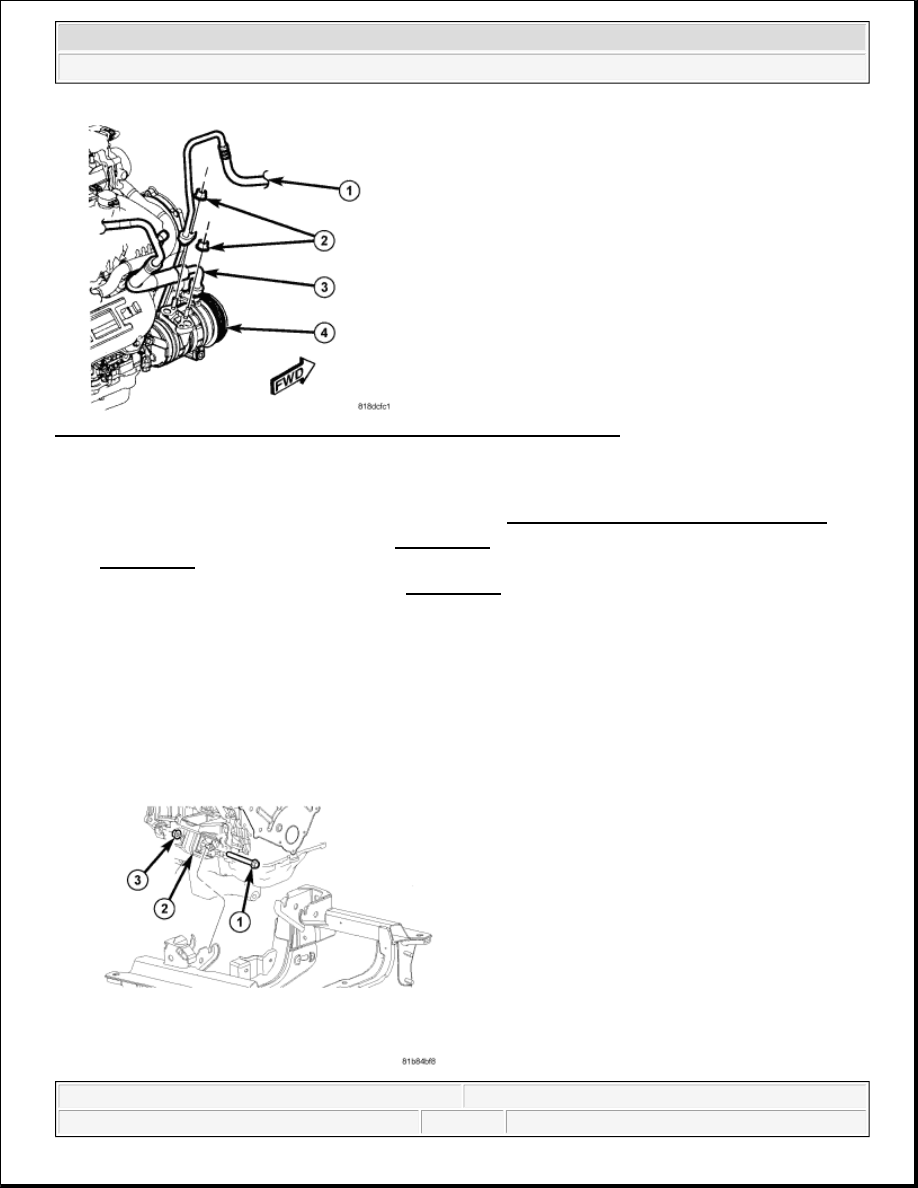

Fig. 128: Removing/Installing Nuts That Secure A/C Suction Line And A/C Discharge Line To A/C
Compressor
Courtesy of CHRYSLER LLC

1. Disconnect and isolate the negative battery cable.

2. Recover the refrigerant from the refrigerant system. See REFRIGERANT SYSTEM RECOVERY.

3. Remove the air cleaner housing (refer to REMOVAL for 3.7L - SERVICE INFORMATION or

REMOVAL or 4.0L - SERVICE INFORMATION ).

4. Remove the accessory drive belt. Refer to REMOVAL .

5. Remove the nuts (2) that secure the A/C suction line (1) and A/C discharge line (3) to the A/C

compressor (4).

6. Disconnect the A/C suction and discharge lines from the A/C compressor and remove and discard the O-

ring seals and gaskets.

WARNING:

Refer to the applicable warnings and cautions for this system before
performing the following operation. See WARNING, and CAUTION. Failure
to follow the warnings and cautions could result in possible personal
injury or death.

NOTE:

The A/C compressor can be removed from the engine and repositioned without
disconnecting the refrigerant lines or discharging the refrigerant system.
Discharging is not necessary if servicing the A/C clutch or various engine
components.



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro



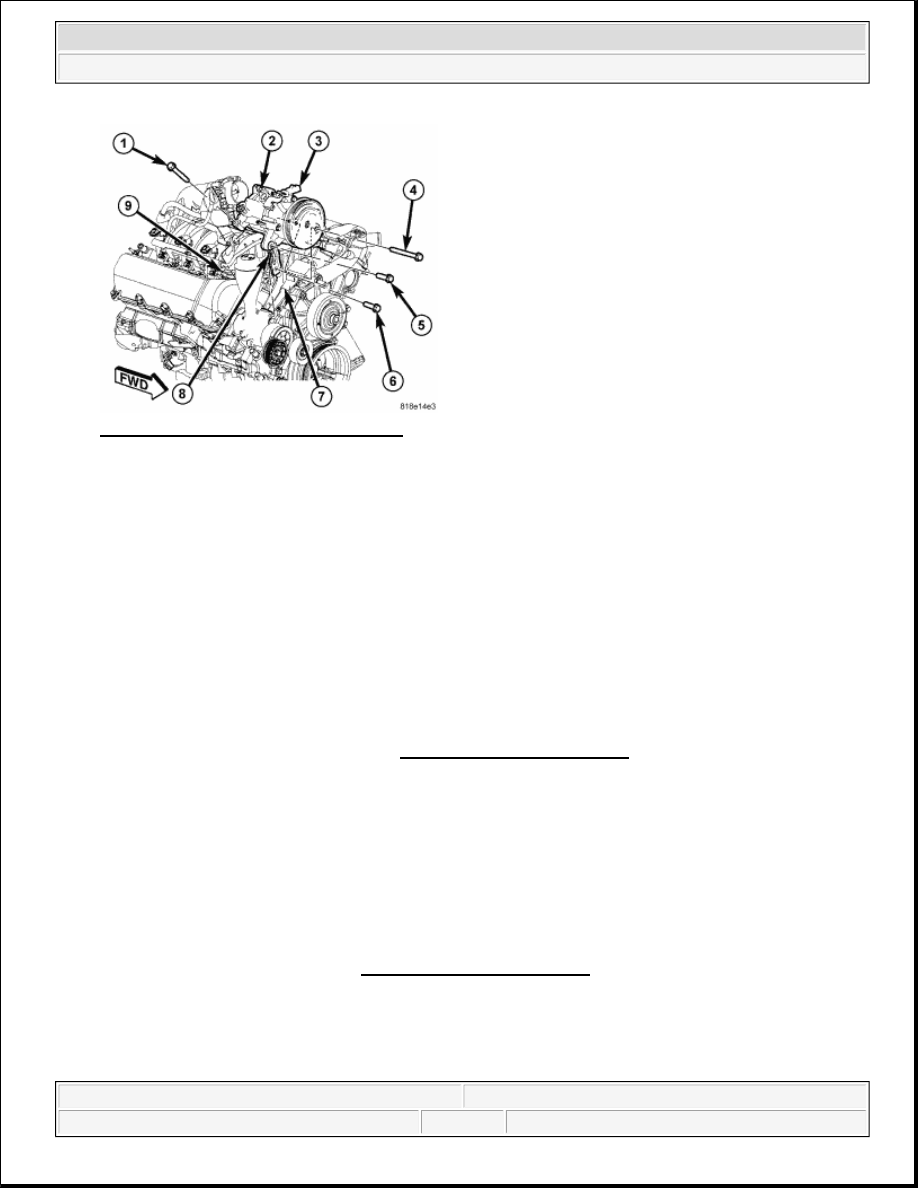

Fig. 129: A/C Compressor Components
Courtesy of CHRYSLER LLC

7. Disconnect the engine wire harness from the A/C clutch field coil connector (3).

8. Loosen the bolt (6) that secures the compressor bracket (8) to the engine front cover (7).

9. Remove the bolt (1) that secures the A/C compressor (2) to the intake manifold (9).

10. Remove the two bolts (4 and 5) that secure the A/C compressor to the front of the engine.

11. Remove the A/C compressor from the engine and install plugs in, or tape over the opened refrigerant line

fittings and the compressor ports.

INSTALLATION

3.7L ENGINE

CAUTION: If the A/C compressor is being replaced, be certain to adjust the refrigerant

system oil level. See REFRIGERANT OIL LEVEL. Failure to properly adjust
the refrigerant oil level will prevent the A/C system from operating as
designed and can cause serious A/C compressor damage.

CAUTION: The A/C receiver/drier must be replaced if an internal failure of the A/C

compressor has occurred. Failure to replace the A/C receiver/drier can
cause serious damage to the replacement A/C compressor.

NOTE:

When replacing multiple A/C system components, refer to the Refrigerant Oil
Capacities chart to determine how much oil should be removed from the new
A/C compressor. See REFRIGERANT OIL LEVEL.

NOTE:

Replacement of the refrigerant line O-ring seals and gaskets is required anytime
a refrigerant line is opened. Failure to replace the rubber O-ring seals and metal
gaskets could result in a refrigerant system leak.
