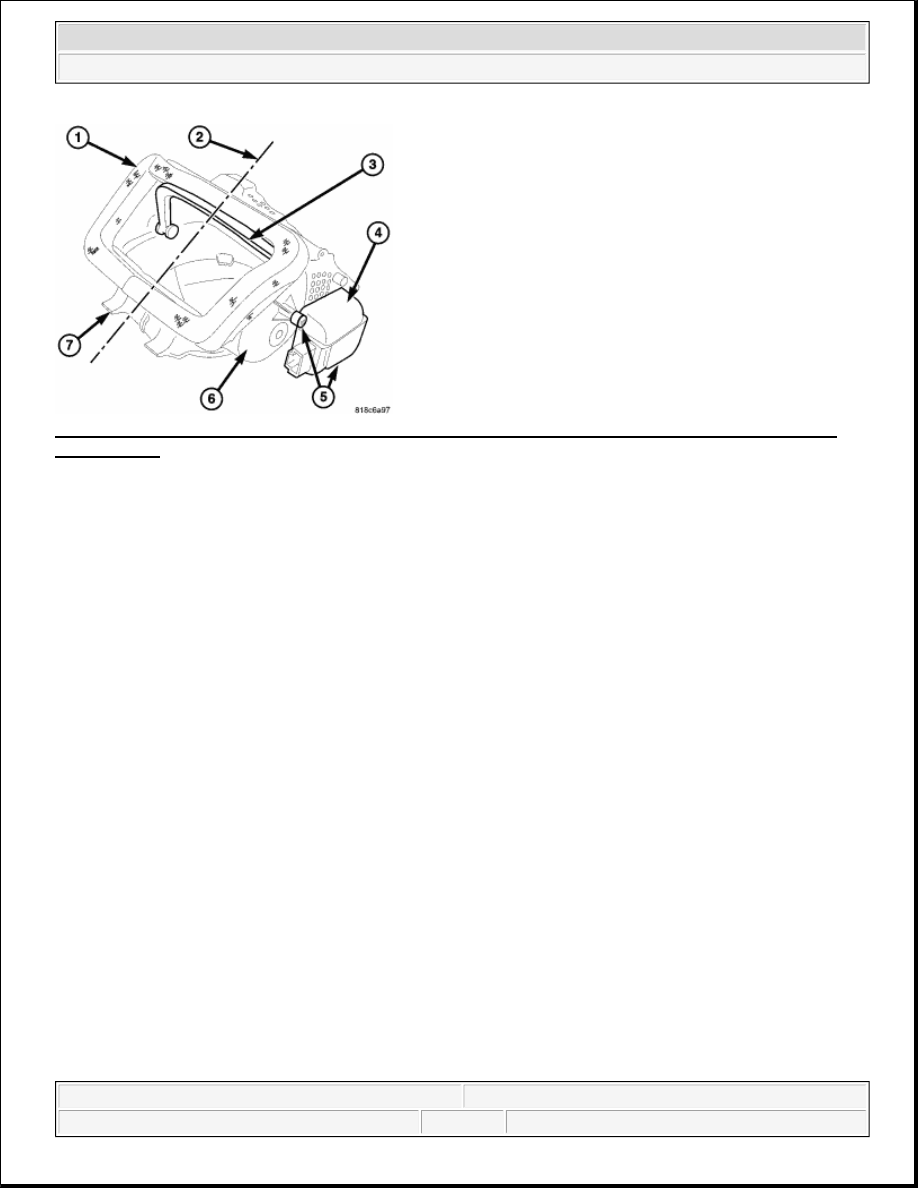

Fig. 92: Foam Seal, Parting Line, Recirculation-Air Door, Recirculation Door Actuator, Screws & Air
Inlet Housing
Courtesy of CHRYSLER LLC

1. Install the recirculation-air door (3) into the two halves of the air inlet housing (6 and 7). Align the air

door pivot shaft with the holes in the housing halves.

2. Carefully install the two halves of the air inlet housing together and engage the three plastic retaining

tabs. Make sure the retaining tabs are fully engaged.

3. Position the recirculation door actuator (4) to the air inlet housing. Make sure the actuator output shaft is

properly aligned to the recirculation door pivot shaft. If necessary, rotate the actuator slightly to engage
the splines on the output shaft with those in the pivot shaft.

4. Install the two screws (5) that secure the recirculation door actuator to the air inlet housing. Tighten the

screws to 1.2 N.m (10 in lbs.).

5. Inspect the foam seal (1), especially along the parting line (2) of the two halves of the air inlet housing.

Replace the seal if it is deformed or damaged.

NOTE:

If a rubber seal on the recirculation air-door is deformed or damaged, the air-
door must be replaced.

NOTE:

If the foam seal on top of the air inlet housing is deformed or damaged, it
must be replaced.



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro



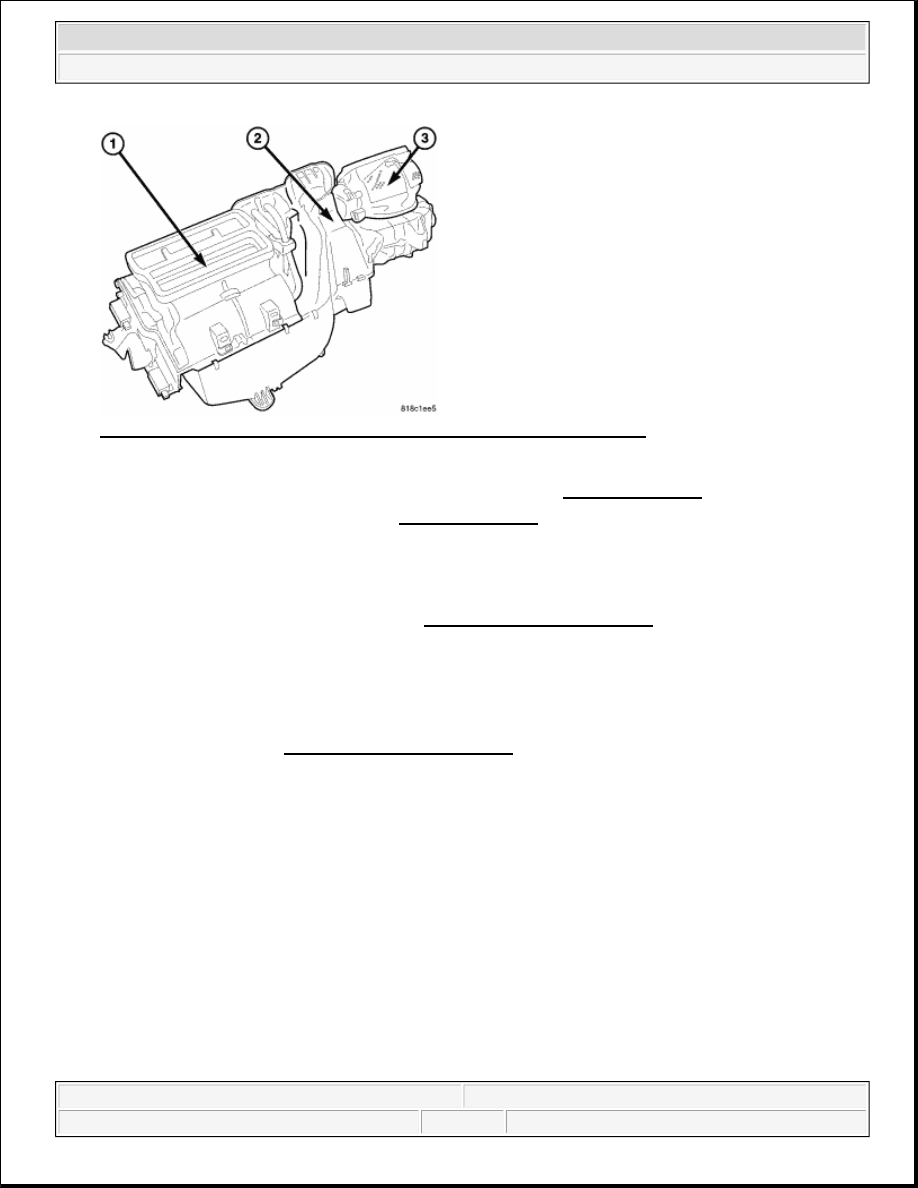

Fig. 93: Air Distribution Housing, HVAC Housing & Air Inlet Housing
Courtesy of CHRYSLER LLC

6. Install the air inlet housing (3) onto the HVAC housing (2). See INSTALLATION.

7. Install the HVAC housing assembly. See INSTALLATION.

HOUSING-HVAC

CAUTION: Be certain to adjust the refrigerant oil level when servicing the A/C

refrigerant system. See REFRIGERANT OIL LEVEL. Failure to properly
adjust the refrigerant oil level will prevent the A/C system from operating
as designed and can cause serious A/C compressor damage.

NOTE:

When replacing multiple A/C system components, refer to the Refrigerant Oil
Capacities chart to determine how much oil should be added to the refrigerant
system. See REFRIGERANT OIL LEVEL.

NOTE:

If the A/C evaporator is being replaced, add 60 milliliters (2 fluid ounces) of
refrigerant oil to the refrigerant system. Use only refrigerant oil of the type
recommended for the A/C compressor in the vehicle.

NOTE:

LHD model shown in illustrations. RHD model similar.



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro



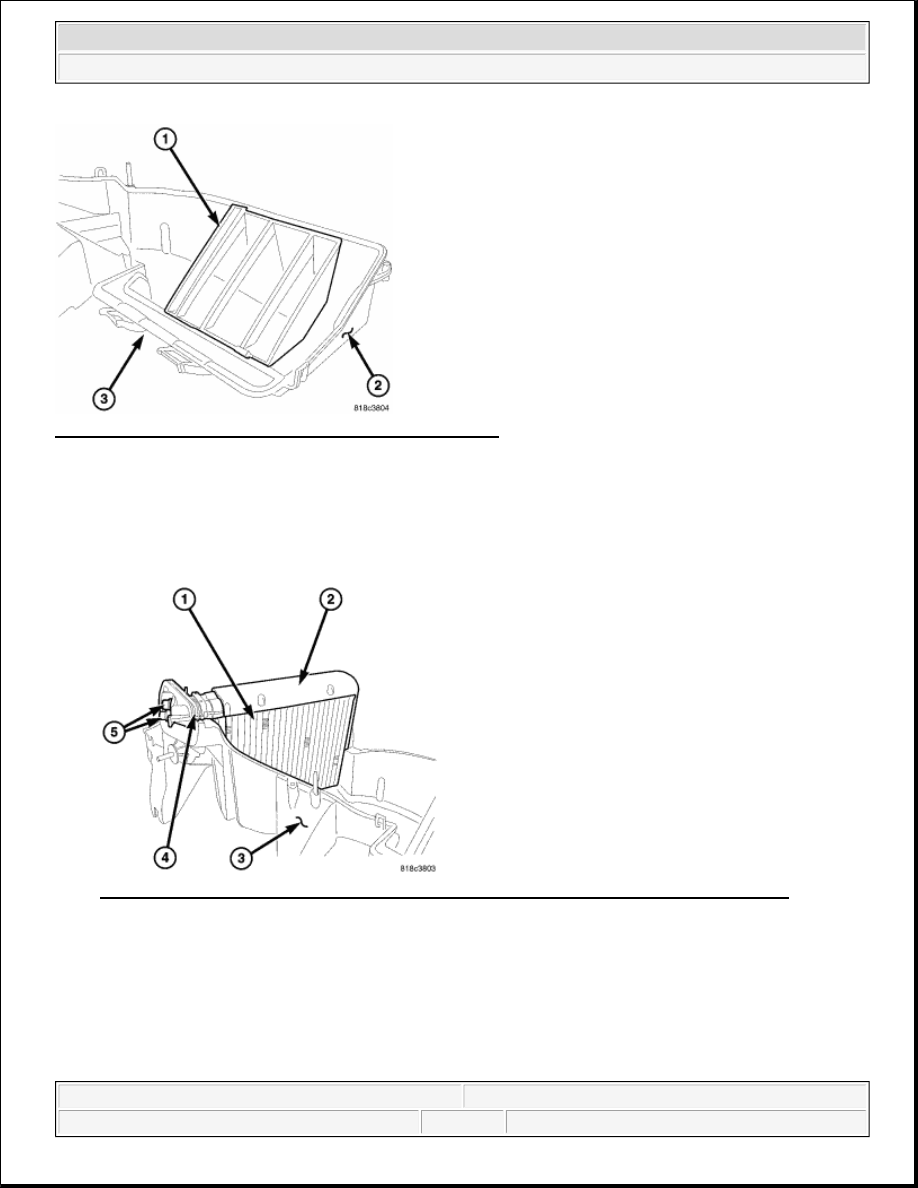

Fig. 94: Air Deflector Vane, HVAC Housing & Foam Seal
Courtesy of CHRYSLER LLC

1. If removed, install the foam seal (3) onto the condensate drain located at the bottom of the HVAC

housing (2).

2. Install the air deflector vane (1) into the lower half of the HVAC housing. Make sure the retainers are

fully engaged.

Fig. 95: A/C Evaporator, Foam Insulator, HVAC Housing, Rubber Seal & Tapping Block
Courtesy of CHRYSLER LLC

3. If removed, install the rubber seal (4) over the evaporator tubes and tapping block (5).

NOTE:

Make sure the rubber seal for the evaporator tubes and tapping block is
properly positioned in the HVAC housing opening.

NOTE:

Make sure that the foam insulator around the A/C evaporator is properly



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro



4. Carefully install the A/C evaporator (1) and foam insulator (2) into the lower half of the HVAC housing

(3).

Fig. 96: Foam Seal, HVAC Housing, Screws, Plastic Retaining Tabs & Metal Clips
Courtesy of CHRYSLER LLC

5. Install the two halves of the HVAC housing (2 and 6) together and engage the four plastic retaining tabs

(4). Make sure the retaining tabs are fully engaged.

6. Install the seven screws (5) and two metal clips (3) that secure the two halves of the HVAC housing

together. Tighten the screws to 1.2 N.m (10 in lbs.). Make sure the metal clips are fully engaged to the
housing halves.

7. Install the foam seal (1) onto the front of the two HVAC housing halves.

positioned within the HVAC housing.

NOTE:

Be sure to install the screws that secure the two halves of the HVAC
housing together located at the bottom of the HVAC housing.
