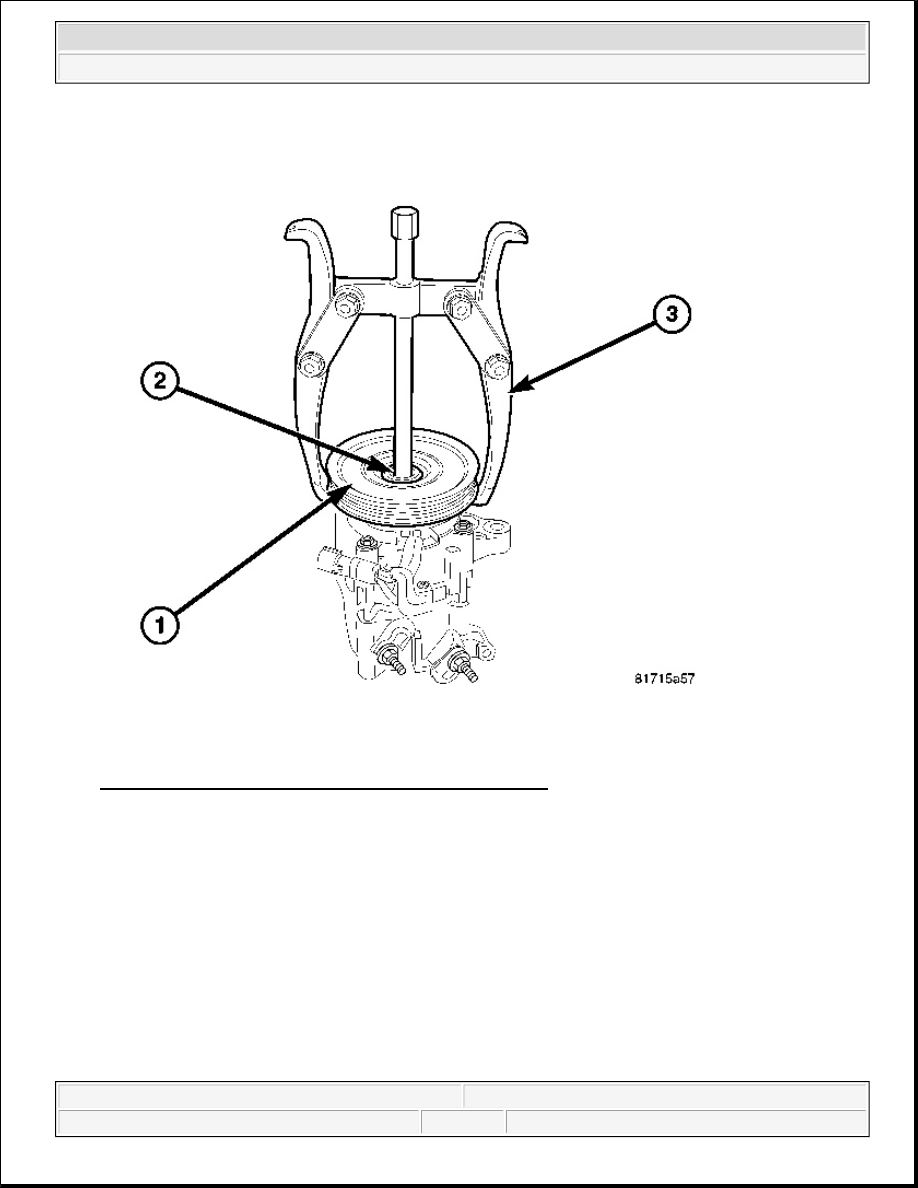

Fig. 27: Bearing Assembly, A/C Compressor & Jaw Puller
Courtesy of CHRYSLER LLC

9. Remove the pulley and bearing assembly (1) from the front of the A/C compressor (2). If required, install

a two jaw puller (3) and turn the puller center-bolt clockwise until the pulley and bearing assembly is
completely removed.

NOTE:

The pulley and bearing assembly can be removed from the compressor by
hand or, if required, with a two jaw puller.



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro

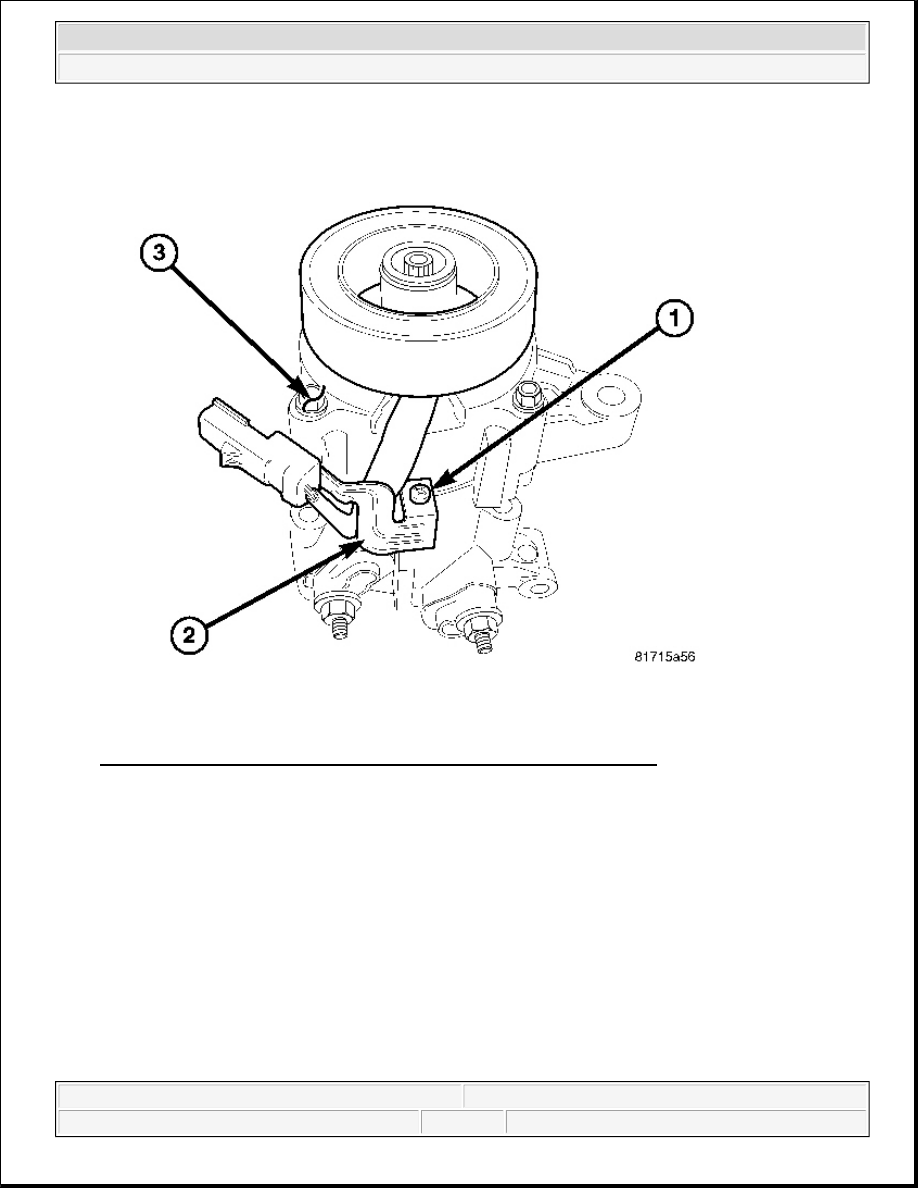

Fig. 28: Screw, Clutch Field Coil Wire Lead Bracket & A/C Compressor
Courtesy of CHRYSLER LLC

10. Remove the screw (1) that secures the clutch field coil wire lead bracket (2) to the A/C compressor (3).



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro

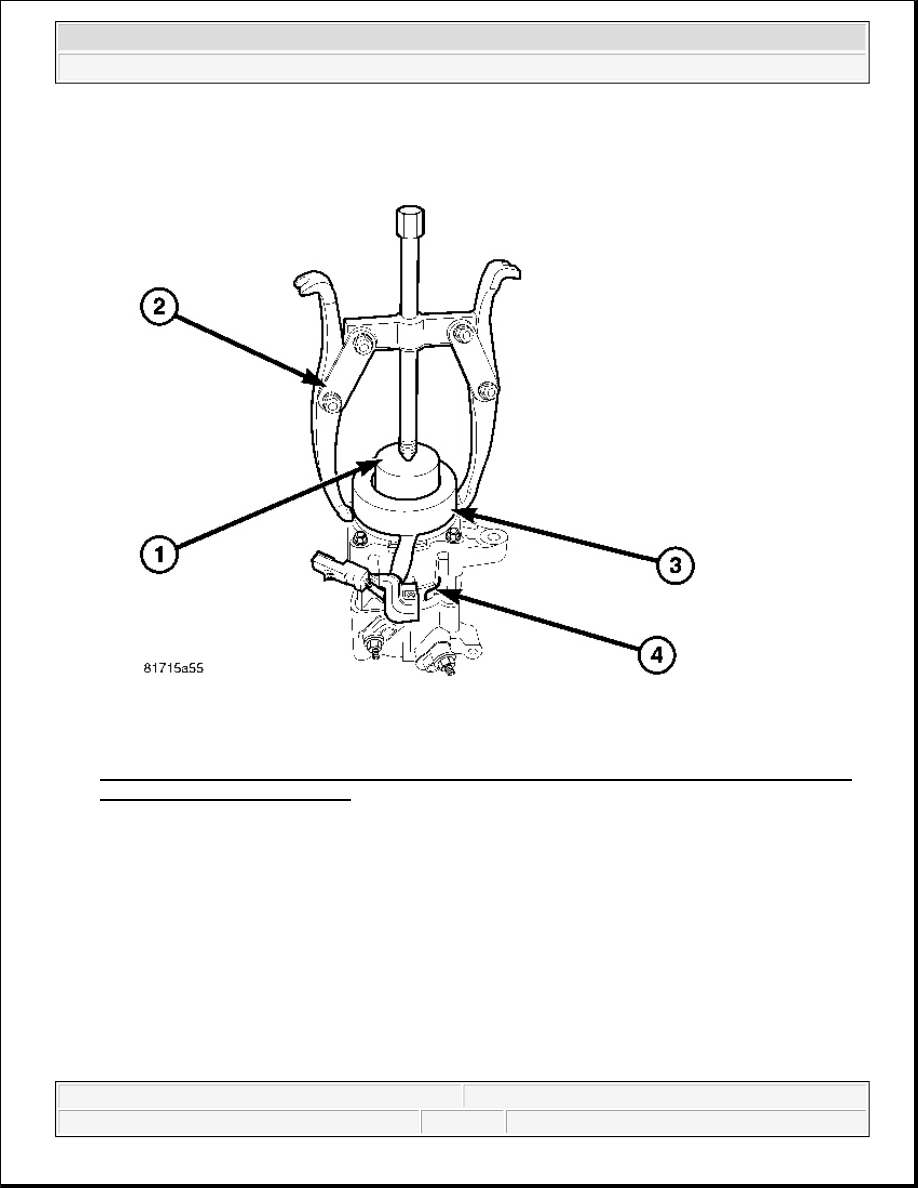

Fig. 29: Using Compressor Field Coil Remover And Two Jaw Puller To Remove Clutch Field Coil
From Front Of A/C Compressor
Courtesy of CHRYSLER LLC

11. Using compressor field coil remover (Special Tool 9354 in Kit 9349) (1) and a two jaw puller (2), remove

the clutch field coil (3) from the front of the A/C compressor (4).

INSTALLATION

CLUTCH-A/C COMPRESSOR



2007 Dodge Nitro R/T

2007 HVAC Heating & Air Conditioning - Service Information - Nitro

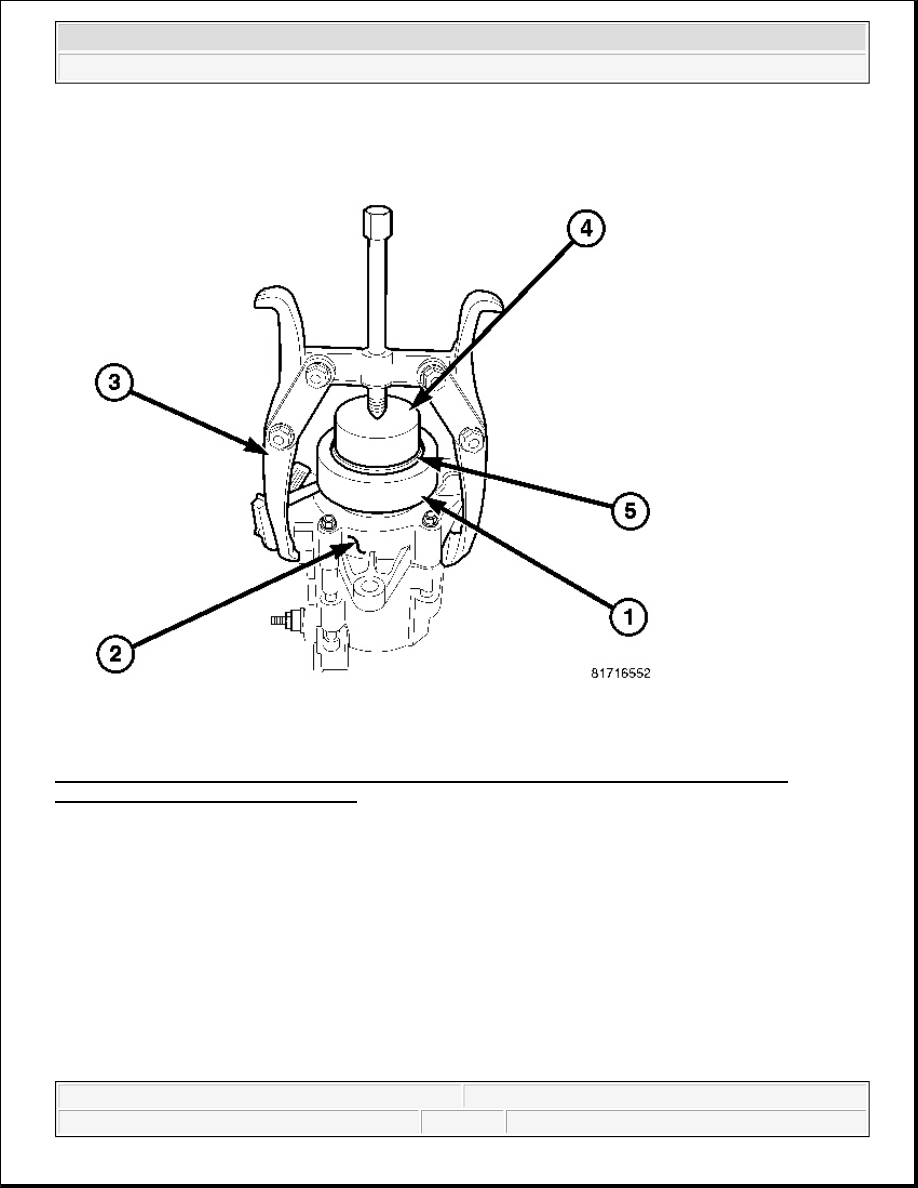

Fig. 30: A/C Clutch Field Coil, A/C Compressor, Jaw Puller, Compressor Field Coil Installer &
Compressor Field Coil Installer Spacer
Courtesy of CHRYSLER LLC

1. Position the A/C clutch field coil (1) squarely onto the front of the A/C compressor (2).

2. Align the field coil positioning tabs to the recessed area at the front of the A/C compressor and install the

clutch field coil onto the compressor using a two jaw puller (3), compressor field coil installer (Special
Tool 9352 in Kit 9349) (4) and the compressor field coil installer spacer (Special Tool 9353 in Kit 9349)
(5).

CAUTION: Position the A/C clutch field coil so that the coil positioning tabs and

the wire harness lead are oriented in the correct direction. Failure to
correctly position the field coil on the A/C compressor will result in
field coil damage.
