Fig. 72: Identifying Front Axle Bracket Cradle Nut & Front Axle Bracket Bolts
Courtesy of CHRYSLER LLC

5. Install front axle bracket, bolts (2) and nuts on axle housing. Install front axle bracket bolt (1) and nut in

front crossmember. Tighten front axle bracket nuts to 61 N.m (45 ft. lbs.).

Fig. 73: Identifying Half Shaft & Knuckle
Courtesy of CHRYSLER LLC

6. Install half shafts (1) into axle and steering knuckle (2) and hub bearing.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



Fig. 74: Identifying Upper Ball Joint Nuts & Steering Knuckles
Courtesy of CHRYSLER LLC

7. Install upper ball joint into steering knuckles (2) and tighten nuts (1) to specifications.

Fig. 75: Identifying Tie Rod End & Steering Knuckle
Courtesy of CHRYSLER LLC

8. Install tie rod ends (1) on steering knuckles (2) and tighten to specifications.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

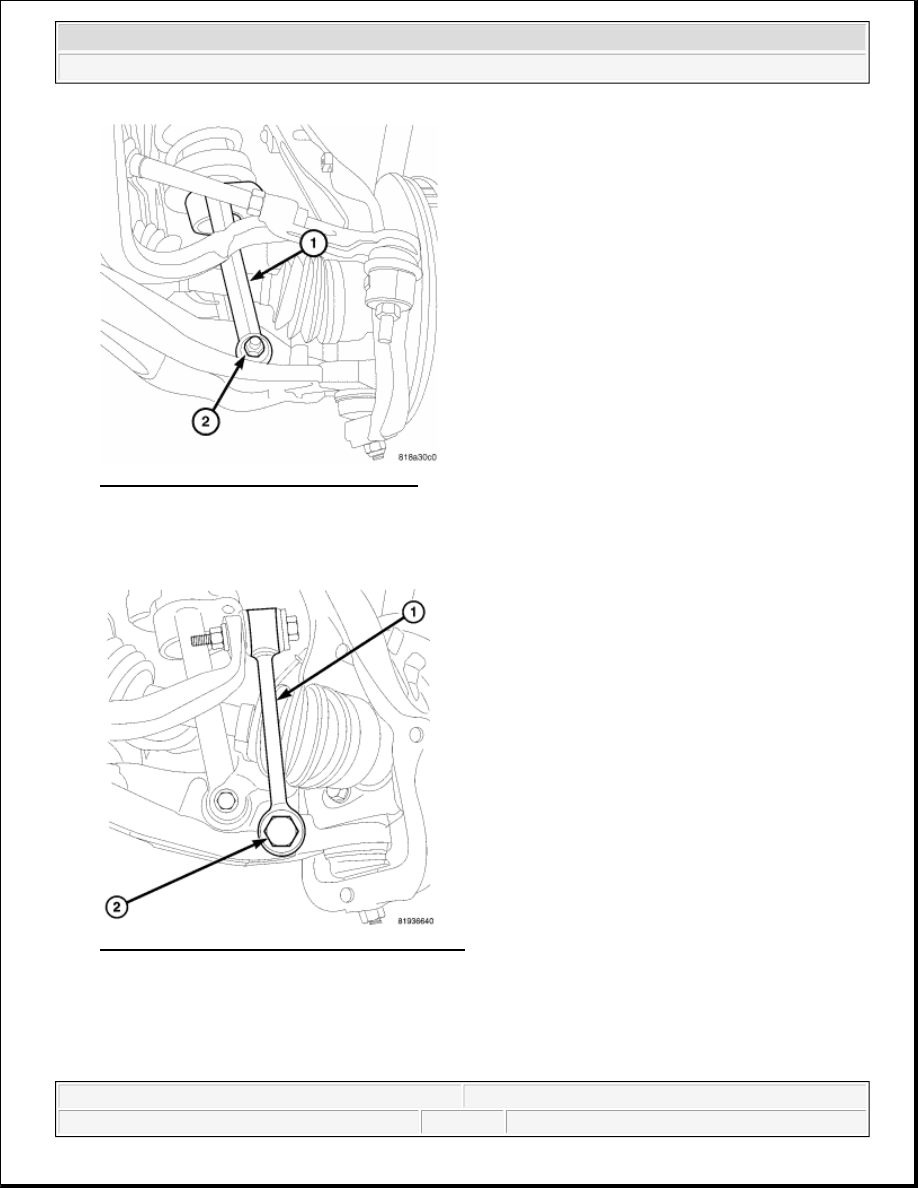

Fig. 76: Identifying Shocks Clevis & Nuts
Courtesy of CHRYSLER LLC

9. Align clevis (1) with lower control arm and install clevis bolts. Tighten clevis and nuts (2) to

specifications.

Fig. 77: Identifying Stabilizer Bar Link & Bolts
Courtesy of CHRYSLER LLC

10. Install stabilizer bar links (1) and tighten bolts (2) to specifications.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

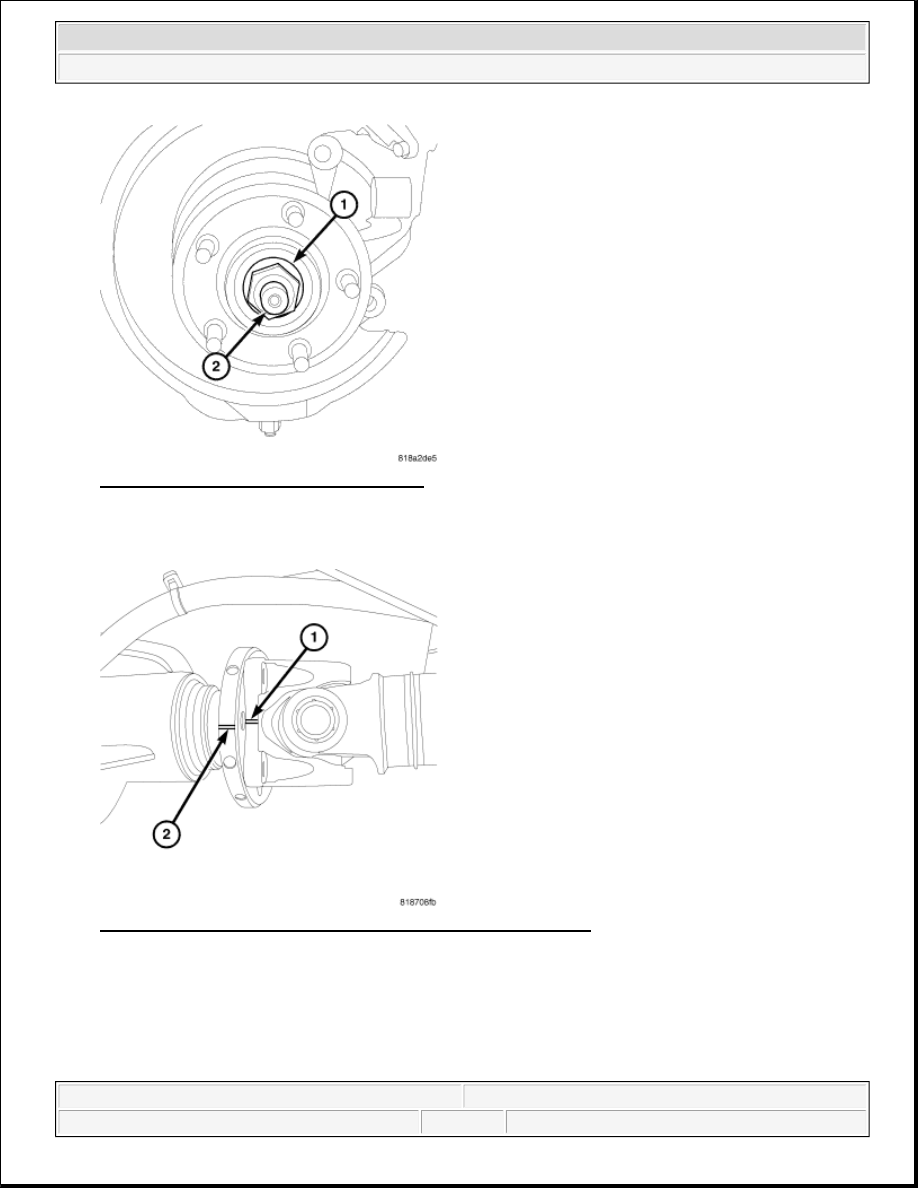

Fig. 78: Identifying Hub Nut & Half Shaft
Courtesy of CHRYSLER LLC

11. Install new half shaft (2) hub nuts (1) and tighten to 136 N.m (100 ft. lbs.).

Fig. 79: Identifying Front Propeller Shaft Flange & Axle Flange
Courtesy of CHRYSLER LLC

12. Install propeller shaft with reference marks (1, 2) aligned.

NOTE:

Clean propeller shaft bolts and apply Mopar Lock & Seal Adhesive or
equivalent to the threads before installation.
