HALF SHAFT

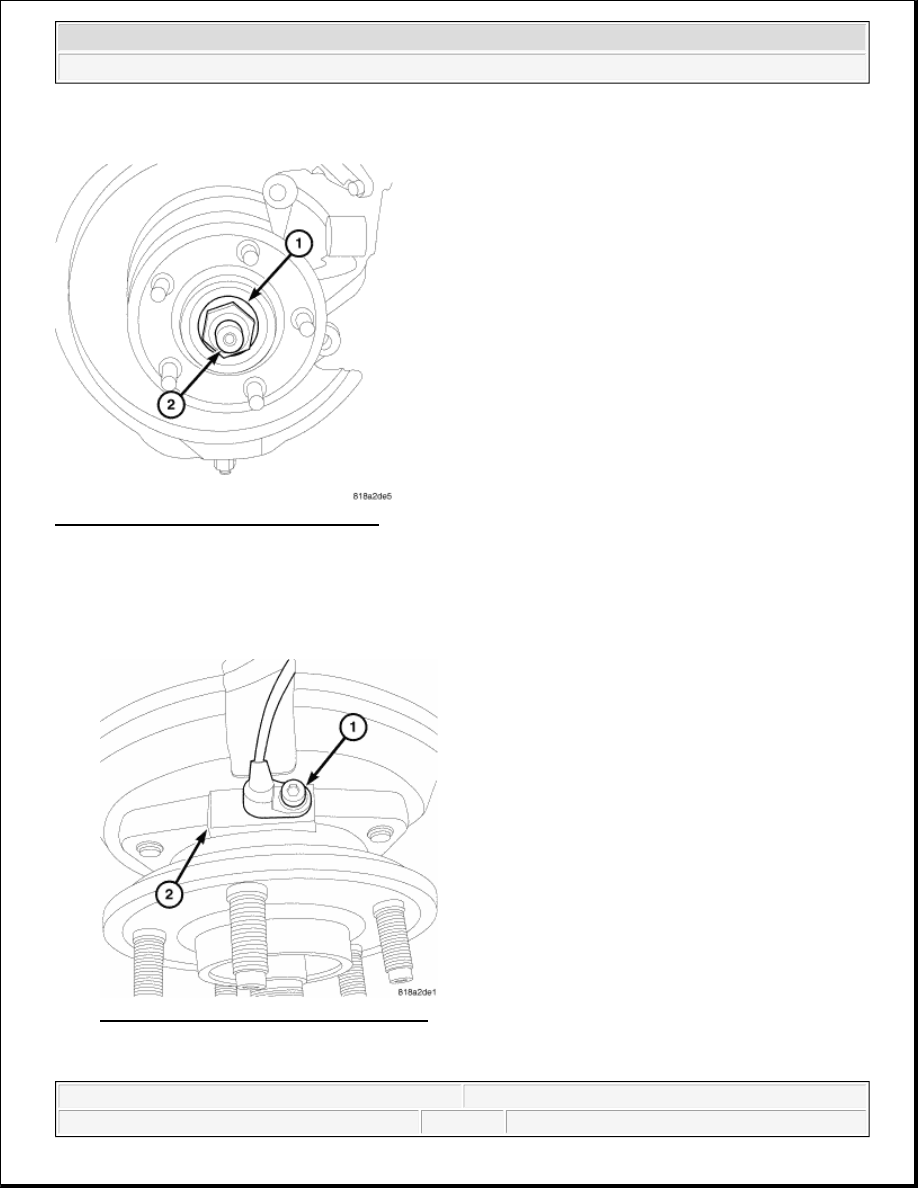

Fig. 25: Identifying Hub Nut & Half Shaft
Courtesy of CHRYSLER LLC

1. With vehicle in neutral, position vehicle on hoist.

2. Remove brake caliper and rotor.

3. Remove nut (1) from half shaft (2).

Fig. 26: Identifying Sensor & Hub Bearing
Courtesy of CHRYSLER LLC

4. Remove sensor (1) from hub bearing (2).



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

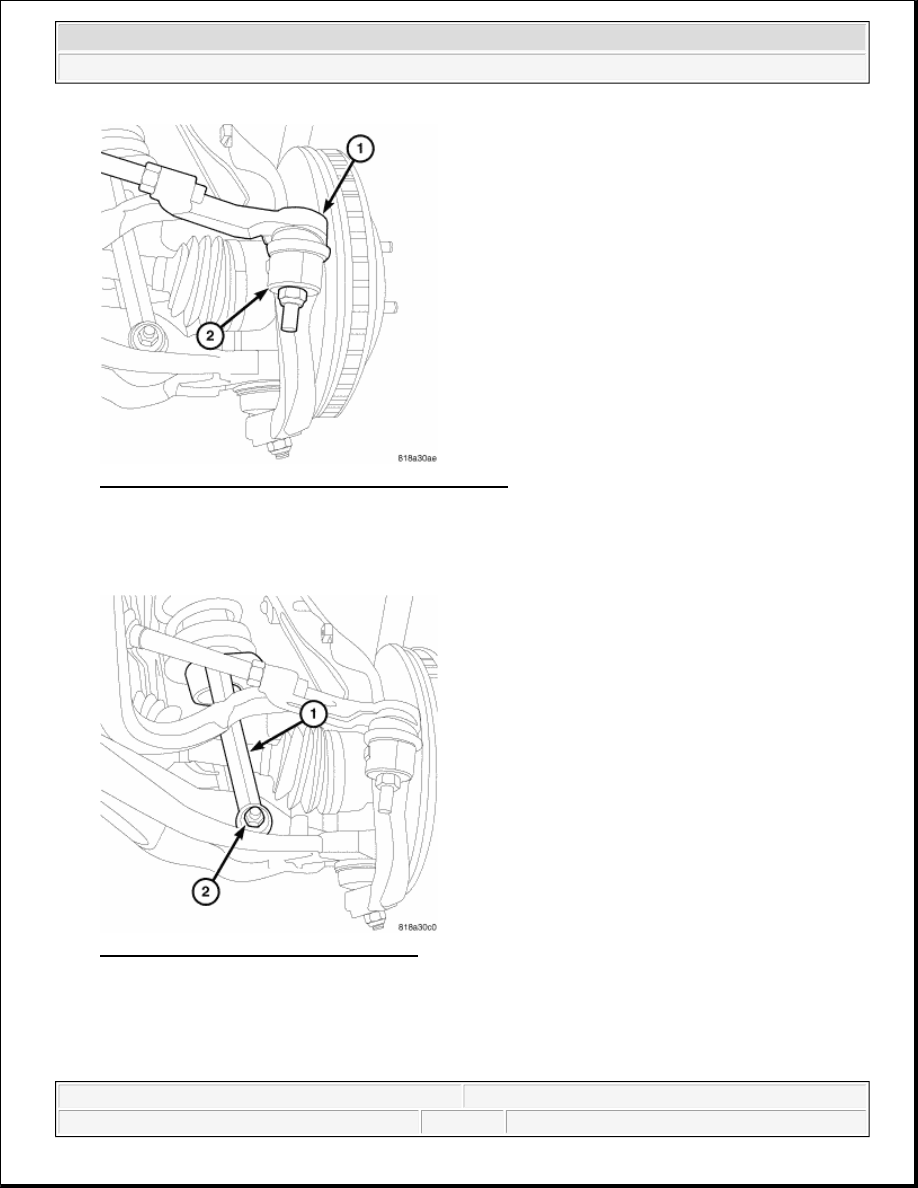

Fig. 27: Identifying Tie Rod End & Steering Knuckle
Courtesy of CHRYSLER LLC

5. Remove stabilizer link from stabilizer bar.

6. Remover tie rod end (1) nut and remove tie rod from steering knuckle (2).

Fig. 28: Identifying Shocks Clevis & Nuts
Courtesy of CHRYSLER LLC

7. Remove clevis bracket (1) lower nut (2) and bolt.



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro

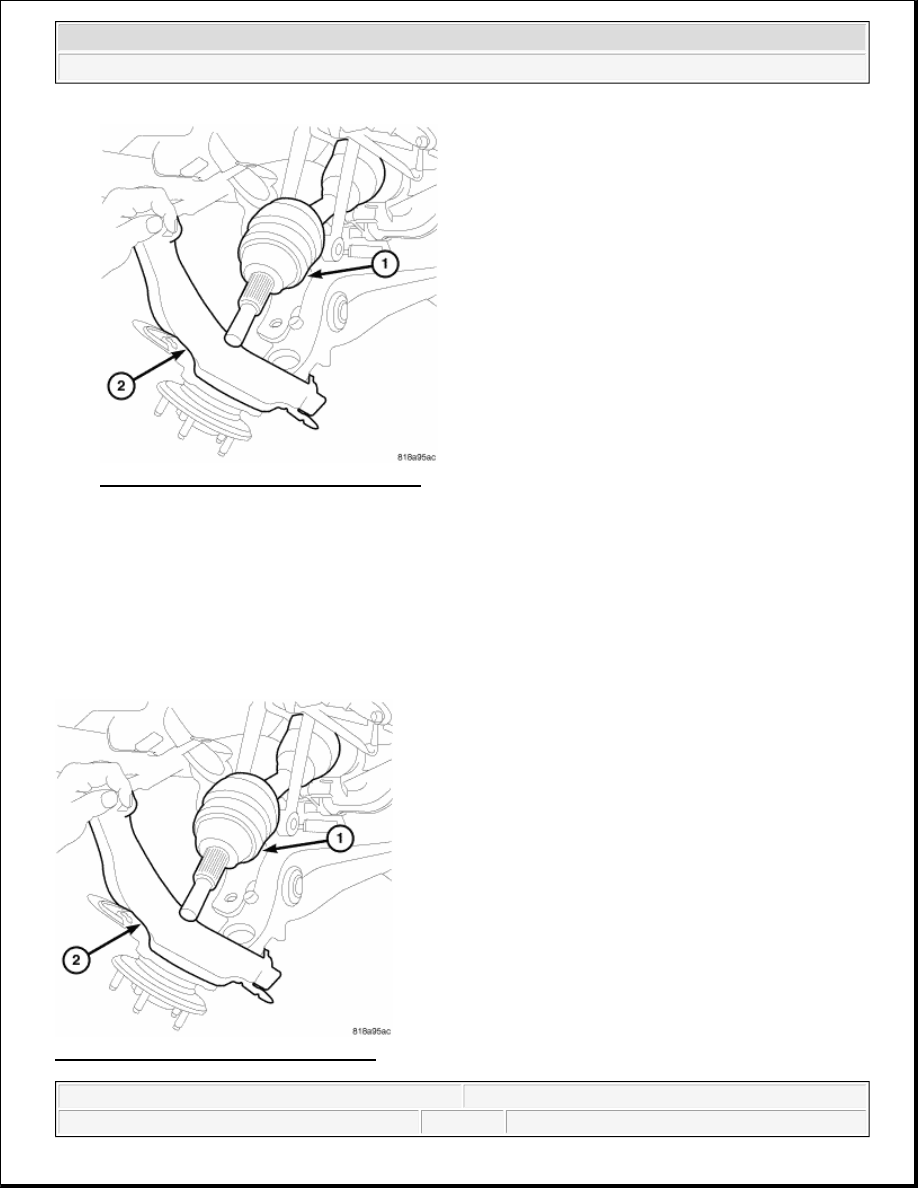

Fig. 29: Identifying Half Shaft & Knuckle
Courtesy of CHRYSLER LLC

8. Remove upper ball joint nut and separate upper control arm from steering knuckle.

9. Pull out on the steering knuckle and push half shaft (1) out of the hub bearing and knuckle (2).

10. With a pry bar remove the half shaft from the axle.

INSTALLATION

HALF SHAFT

Fig. 30: Identifying Half Shaft & Knuckle
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro



1. Apply a light coat of wheel bearing grease on the female splines of the inner C/V joint.

2. Clean hub bearing bore and apply a light coat of wheel bearing grease.

3. Install half shaft (1) in axle and push firmly to engage the snap ring.

4. Pull out on the steering knuckle (2) and push the half shaft (1) through the knuckle and hub bearing.

5. Install upper control arm on steering knuckle and tighten ball joint nut to specifications.

Fig. 31: Identifying Shocks Clevis & Nuts
Courtesy of CHRYSLER LLC

6. Align clevis (1) with lower control arm. Install lower clevis (1) and tighten nut (2) to specifications.

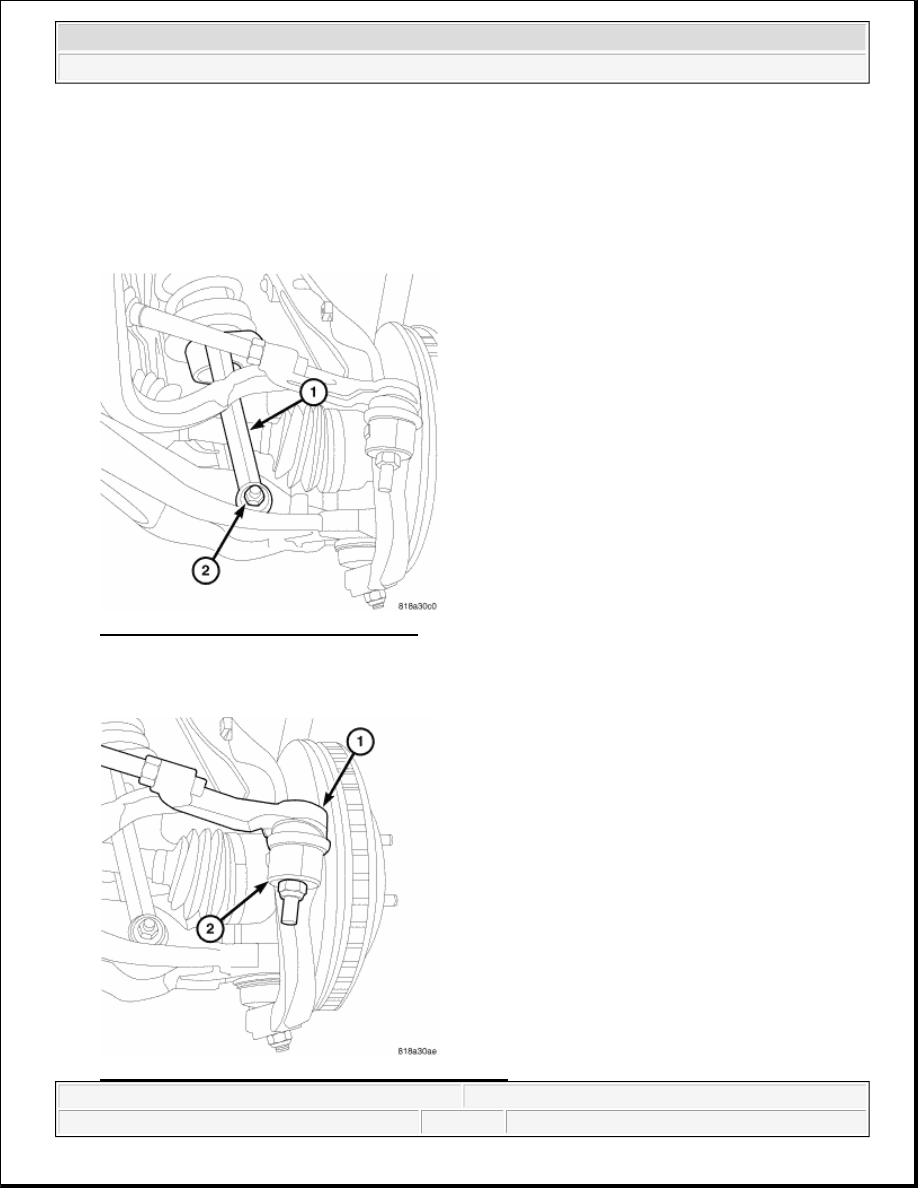

Fig. 32: Identifying Tie Rod End & Steering Knuckle



2007 Dodge Nitro R/T

2007 DRIVELINE Differential & Driveline - Nitro
