Fig. 395: Load Floor Panel, Load Floor & Rear Seat Bracket
Courtesy of CHRYSLER LLC

1. Position the rear seats in the forward position.

2. Remove the load floor panel (1) from the load floor (2) and the rear seat bracket (3).

INSTALLATION

PANEL - LOAD FLOOR

Fig. 396: Load Floor Panel, Load Floor & Rear Seat Bracket
Courtesy of CHRYSLER LLC

1. Install the load floor panel (1) to the load floor (2) and the rear seat bracket (3). Use hand pressure to seat

the clips.

2. Return the rear seats in the upright position.

PANEL - QUARTER TRIM



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



REMOVAL

PANEL - QUARTER TRIM

Fig. 397: Quarter Trim Panel
Courtesy of CHRYSLER LLC

1. Using a trim stick C-4755 or equivalent, remove the rear door scuff plate, see REMOVAL.

2. Fold down the rear seat.

3. Remove the C-pillar cover, see REMOVAL.

4. Remove the screws and the cargo tie downs.

5. Remove the quarter trim panel (1) by carefully pulling at the clip locations (3).

Fig. 398: Quarter Trim Panel Electrical Connector
Courtesy of CHRYSLER LLC

6. If replacing the left side quarter trim panel disconnect the 12v power supply electrical connector (2) from



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



the socket (1).

INSTALLATION

PANEL - QUARTER TRIM

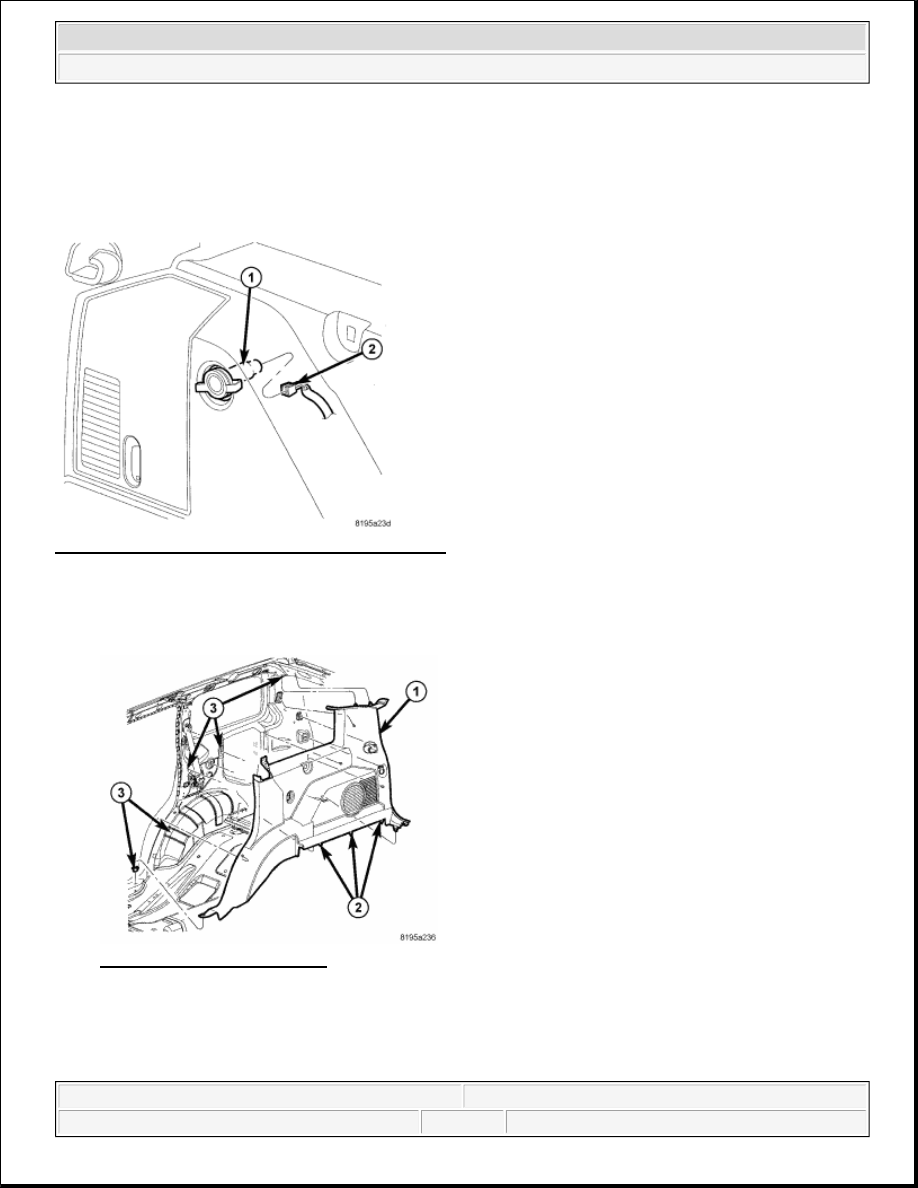

Fig. 399: Quarter Trim Panel Electrical Connector
Courtesy of CHRYSLER LLC

1. If installing the left side quarter trim panel connect the 12v power supply electrical connector (2) from the

socket (1).

Fig. 400: Quarter Trim Panel
Courtesy of CHRYSLER LLC

2. Install the quarter trim panel (1) to the inside of the vehicle, carefully align and install the bottom of the

quarter trim panel slots into the load floor first. Then continue to seat the remaining clips on the panel,
working from the bottom up. Use hand pressure to seat the clips (3).



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



3. Install the cargo tie downs and tighten the screw.

4. Install the rear door scuff plate, see INSTALLATION.

5. Install the C-pillar cover, see INSTALLATION.

6. Return the rear seat to the up position.

PLATE - SCUFF

REMOVAL

PLATE - SCUFF

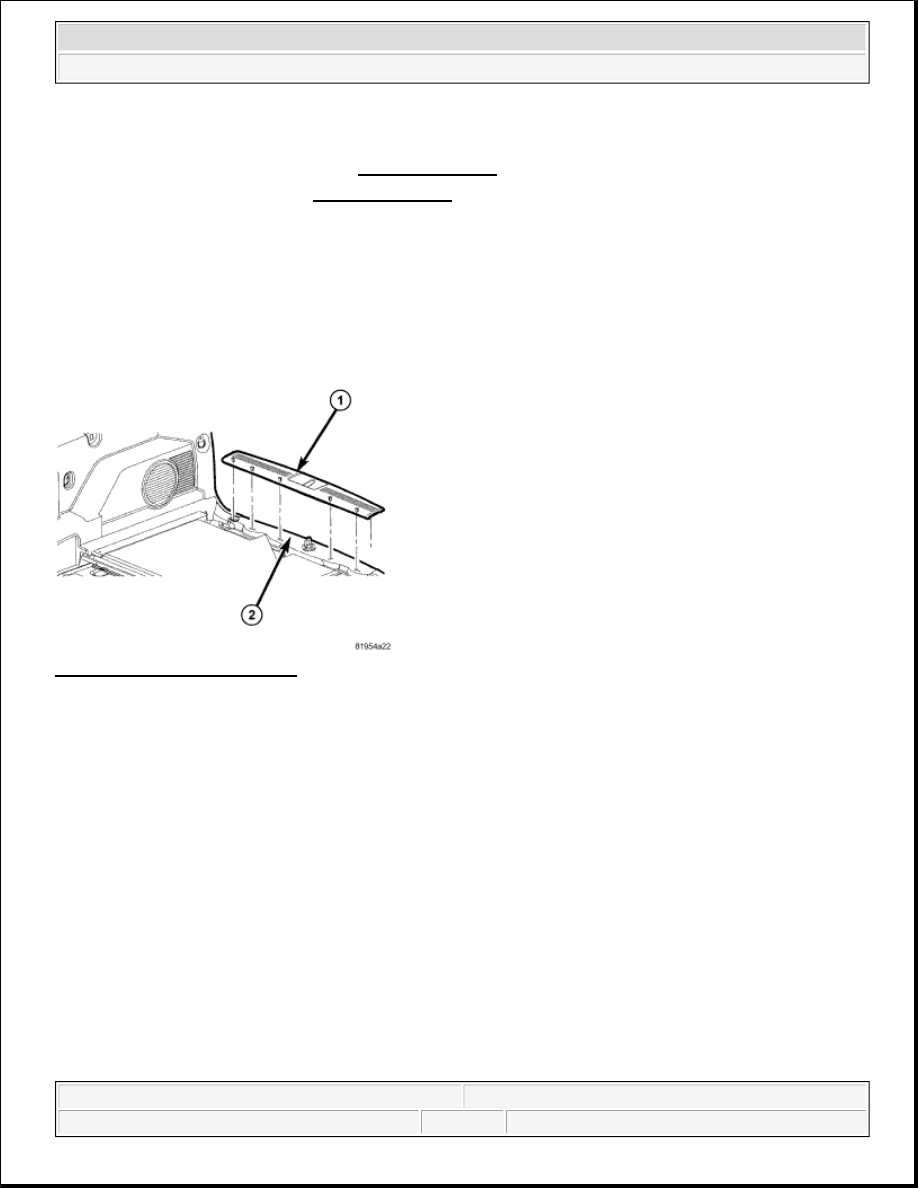

Fig. 401: Rear Door Scuff Plate
Courtesy of CHRYSLER LLC

1. Open the lift gate.

2. Using a trim stick C-4755 or equivalent, release the retaining clips and remove the scuff plate (1) from

the body (2).

INSTALLATION

PLATE - SCUFF
