BIN - STEERING COLUMN COVER

1. Install the steering column cover bin lower hinges to the steering column cover panel.

2. Install the steering column cover panel, see INSTALLATION.

COVER - STEERING COLUMN

REMOVAL

COVER - STEERING COLUMN

Fig. 306: Knee Blocker
Courtesy of CHRYSLER LLC

1. Before proceeding with the following repair procedure, review all warnings and cautions. See

WARNING.

2. Position the steering column into the highest position to ease in the removal of the steering column cover.

Reach into the steering column opening at the top of the steering column cover and pull the top rearward
to disengage cover blocker clips.

3. Gently swing the cover open.

4. While the cover is in a full down position, slide the cover to the left or outboard of the driver side, this

will allow the claws of the cover to disengage from the trim panel hinges, and then pull the cover
rearward to remove the steering column cover.

INSTALLATION

COVER - STEERING COLUMN



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



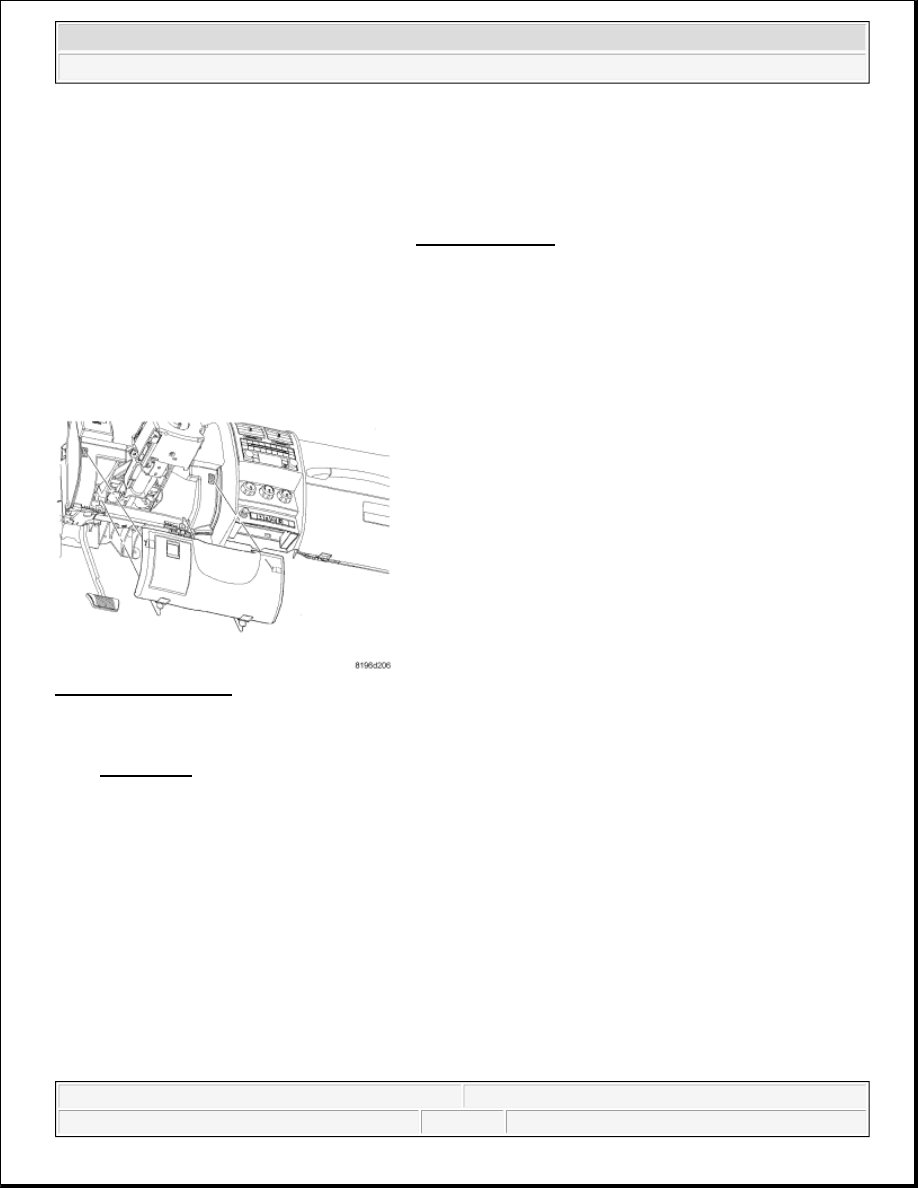

Fig. 307: Knee Blocker
Courtesy of CHRYSLER LLC

1. Before proceeding with the following repair procedure, review all warnings and cautions. See

WARNING.

2. Align steering column cover's claws to instrument panel tabs. When claws are aligned with tabs, slide the

cover to the right or inboard of the driver side to engage the claws over the instrument panels hinges.

3. Gently swing the steering column cover upward until the clips touch the corresponding slots in the

instrument panel and use hand pressure to engage the clips.

END CAP - INSTRUMENT PANEL

REMOVAL

END CAP - INSTRUMENT PANEL

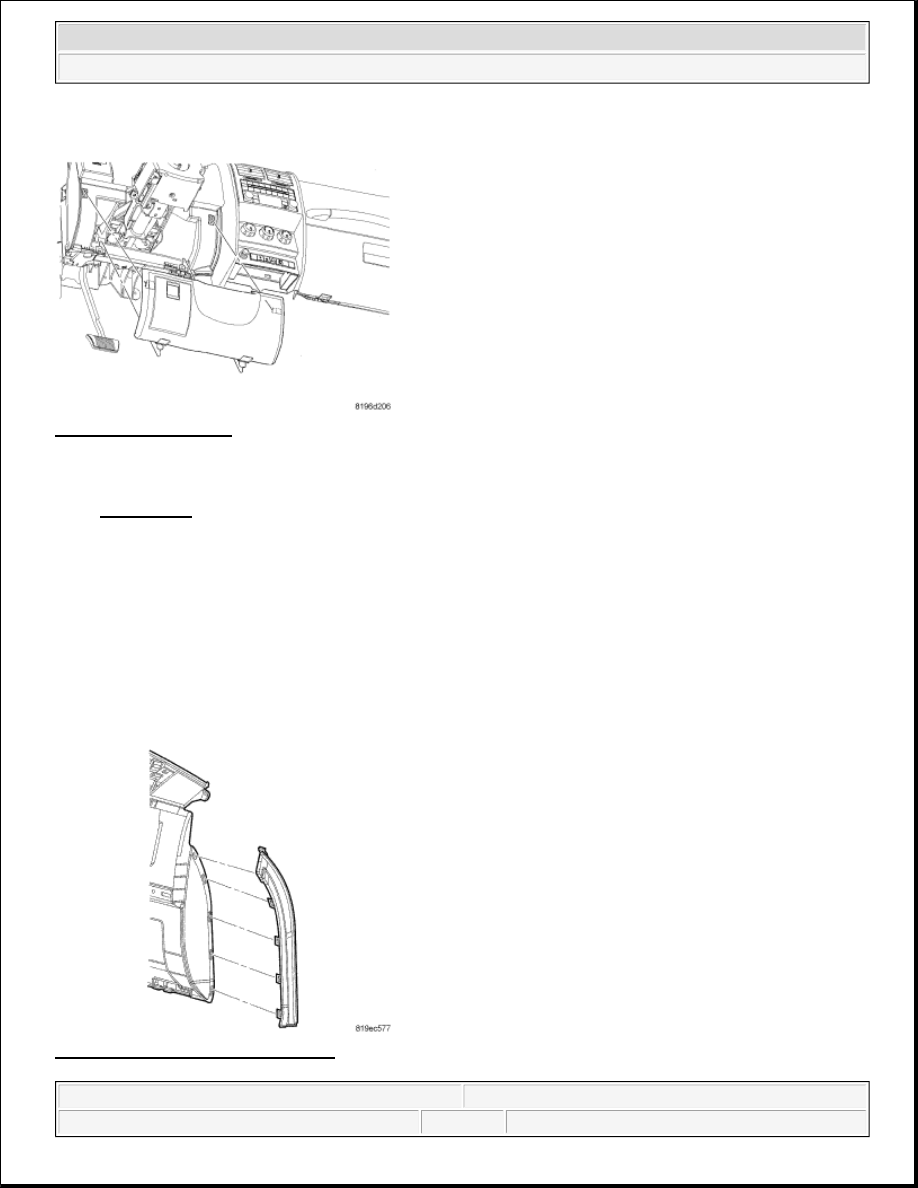

Fig. 308: Instrument Panel End Cap
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



1. Before proceeding with the following repair procedure, review all warnings and cautions. See

WARNING.

2. Using a trim stick C-4755 or equivalent, remove the end cap bezel from the instrument panel assembly.

INSTALLATION

END CAP - INSTRUMENT PANEL

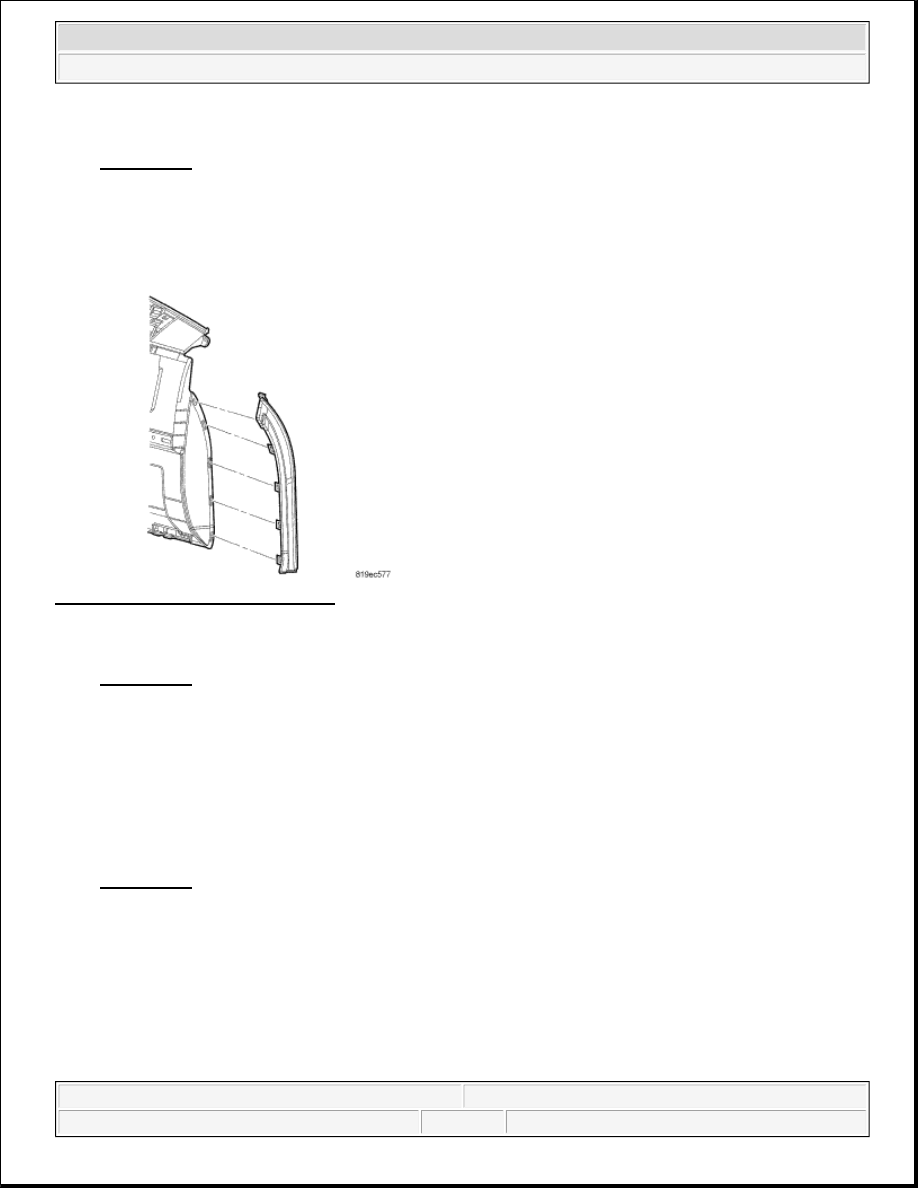

Fig. 309: Instrument Panel End Cap
Courtesy of CHRYSLER LLC

1. Before proceeding with the following repair procedure, review all warnings and cautions. See

WARNING.

2. Position the end cap and seat the retaining clips using hand pressure.

GLOVE BOX - INSTRUMENT PANEL

REMOVAL

GLOVE BOX - INSTRUMENT PANEL

1. Before proceeding with the following repair procedure, review all warnings and cautions. See

WARNING.

2. Open the glove box.

3. Squeeze the stop tabs located on the sides of the box while and swing the glove box door open.

4. With box in the full down position slide the box to the right off of the hinges and remove.

INSTALLATION

GLOVE BOX - INSTRUMENT PANEL

1. Before proceeding with the following repair procedure, review all warnings and cautions. See



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro



WARNING.

2. Position the box on and slide the box to the left to engage the hinges.

3. Close the glove box.

GRILLE-DEFROSTER

REMOVAL

GRILLE-DEFROSTER

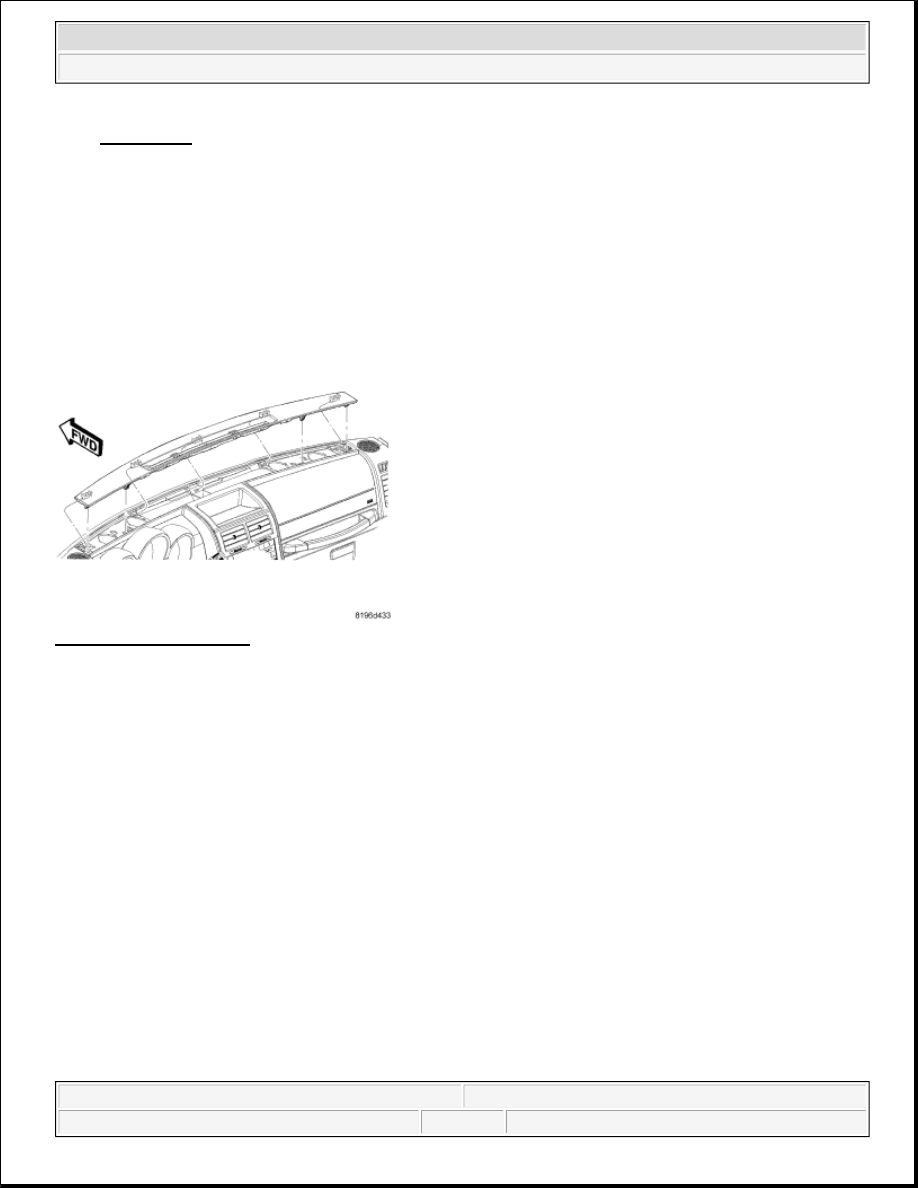

Fig. 310: Defroster Grille
Courtesy of CHRYSLER LLC

1. Using a trim stick C-4755 or equivalent, release the rearward edge clips, and secondly once the rearward

edge clips are released. Move in an upward and rearward direction to release the front edge clips of the
instrument panel top cover.

2. Remove the defroster grille from instrument panel.

INSTALLATION

GRILLE-DEFROSTER

CAUTION: Carefully disengage the retaining clips on the defroster grille, make sure

the tool does not scratch the instrument panel assembly while removing.



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro
