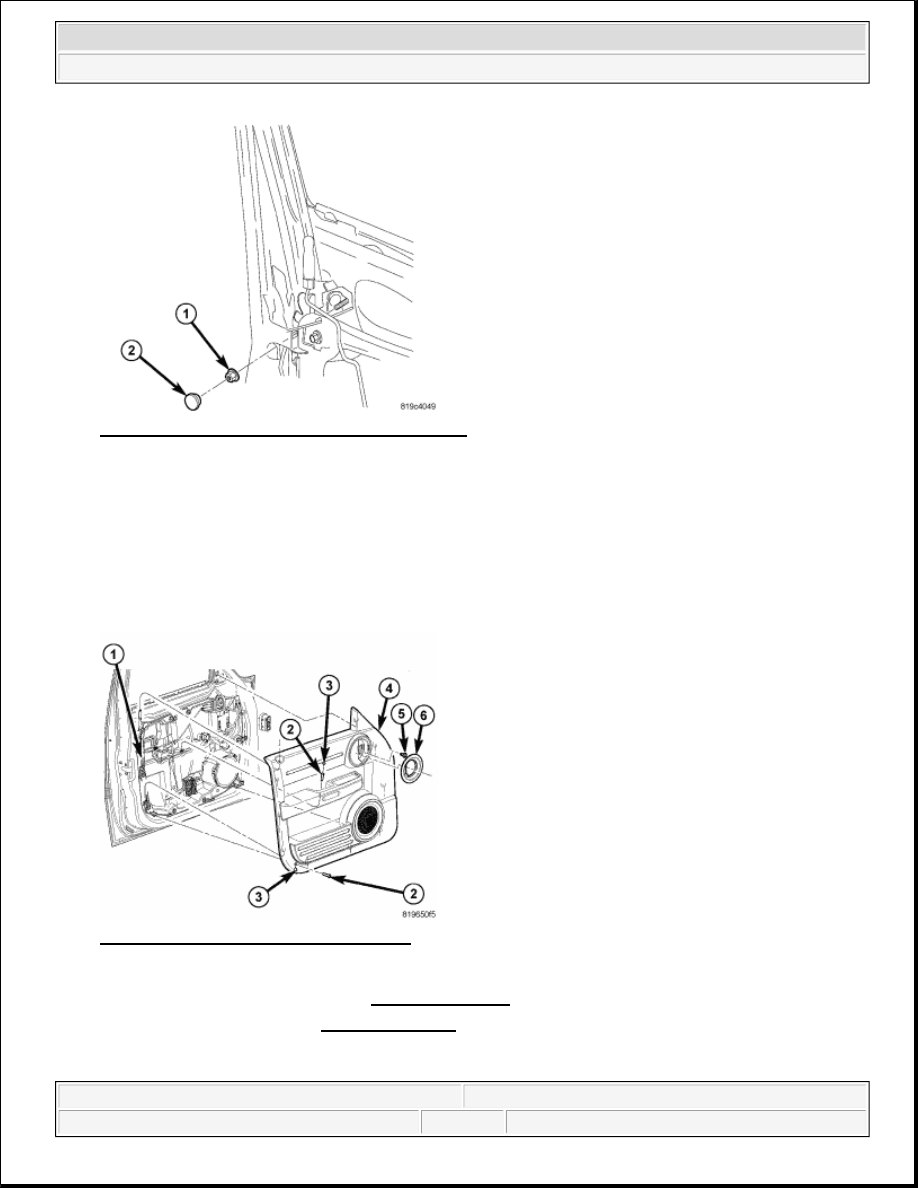

Fig. 83: Door Plug & Rear Exterior Handle Nut
Courtesy of CHRYSLER LLC

3. Install the rear nut (1) to the exterior handle and tighten to 4.5 N.m (40 in. lbs.).

4. Install the door plug (2) to the door.

Fig. 84: Removing/Installing Trim Panel
Courtesy of CHRYSLER LLC

5. Install the trim panel to the door. See INSTALLATION.

6. Adjust the latch. Refer to. See ADJUSTMENTS.

HANDLE - INTERIOR DOOR

NOTE:

The door glass must be in the full up position in order to access the rear
exterior handle nut. Use light and a magnetic socket on the rear nut to
prevent from dropping the nut into the door assembly.

2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

REMOVAL

HANDLE - INTERIOR DOOR

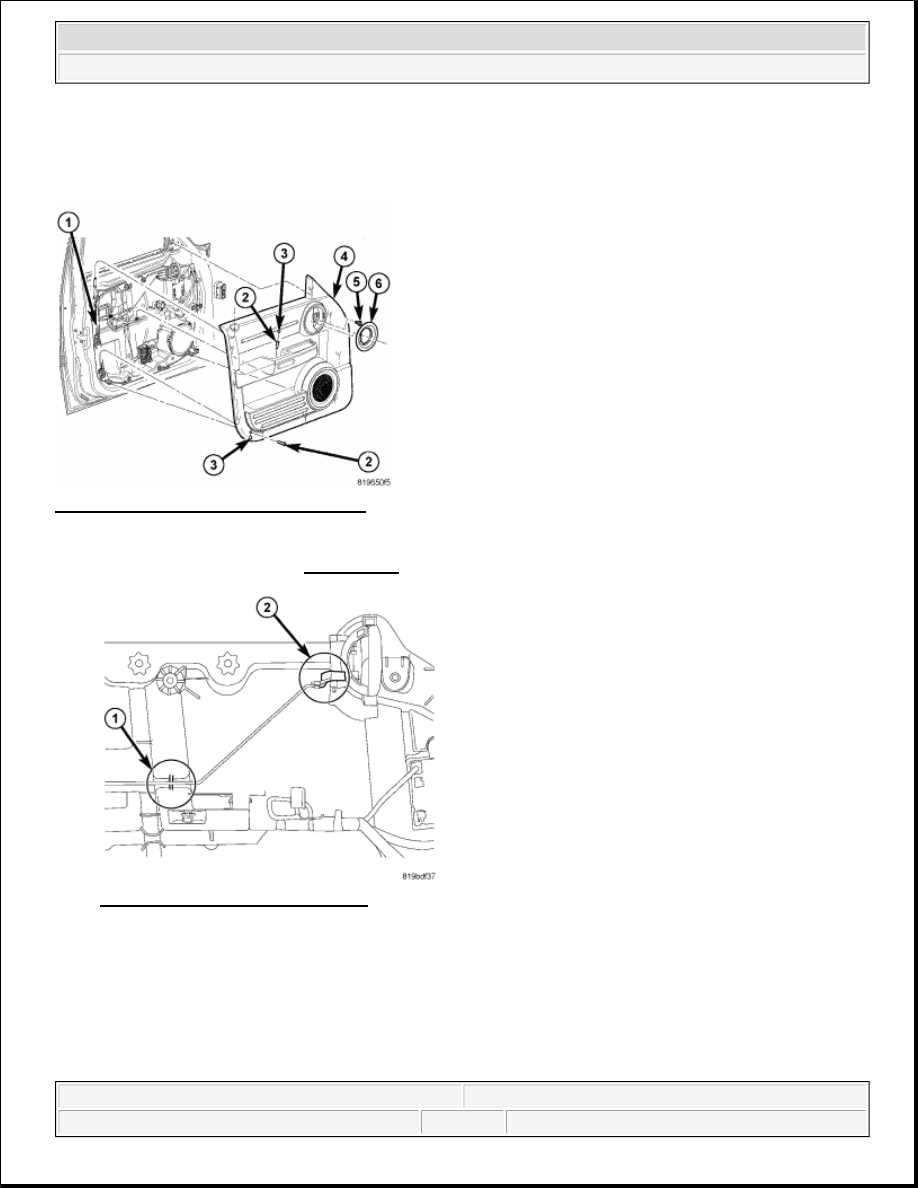

Fig. 85: Removing/Installing Trim Panel
Courtesy of CHRYSLER LLC

1. Remove the trim panel. See REMOVAL.

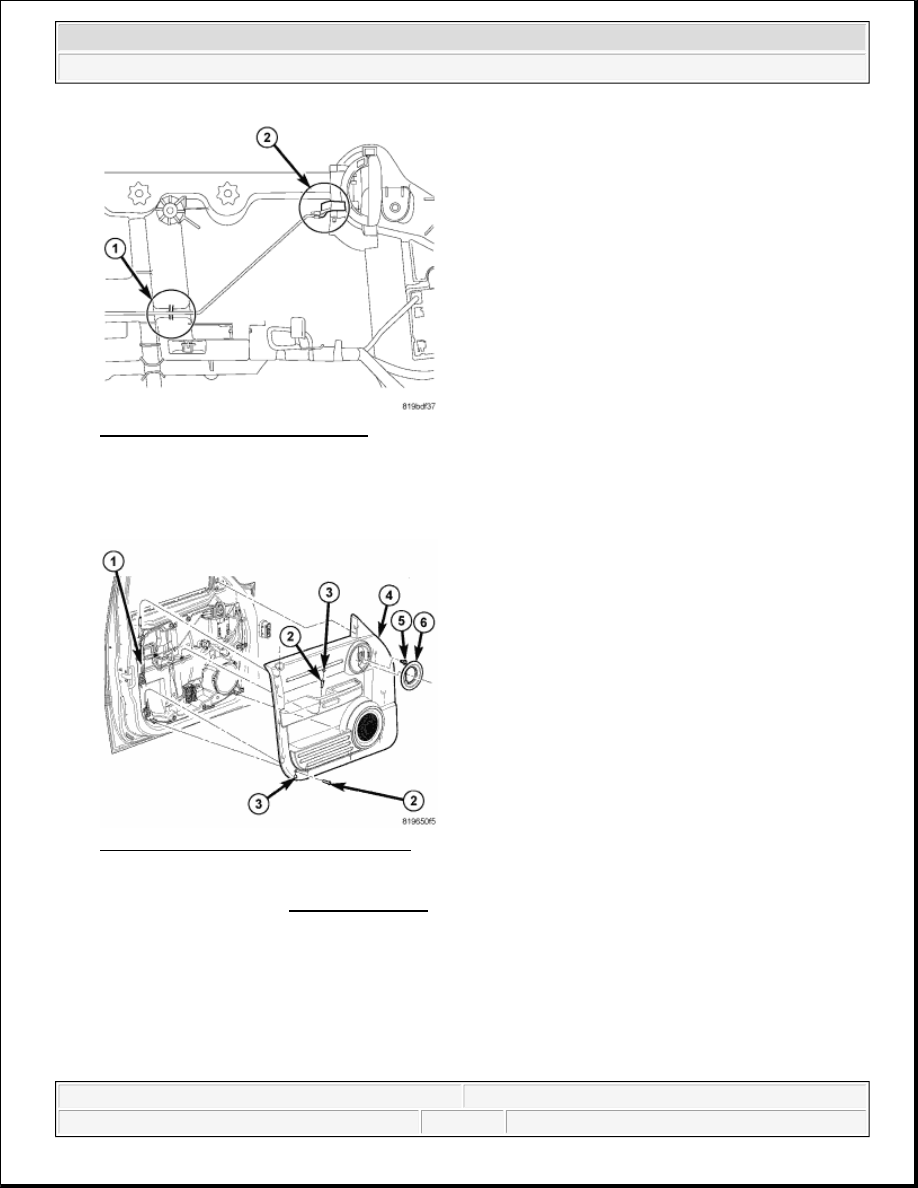

Fig. 86: Carrier & Interior Handle
Courtesy of CHRYSLER LLC

2. Remove the interior lock rod from the interior handle.

2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

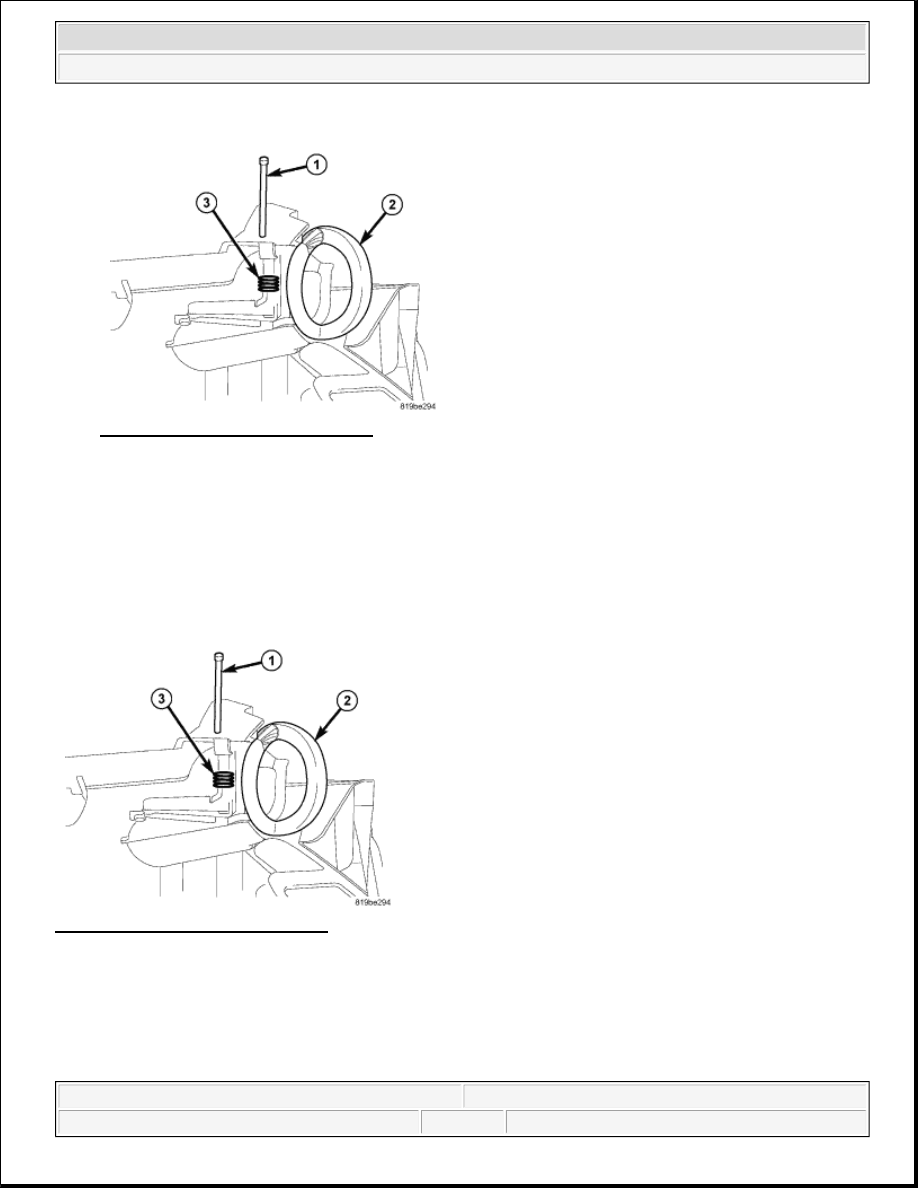

Fig. 87: Push Pin, Handle & Spring
Courtesy of CHRYSLER LLC

3. Remove the push pin (1) from the handle.

4. Remove the spring (3) and handle (2) from the carrier.

INSTALLATION

HANDLE - INTERIOR DOOR

Fig. 88: Push Pin, Handle & Spring
Courtesy of CHRYSLER LLC

1. Install the handle (2) and spring (3) to the carrier.

2. Install the push pin (1) into the carrier, spring and the handle.

NOTE:

Make sure that the push pin is seated flush with the carrier.

2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Body - Nitro

Fig. 89: Carrier & Interior Handle
Courtesy of CHRYSLER LLC

3. Install the interior lock rod to the interior handle (2). Make sure the lock rod is positioned properly to the

carrier (1).

Fig. 90: Removing/Installing Trim Panel
Courtesy of CHRYSLER LLC

4. Install the trim panel. See INSTALLATION.

HINGE - FRONT DOOR

REMOVAL

HINGE - FRONT DOOR
