Contaminated lining in one caliper

Seized caliper piston

Binding caliper

Loose caliper

Rusty caliper slide surfaces

Improper brake shoes

Damaged rotor

A worn, damaged wheel bearing or suspension component are further causes of pull. A damaged front tire
(bruised, ply separation) can also cause pull.

A common and frequently misdiagnosed pull condition is where direction of pull changes after a few stops. The
cause is a combination of brake drag followed by fade at one of the brake units.

As the dragging brake overheats, efficiency is so reduced that fade occurs. Since the opposite brake unit is still
functioning normally, its braking effect is magnified. This causes pull to switch direction in favor of the
normally functioning brake unit.

An additional point when diagnosing a change in pull condition concerns brake cool down. Remember that pull
will return to the original direction, if the dragging brake unit is allowed to cool down (and is not seriously
damaged).

REAR BRAKE GRAB OR PULL

Rear grab or pull is usually caused by improperly adjusted or seized parking brake cables, contaminated lining,
bent or binding shoes and support plates, or improperly assembled components. This is particularly true when
only one rear wheel is involved. However, when both rear wheels are affected, the master cylinder or
proportioning valve could be at fault.

BRAKES DO NOT HOLD AFTER DRIVING THROUGH DEEP WATER PUDDLES

This condition is generally caused by water soaked lining. If the lining is only wet, it can be dried by driving
with the brakes very lightly applied for a mile or two. However, if the lining is both soaked and dirt
contaminated, cleaning and/or replacement will be necessary.

BRAKE LINING CONTAMINATION

Brake lining contamination is mostly a product of leaking calipers, worn seals, driving through deep water
puddles, or lining that has become covered with grease and grit during repair. Contaminated lining should be
replaced to avoid further brake problems.

WHEEL AND TIRE PROBLEMS

Some conditions attributed to brake components may actually be caused by a wheel or tire problem.

A damaged wheel can cause shudder, vibration and pull. A worn or damaged tire can also cause pull.



2007 Dodge Nitro R/T

2007 BRAKES Base - Service Information - Nitro



Severely worn tires with very little tread left can produce a grab-like condition as the tire loses and recovers
traction. Flat-spotted tires can cause vibration and generate shudder during brake operation. A tire with internal
damage such as a severe bruise, cut, or ply separation can cause pull and vibration.

BRAKE NOISES

Some brake noise is common with some disc brakes during the first few stops after a vehicle has been parked
overnight or stored. This is primarily due to the formation of trace corrosion (light rust) on metal surfaces. This
light corrosion is typically cleared from the metal surfaces after a few brake applications causing the noise to
subside.

BRAKE SQUEAK/SQUEAL

Brake squeak or squeal may be due to linings that are wet or contaminated with brake fluid, grease, or oil.
Glazed linings and rotors with hard spots can also contribute to squeak. Dirt and foreign material embedded in
the brake lining will also cause squeak/squeal.

A very loud squeak or squeal is frequently a sign of severely worn brake lining. If the lining has worn through
to the brake shoes in spots, metal-to-metal contact occurs. If the condition is allowed to continue, rotors and
drums can become so scored that replacement is necessary.

BRAKE CHATTER

Brake chatter is usually caused by loose or worn components, or glazed/burnt lining. Rotors with hard spots can
also contribute to chatter. Additional causes of chatter are out-of-tolerance rotors, brake lining not securely
attached to the shoes, loose wheel bearings and contaminated brake lining.

THUMP/CLUNK NOISE

Thumping or clunk noises during braking are frequently not caused by brake components. In many cases, such
noises are caused by loose or damaged steering, suspension, or engine components. However, calipers that bind
on the slide surfaces can generate a thump or clunk noise.

STANDARD PROCEDURE

PRESSURE BLEEDING - BASE BRAKES

Use Mopar brake fluid, or an equivalent quality fluid meeting SAE J1703-F and DOT 3 standards only. Use
fresh, clean fluid from a sealed container at all times.

Do not pump the brake pedal at any time while bleeding. Air in the system will be compressed into small
bubbles that are distributed throughout the hydraulic system. This will make additional bleeding operations
necessary.

Do not allow the master cylinder to run out of fluid during bleed operations. An empty cylinder will allow
additional air to be drawn into the system. Check the cylinder fluid level frequently and add fluid as needed.

Bleed only one brake component at a time in the following sequence:



2007 Dodge Nitro R/T

2007 BRAKES Base - Service Information - Nitro



Master Cylinder

Right Rear Wheel

Left Rear Wheel

Right Front Wheel

Left Front Wheel

Follow the manufacturers instructions carefully when using pressure equipment. Do not exceed the tank
manufacturers pressure recommendations. Generally, a tank pressure of 103-139 kPa (15-20 psi) is sufficient
for bleeding.

Fill the bleeder tank with recommended fluid and purge air from the tank lines before bleeding.

Do not pressure bleed without a proper master cylinder adapter. The wrong adapter can lead to leakage, or
drawing air back into the system. Use adapter provided with the equipment or Adapter 6921.

MANUAL BLEEDING

Use Mopar brake fluid, or an equivalent quality fluid meeting SAE J1703-F and DOT 3 standards only. Use
fresh, clean fluid from a sealed container at all times.

Do not pump the brake pedal at any time while bleeding. Air in the system will be compressed into small
bubbles that are distributed throughout the hydraulic system. This will make additional bleeding operations
necessary.

Do not allow the master cylinder to run out of fluid during bleed operations. An empty cylinder will allow
additional air to be drawn into the system. Check the cylinder fluid level frequently and add fluid as needed.

Bleed only one brake component at a time in the following sequence:

Master Cylinder

Junction Block

Right Rear Wheel

Left Rear Wheel

Right Front Wheel

Left Front Wheel

1. Remove reservoir filler caps and fill reservoir.

2. If calipers were overhauled, open all caliper bleed screws. Then close each bleed screw as fluid starts to

drip from it. Top off master cylinder reservoir once more before proceeding.



2007 Dodge Nitro R/T

2007 BRAKES Base - Service Information - Nitro

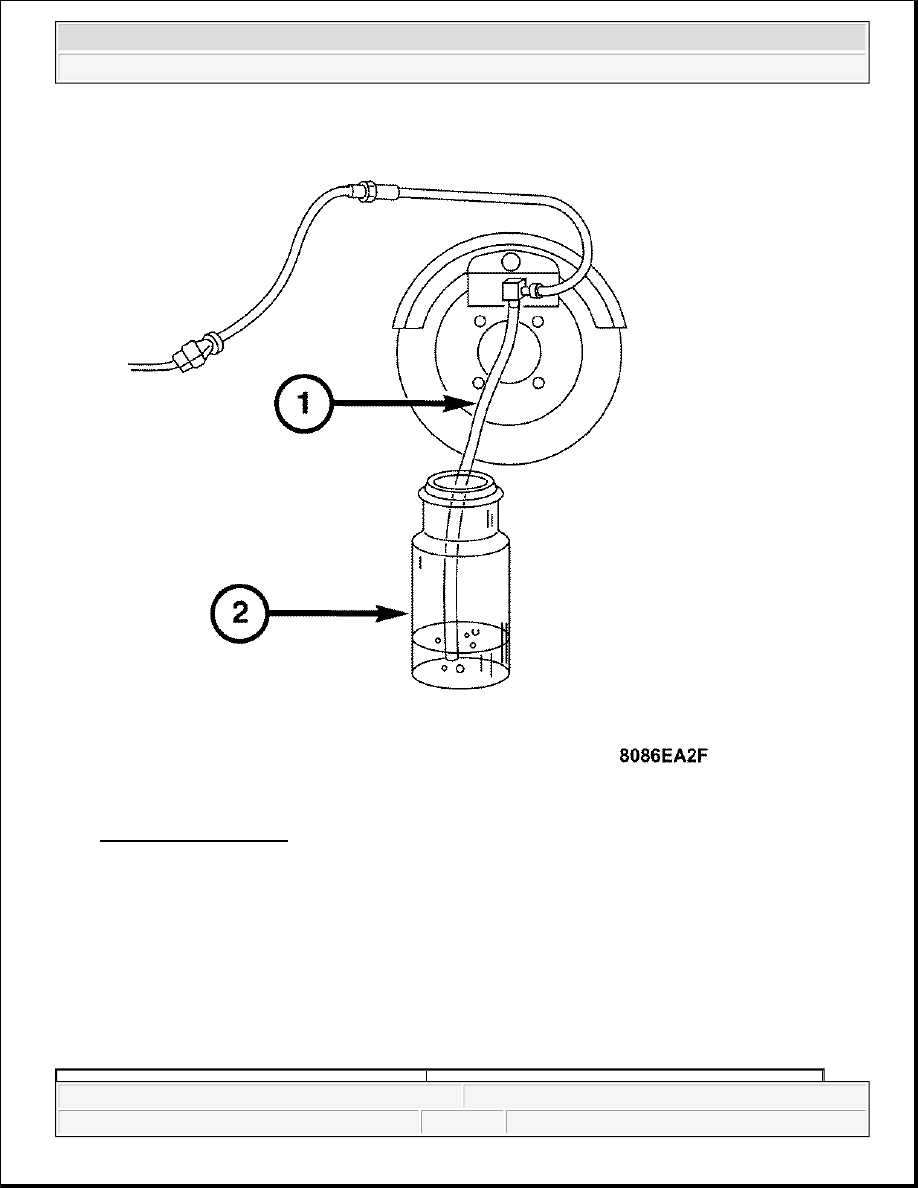

Fig. 1: Bleed Hose Setup
Courtesy of CHRYSLER LLC

3. Attach one end of bleed hose to bleed screw and insert opposite end in glass container partially filled with

brake fluid. Be sure end of bleed hose is immersed in fluid.

4. Open up bleeder, then have a helper press down the brake pedal. Once the pedal is down close the

bleeder. Repeat bleeding until fluid stream is clear and free of bubbles. Then move to the next wheel.

SPECIFICATIONS

BASE BRAKES
