19. The new nut (3) must be staked after the correct turning torque is obtained. See Fig. 35. Use Staking Tool

6639 (2) to stake output shaft nut.

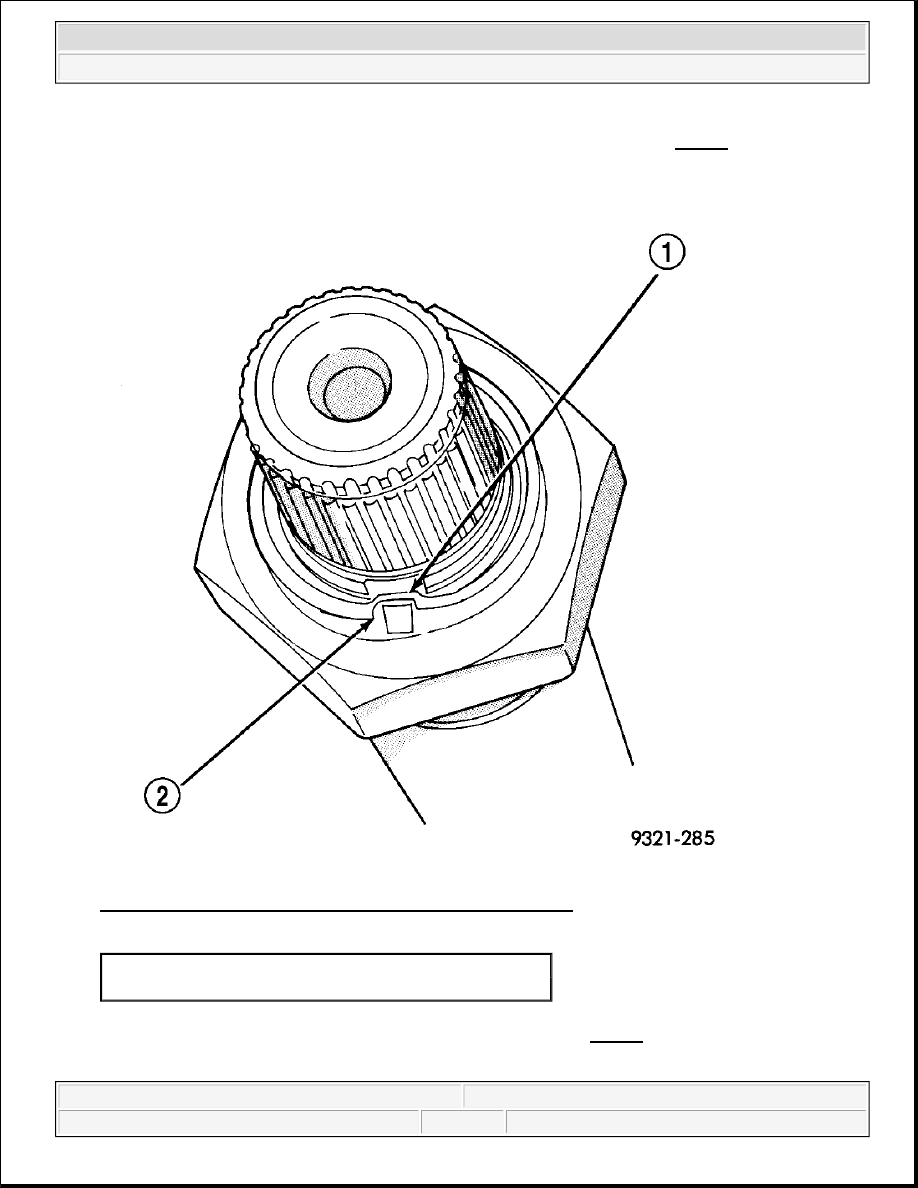

Fig. 36: Identifying Bottomed In Slot & Correctly Staked Nut
Courtesy of CHRYSLER LLC

20. Verify that the nut has been properly staked to the output shaft. See Fig. 36.

1 - BOTTOMED IN SLOT
2 - CORRECTLY STAKED NUT



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



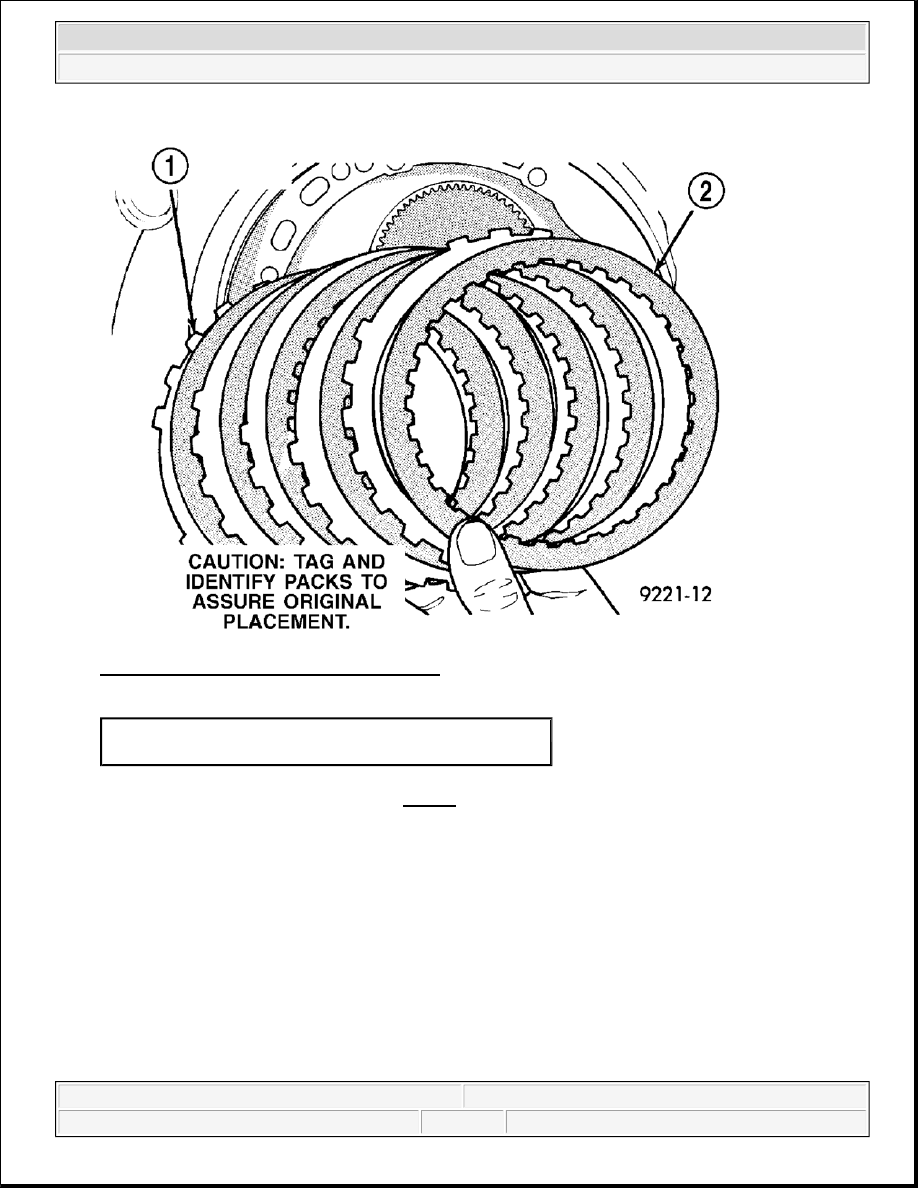

Fig. 37: Installing Low/Reverse Clutch Pack
Courtesy of CHRYSLER LLC

21. Install low/reverse clutch pack (1, 2). See Fig. 37. Leave uppermost disc out to facilitate snap ring

installation.

1 - CLUTCH PLATES (5)
2 - CLUTCH DISCS (5)



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



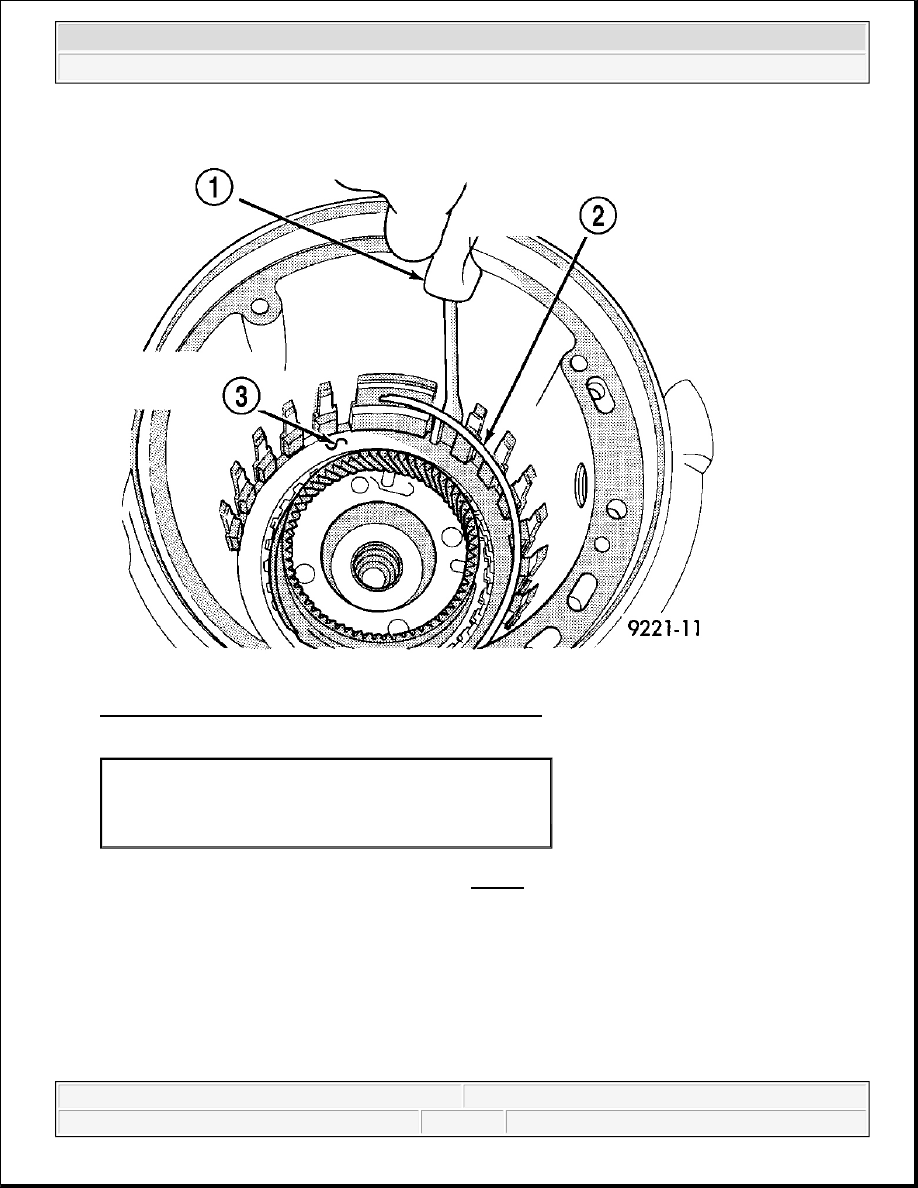

Fig. 38: Installing Low/Reverse Reaction Plate Snap Ring
Courtesy of CHRYSLER LLC

22. Install low/reverse reaction plate snap ring (2). See Fig. 38.

1 - SCREWDRIVER
2 - LOW/REVERSE REACTION PLATE FLAT SNAP
RING
3 - DO NOT SCRATCH CLUTCH PLATE



2007 Dodge Nitro R/T

2007 AUTOMATIC TRANSMISSION 42RLE - Service Information - Nitro



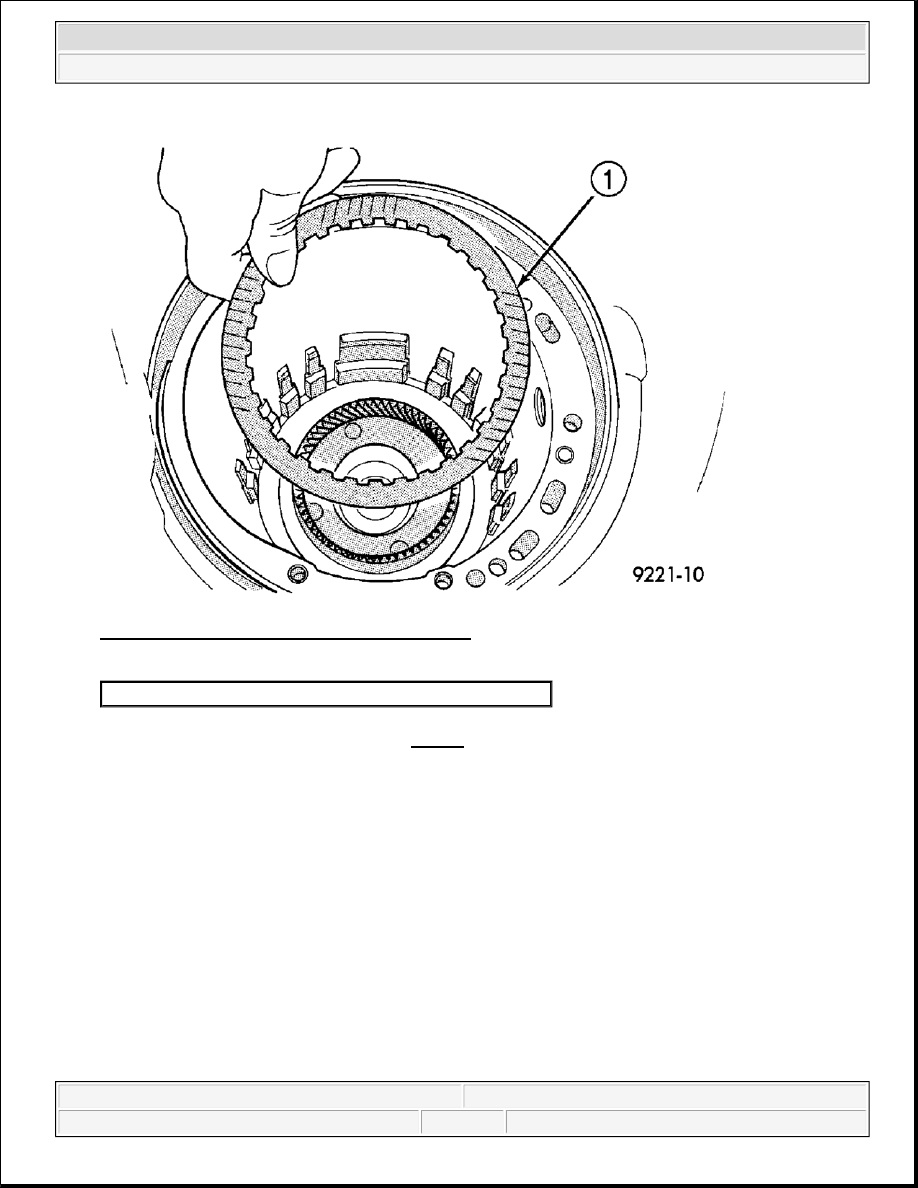

Fig. 39: Installing One Low/Reverse Clutch Disc
Courtesy of CHRYSLER LLC

23. Install one low/reverse clutch disc (1). See Fig. 39.

1 - ONE DISC FROM LOW/REVERSE CLUTCH
