3) CHECK FOR VOLTAGE ON THE (X295) AMPLIFIED LEFT REAR SPEAKER (-) CIRCUIT

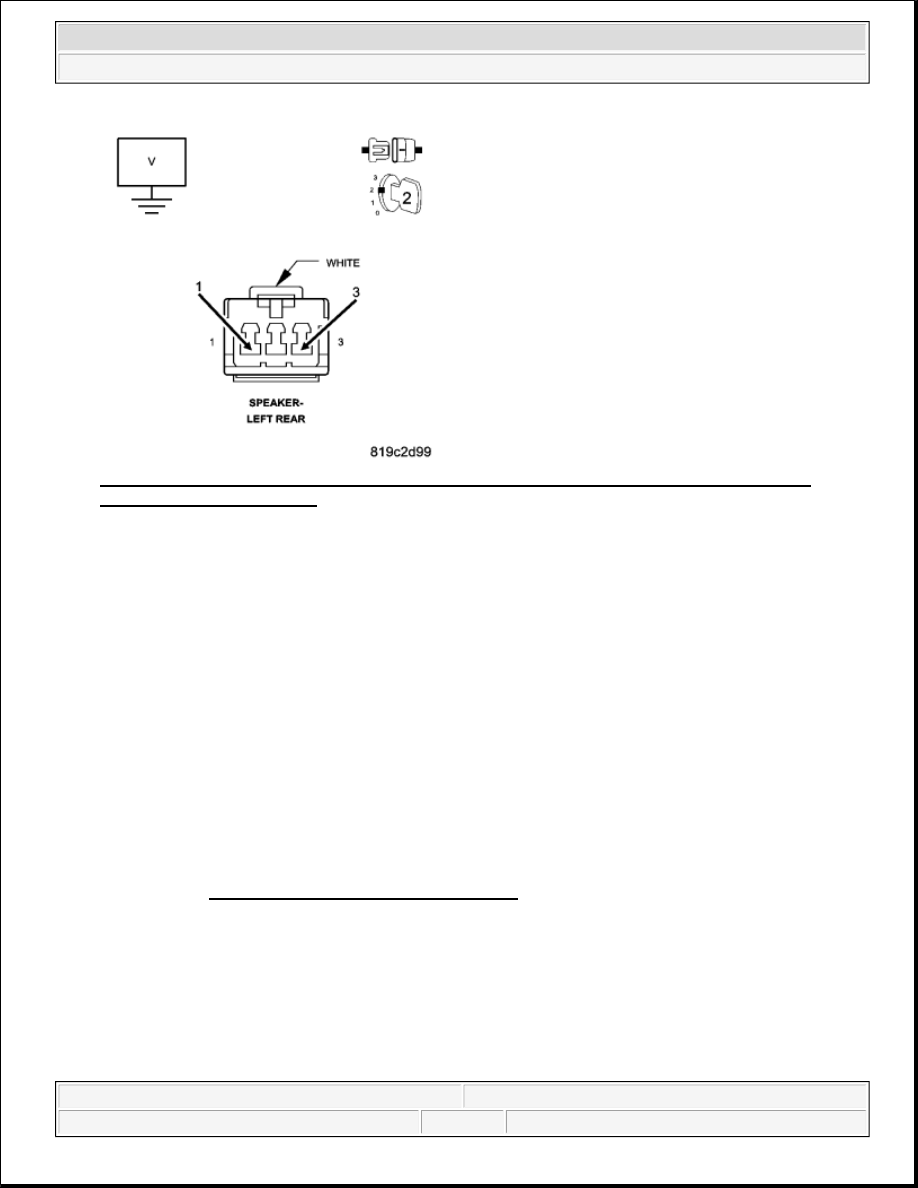

Fig. 94: Measuring For Voltage On (X295) Amplified Left Rear Speaker (-) Circuit
Courtesy of CHRYSLER LLC

Measure for voltage on the (X295) Amplified Left Rear Speaker (-) circuit.

Is the voltage above 10.0 volts?

Yes

Repair the (X295) Amplified Left Rear Speaker (-) circuit for a short to voltage.

Perform BODY VERIFICATION TEST - VER 1 .

No



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Audio/Video Systems - Electrical Diagnostics - Nitro



Replace the amplifier in accordance with the service information.

Perform BODY VERIFICATION TEST - VER 1 .

B1477-CHANNEL 5 AUDIO SPEAKER OUTPUT CIRCUIT OPEN



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Audio/Video Systems - Electrical Diagnostics - Nitro



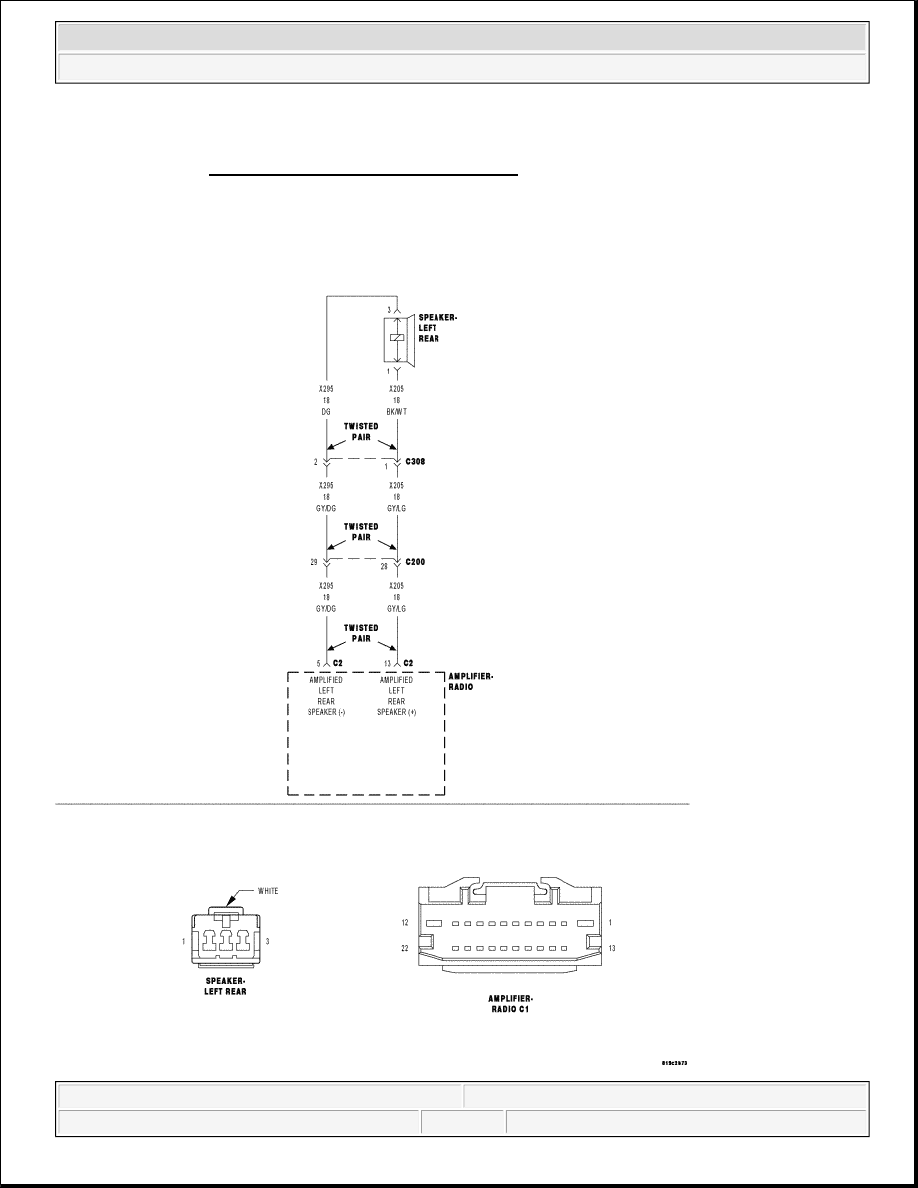

Fig. 95: Channel 5 Audio Speaker Output Circuit Schematic
Courtesy of CHRYSLER LLC

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS article.

When Monitored:

Amplifier BUS wake-up. Amplifier reset with scan tool.

Set Condition:

The amplifier detects an open condition on the speaker output circuit.

Diagnostic Test

1) CHECK FOR AN INTERMITTENT CONDITION

Turn the ignition on.

Turn the radio on.

With the scan tool, erase Amplifier DTCs.

With the scan tool, reset the amplifier.

With the scan tool, read Amplifier DTCs.

Does the scan tool display active: B1477-CHANNEL 5 AUDIO SPEAKER OUTPUT CIRCUIT
OPEN?

Yes

Go to 2).

No

The condition that caused this symptom is currently not present. Check for an intermittent
condition by inspecting the related wiring harness for chafed, pierced, pinched, and partially broken
wires. Also, inspect the related connectors for broken, bent, pushed out, spread, corroded, or
contaminated terminals. Repair as necessary.

Perform BODY VERIFICATION TEST - VER 1 .

2) CHECK THE OPERATION OF THE AMPLIFIED LEFT REAR SPEAKER

Possible Causes

(X205) AMPLIFIED LEFT REAR SPEAKER (+) CIRCUIT OPEN
(X295) AMPLIFIED LEFT REAR SPEAKER (-) CIRCUIT OPEN
LEFT REAR SPEAKER
AMPLIFIER



2007 Dodge Nitro R/T

2007 ACCESSORIES AND EQUIPMENT Audio/Video Systems - Electrical Diagnostics - Nitro



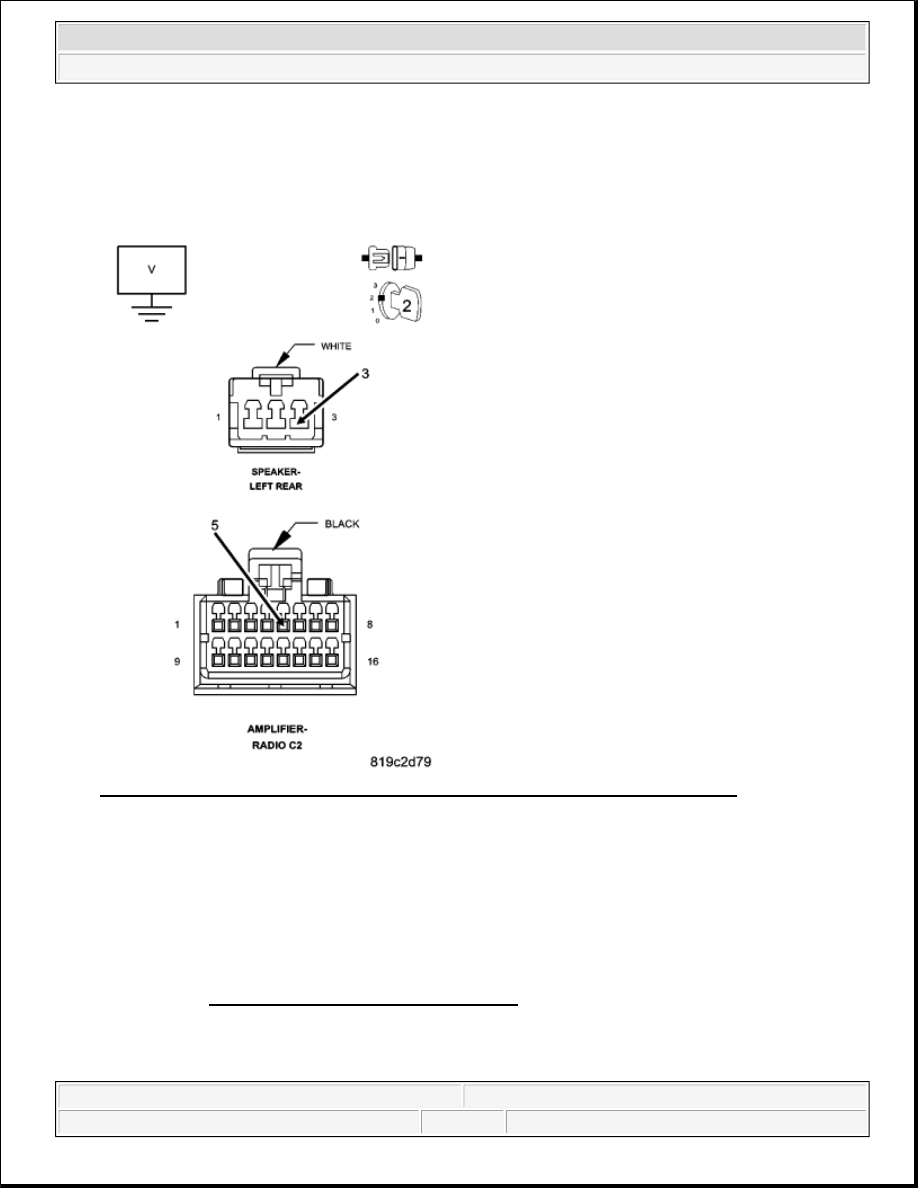

Fig. 96: Measuring Voltage Of Amplified Left Rear Speaker Circuits In Amplified Left Rear
Speaker Harness Connector
Courtesy of CHRYSLER LLC

Turn the ignition off.

Disconnect the Left Rear Speaker harness connector.

Turn the ignition on.

Turn the radio on and turn the volume to mid level.

With a voltmeter set to read in A/C voltage, measure the voltage of the Amplified Left Rear Speaker
circuits in the Amplified Left Rear Speaker harness connector.

Is the voltage present greater than 1 volt?

Yes

Replace the Amplified Left Rear Speaker in accordance with the service information.

Perform BODY VERIFICATION TEST - VER 1 .

No

Go to 3).

3) CHECK THE (X205) AMPLIFIED LEFT REAR SPEAKER (+) CIRCUIT FOR AN OPEN
