Fig. 88: Identifying Passenger Side Front Seat Adjuster, Seat Weight Sensor, Nuts & Seat Track
Risers
Courtesy of CHRYSLER LLC

6. With the alignment tool securing the body of the seat weight sensor (2), remove the nut (4) that secures

the sensor stud to the seat track riser (5).

7. Transfer the special tool to each weight sensor, one at a time, and remove the nuts that secure the sensor

studs to the seat track risers until all four nuts have been removed.

8. Carefully separate the seat track risers from the seat weight sensor studs.

9. Remove the two nuts (3) that secure the sensor to the studs on the lower track of the seat adjuster (1).

10. Remove the seat weight sensor from the seat adjuster.

INSTALLATION

SEAT WEIGHT SENSOR

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable
the Supplemental Restraint System (SRS) before attempting any steering
wheel, steering column, airbag, Occupant Classification System (OCS),
seat belt tensioner, impact sensor, or instrument panel component
diagnosis or service. Disconnect and isolate the battery negative (ground)
cable, then wait two minutes for the system capacitor to discharge before
performing further diagnosis or service. This is the only sure way to
disable the SRS. Failure to take the proper precautions could result in
accidental airbag deployment.

WARNING:

To avoid serious or fatal injury on vehicles equipped with the Occupant
Classification System (OCS), do not modify the front passenger seat
assembly or center floor console in any way. Do not use any prior year,
subsequent year, secondary or aftermarket seat trim covers. At no time
should any Supplemental Restraint System (SRS) or OCS component be
modified or replaced with any part except those which are specified for
the particular vehicle application . Failure to observe these precautions
could cause an OCS miscalibration condition, which may result in the
passenger airbag failing to deploy when required or deploying when not
required.

WARNING:

To avoid serious or fatal injury, never strike or drop a seat weight sensor
or the passenger side front seat assembly to which the sensors are
secured as it can damage the sensors or affect their calibration. The seat
weight sensors and the passenger side front seat assembly must be
handled with care to avoid damage to the sensors. Do not sit upon or
place any loads upon a passenger side front seat while it is removed from
its mounts in or outside of the vehicle. If an individual sensor is dropped
or damaged, replace the sensor with a new and unused unit. If a seat has



2007 Dodge Nitro R/T

2007 RESTRAINTS Service Information - Nitro



Fig. 89: Identifying Passenger Side Front Seat Adjuster, Seat Weight Sensor, Nuts & Seat Track Risers
Courtesy of CHRYSLER LLC

1. Position the seat weight sensor (2) over the studs on the lower track of the passenger side front seat

adjuster (1).

2. Install and tighten the two nuts (3) that secure the sensor to the studs. Tighten the nuts to 28 N.m (21 ft.

lbs.).

3. Carefully position the seat track risers (5) over all four seat weight sensor studs.

been dropped during removal or loaded while removed from its mounts,
replace each of the seat weight sensors with new and unused units.
Failure to observe this warning could result in an accidental, incomplete,
or improper passenger side front supplemental restraint deployment.

WARNING:

To avoid serious or fatal injury on vehicles equipped with the Occupant
Classification System (OCS), any time the passenger side front seat
assembly has been removed or loosened from the vehicle for service of
any vehicle component or system the Occupant Classification System
(OCS) Verification Test must be performed using a diagnostic scan tool
and the Occupant Classification Seat Weight special tool following
reinstallation. Refer to the appropriate diagnostic procedures. Failure to
observe this warning could result in an accidental, incomplete, or
improper passenger side front supplemental restraint deployment.



2007 Dodge Nitro R/T

2007 RESTRAINTS Service Information - Nitro



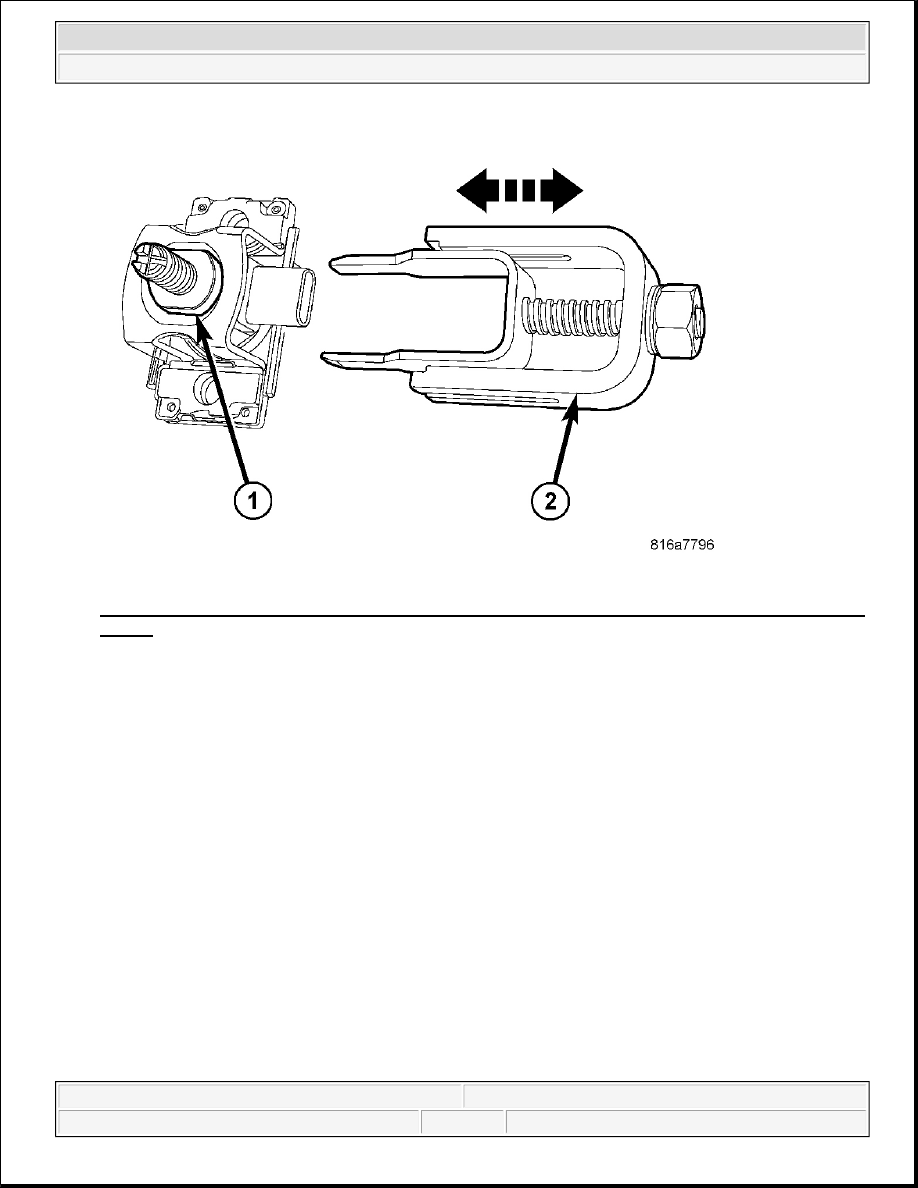

Fig. 90: Strain Gauge Alignment Tool (Special Tool No. 9689) Used To Secure Body Of Seat Weight
Sensor
Courtesy of CHRYSLER LLC

CAUTION: A strain gauge alignment tool (Special Tool No. 9689) (2) must be

used to secure the body of the seat weight sensor (1) from any
rotation during removal or installation of the nut that secures the
sensor stud to the seat track riser. In addition, the sensor fasteners
should always be serviced using hand tools ONLY, and not electric
or pneumatic power tools. Failure to observe these cautions may
result in irreversible sensor damage requiring sensor replacement.



2007 Dodge Nitro R/T

2007 RESTRAINTS Service Information - Nitro



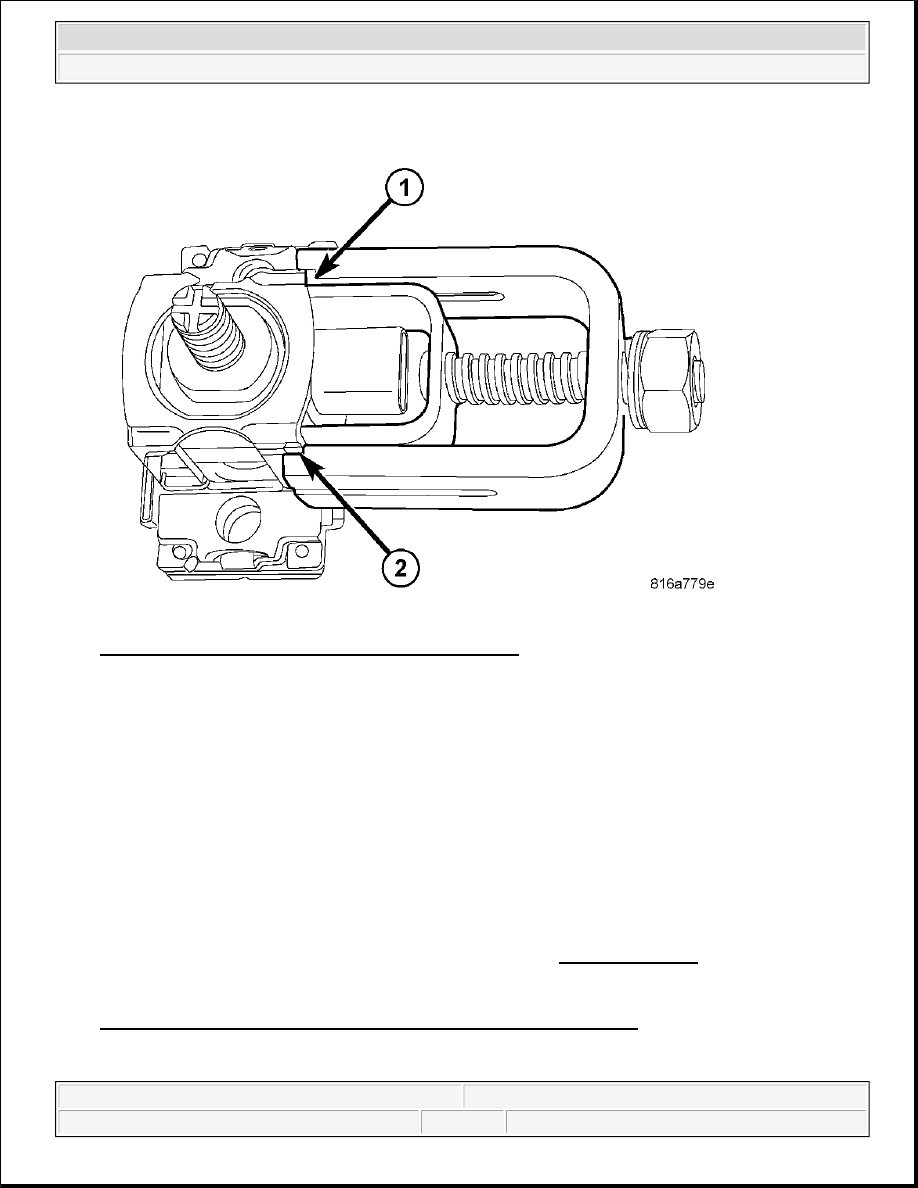

Fig. 91: Identifying Center Fork & Tool Support Yoke
Courtesy of CHRYSLER LLC

4. Install the strain gauge alignment tool (Special Tool 9689) on the sensors by inserting the center fork (1)

of the tool between the flats on each side of the sensor body and inside of the cage, then seating the tool
support yoke (2) firmly against the outside of the sensor cage.

5. With the alignment tool securing the body of the seat weight sensor, install and tighten the nut that

secures the sensor stud to the seat track riser. Tighten the nut to 44.5 N.m (33 ft. lbs.).

6. Transfer the special tool to each weight sensor, one at a time, then install and tighten the nuts that secure

each of the four sensor studs to the seat track risers until all four nuts have been installed and tightened.

7. From the underside of the seat, reconnect the seat wire harness to the connector receptacle of the seat

track position sensor located on the inboard side of the inboard seat adjuster upper track near the rear of
the seat track.

8. Reconnect the seat wire harness to the connector receptacles of each of the four weight sensors.

9. Reinstall the passenger side front seat into the vehicle. Refer to INSTALLATION .

10. Do not reconnect the battery negative cable at this time. The Supplemental Restraint System (SRS)

verification test procedure should be performed following service of any SRS component. See
VERIFICATION TEST - SUPPLEMENTAL RESTRAINT SYSTEM.

11. Following successful completion of the SRS verification test procedure, perform the Occupant

Classification System (OCS) Verification Test using a diagnostic scan tool and the Occupant
