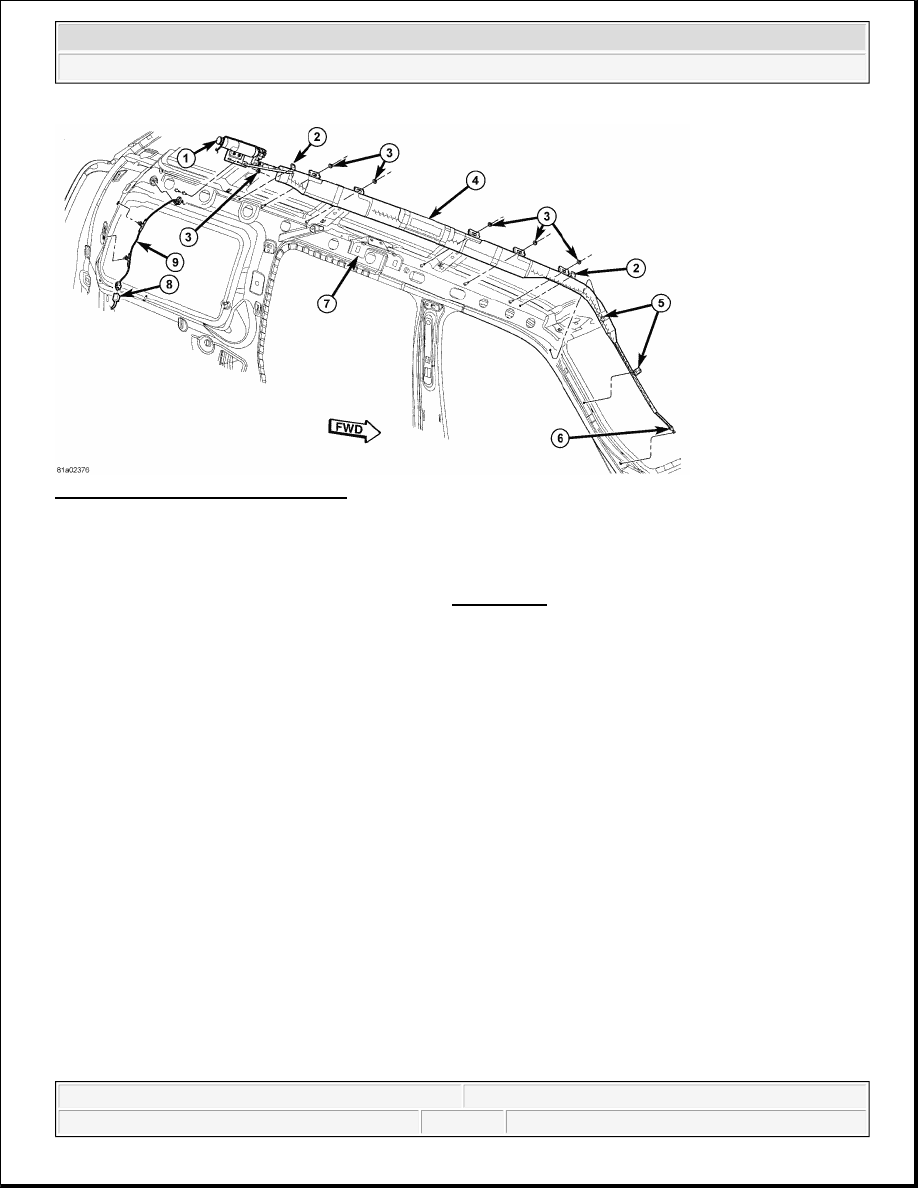

Fig. 28: Inner A/D-Pillar Components
Courtesy of CHRYSLER LLC

1. Disconnect and isolate the battery negative cable. Wait two minutes for the system capacitor to discharge

before further service.

2. Remove the headliner from the vehicle. Refer to REMOVAL .

3. Disengage the plastic push-in routing clips that secure the jumper wire harness (9) to the inner D-pillar.

4. Disconnect the jumper wire harness from the body wire harness connector (8) for the side curtain airbag

located on the inner D-pillar near the belt line.

5. Remove the push-in fastener that secures the side curtain airbag tether metal key (6) in the slot near the

base of the inner A-pillar.

6. Disengage the tether metal key from the A-pillar slot.

7. Disengage the two plastic push-in routing clips (5) that secure the tether to the inner A-pillar.

8. Remove the seven nuts (3) that secure the side curtain airbag (4) and the inflator (1) bracket to the studs

on the inner roof side rail.

9. Disengage the two plastic push-in fasteners (2) that secure the airbag unit to the inner roof side rail.

10. Disengage the side curtain airbag from under the grab handle bracket (7) on the inner roof side rail above

the rear door opening.

11. Remove the side curtain airbag from the vehicle as a unit.

INSTALLATION

SIDE CURTAIN AIRBAG

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable
the Supplemental Restraint System (SRS) before attempting any steering
wheel, steering column, airbag, Occupant Classification System (OCS),



2007 Dodge Nitro R/T

2007 RESTRAINTS Service Information - Nitro



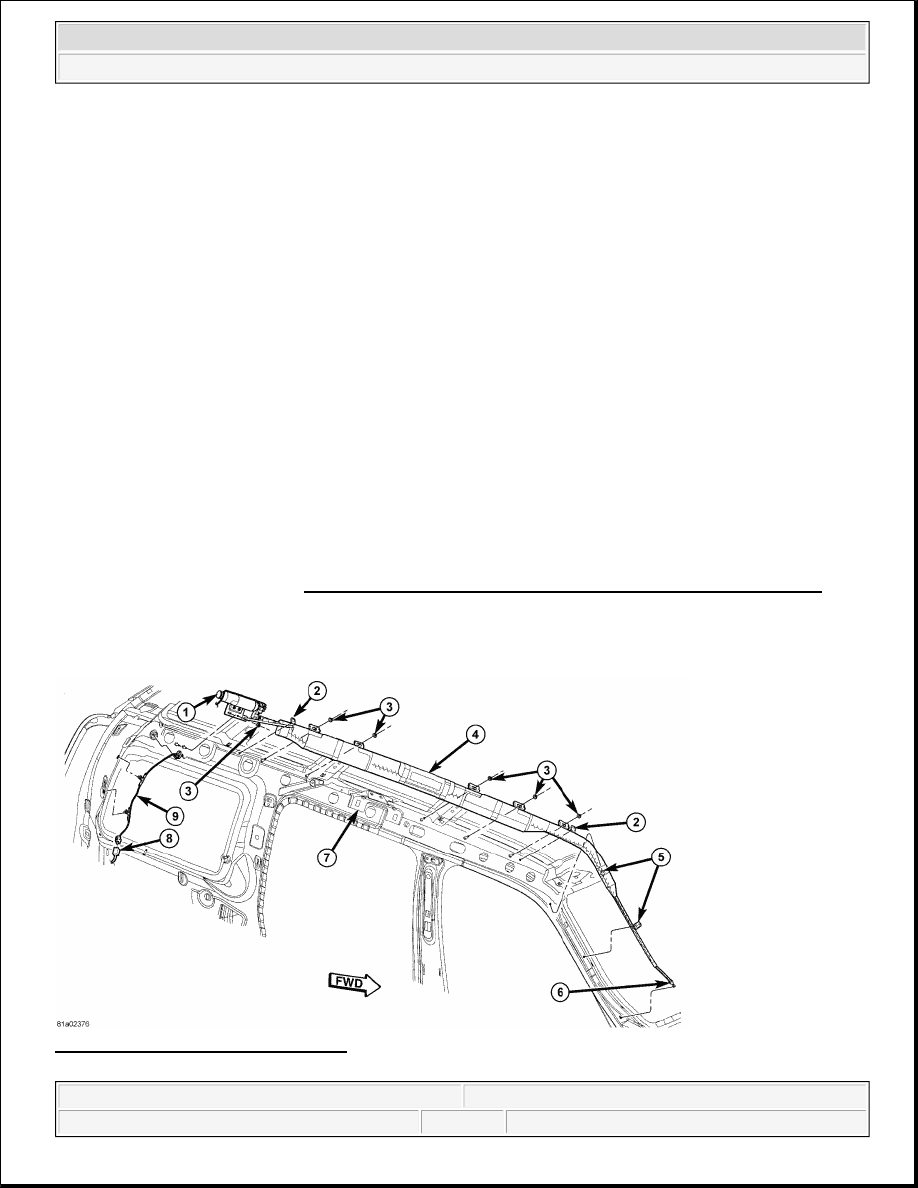

Fig. 29: Inner A/D-Pillar Components
Courtesy of CHRYSLER LLC

seat belt tensioner, impact sensor, or instrument panel component
diagnosis or service. Disconnect and isolate the battery negative (ground)
cable, then wait two minutes for the system capacitor to discharge before
performing further diagnosis or service. This is the only sure way to
disable the SRS. Failure to take the proper precautions could result in
accidental airbag deployment.

WARNING:

To avoid serious or fatal injury when removing a deployed airbag, rubber
gloves, eye protection, and a long-sleeved shirt should be worn. There
may be deposits on the airbag unit and other interior surfaces. In large
doses, these deposits may cause irritation to the skin and eyes.

WARNING:

To avoid serious or fatal injury, use extreme care to prevent any foreign
material from entering the side curtain airbag, or becoming entrapped
between the side curtain airbag cushion and the headliner. Failure to
observe this warning could result in occupant injuries upon airbag
deployment.

NOTE:

The following procedure is for replacement of an ineffective or damaged side
curtain airbag. If the airbag is ineffective or damaged, but not deployed, review
the recommended procedures for handling non-deployed supplemental
restraints. See HANDLING NON-DEPLOYED SUPPLEMENTAL RESTRAINTS. If
the side curtain airbag has been deployed, review the recommended
procedures for service after a supplemental restraint deployment before
removing the airbag from the vehicle.



2007 Dodge Nitro R/T

2007 RESTRAINTS Service Information - Nitro



1. Position the side curtain airbag (4) into the vehicle as a unit.

2. Engage the rear plastic push-in fastener (2) that secures the airbag unit to the inner roof side rail.

3. Tuck the side curtain airbag under the grab handle bracket (7) on the inner roof side rail above the rear

door opening.

4. Engage the front plastic push-in fastener (2) that secures the airbag unit to the inner roof side rail.

5. Engage the two plastic push-in routing clips (5) that secure the tether to the inner A-pillar.

6. Engage the side curtain airbag tether metal key (6) into the slot near the base of the inner A-pillar.

7. Install a plastic push-in fastener to secure the tether metal key within the inner A-pillar slot.

8. Position the side curtain airbag mounting tabs and the inflator (1) bracket onto the seven studs on the

inner roof side rail.

9. Working from the rear of the vehicle to the front, install and tighten the seven nuts (3) that secure the side

curtain airbag and inflator bracket to the studs. Tighten the nuts to 8 N.m (71 in. lbs.).

10. Reconnect the jumper wire harness (9) to the body wire harness connector (8) for the side curtain airbag

located on the inner D-pillar near the belt line.

11. Engage the plastic push-in routing clips that secure the jumper wire harness to the inner D-pillar.

12. Reinstall the headliner into the vehicle. Refer to INSTALLATION .

13. Do not reconnect the battery negative cable at this time. The Supplemental Restraint System (SRS)

verification test procedure should be performed following service of any SRS component. See
VERIFICATION TEST - SUPPLEMENTAL RESTRAINT SYSTEM.

DRIVER AIRBAG

DESCRIPTION

DRIVER AIRBAG

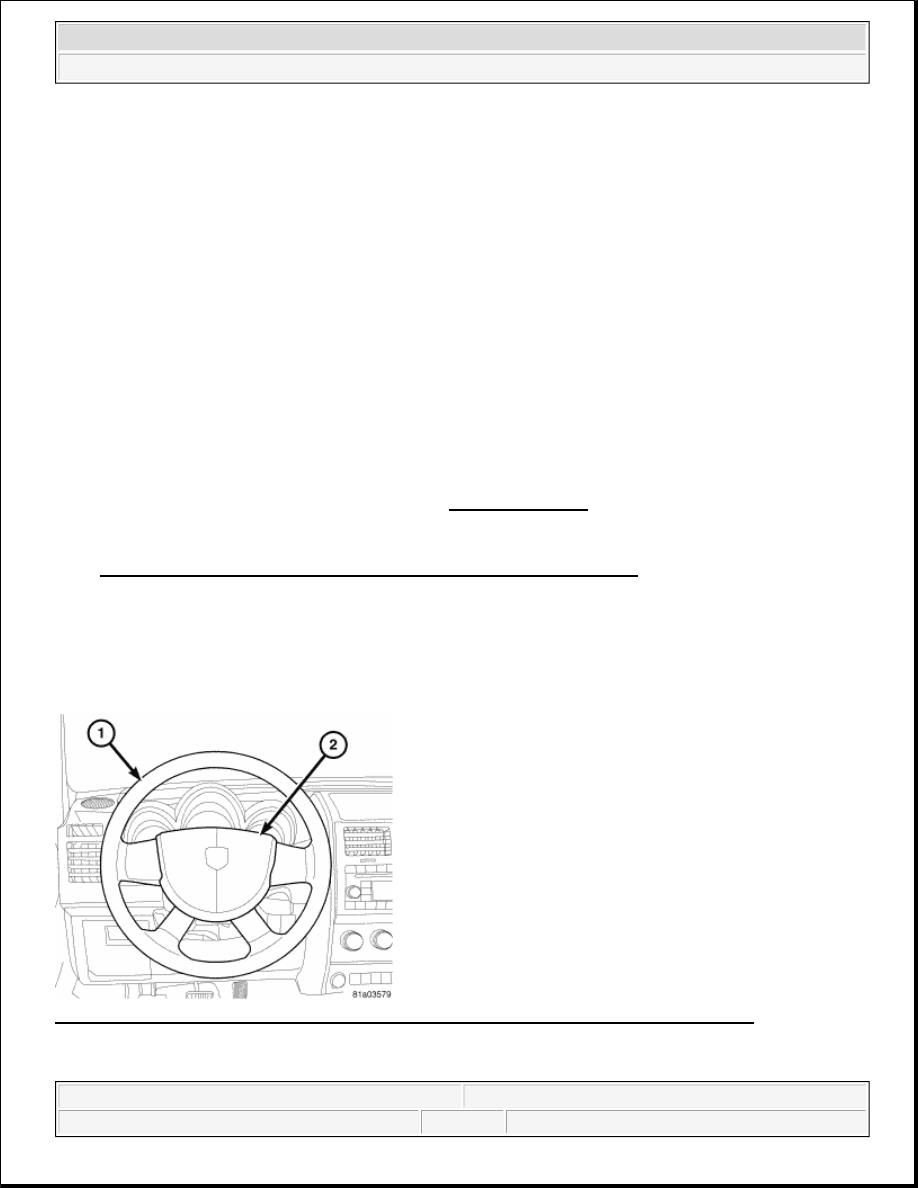

Fig. 30: Identifying Steering Wheel & Thermoplastic Driver Airbag Protective Trim Cover
Courtesy of CHRYSLER LLC

The injection molded, thermoplastic driver airbag protective trim cover (2) is the most visible part of the driver



2007 Dodge Nitro R/T

2007 RESTRAINTS Service Information - Nitro



airbag. The driver airbag is located in the center of the steering wheel (1), where it is secured to the armature
within the hub cavity of the four-spoke steering wheel. An injection molded, bright emblem with the Dodge
Ram logo is applied to the center of the trim cover.

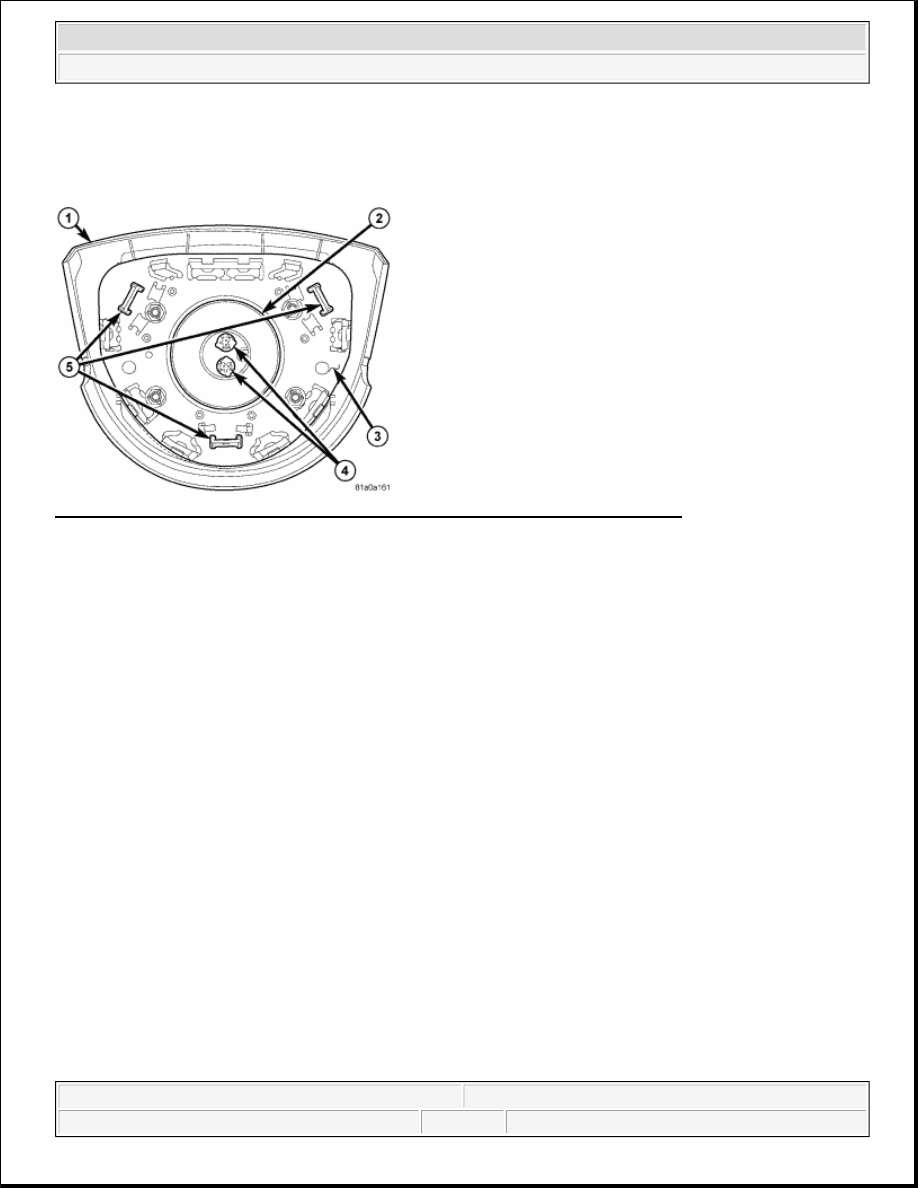

Fig. 31: Identifying Trim Cover, Inflator, Housing, Snap Retainers & Receptacles
Courtesy of CHRYSLER LLC

Concealed beneath the driver air bag trim cover are the folded airbag cushion, the airbag housing, the airbag
inflator and the retainers that secure the inflator to the housing. The airbag cushion, housing (3), and inflator (2)
are secured within an integral receptacle molded into the back of the trim cover (1). The vertical walls of this
receptacle have numerous integral latch features that are inserted through numerous openings around the
perimeter of the airbag housing. After the trim cover latches are fully seated in the housing a blocking tab
integral to the housing is bent down to block the latch feature of the trim cover, locking the trim cover securely
into place on the airbag housing. Three wire loop snap retainers (5) extend from the housing to secure the airbag
to the steering wheel armature. The snap retainer at the 6 o'clock position has a distinctive V-shape to ensure
proper orientation of the airbag when it is installed onto the steering wheel.

The airbag used in this vehicle is a multistage-type that complies with revised federal airbag standards to deploy
with less force than those used in some prior vehicles. A radial deploying 67.3 centimeter (26.5 inch) diameter
fabric airbag cushion with internal tethers is used. The airbag inflator is a dual-initiator, non-azide, pyrotechnic-
type unit and is secured to the stamped metal airbag housing using four flanged hex nuts. Two keyed and color-
coded connector receptacles (4) on the driver airbag inflator connect the two inflator initiators to the vehicle
electrical system through two yellow-jacketed, two-wire pigtail harnesses of the clockspring.

The driver airbag cannot be repaired, and must be replaced if deployed, ineffective, or in any way damaged.

OPERATION

DRIVER AIRBAG

The multistage driver airbag is deployed by electrical signals generated by the Occupant Restraint Controller
(ORC) through the driver airbag squib 1 and squib 2 circuits to the two initiators in the airbag inflator. By using
two initiators, the airbag can be deployed at multiple levels of force. The force level is controlled by the ORC to
