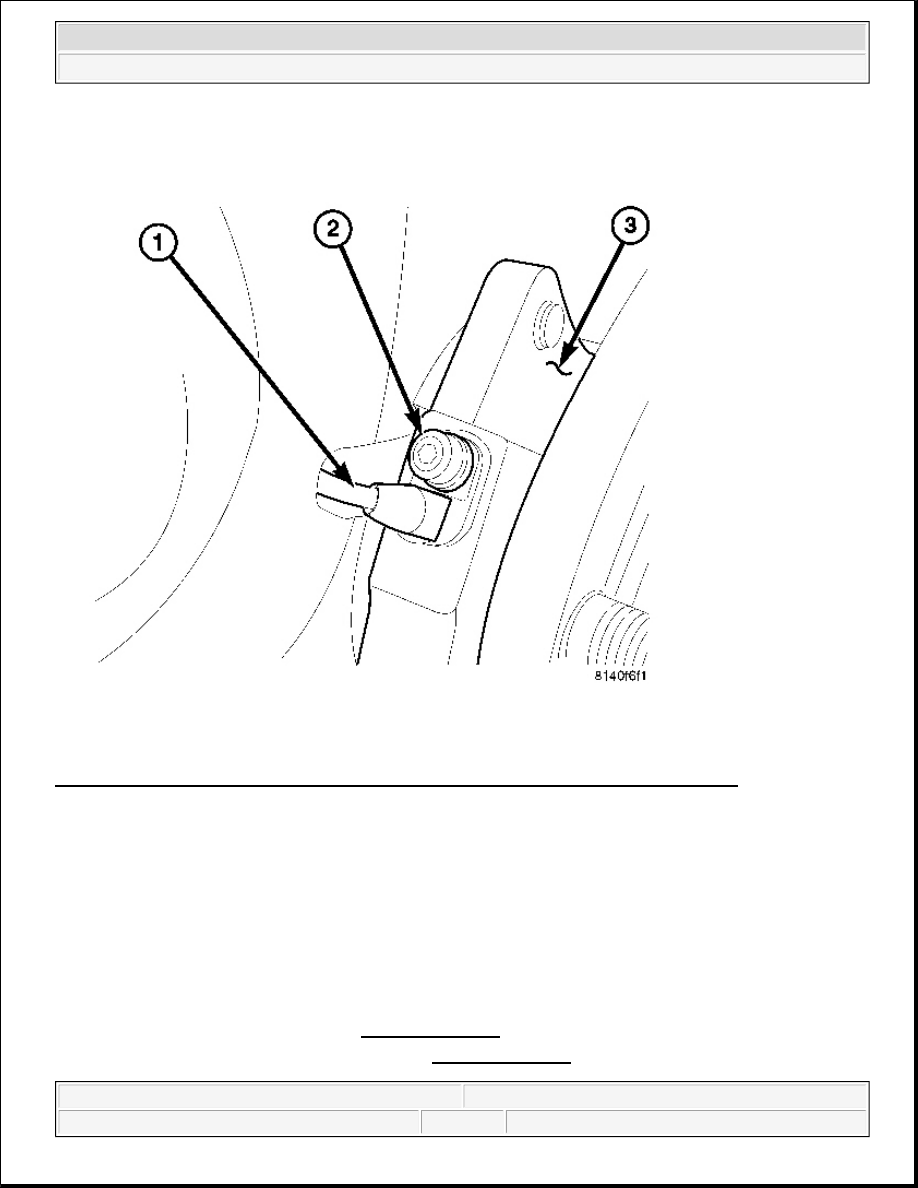

Fig. 2: Identifying Wheel Speed Sensor Wire, Wheel Speed Sensor Mounting Bolt & Hub
Courtesy of CHRYSLER LLC

1. Install the wheel speed sensor to the vehicle.

2. Install the wheel speed sensor (1) through the brake shield and to the hub/bearing (3).

3. Install the wheel speed sensor wire hold down routing clips.

4. Install the wheel speed sensor mounting bolt (2) to the hub (3). Tighten the mounting bolt to 8 N.m (71

in. lbs.).

5. Install the disc brake rotor. Refer to INSTALLATION .

6. Install the disc brake caliper adapter. Refer to INSTALLATION .

NOTE:

When installing, do not rotate sensor, as this may cause the sensor to rub on
the tone ring and be damaged.



2007 Dodge Nitro R/T

2007 BRAKES ABS Service Information - Nitro



7. Install the tire and wheel assembly. Refer to STANDARD PROCEDURE .

SENSOR- WHEEL SPEED-REAR

REMOVAL

SENSOR-WHEEL SPEED-REAR

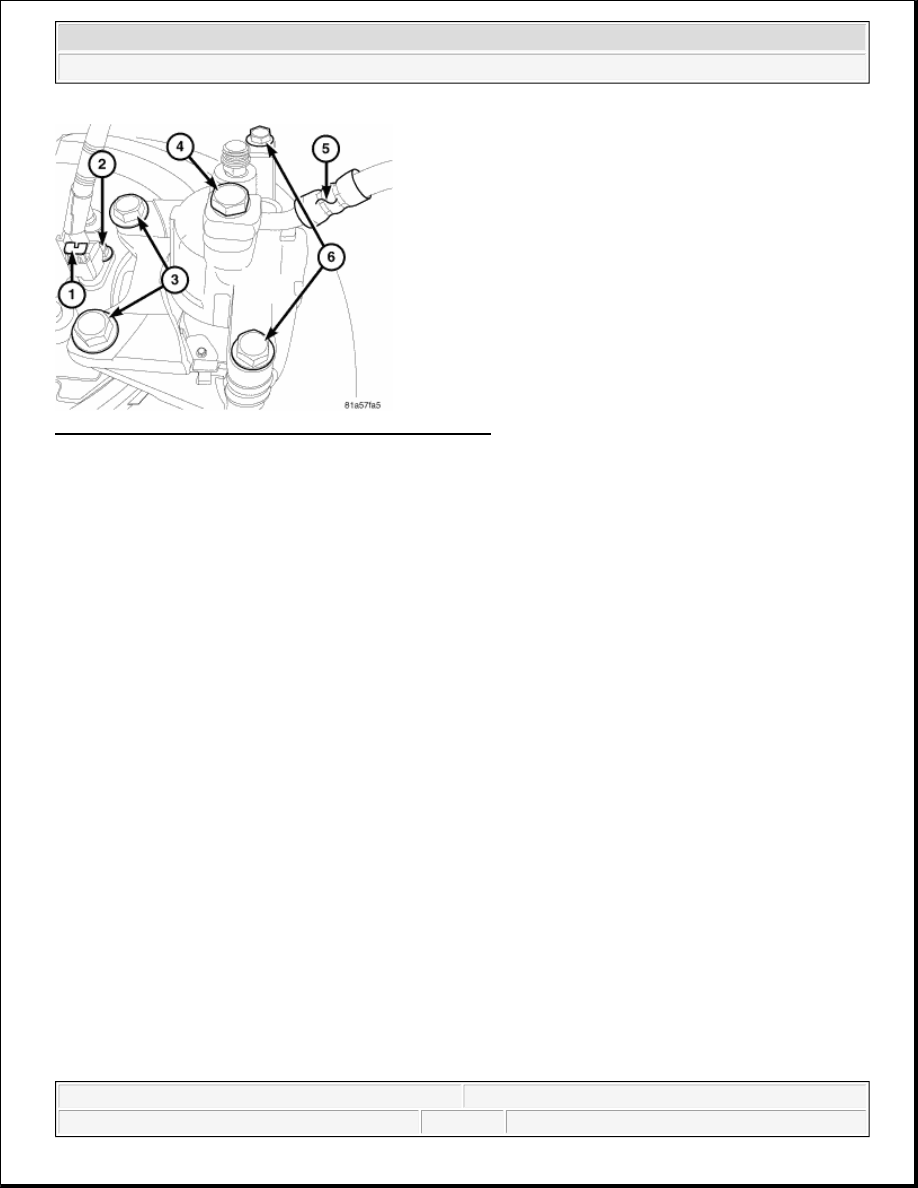

Fig. 3: Identifying Wheel Speed Sensor & Mounting Bolt
Courtesy of CHRYSLER LLC

1. Raise and support the vehicle.

2. Disengage the locking tab connector (1).

3. Disconnect the wheel speed sensor electrical connector (1).

4. Remove the wheel speed sensor mounting bolt (2) from the rear support plate.

5. Remove the wheel speed sensor from the support plate.

INSTALLATION

SENSOR-WHEEL SPEED-REAR



2007 Dodge Nitro R/T

2007 BRAKES ABS Service Information - Nitro



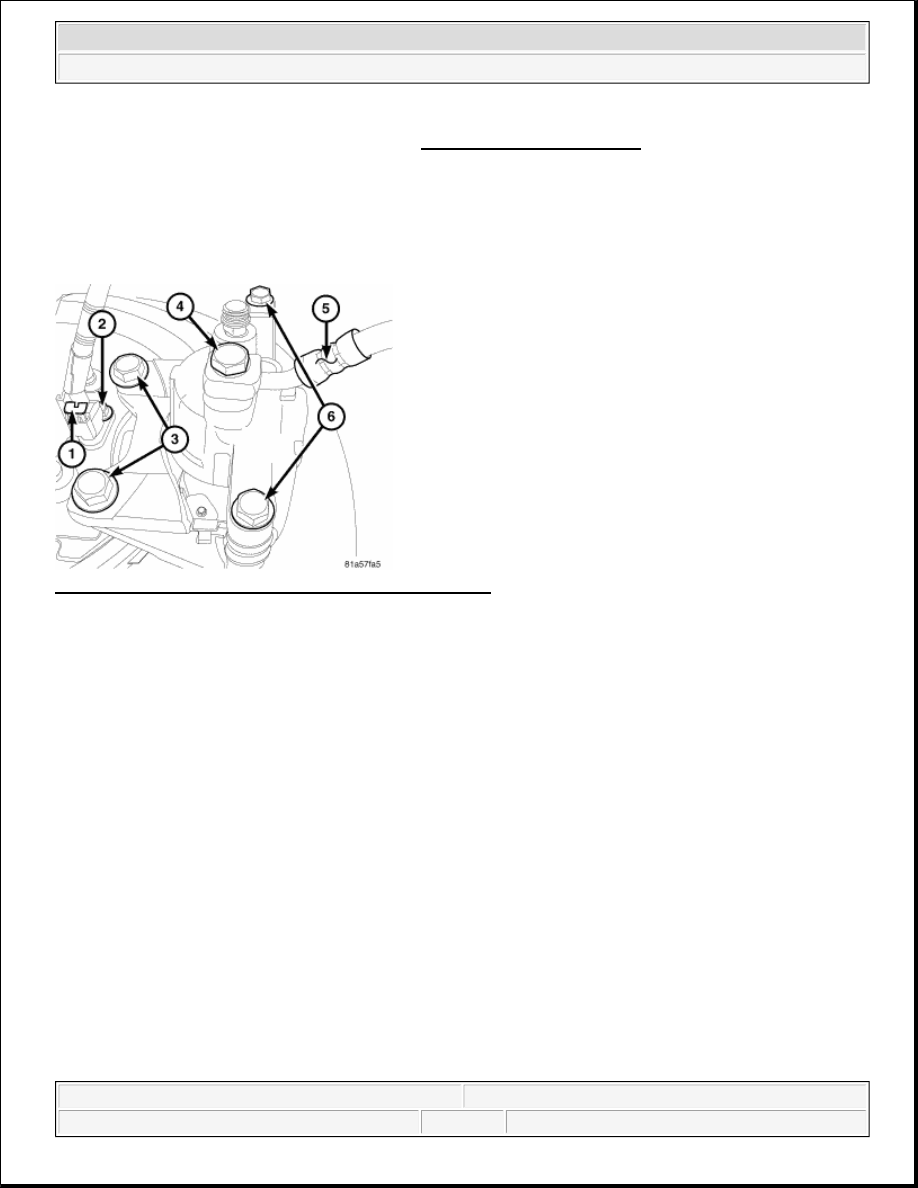

Fig. 4: Identifying Wheel Speed Sensor & Mounting Bolt
Courtesy of CHRYSLER LLC

1. Insert the wheel speed sensor through the support plate.

2. Tighten the wheel speed sensor bolt (2) to 9 N.m (80 in. lbs.).

3. Secure the wheel speed sensor wire to the routing clips. Verify that the sensor wire is secure and clear of

the rotating components.

4. Reconnect the wheel speed sensor electrical connector (1).

5. Lower the vehicle.

SENSOR-DYNAMICS

DESCRIPTION

SENSOR - DYNAMICS

NOTE:

Make sure the connector locking tab is fully engaged and locked in
position.



2007 Dodge Nitro R/T

2007 BRAKES ABS Service Information - Nitro



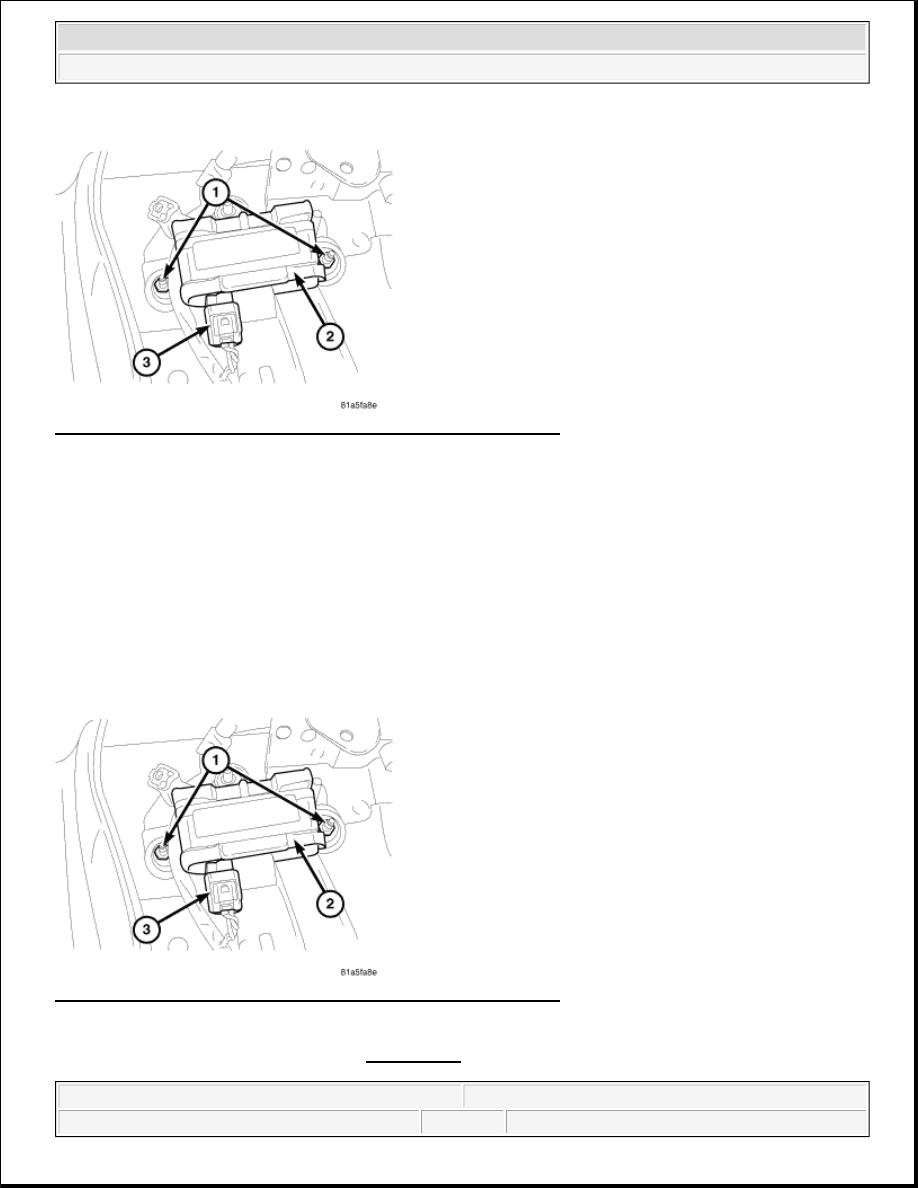

Fig. 5: Identifying Nuts, Dynamics Sensor & Electrical Connector
Courtesy of CHRYSLER LLC

The Yaw Rate and Lateral Acceleration Sensors are housed into one unit known as the Dynamics Sensor (2).
The sensor is used to measure side-to-side (Lateral) motion and vehicle rotational sensing (how fast the vehicle
is turning - Yaw).

Yaw and Lateral Acceleration Sensors cannot be serviced separately. The entire Dynamics Sensor (2) must be
replaced when necessary.

REMOVAL

SENSOR-DYNAMICS

Fig. 6: Identifying Nuts, Dynamics Sensor & Electrical Connector
Courtesy of CHRYSLER LLC

1. Remove the center console. Refer to REMOVAL .
