Go to 5).

5) CHECK THE (D52) DYNAMICS SENSOR HIGH DATA LINK CIRCUIT FOR AN OPEN



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro





2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro

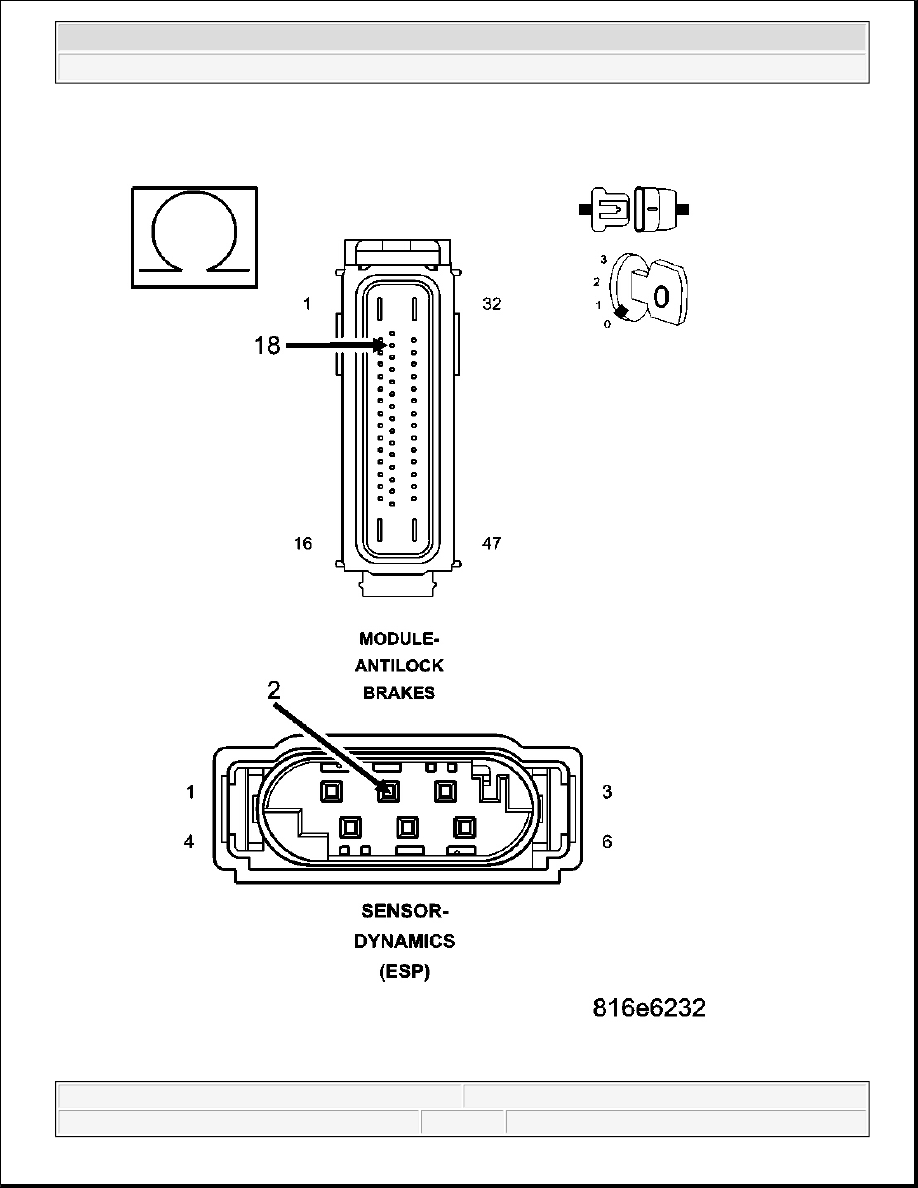

Fig. 76: Measuring Resistance Of (D52) Dynamics Sensor High Data Link Circuit Between
Dynamics Sensor Harness Connector And Anti-Lock Brakes Module Harness Connector
Courtesy of CHRYSLER LLC

Measure the resistance of the (D52) Dynamics Sensor High Data Link circuit between the Dynamics
Sensor harness connector and the Anti-Lock Brakes Module harness connector.

Is the resistance below 5.0 ohms?

Yes

Go to 6).

No

Repair the (D52) Dynamics Sensor High Data Link circuit for an open.

Perform ABS VERIFICATION TEST.

6) CHECK THE (D51) DYNAMICS SENSOR LOW DATA LINK CIRCUIT FOR A SHORT TO
VOLTAGE



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro

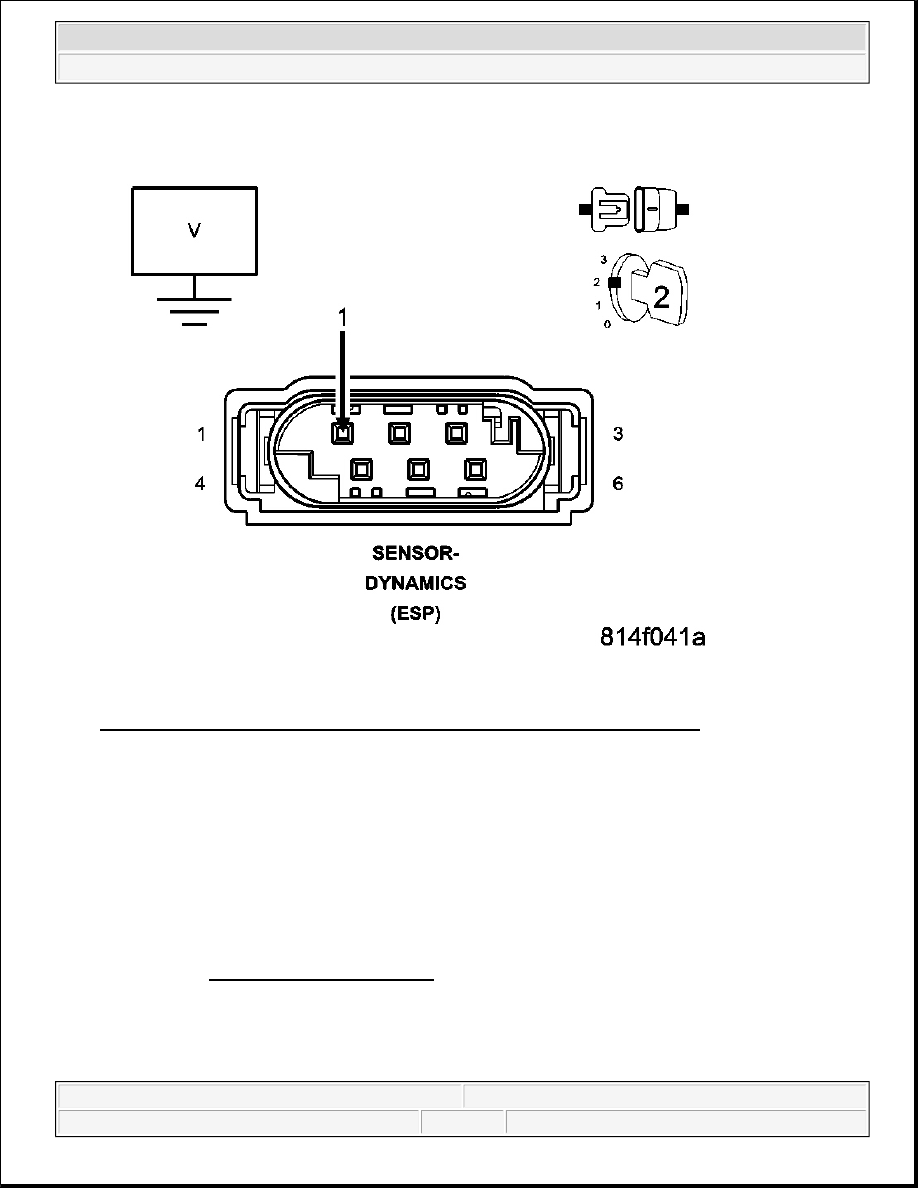

Fig. 77: Measuring Voltage Of (D51) Dynamics Sensor Low Data Link Circuit
Courtesy of CHRYSLER LLC

Turn the ignition on.

Measure the voltage of the (D51) Dynamics Sensor Low Data Link circuit.

Is there any voltage present?

Yes

Repair the (D51) Dynamics Sensor Low Data Link circuit for a short to voltage.

Perform ABS VERIFICATION TEST.

No

Go to 7).
