Were any problems found?

Yes

Repair as necessary.

Perform ABS VERIFICATION TEST.

No

Go to 3).

3) CHECK (G4) DYNAMICS SENSOR SUPPLY CIRCUIT & (G94) DYNAMICS SENSOR
GROUND CIRCUIT FUNCTION



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro



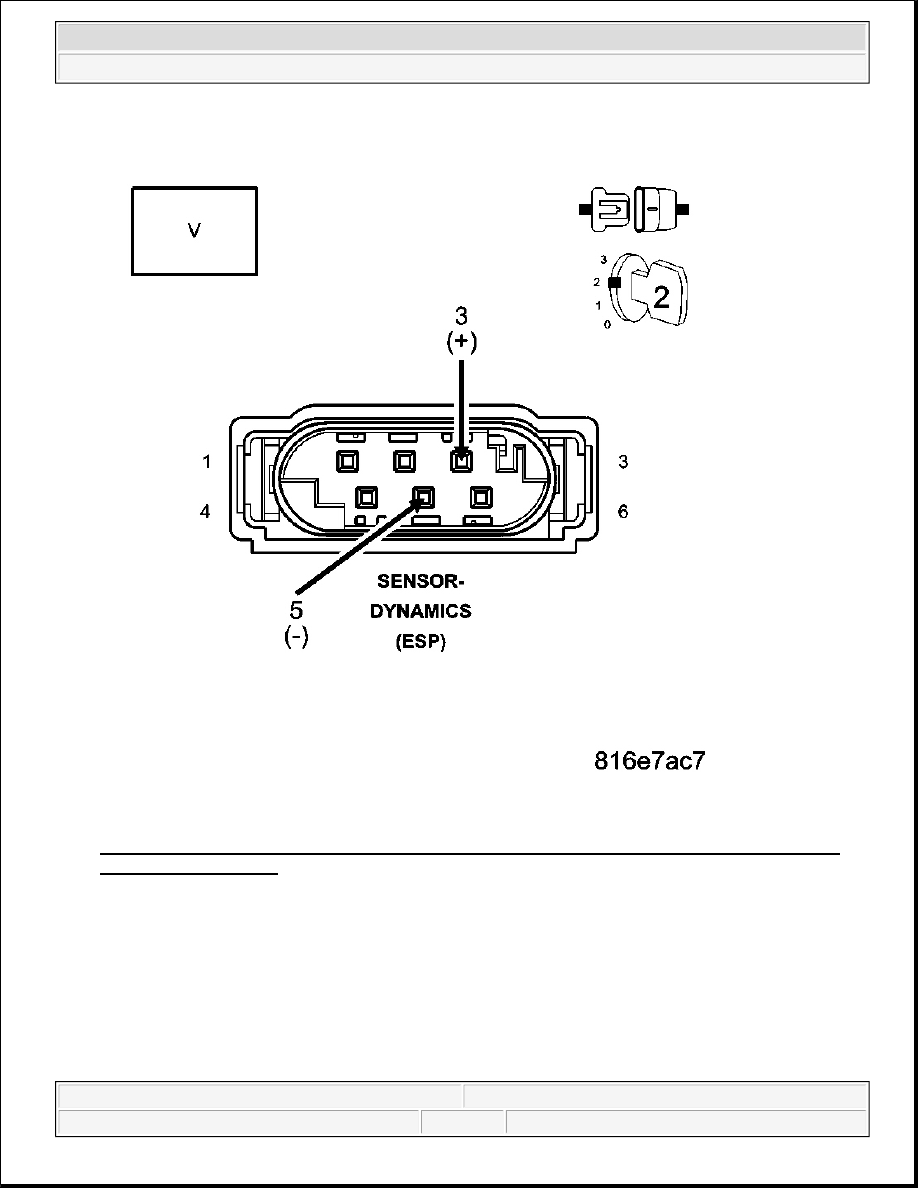

Fig. 50: Measuring Voltage Between (G4) Dynamics Sensor Supply Circuit And (G94) Dynamics
Sensor Ground Circuit
Courtesy of CHRYSLER LLC

Disconnect the Dynamics Sensor harness connector.

Turn the ignition on.

Measure the voltage between the (G4) Dynamics Sensor Supply Circuit and the (G94) Dynamics Sensor
Ground Circuit.

Is the voltage above 10.5 volts?



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro



Yes

Replace the Dynamics Sensor in accordance with the Service Information.

Perform ABS VERIFICATION TEST.

No

Go to 4).

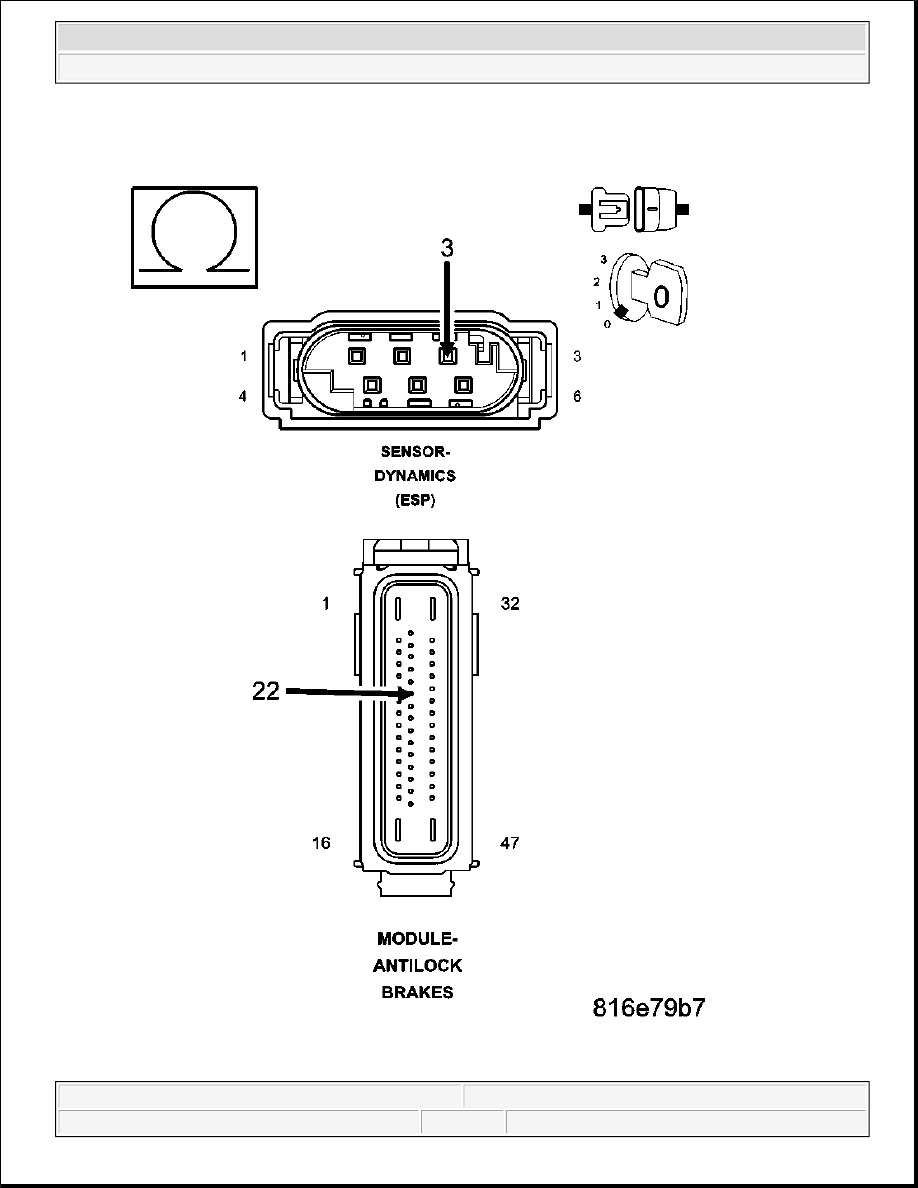

4) CHECK (G4) DYNAMICS SENSOR SUPPLY CIRCUIT FOR HIGH RESISTANCE



2007 Dodge Nitro R/T

2007 BRAKES ABS - Electrical Diagnostics - Nitro
