14. Rotate the engine to TDC and align timing belt marks (1, 8, 9). See Fig. 80.

15. Remove the timing belt tensioner (1, 2) and reset the tensioner. See REMOVAL.

16. Remove the timing belt (4). See REMOVAL.

17. Remove the right cylinder head cover to cylinder head ground strap and capacitor.

18. Remove the EGR valve and tube assembly.

19. Remove the right cylinder head cover.

GEAR

GEAR ALIGNMENT MARK

3 - CYLINDER HEAD TO
INNER TIMING BELT
COVER BOLTS - RIGHT

9 - CRANKSHAFT GEAR
ALIGNMENT MARK

4 - TIMING BELT

10 - CRANKSHAFT GEAR

5 - WATER PUMP PULLEY 11 - TIMING BELT

TENSIONER PULLEY

6 - CYLINDER HEAD TO
INNER TIMING BELT
COVER BOLTS - LEFT

12 - TIMING BELT
TENSIONER



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



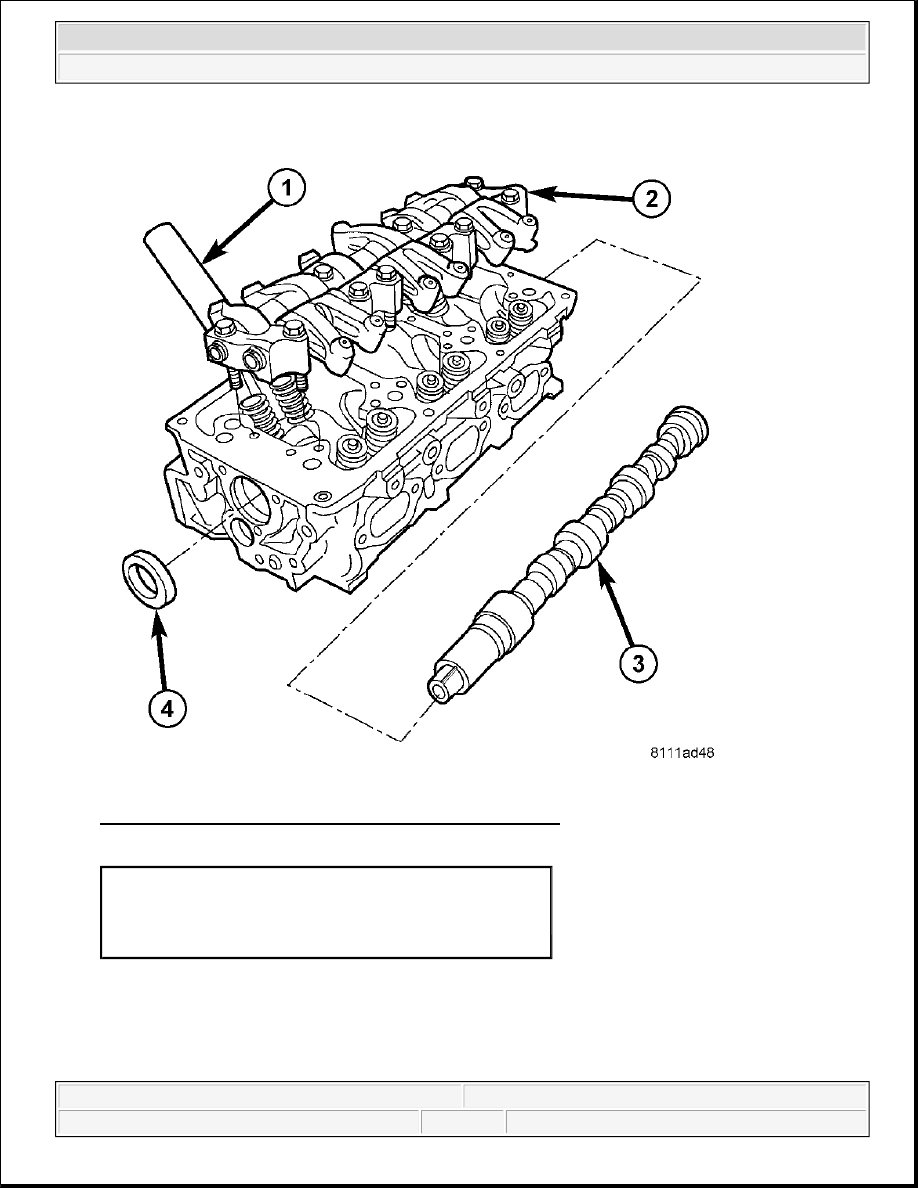

Fig. 81: Camshaft, Rocker Arm Assembly & Cylinder Head
Courtesy of CHRYSLER LLC

20. Remove the right rocker arm assembly (2).

1 - SPARK PLUG TUBE
2 - ROCKER ARM ASSEMBLY
3 - CAMSHAFT
4 - CAMSHAFT SEAL



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



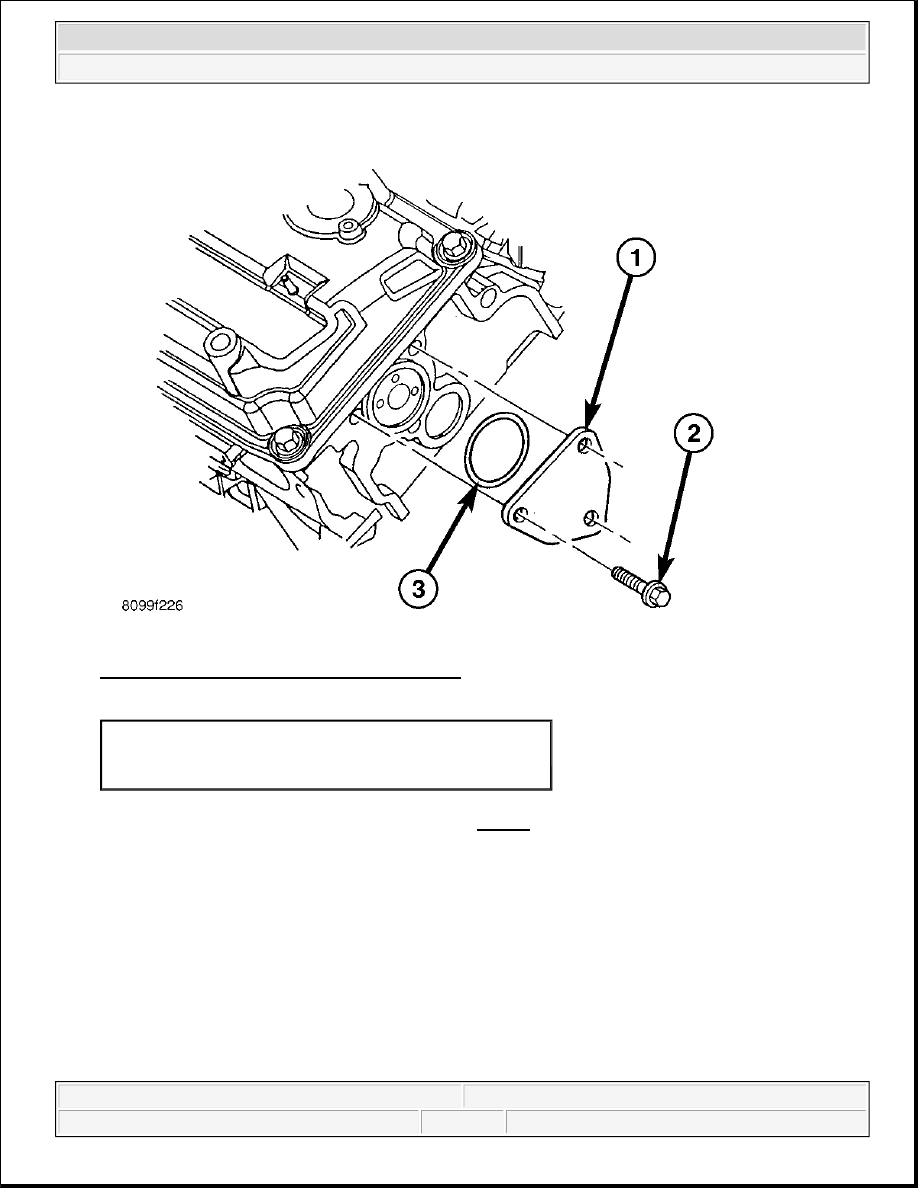

Fig. 82: Camshaft Thrust Plate, Bolt & O-Ring
Courtesy of CHRYSLER LLC

21. Remove the right rear camshaft thrust plate (1). See Fig. 82.

1 - CAMSHAFT THRUST PLATE
2 - BOLT
3 - O-RING



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



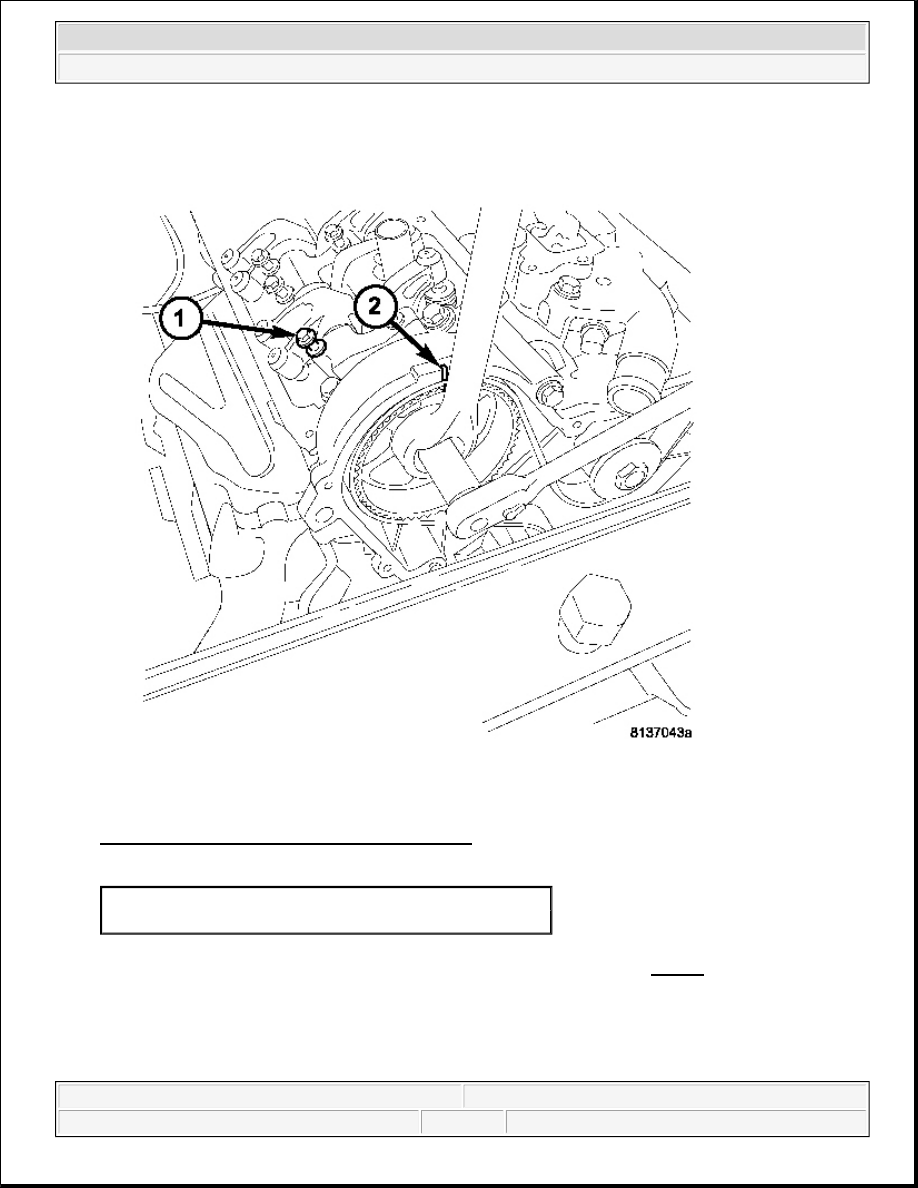

Fig. 83: Removing/Installing Camshaft Sprocket
Courtesy of CHRYSLER LLC

22. Counterhold the cam gear and remove the right cam gear retaining bolt. See Fig. 83.

1 - LOOSENED ROCKER ASSEMBLY
2 - RIGHT CAMSHAFT TDC
