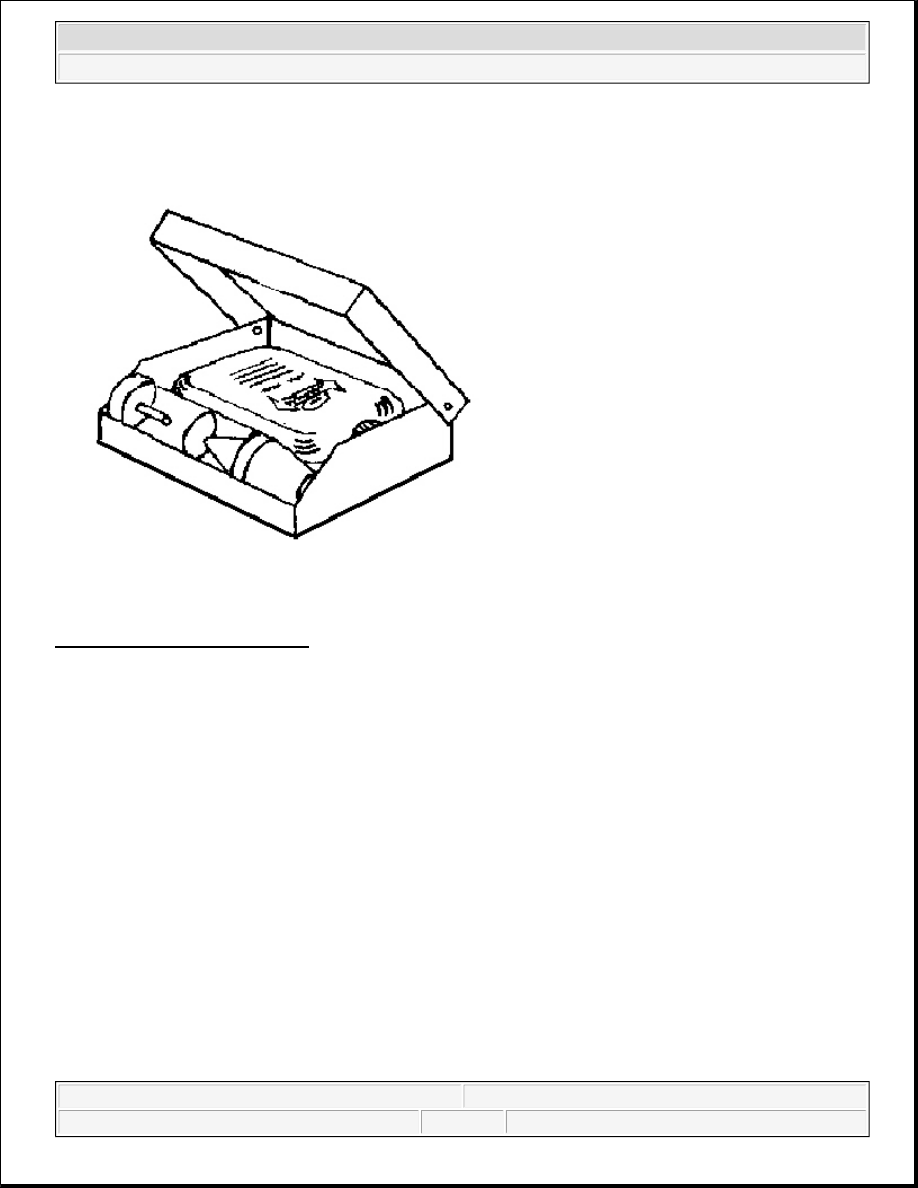

Fig. 69: Bloc-Chek-Kit C-3685-A
Courtesy of CHRYSLER LLC



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



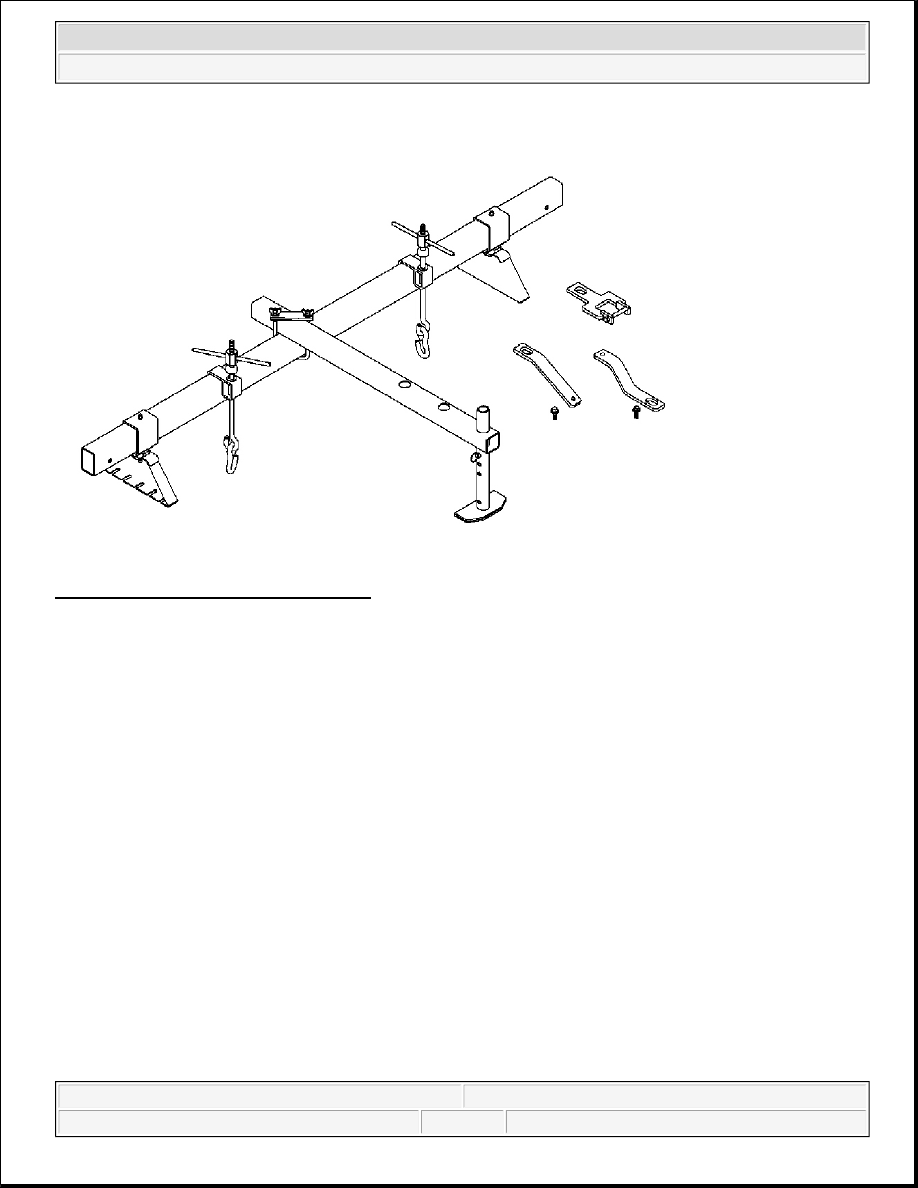

Fig. 70: Driveline Support Fixture 8534B
Courtesy of CHRYSLER LLC

AIR INTAKE SYSTEM

ELEMENT-AIR CLEANER

REMOVAL

REMOVAL



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



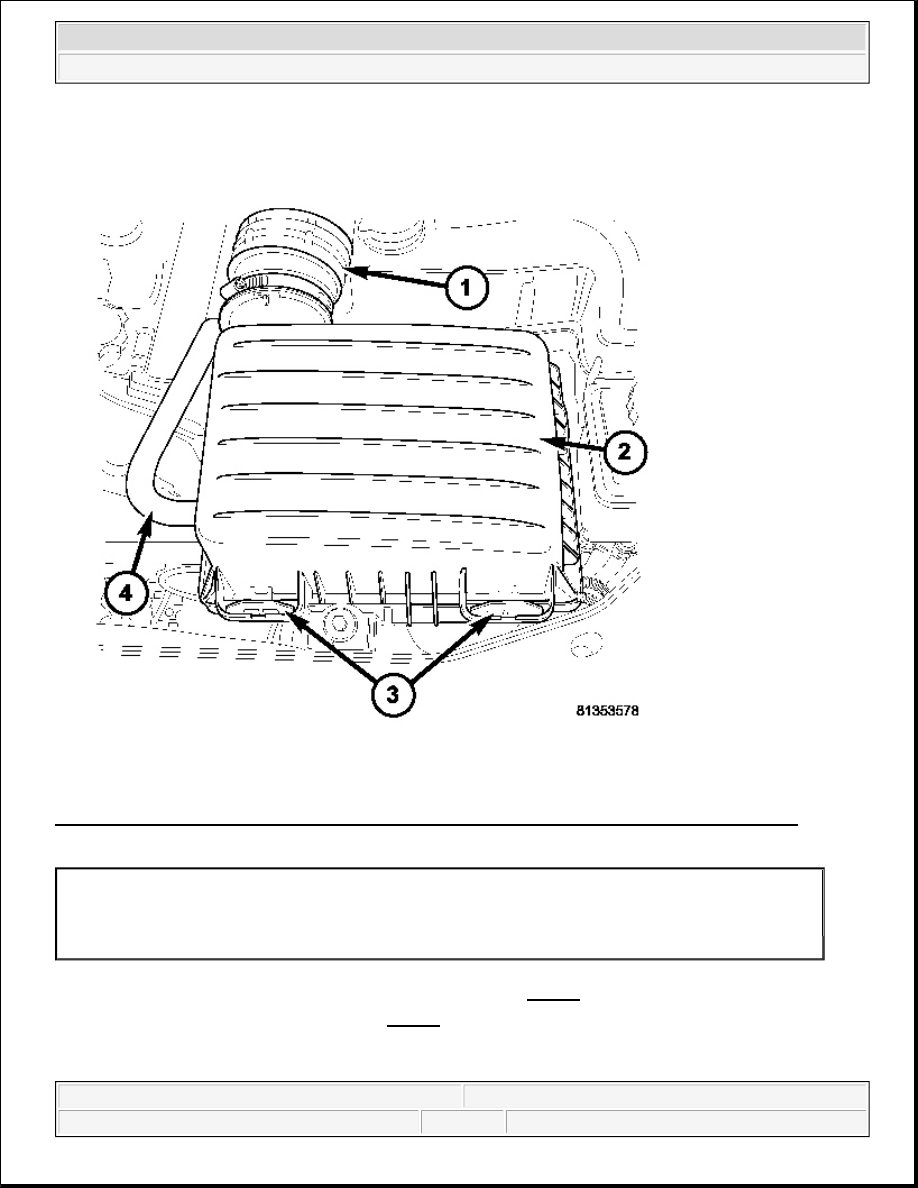

Fig. 71: Air Cleaner Housing Cover, CCV Hose, Locking Tab & Air Inlet Duct To Throttle Body
Courtesy of CHRYSLER LLC

1. Disconnect the CCV hose (4) at the housing cover (2). See Fig. 71.

2. Release the housing cover tabs (3). See Fig. 71

1 - AIR INLET DUCT TO THROTTLE BODY
2 - AIR CLEANER HOUSING COVER
3 - LOCKING TABS
4 - CCV HOSE



2007 Dodge Nitro R/T

2007 ENGINE 4.0L - Service Information - Nitro



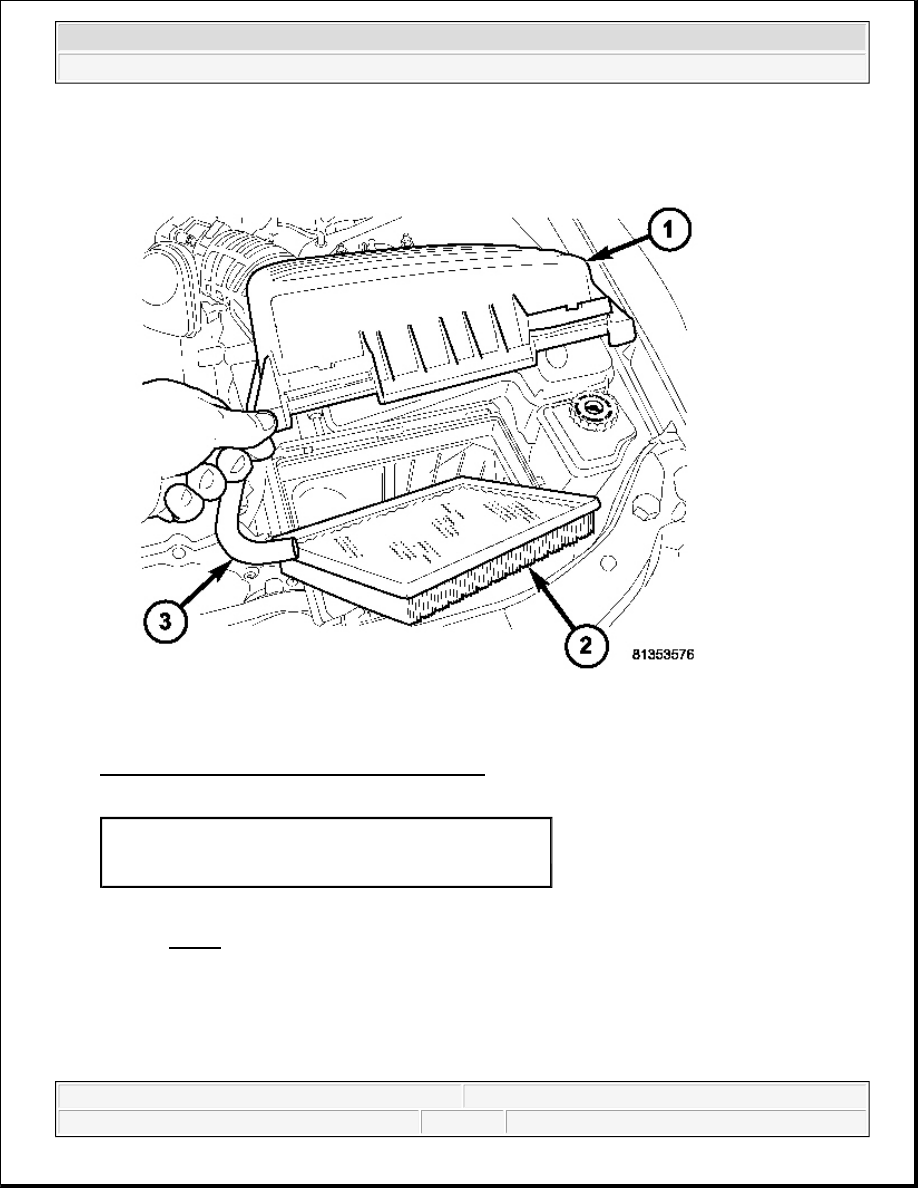

Fig. 72: Air Cleaner Cover, Element & CCV Hose
Courtesy of CHRYSLER LLC

3. Lift the cover (1) and pull toward the front of the vehicle to release the rear cover to housing alignment

tabs. See Fig. 72.

4. Remove the element (2).

INSTALLATION

INSTALLATION

1 - AIR CLEANER COVER
2 - ELEMENT
3 - CCV HOSE
