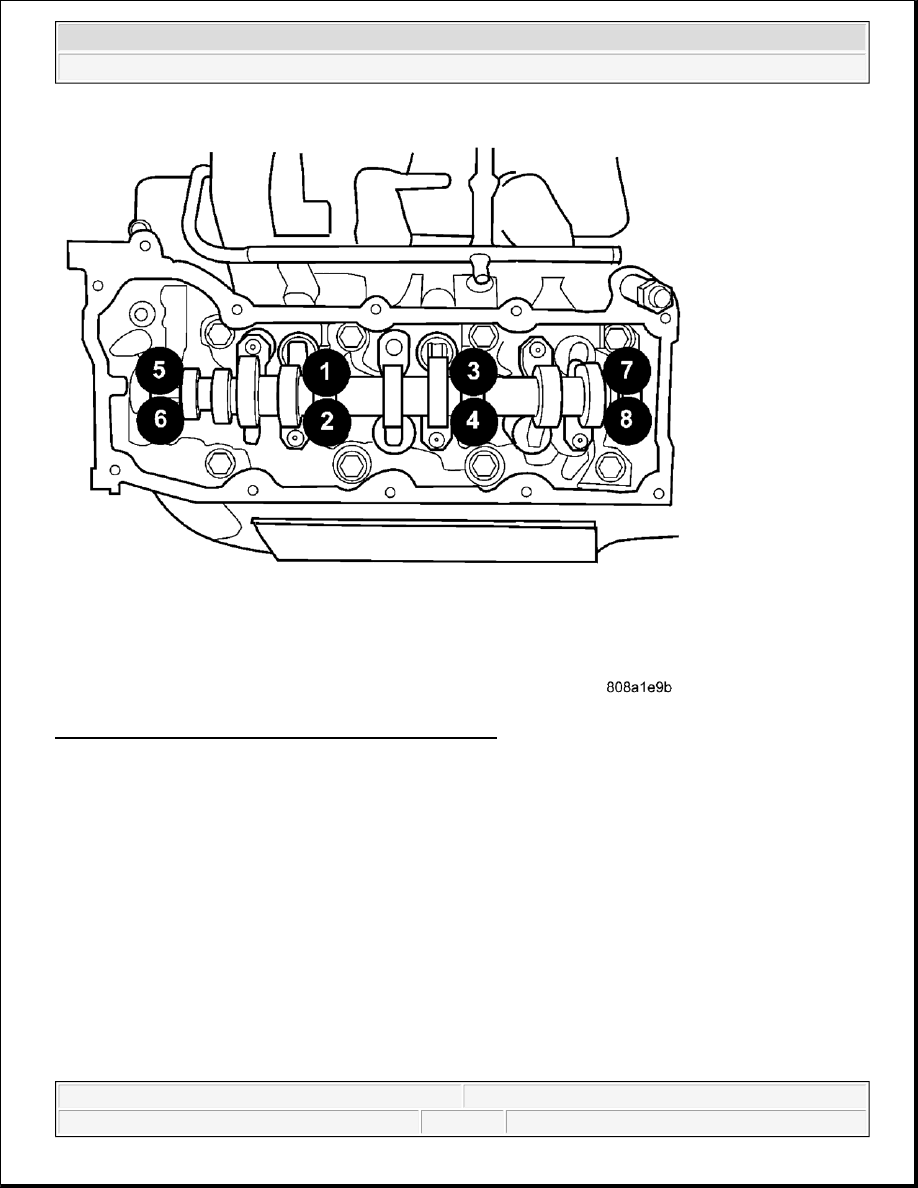

Fig. 86: Camshaft Bearing Cap Bolt Tightening Sequence
Courtesy of CHRYSLER LLC

1. Lubricate camshaft journals with clean engine oil.

2. Position the camshaft into the cylinder head.

3. Install the camshaft bearing caps, hand tighten the retaining bolts.

NOTE:

Position the right side camshaft so that the camshaft sprocket dowel is
near the 10 o'clock position, This will place the camshaft at the neutral
position easing the installation of the camshaft bearing caps.

NOTE:

Caps should be installed so that the stamped numbers on the caps are in
numerical order, (1 through 4) from the front to the rear of the engine. All
caps should be installed so that the stamped arrows on the caps point
toward the front of the engine.



2007 Dodge Nitro R/T

2007 ENGINE 3.7L - Service Information - Nitro



4. Working in 1/2 turn increments, tighten the bearing cap retaining bolts starting with the middle cap

working outward.

5. Tighten the camshaft bearing cap retaining bolts to 11 N.m (100 in. lbs.). See Fig. 86.

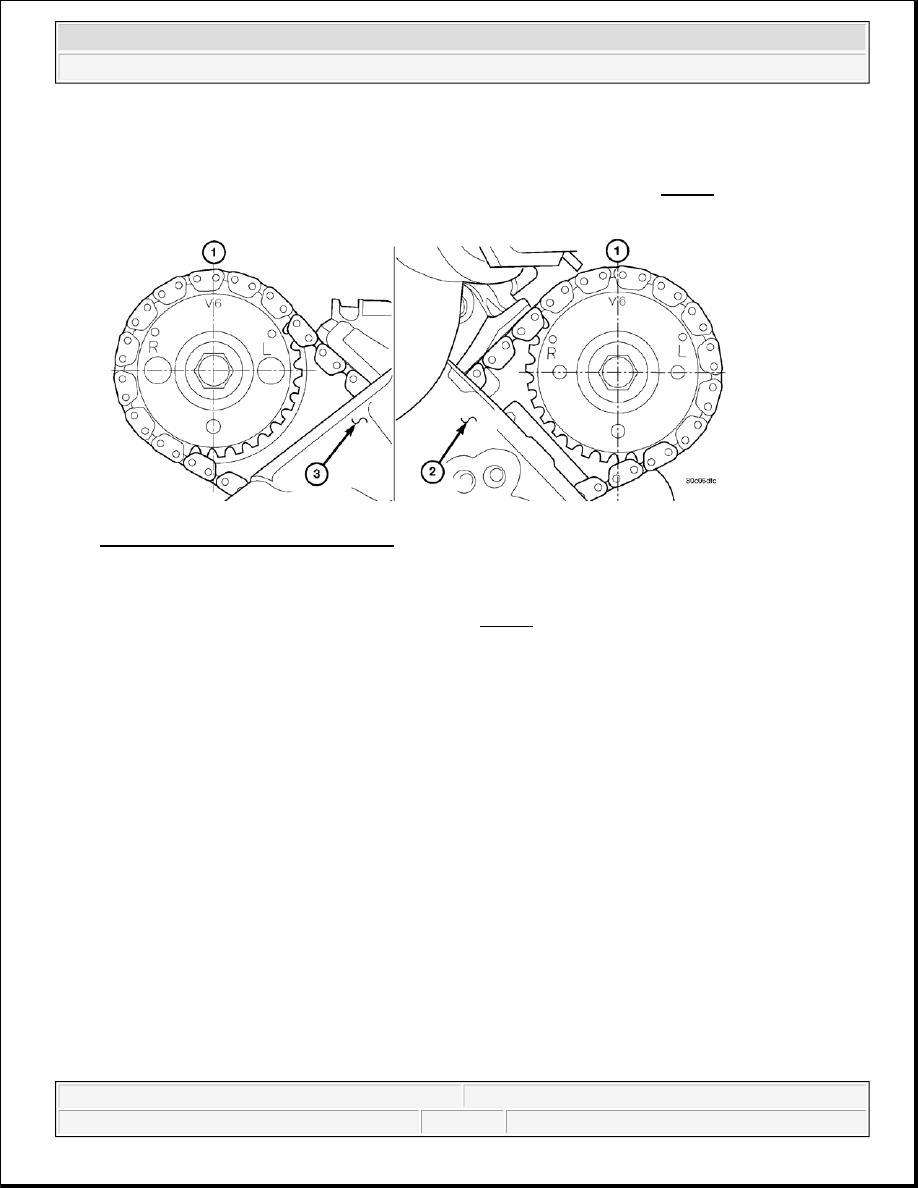

Fig. 87: Camshaft Sprocket V6 Marks
Courtesy of CHRYSLER LLC

6. Position the camshaft drive gear into the timing chain aligning the V6 mark between the two marked

chain links (Two links marked during removal). See Fig. 87.



2007 Dodge Nitro R/T

2007 ENGINE 3.7L - Service Information - Nitro



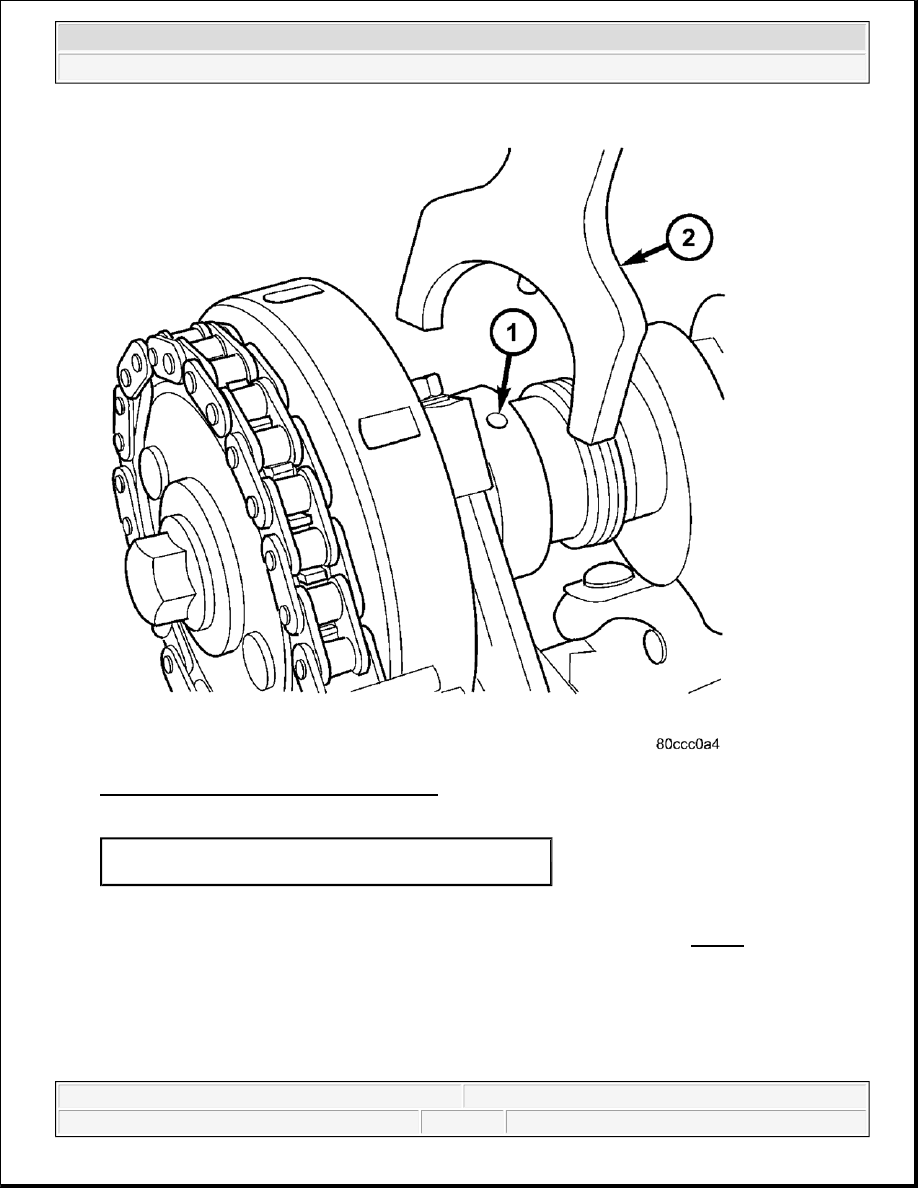

Fig. 88: Special Tool 8428 & Camshaft Hole
Courtesy of CHRYSLER LLC

7. Using the Camshaft Holder 8428 (2), rotate the camshaft until the camshaft sprocket dowel is aligned

with the slot in the camshaft sprocket . Install the sprocket onto the camshaft. See Fig. 88.

8. Remove excess oil from camshaft sprocket bolt, then install the camshaft sprocket retaining bolt and hand

tighten.

1 - Camshaft hole
2 - Special Tool 8428

CAUTION: Remove excess oil from camshaft sprocket bolt. Failure to do so can

cause bolt over-torque resulting in bolt failure.



2007 Dodge Nitro R/T

2007 ENGINE 3.7L - Service Information - Nitro



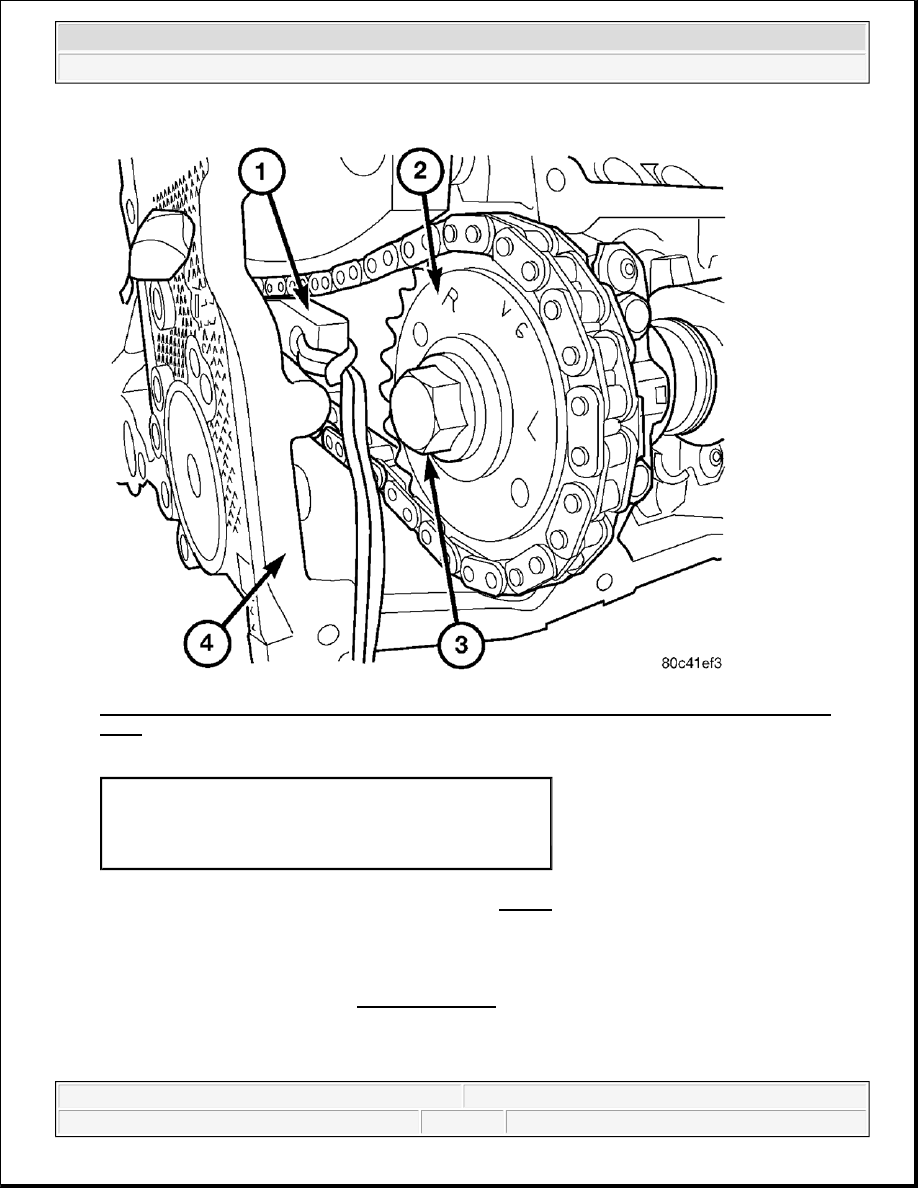

Fig. 89: Identifying Special Tool 8379, Camshaft Sprocket, Camshaft Sprocket Bolt & Cylinder
Head
Courtesy of CHRYSLER LLC

9. Remove timing chain wedge special tool 8379 (1). See Fig. 89.

10. Using Spanner Wrench 6958 with adapter pins 8346, tighten the camshaft sprocket retaining bolt to 122

N.m (90 ft. lbs.)

11. Install the camshaft position sensor.

12. Install the cylinder head cover. See INSTALLATION).

COVER-CYLINDER HEAD

1 - SPECIAL TOOL 8379
2 - CAMSHAFT SPROCKET
3 - CAMSHAFT SPROCKET BOLT
4 - CYLINDER HEAD
