Dodge Dakota (R1). Manual - part 812





stiff paper (such as a parts tag) loosely over the
opening of the disconnected rubber hose.

(12) The paper should be drawn against the hose

opening with noticeable force. This will be after
allowing approximately one minute for crankcase
pressure to reduce.

(13) If vacuum is not present, disconnect each PCV

system hose at top of each breather (Fig. 22). Check
for obstructions or restrictions.

(14) If vacuum is still not present, remove each

PCV system breather (Fig. 22) from each cylinder
head. Check for obstructions or restrictions. If
plugged, replace breather. Tighten breather to 12
N·m (106 in. lbs.) torque. Do not attempt to clean
breather

(15) If vacuum is still not present, disconnect each

PCV system hose at each fitting and check for
obstructions or restrictions.

REMOVAL - 4.7L

The PCV valve is located on the oil filler tube (Fig.

23). Two locating tabs are located on the side of the
valve (Fig. 23). These 2 tabs fit into a cam lock in the
oil filler tube. An o-ring seals the valve to the filler
tube.

(1) Disconnect PCV line/hose (Fig. 23) by discon-

necting rubber hose at PCV valve fitting.

(2) Remove PCV valve at oil filler tube by rotating

PCV valve downward (counter-clockwise) until locat-
ing tabs have been freed at cam lock (Fig. 23). After
tabs have cleared, pull valve straight out from filler
tube. To prevent damage to PCV valve locating
tabs, valve must be pointed downward for
removal. Do not force valve from oil filler tube.

(3) After valve is removed, check condition of valve

o-ring (Fig. 23).

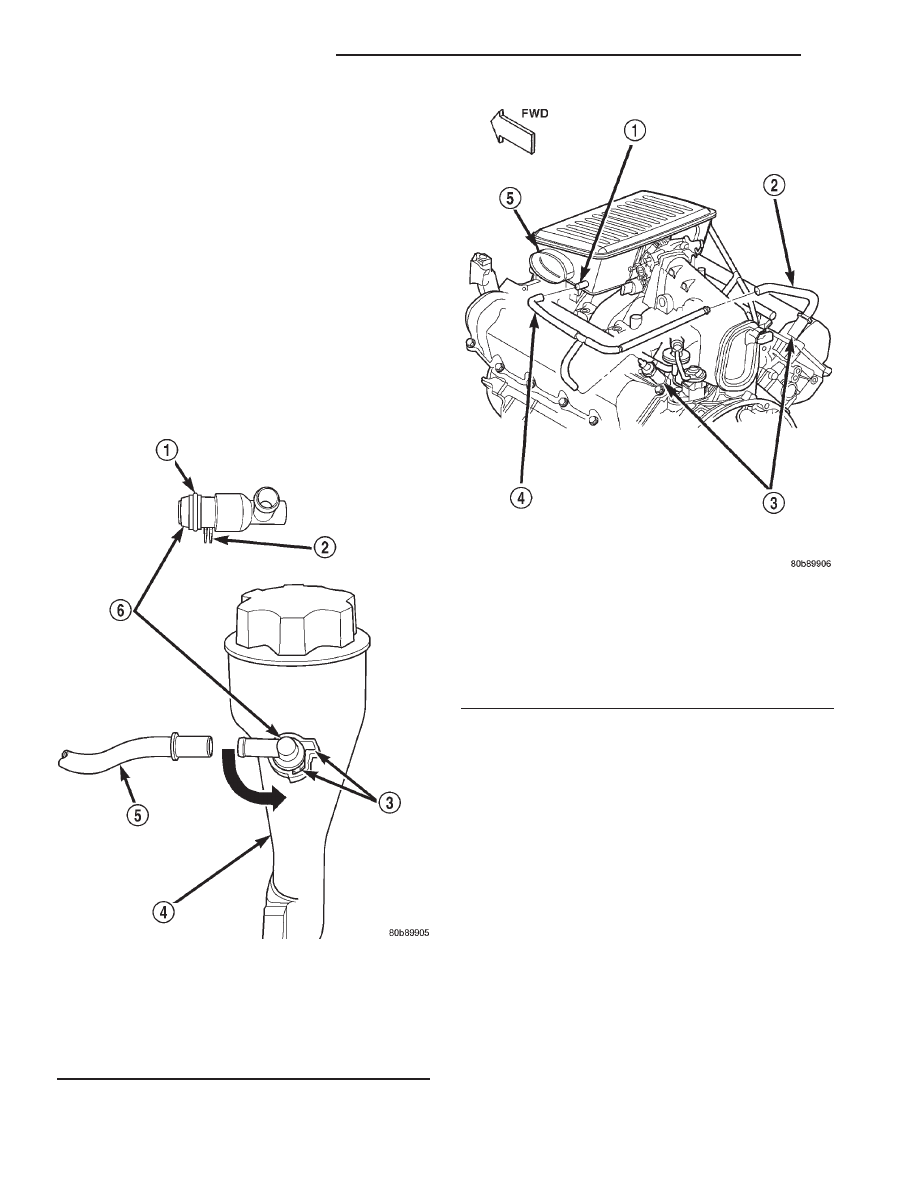

Fig. 21 PCV Valve/Oil Filler Tube—4.7L V-8 Engine

1 - O-RING
2 - LOCATING TABS
3 - CAM LOCK
4 - OIL FILLER TUBE
5 - PCV LINE/HOSE
6 - PCV VALVE

Fig. 22 PCV Breathers/Tubes/Hoses—4.7L V-8

Engine

1 - FRESH AIR FITTING
2 - CONNECTING TUBES/HOSES
3 - CRANKCASE BREATHERS (2)
4 - RUBBER HOSE
5 - AIR CLEANER RESONATOR

25 - 32

EVAPORATIVE EMISSIONS

AN

PCV VALVE (Continued)

INSTALLATION - 4.7L

The PCV valve is located on the oil filler tube (Fig.

23). Two locating tabs are located on the side of the
valve (Fig. 23). These 2 tabs fit into a cam lock in the
oil filler tube. An o-ring seals the valve to the filler
tube.

(1) Return PCV valve back to oil filler tube by

placing valve locating tabs (Fig. 23) into cam lock.
Press PCV valve in and rotate valve upward. A slight
click will be felt when tabs have engaged cam lock.
Valve should be pointed towards rear of vehicle.

(2) Connect PCV line/hose and rubber hose to PCV

valve.

VACUUM LINES

DESCRIPTION

A vacuum line schematic for emission related items

can be found on the Vehicle Emission Control Infor-
mation (VECI) label. For label location, refer to Vehi-
cle Emission Control Information (VECI) Label.

VAPOR CANISTER

DESCRIPTION

A maintenance free, EVAP canister is used on all

vehicles. The EVAP canister is located under the
vehicle, inside the left frame rail, in front of the fuel
tank (Fig. 24).

OPERATION

The EVAP canister is filled with granules of an

activated carbon mixture. Fuel vapors entering the
EVAP canister are absorbed by the charcoal granules.

Fuel tank pressure vents into the EVAP canister.

Fuel vapors are temporarily held in the canister until
they can be drawn into the intake manifold. The duty
cycle EVAP canister purge solenoid allows the EVAP
canister to be purged at predetermined times and at
certain engine operating conditions.

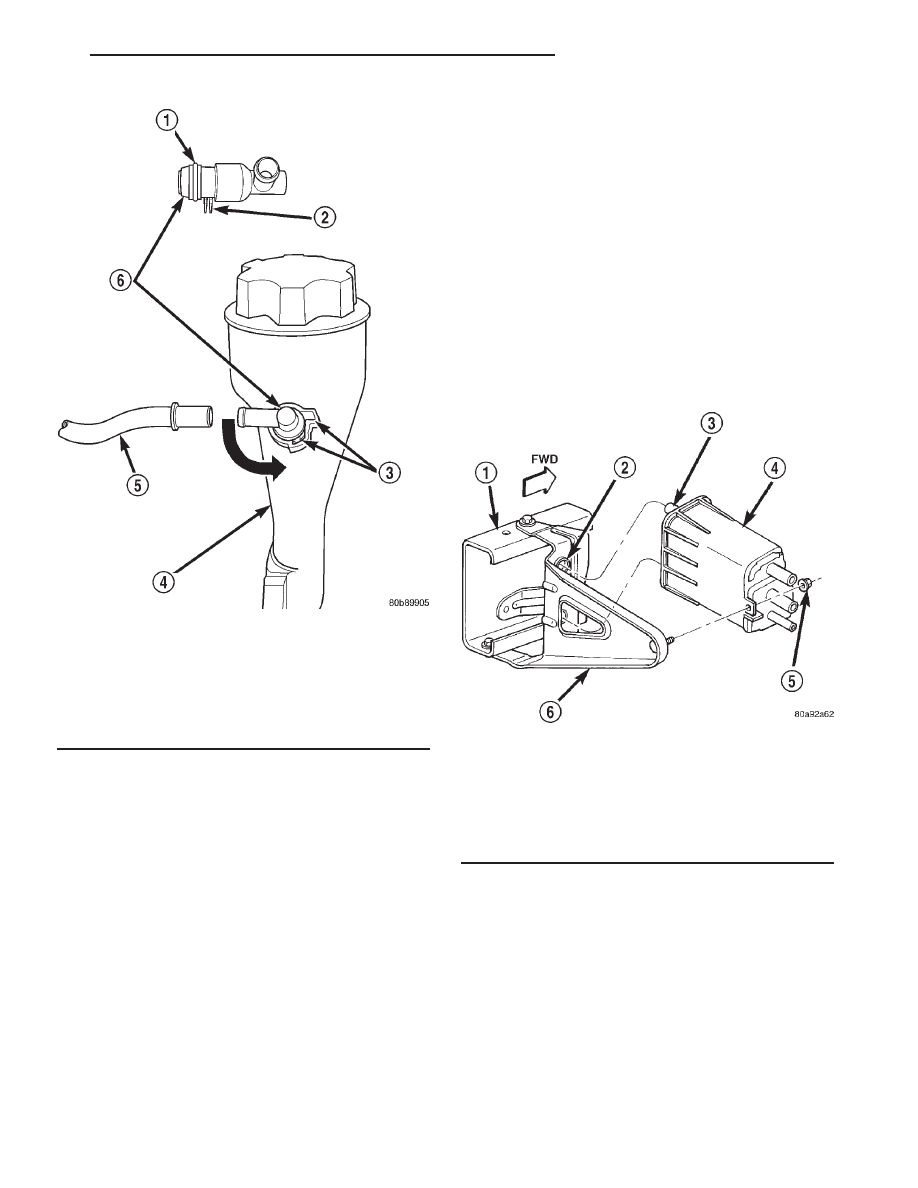

Fig. 23 PCV Valve/Oil Filler Tube Location

1 - O-RING
2 - LOCATING TABS
3 - CAM LOCK
4 - OIL FILLER TUBE
5 - PCV LINE/HOSE
6 - PCV VALVE

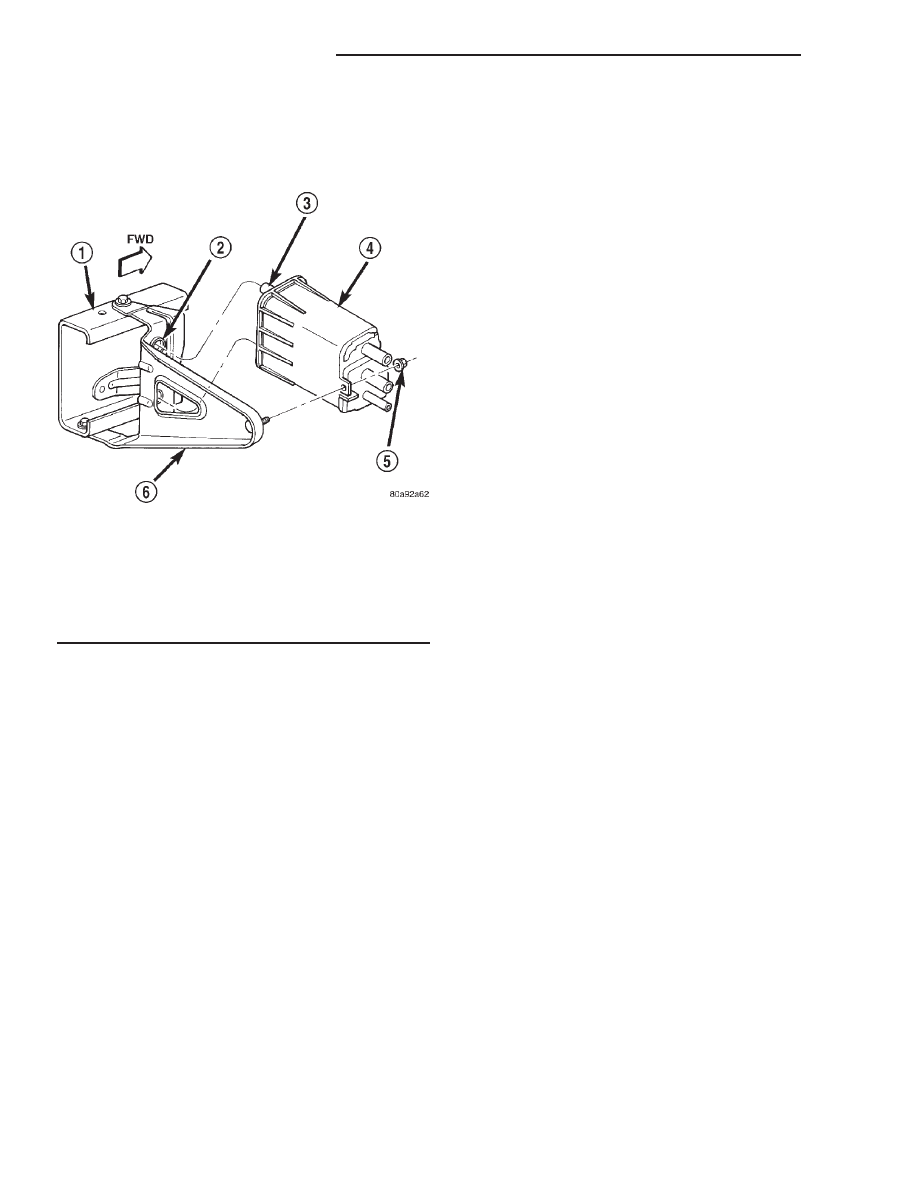

Fig. 24 EVAP Canister Location

1 - LEFT FRAME RAIL
2 - RUBBER GROMMETS (2)
3 - LOCATING PINS (2)
4 - EVAP CANISTER
5 - MOUNTING NUT
6 - MOUNTING BRACKET

AN

EVAPORATIVE EMISSIONS

25 - 33

PCV VALVE (Continued)

REMOVAL

The EVAP canister is located below the vehicle,

inside the left frame rail, in front of the fuel tank
(Fig. 25).

(1) Raise vehicle.
(2) Disconnect vacuum lines at EVAP canister.

Note location of lines before removal.

(3) Remove canister mounting nut.
(4) Remove canister from mounting bracket.

INSTALLATION

The EVAP canister is located below the vehicle,

inside the left frame rail, in front of the fuel tank
(Fig. 25).

(1) Position canister locating pins into mounting

bracket grommets (Fig. 25) and install mounting nut.

(2) Tighten mounting nut to 17–24 N·m (150–210

in. lbs.) torque.

(3) Connect vacuum lines at canister.
(4) Lower vehicle.

Fig. 25 EVAP Canister Location

1 - LEFT FRAME RAIL
2 - RUBBER GROMMETS (2)
3 - LOCATING PINS (2)
4 - EVAP CANISTER
5 - MOUNTING NUT
6 - MOUNTING BRACKET

25 - 34

EVAPORATIVE EMISSIONS

AN

VAPOR CANISTER (Continued)

EMISSIONS CONTROL 2.5L TURBO DIESEL

TABLE OF CONTENTS

page

page

EMISSIONS CONTROL 2.5L TURBO DIESEL

DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . 2

ON-BOARD DIAGNOSTICS

. . . . . . . . . . . . . . . . . . 3

EXHAUST GAS RECIRCULATION

. . . . . . . . . . . . . 7

EMISSIONS CONTROL 2.5L
TURBO DIESEL

DESCRIPTION

The 2.5L diesel Engine Control Module (ECM) and

Powertrain Control Module (PCM) monitor and con-
trol many different circuits in the fuel injection pump
and engine systems. If the ECM senses a problem
with a monitored circuit that indicates an actual
problem, a Diagnostic Trouble Code (DTC) will be
stored in the PCM’s memory, and eventually may
illuminate the Check Engine Lamp constantly while
the key is on. If the problem is repaired, or is inter-
mittent, the ECM will erase the DTC after 40
warm-up

cycles

without

the

fault

detected.

A

warm-up cycle consists of starting the vehicle when
the engine is cold, then the engine is warmed up to a
certain temperature, and finally, the engine tempera-
ture falls to a normal operating temperature, then
the key is turned off.

Certain criteria must be met for a DTC to be

entered into ECM memory. The criteria may be a
specific range of engine rpm, engine or fuel tempera-
ture and/or input voltage to the ECM. A DTC indi-
cates that the ECM has identified an abnormal
signal in a circuit or the system. A DTC may indicate
the result of a failure, but never identify the failed
component directly.

There are several operating conditions that the

ECM does not monitor and set a DTC for. Refer to
the following Monitored Circuits and Non–Monitored
Circuits in this section.

ECM MONITORED SYSTEMS

The ECM can detect certain problems in the elec-

trical system.

Open or Shorted Circuit – The ECM will not

distinguish between an open or a short to ground,
however the ECM can determine if the circuit is
shorted to voltage.

Output Device Current Flow – The ECM senses

whether the output devices are electrically connected.

If there is a problem with the circuit, the ECM

senses whether the circuit is open, shorted to ground
(–), or shorted to (+) voltage.

ECM NON–MONITORED SYSTEMS

The ECM does not monitor the following circuits,

systems or conditions that could have malfunctions
that result in driveability problems. A DTC will not
be displayed for these conditions.

Fuel Pressure: Fuel pressure is controlled by the

fuel injection pump. The ECM cannot detect fuel
pressure problems in this component. The ECM does
a comparison analysis of fuel quantity, fuel timing,
fuel temperature, and control sleeve sensor inputs to
determine if a fuel problem exists.

Cylinder Compression: The ECM cannot detect

uneven, low, or high engine cylinder compression.

Exhaust System: The ECM cannot detect a

plugged, restricted or leaking exhaust system.

Fuel Injector Malfunctions: The ECM cannot

determine if the fuel injector is clogged, or the wrong
injector is installed. The fuel injectors on the diesel
engine are not controlled by the ECM, although a
defective needle movement sensor in the #1 injector
is monitored by the ECM.
