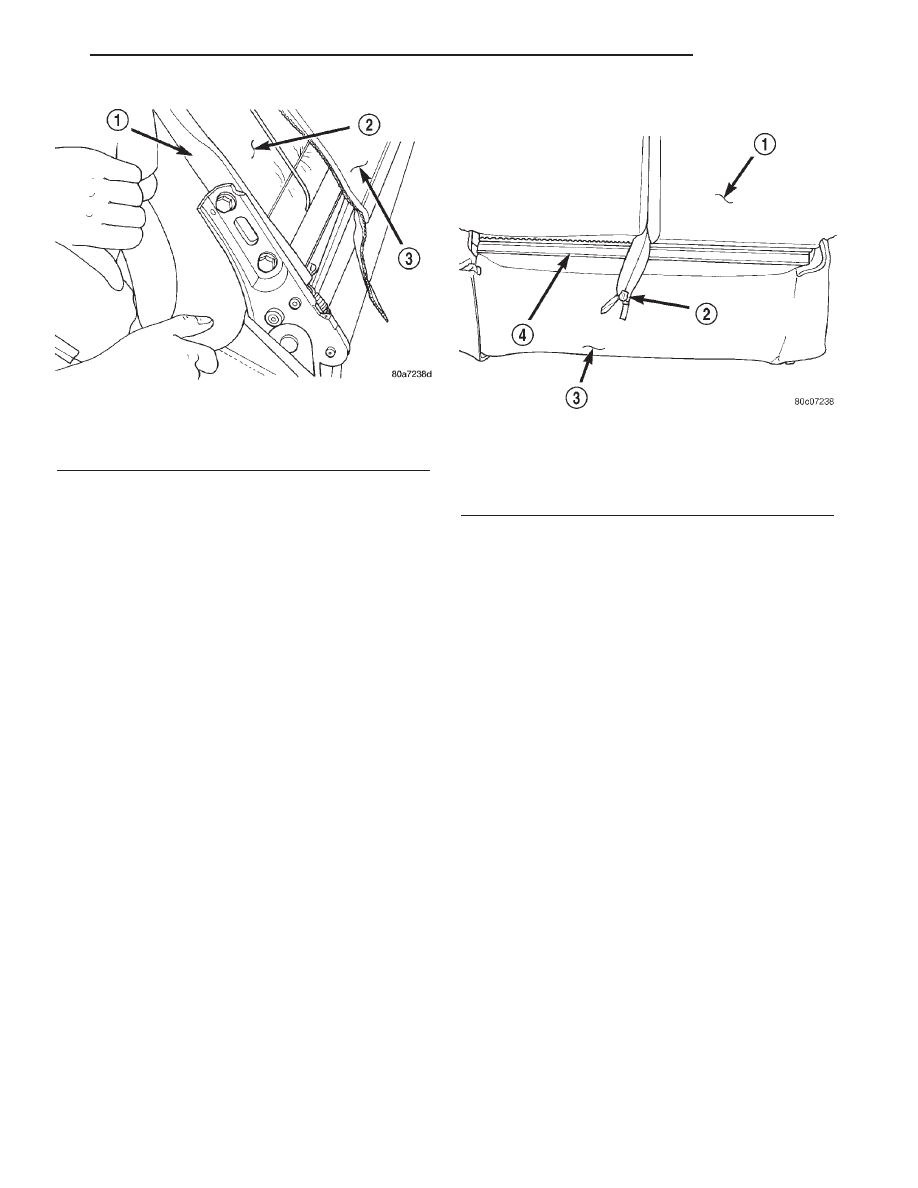

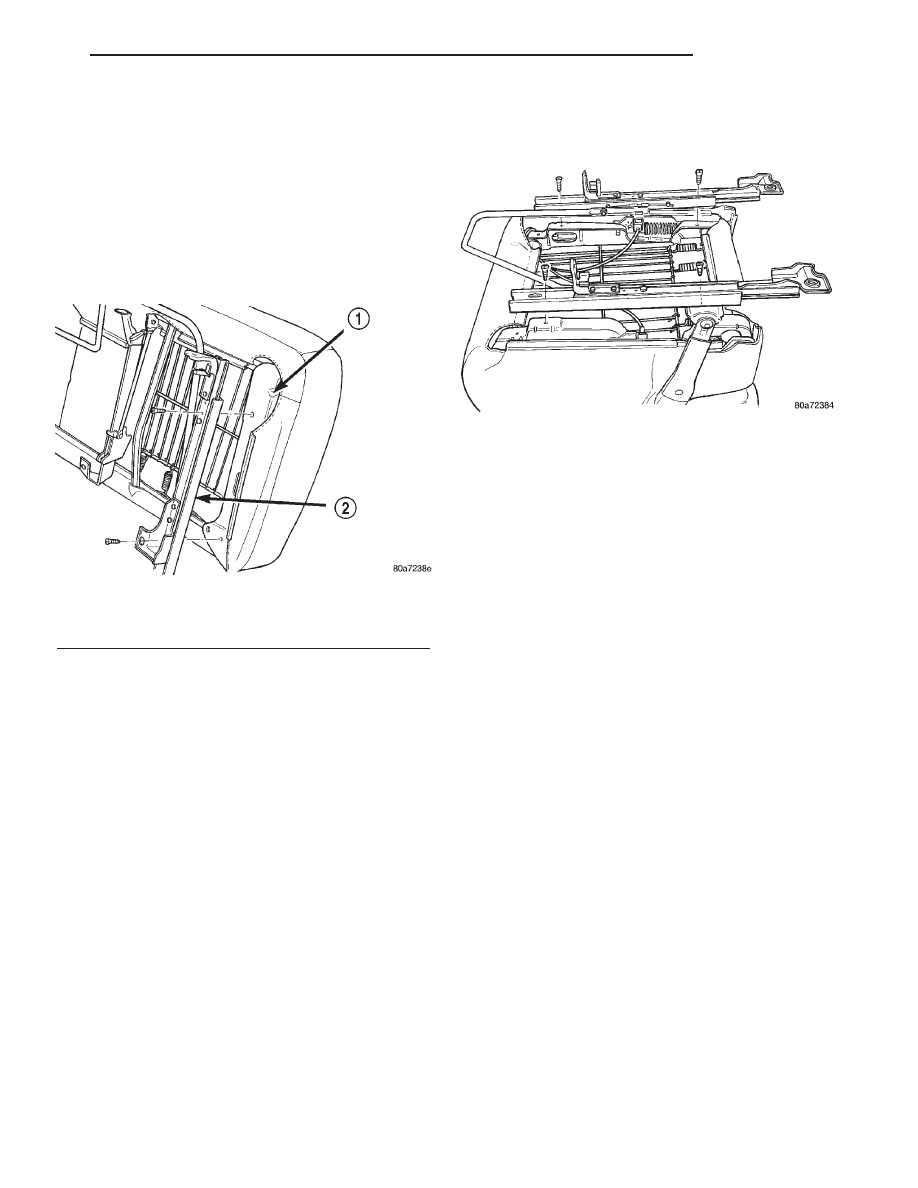

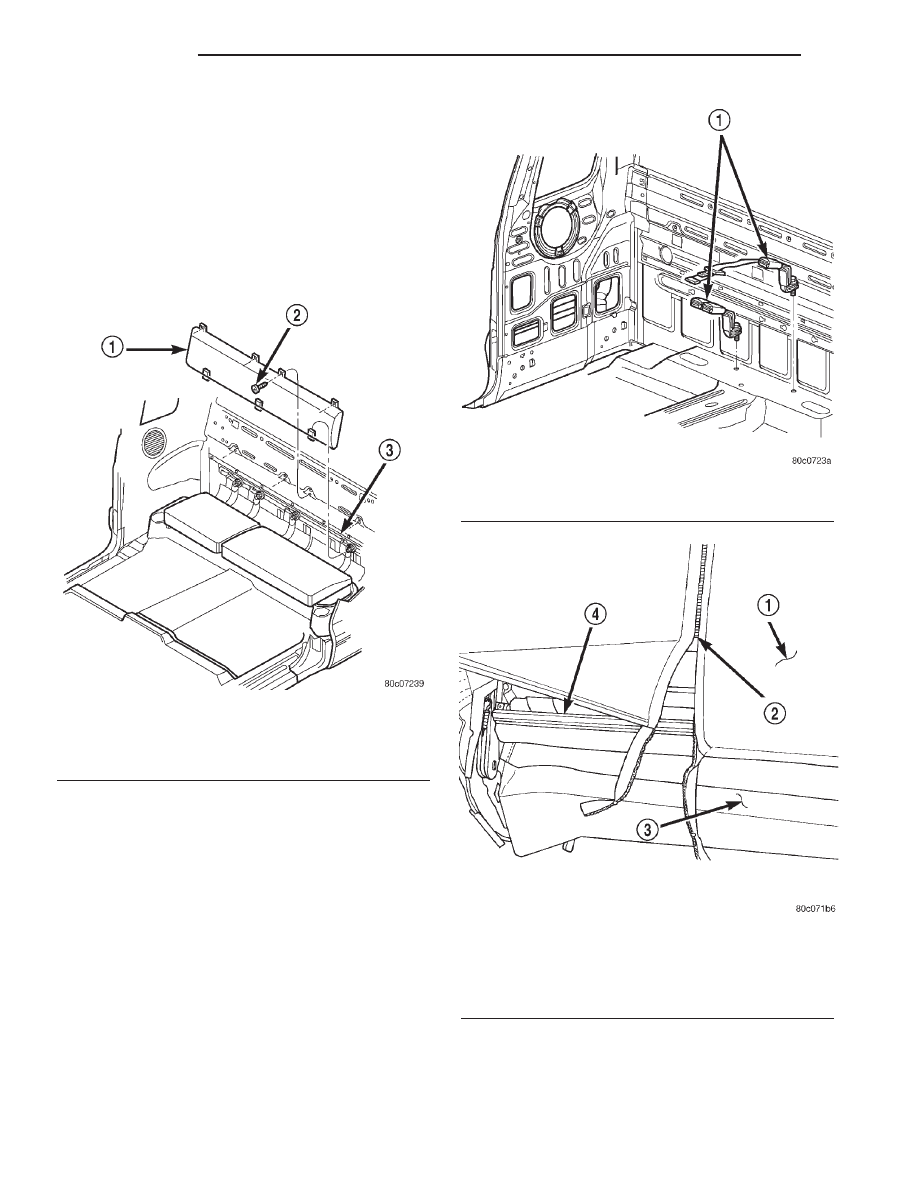

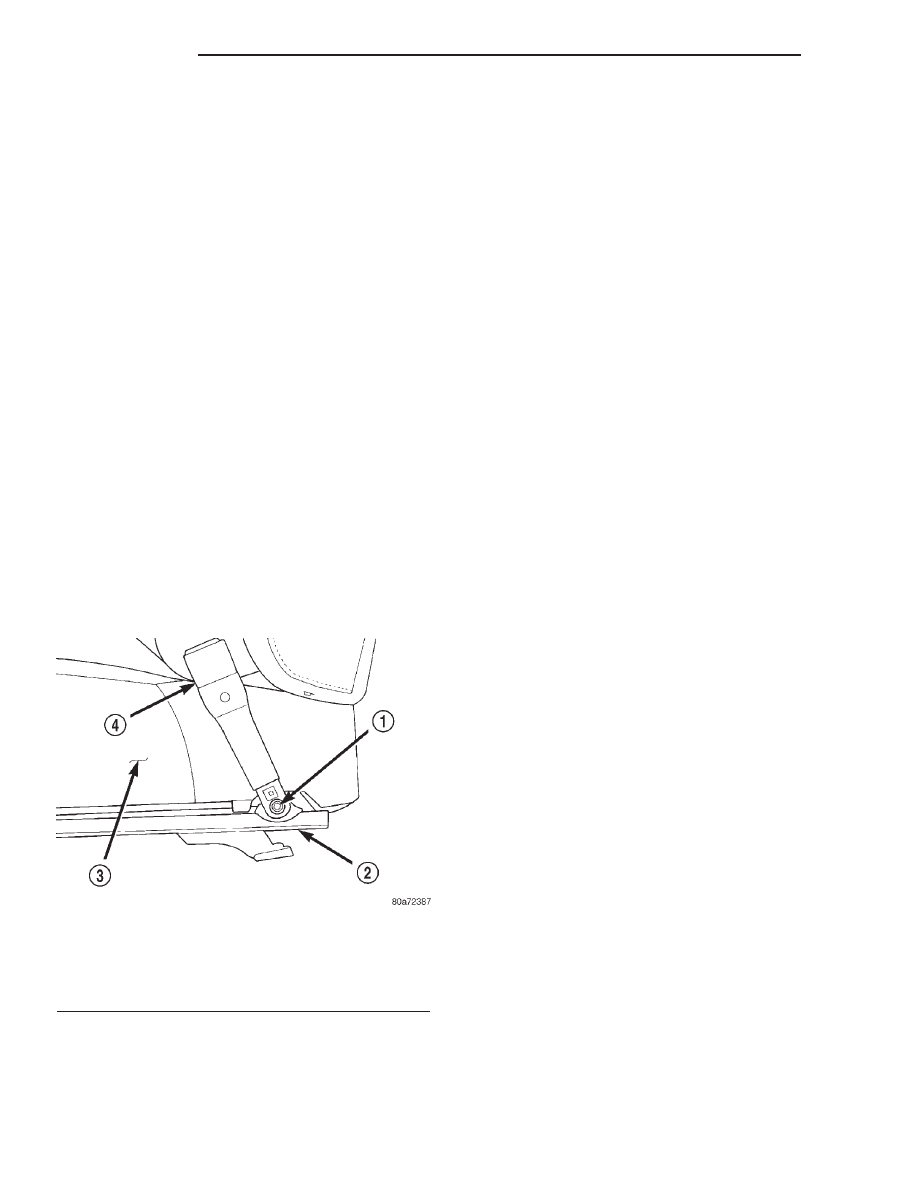

SEAT BACK REMOVAL - REAR SEAT BACK–CLUB CAB (1) Unsnap upper bolster assembly by pulling for- ward, and remove rear panel (Fig. 11). (2) Push seat back firmly downward to disengage retaining tabs on seat back lower edge. (3) Disengage seat belt/buckle retaining loops (Fig. 12). (4) Remove cab back bolster assembly. REMOVAL - BENCH SEAT BACK (1) Move seat to full forward position. back. (3) Disengage hook and loop fastener on rear of seat back cover (Fig. 13). (4) Peel back lower corners of seat back cover to expose hinge bolts (Fig. 14). (5) Remove the bolts attaching the hinge bracket to the seat back frame. (6) Remove seat back from vehicle. INSTALLATION - REAR SEAT BACK–CLUB CAB (1) Position rear seat back in vehicle. loops. (3) Position seat back at cab back panel, align retaining tabs and lift seat back upward to secure Fig. 11 Rear Seat 1 - SEAT BACK Fig. 12 Rear Seat Belt Buckles 1 - REAR SEAT LAP BELT/BUCKLE Fig. 13 Seat Back Hook and Loop Fastener 1 - SEAT BACK COVER 23 - 128 SEATS AN |
