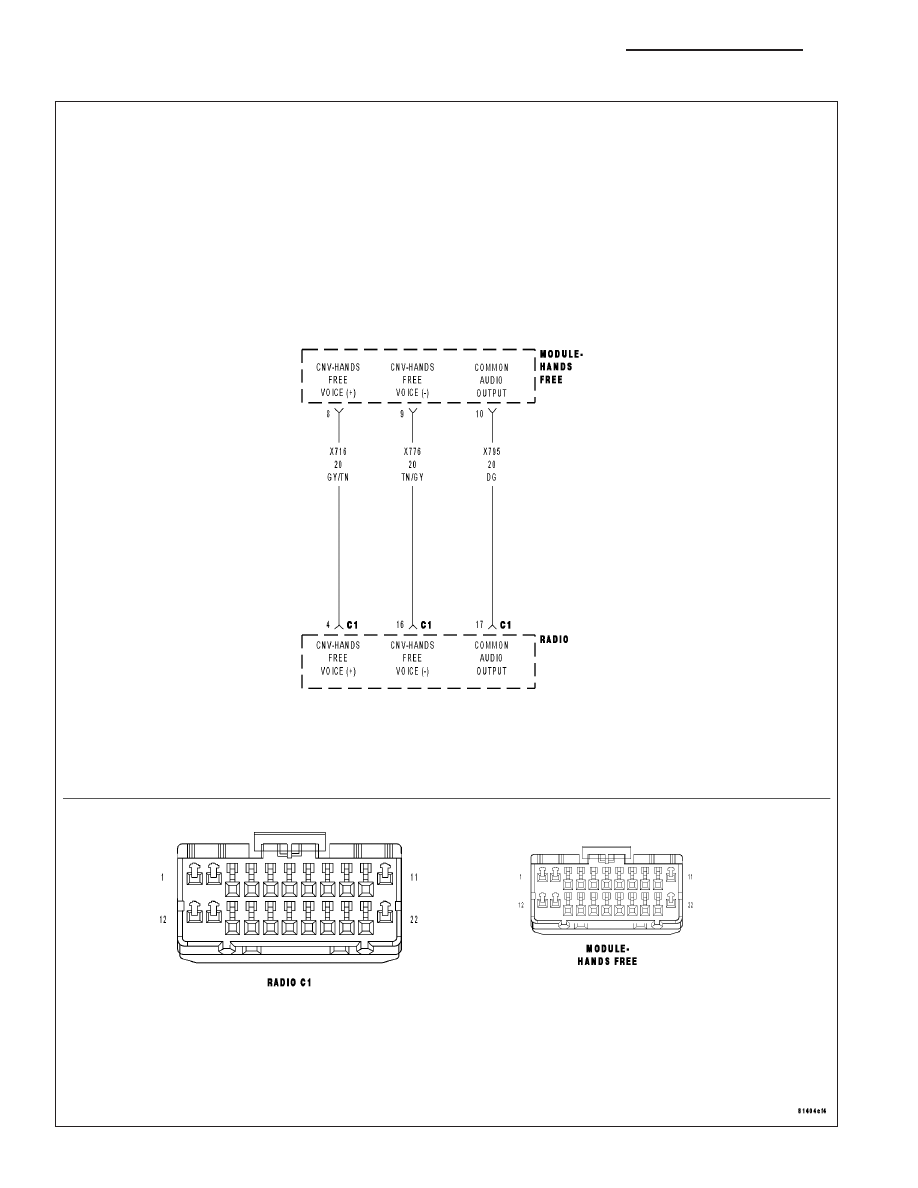

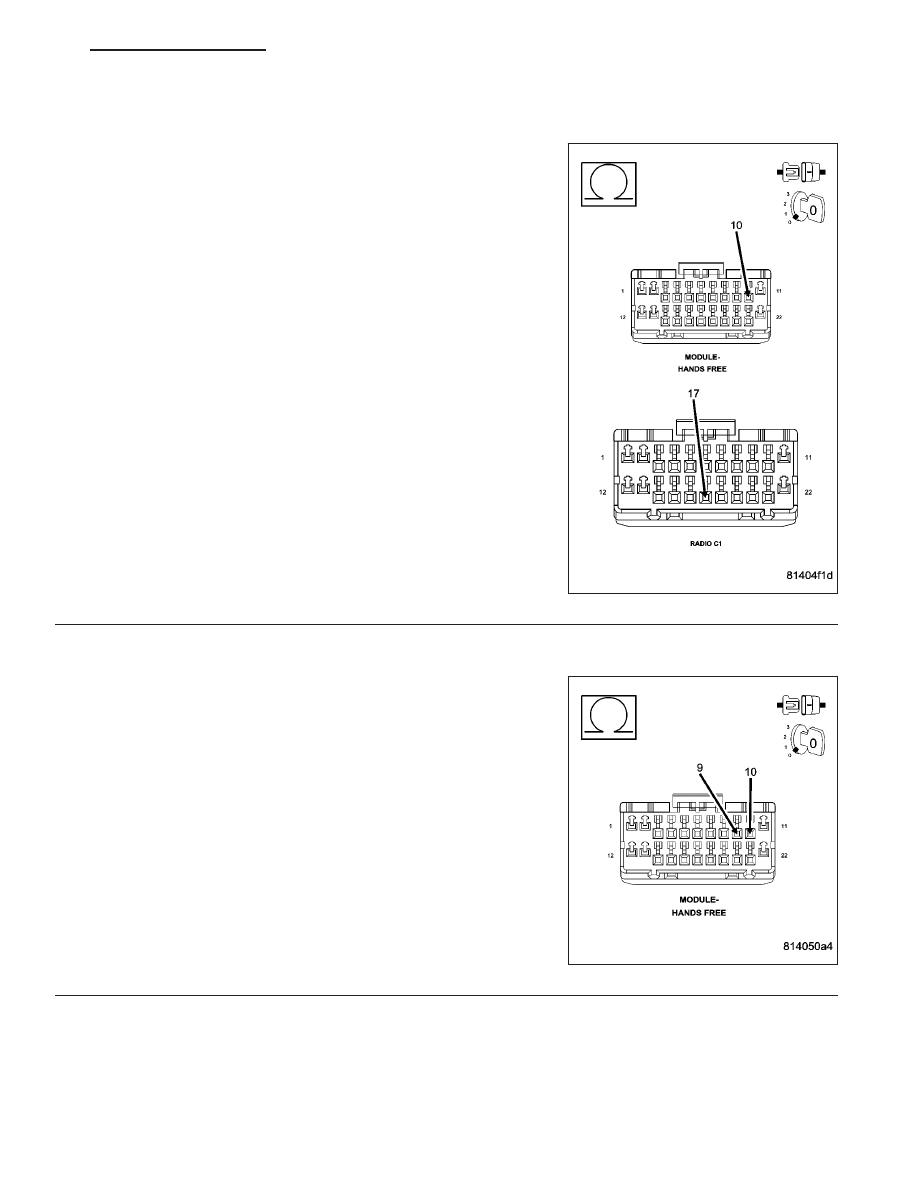

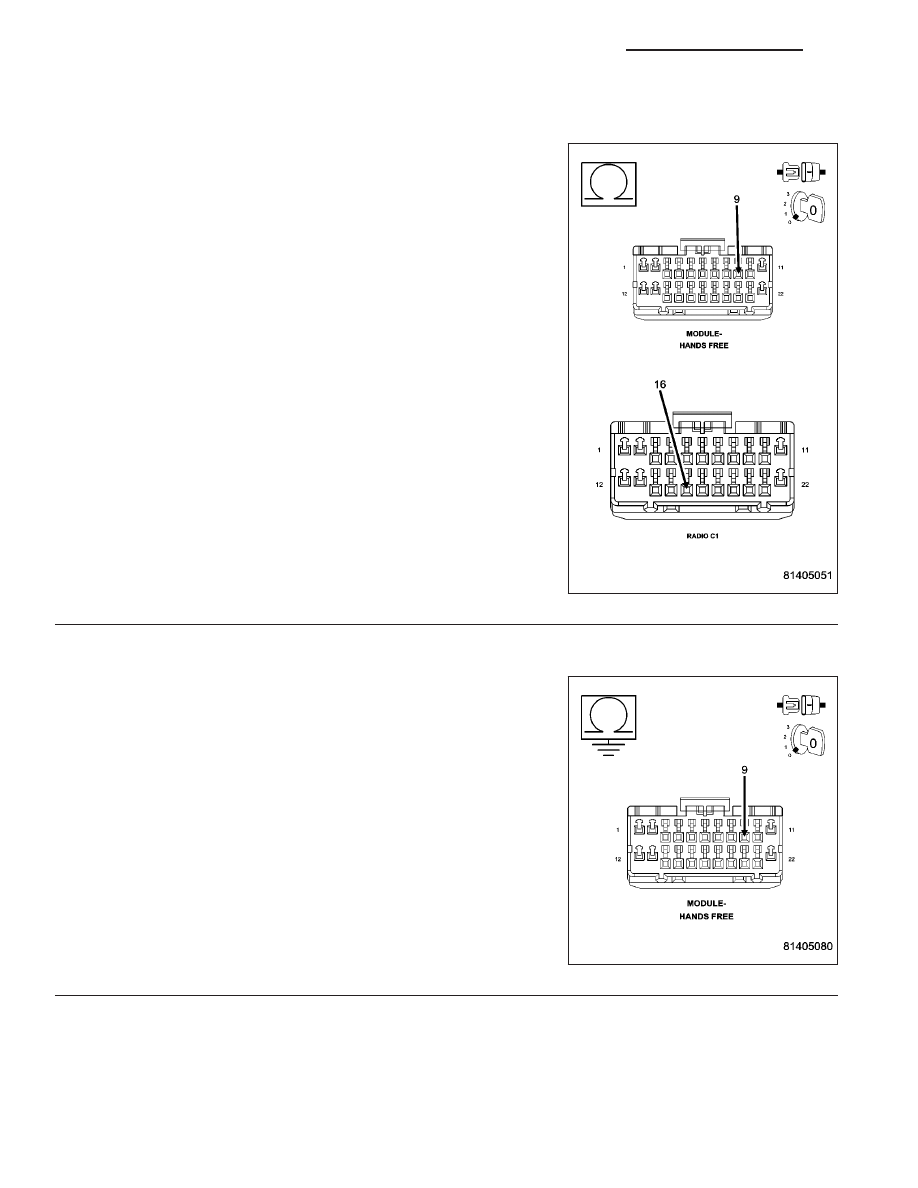

B1415-HFM RIGHT AUDIO OUTPUT CIRCUIT LOW (CONTINUED) 2. (X776) CNV HANDS FREE VOICE (-) CIRCUIT OPEN Turn the ignition off. Disconnect the Hands Free Module harness connector. Disconnect the Radio C1 harness connector. Measure the resistance of the (X776) CNV Hands Free Voice (-) circuit Is the resistance below 5.0 ohms? Yes >> Go To 3 No >> Repair the (X776) CNV Hands Free Voice (-) circuit for an open. Perform BODY VERIFICATION TEST - VER 1. (Refer to 3. (X776) CNV HANDS FREE VOICE (-) CIRCUIT SHORT TO GROUND Measure the resistance between ground and the (X776) CNV Hands Is the resistance below 5.0 ohms? Yes >> Repair the (X776) CNV Hands Free Voice (-) circuit for short to ground. Perform BODY VERIFICATION TEST - VER 1. (Refer to No >> Go To 4 8T - 12 NAVIGATION/TELECOMMUNICATION - ELECTRICAL DIAGNOSTICS ND |
