Dodge Dakota (ND). Manual - part 465





The airbag inflator (4) is a non-azide, pyrotechnic-type unit that is secured to and sealed within the airbag housing.
A short four-wire pigtail harness with a keyed, yellow connector insulator (1) connects the two inflator initiators to the
vehicle electrical system through a dedicated take out and connector of the instrument panel wire harness.

The passenger airbag includes the airbag door. This unit cannot be repaired, and must be replaced if deployed,
faulty, or in any way damaged.

OPERATION

The multistage passenger airbag is deployed by electrical signals generated by the Occupant Restraint Controller
(ORC) through the passenger airbag squib 1 and squib 2 circuits to the two initiators in the airbag inflator. By using
two initiators, the airbag can be deployed at multiple levels of force. The force level is controlled by the ORC to suit
the monitored impact conditions by providing one of three delay intervals between the electrical signals provided to
the two initiators. The longer the delay between these signals, the less forcefully the airbag will deploy.

When the ORC sends the proper electrical signals to each initiator, the electrical energy generates enough heat to
initiate a small pyrotechnic charge which, in turn ignites chemical pellets within the inflator. Once ignited, these
chemical pellets burn rapidly and produce a large quantity of inert gas. The inflator is sealed to the airbag cushion
and a diffuser in the inflator directs all of the inert gas into the airbag cushion, causing the cushion to inflate. As the
cushion inflates, the passenger airbag door will split at predetermined tear seam lines concealed on the inside sur-
face of the door, then the door will pivot up over the top of the instrument panel and out of the way. Following an
airbag deployment, the airbag cushion quickly deflates by venting the inert gas through vent holes within the fabric
used to construct the back (windshield side) of the airbag cushion.

Typically, both initiators are used during an airbag deployment event. However, it is possible for only one initiator to
be used during a deployment due to an airbag system fault; therefore, it is necessary to always confirm that both
initiators have been used in order to avoid the improper disposal of potentially live pyrotechnic materials. (Refer to
8 - ELECTRICAL/RESTRAINTS - STANDARD PROCEDURE - SERVICE AFTER A SUPPLEMENTAL RESTRAINT
DEPLOYMENT).

REMOVAL

WARNING: To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental
restraint system before attempting any steering wheel, steering column, airbag, occupant classification sys-
tem, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect
and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge
before performing further diagnosis or service. This is the only sure way to disable the supplemental
restraint system. Failure to take the proper precautions could result in accidental airbag deployment.

WARNING: To avoid personal injury or death, when removing a deployed airbag, rubber gloves, eye protec-
tion, and a long-sleeved shirt should be worn. There may be deposits on the airbag unit and other interior
surfaces. In large doses, these deposits may cause irritation to the skin and eyes.

NOTE: The following procedure is for replacement of a faulty or damaged passenger airbag. If the airbag is
faulty or damaged, but not deployed, review the recommended procedures for handling non-deployed sup-
plemental restraints. (Refer to 8 - ELECTRICAL/RESTRAINTS - STANDARD PROCEDURE - HANDLING NON-
DEPLOYED SUPPLEMENTAL RESTRAINTS). If the passenger airbag has been deployed, review the
recommended procedures for service after a supplemental restraint deployment before removing the airbag
from the vehicle. (Refer to 8 - ELECTRICAL/RESTRAINTS - STANDARD PROCEDURE - SERVICE AFTER A
SUPPLEMENTAL RESTRAINT DEPLOYMENT).

8O - 456

RESTRAINTS - SERVICE INFORMATION

ND

1. Disconnect and isolate the battery negative cable.

Wait two minutes for the system capacitor to dis-
charge before further service.

2. Remove the defroster grille from the top of the

instrument panel. (Refer to 23 - BODY/INSTRU-
MENT PANEL/DEFROSTER GRILLE - REMOVAL).

3. Remove the glove box from the instrument panel.

(Refer

to

23

-

BODY/INSTRUMENT

PANEL/

GLOVE BOX - REMOVAL).

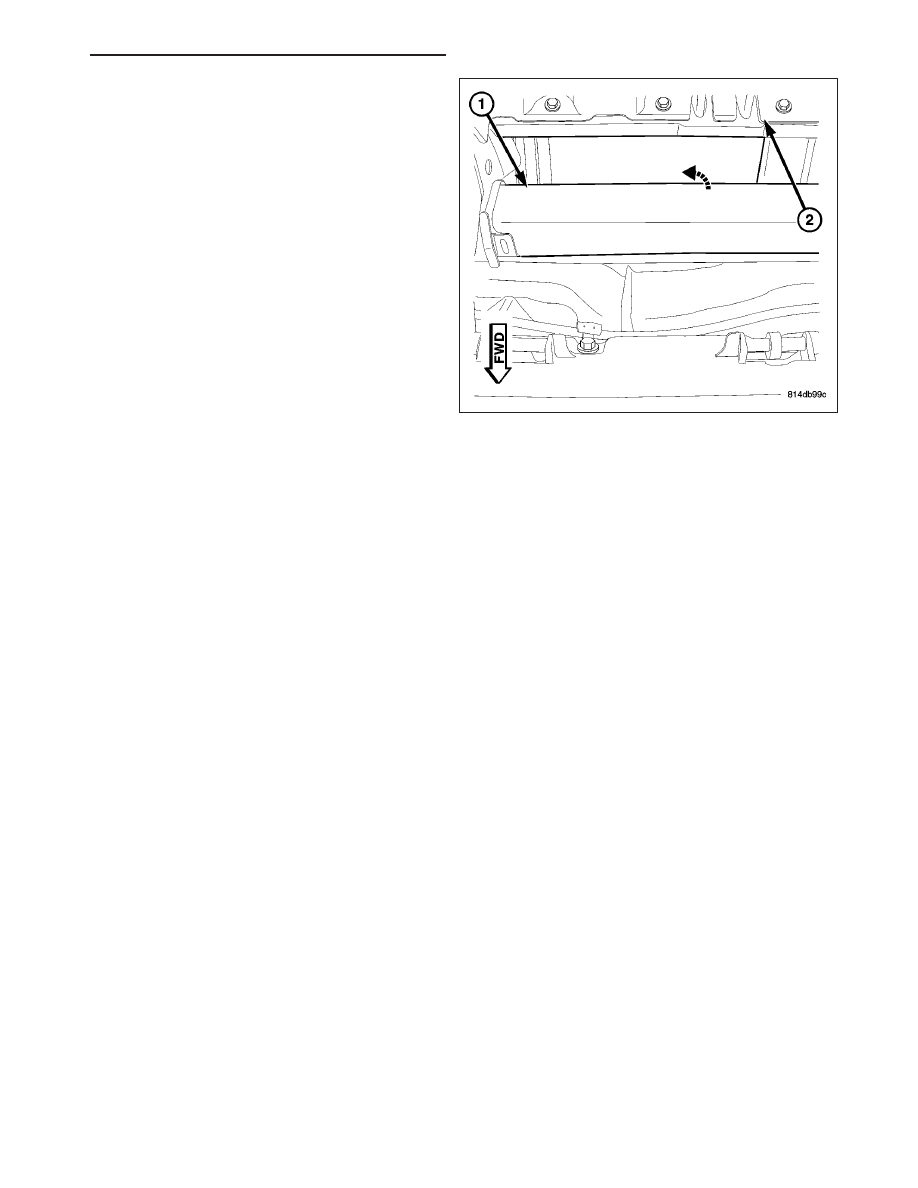

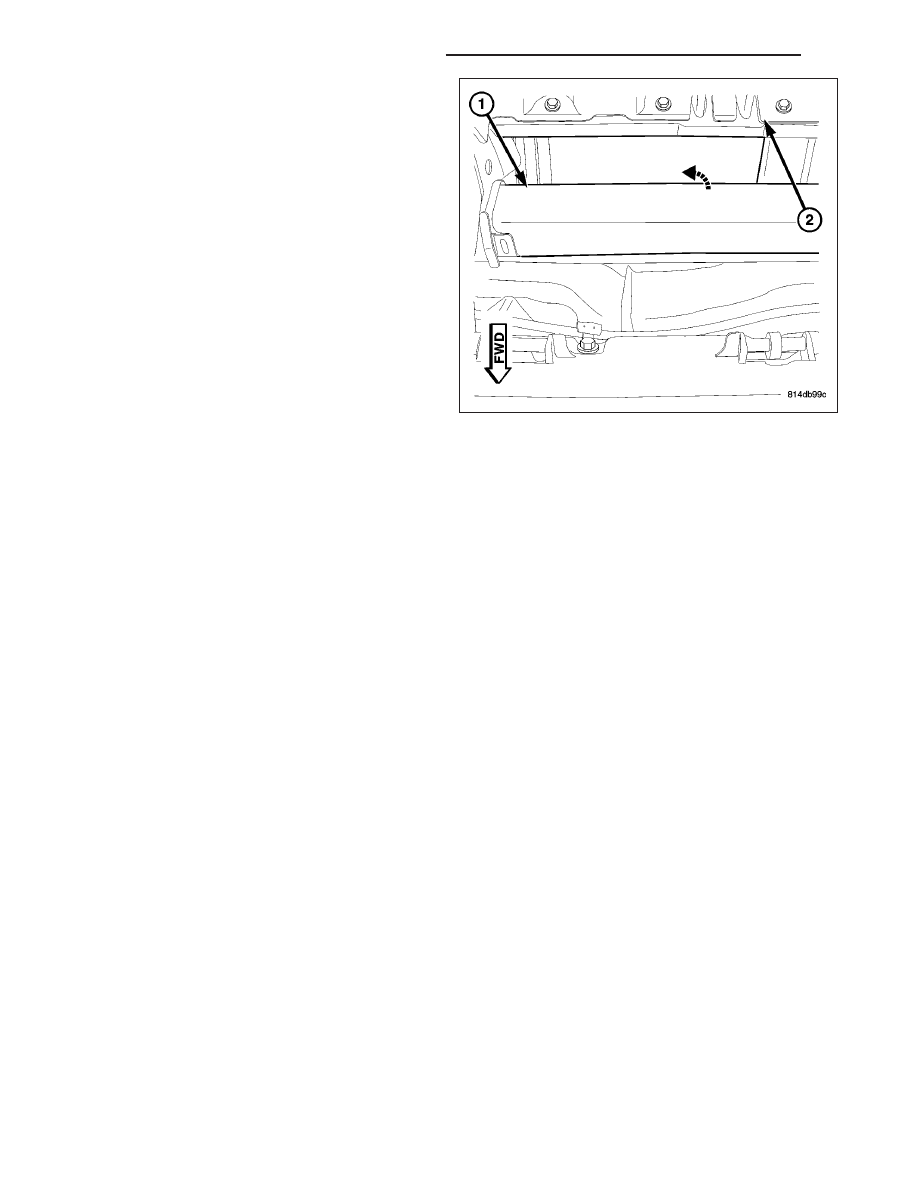

4. Reach up into the instrument panel between the

upper glove box opening reinforcement (2) and the
cross car beam (1) to access and remove the two
screws that secure the passenger airbag lower
bracket to the instrument panel support structure.

5. Using a trim stick or another suitable wide flat-

bladed tool, gently pry the edges of the passenger
airbag door away from the top of the instrument
panel far enough to disengage the snap features
on the door from the receptacles in the instrument panel base trim.

6. Pull the passenger airbag out of the instrument panel far enough to access and disconnect the instrument panel

wire harness connector from the airbag inflator pigtail wire connector on the right side of the airbag lower mount-
ing bracket. To disconnect the connector:

a. Slide the red Connector Position Assurance (CPA) lock on the top of the connector toward the side of the

connector.

b. Depress the connector latch tab and pull the two halves of the connector straight away from each other.

7. Remove the passenger airbag from the instrument panel as a unit.

INSTALLATION

WARNING: To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental
restraint system before attempting any steering wheel, steering column, airbag, occupant classification sys-
tem, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect
and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge
before performing further diagnosis or service. This is the only sure way to disable the supplemental
restraint system. Failure to take the proper precautions could result in accidental airbag deployment.

WARNING: To avoid personal injury or death, use extreme care to prevent any foreign material from enter-
ing the passenger airbag, or becoming entrapped between the passenger airbag cushion and the passenger
airbag door. Failure to observe this warning could result in occupant injuries upon airbag deployment.

WARNING: To avoid personal injury or death, the passenger airbag door must never be painted. Replace-
ment passenger airbags are serviced with doors in the original colors. Paint may change the way in which
the material of the airbag door responds to an airbag deployment. Failure to observe this warning could
result in occupant injuries upon airbag deployment.

NOTE: The following procedure is for replacement of a faulty or damaged passenger airbag. If the airbag is
faulty or damaged, but not deployed, review the recommended procedures for handling non-deployed sup-
plemental restraints. (Refer to 8 - ELECTRICAL/RESTRAINTS - STANDARD PROCEDURE - HANDLING NON-
DEPLOYED SUPPLEMENTAL RESTRAINTS). If the passenger airbag has been deployed, review the
recommended procedures for service after a supplemental restraint deployment before removing the airbag
from the vehicle. (Refer to 8 - ELECTRICAL/RESTRAINTS - STANDARD PROCEDURE - SERVICE AFTER A
SUPPLEMENTAL RESTRAINT DEPLOYMENT).

ND

RESTRAINTS - SERVICE INFORMATION

8O - 457

1. Position the passenger airbag unit onto the instru-

ment panel.

2. Reconnect the instrument panel wire harness con-

nector for the airbag to the passenger airbag infla-
tor pigtail wire connector on the right side of the
airbag lower mounting bracket. Be certain that the
latch on the connector and the red Connector Posi-
tion Assurance (CPA) lock are each fully engaged.

3. Carefully lower the passenger airbag unit into the

instrument panel, being certain that the airbag
lower mounting bracket is properly positioned to
the instrument panel support structure.

4. Reach up into the instrument panel between the

upper glove box opening reinforcement (2) and the
cross car beam (1) to install and tighten the two
screws that secure the passenger airbag lower
mounting bracket to the instrument panel support
structure. Tighten the screws to 6 N·m (55 in. lbs.).

5. Using hand pressure, push down on the passenger airbag door over each snap feature until it snaps into its

receptacle in the instrument panel base trim.

6. Reinstall the glove box into the instrument panel. (Refer to 23 - BODY/INSTRUMENT PANEL/GLOVE BOX -

INSTALLATION).

7. Reinstall the defroster grille onto the top of the instrument panel. (Refer to 23 - BODY/INSTRUMENT PANEL/

DEFROSTER GRILLE - INSTALLATION).

8. Do not reconnect the battery negative cable at this time. The supplemental restraint system verification test pro-

cedure should be performed following service of any supplemental restraint system component. (Refer to 8 -
ELECTRICAL/RESTRAINTS - STANDARD PROCEDURE - VERIFICATION TEST).

SEAT BELT

REMOVAL - FRONT CENTER

WARNING: To avoid personal injury or death, during and following any seat belt or child restraint anchor
service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors
for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any
belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or inoperative buckle
or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child
restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to
repair a seat belt or child restraint component. Always replace damaged or faulty seat belt and child
restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler
Mopar Parts Catalog.

8O - 458

RESTRAINTS - SERVICE INFORMATION

ND

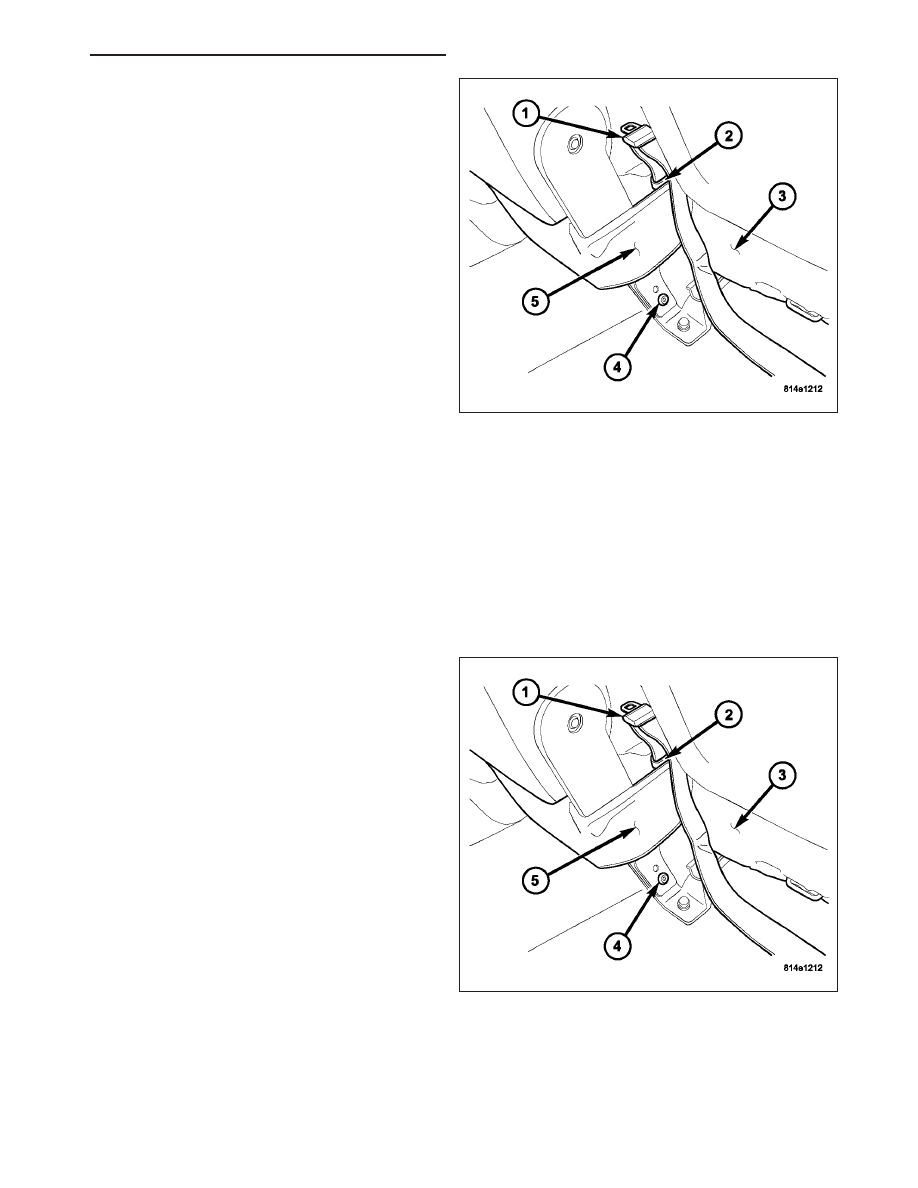

1. Move the right front outboard seat (3) to its most

forward position for easiest access to the front cen-
ter seat belt lower anchor screw (4).

2. From behind the front seat, remove the screw that

secures the seat belt lower anchor to the center
seat support bracket.

3. From the front of the front seat, disengage the

loose end and the tip of the front center seat belt
(1) from the elastic strap (2) on the side of the cen-
ter seat cushion.

4. Remove the seat belt and lower anchor through the

opening in the side of the front center seat cushion
trim (5).

INSTALLATION - FRONT CENTER

WARNING: To avoid personal injury or death, during and following any seat belt or child restraint anchor
service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors
for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any
belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or inoperative buckle
or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child
restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to
repair a seat belt or child restraint component. Always replace damaged or faulty seat belt and child
restraint components with the correct, new and unused replacement parts listed in the DaimlerChrysler
Mopar Parts Catalog.

1. From the front of the front seat, insert the front

center seat belt (1) lower anchor through the open-
ing in the trim (5) on the side of the center seat
cushion.

2. Engage the loose end and the tip of the front cen-

ter seat belt through the elastic strap (2) on the
side of the center seat cushion.

3. From behind the front seat, position the seat belt

lower anchor to the center seat support bracket. Be
certain to engage the anti-rotation tab on the
anchor into the corresponding hole in the center
seat support bracket.

4. Install and tighten the screw (4) that secures the

lower anchor to the center seat support bracket.
Tighten the screw to 40 N·m (29 ft. lbs.).

5. Move the adjacent right front outboard seat (3)

back to its rearward position.

ND

RESTRAINTS - SERVICE INFORMATION

8O - 459
