B1B8D-DRIVER SEAT TRACK POSITION SENSOR CIRCUIT LOW (CONTINUED)

3.

INSPECT DRIVER SEAT HARNESS WIRES & CONNECTORS

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.

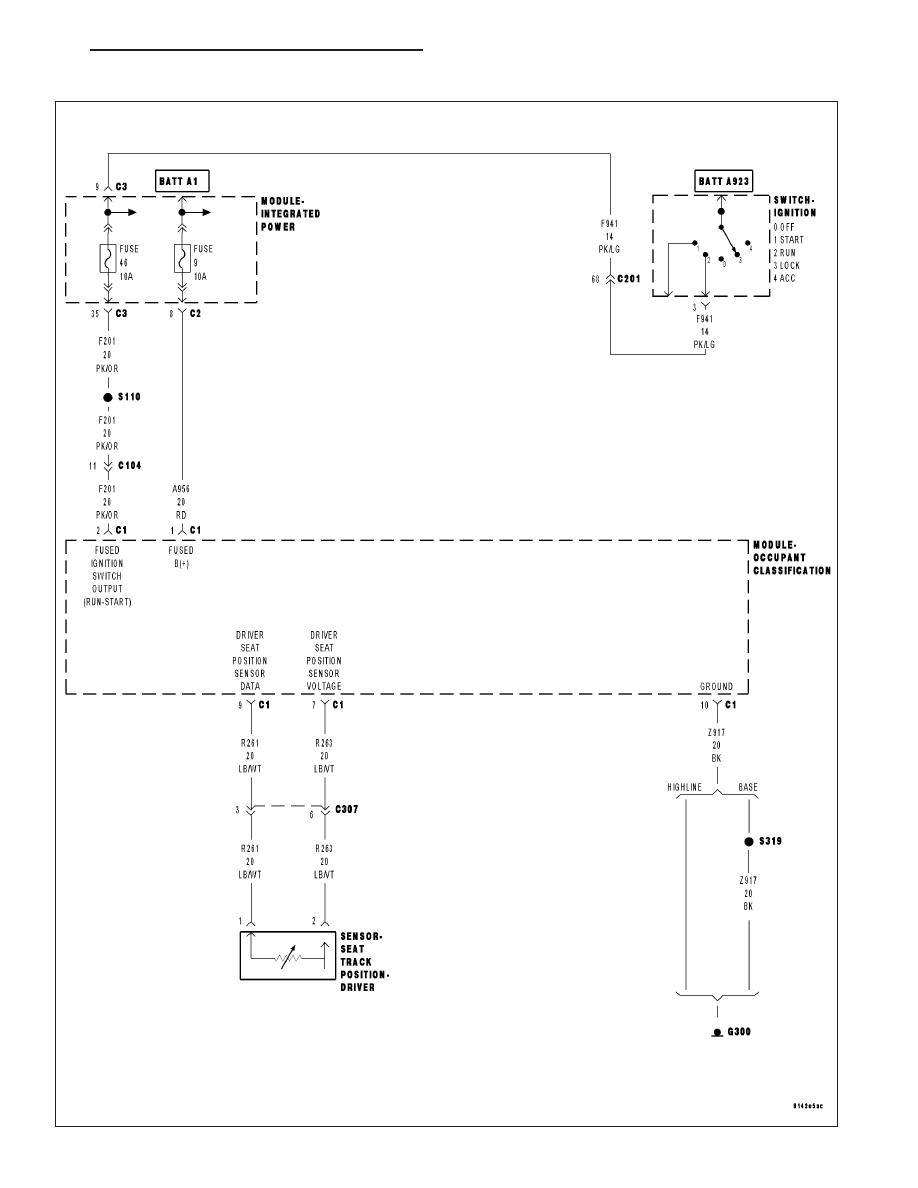

Using the wiring diagram/schematic as a guide, inspect the Driver Seat Harness wiring and connectors. Look for
chaffed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated
terminals.

Are any of these conditions present?

Yes

>>

NOTE: Do not attempt to repair the Seat Harness. Replace the Seat Harness if the condition inspecting or
testing for is present in the Seat Harness.

Replace the Driver Seat Harness in accordance with the Service Information.

Perform OCS VERIFICATION TEST - VER 1.

No

>> Go To 4

4.

VERIFY THAT DRIVER SEAT HARNESS IS ROUTED CORRECTLY

Verify that the Driver Seat Harness is routed correctly.

Is the Driver Seat Harness routed correctly?

Yes

>> Go To 5

No

>> Reroute the Driver Seat Harness as necessary.

Perform OCS VERIFICATION TEST - VER 1.

5.

CHECK (R261) SEAT POSITION SENSOR DATA-DRIVER CIRCUIT & (R263) SEAT POSITION SENSOR
VOLTAGE-DRIVER CIRCUIT FOR A SHORT TO GROUND

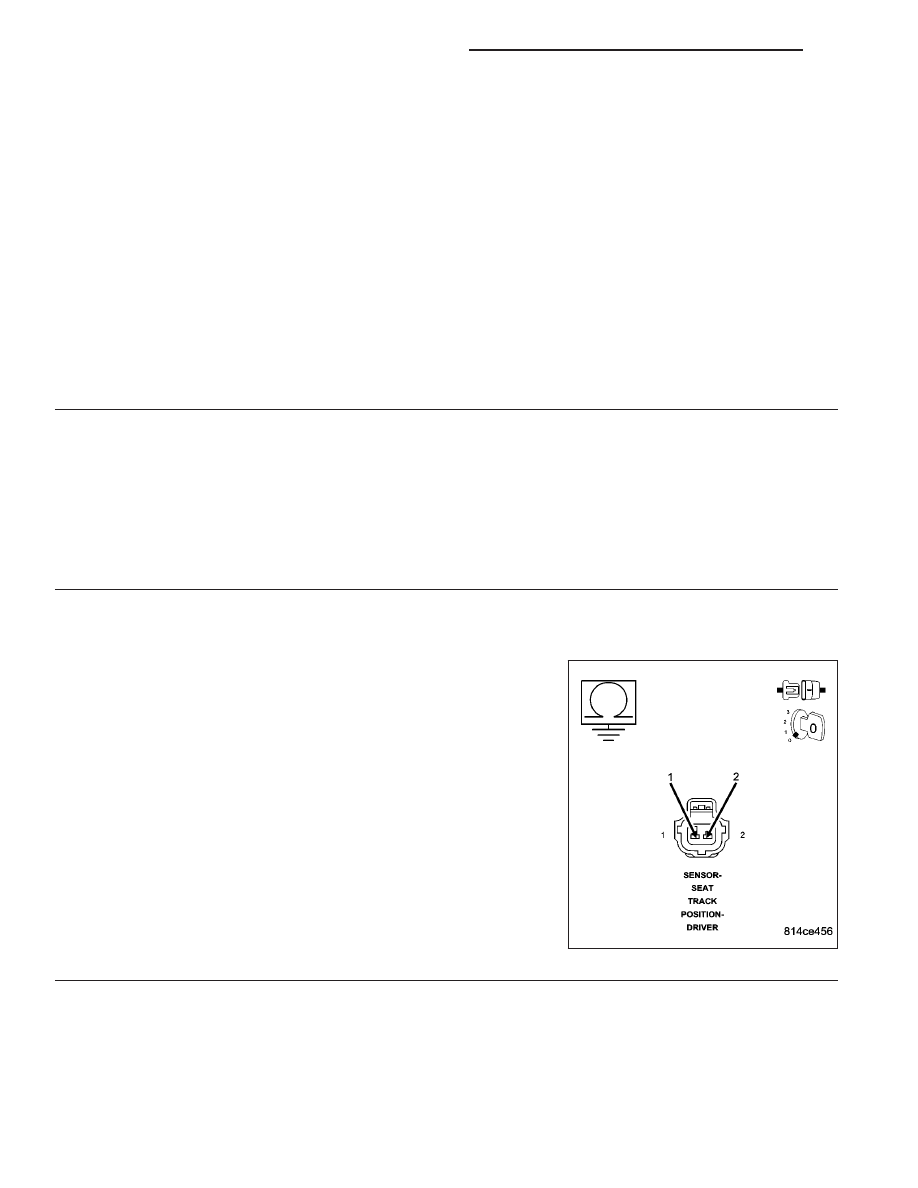

Measure the resistance between ground and the (R261) Seat Position
Sensor Data-Driver circuit.

Measure the resistance between ground and the (R263) Seat Position
Sensor Voltage-Driver circuit.

Is the resistance below 10k ohms on either circuit?

Yes

>>

NOTE: Do not attempt to repair the Seat Harness. Replace the
Seat Harness if the condition inspecting or testing for is present
in the Seat Harness.

Replace the Driver Seat Harness in accordance with the
service information.

Perform the OCS VERIFICATION TEST-VER 1.

No

>> Go To 6

8O - 252

RESTRAINTS - ELECTRICAL DIAGNOSTICS

ND

B1B8D-DRIVER SEAT TRACK POSITION SENSOR CIRCUIT LOW (CONTINUED)

6.

CHECK (R261) SEAT POSITION SENSOR DATA-DRIVER CIRCUIT & (R263) SEAT POSITION SENSOR
VOLTAGE-DRIVER CIRCUIT FOR AN OPEN

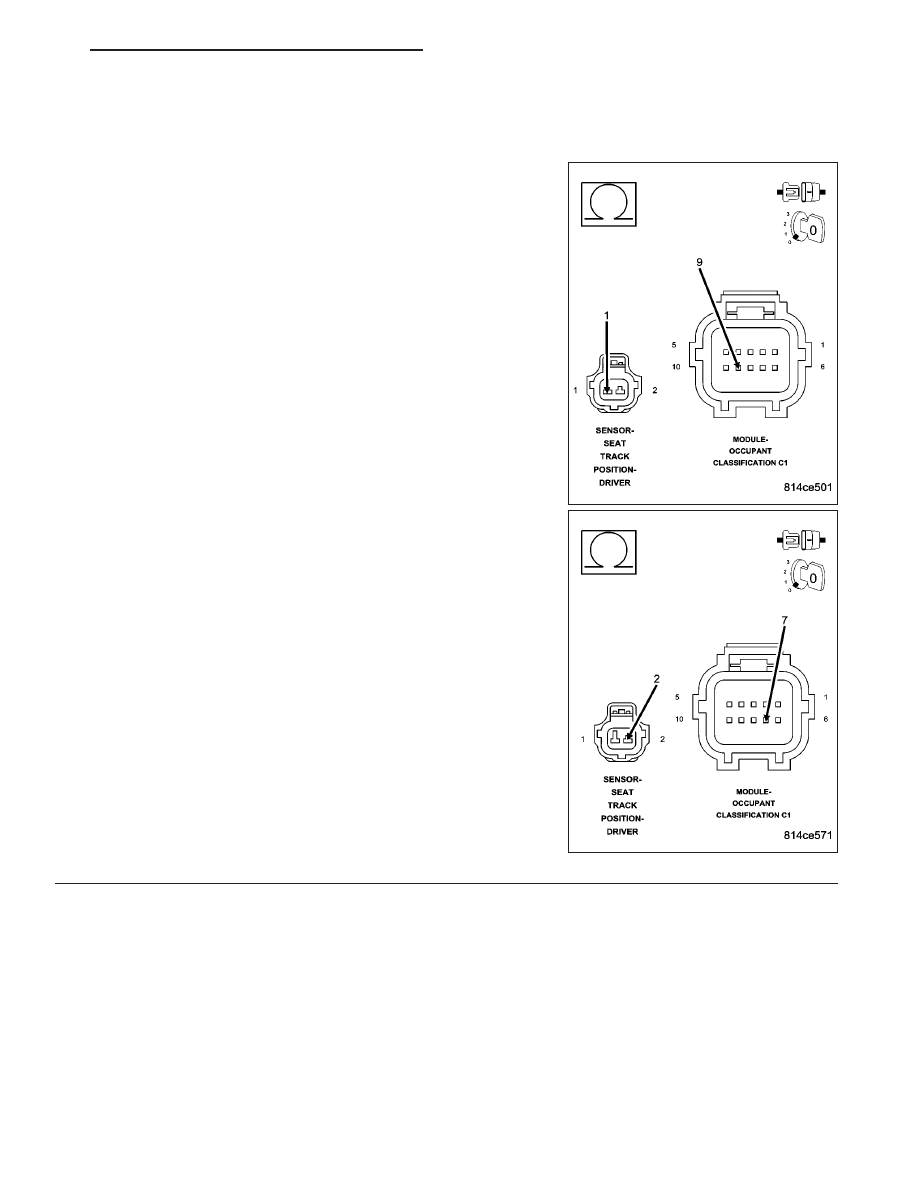

Disconnect the OCM C1 connector.

Measure the resistance of the (R261) Seat Position Sensor Data-
Driver circuit between the OCM C1 connector and the Driver Seat
Track Position Sensor connector.

Measure the resistance of the (R263) Seat Position Sensor Voltage-
Driver circuit between the OCM C1 connector and the Driver Seat
Track Position Sensor connector.

Is the resistance of either circuit above 5.0 ohms?

Yes

>>

NOTE: Do not attempt to repair the Seat Harness. Replace the
Seat Harness if the condition inspecting or testing for is present
in the Seat Harness.

Replace the Driver Seat Harness in accordance with the
Service Information.

Perform the OCS VERIFICATION TEST-VER 1.

No

>> Replace the OCM in accordance with the service informa-

tion.

Perform the OCS VERIFICATION TEST-VER 1.

ND

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 253

B1B8D-DRIVER SEAT TRACK POSITION SENSOR CIRCUIT LOW (CONTINUED)

7.

TEST FOR AN INTERMITTENT CONDITION

With the scan tool, record and erase all DTC’s from the OCM.

If any ACTIVE codes are present they must be resolved before diagnosing any stored codes.

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two min-
utes before proceeding.
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.

Look for chaffed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or
contaminated terminals.

The following additional checks may assist you in identifying a possible intermittent problem.

Reconnect any disconnected components and harness connector.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.
With the scan tool monitor active codes as you work through the following steps.

WARNING: To avoid personal injury or death, maintain a safe distance from all airbags while performing the
following steps.
Wiggle the wiring harness and connectors of the related airbag circuit or component.

If only stored codes return continue the test until the problem area has been isolated.

In the previous steps you have attempted to recreate the conditions responsible for setting active DTC in question.

Are any ACTIVE DTCs present?

Yes

>> Select the appropriate symptom from Symptom List.

No

>> No problem found at this time. Erase all codes before returning vehicle to customer.

8O - 254

RESTRAINTS - ELECTRICAL DIAGNOSTICS

ND

B1B8E-DRIVER SEAT TRACK POSITION SENSOR CIRCUIT HIGH

ND

RESTRAINTS - ELECTRICAL DIAGNOSTICS

8O - 255
