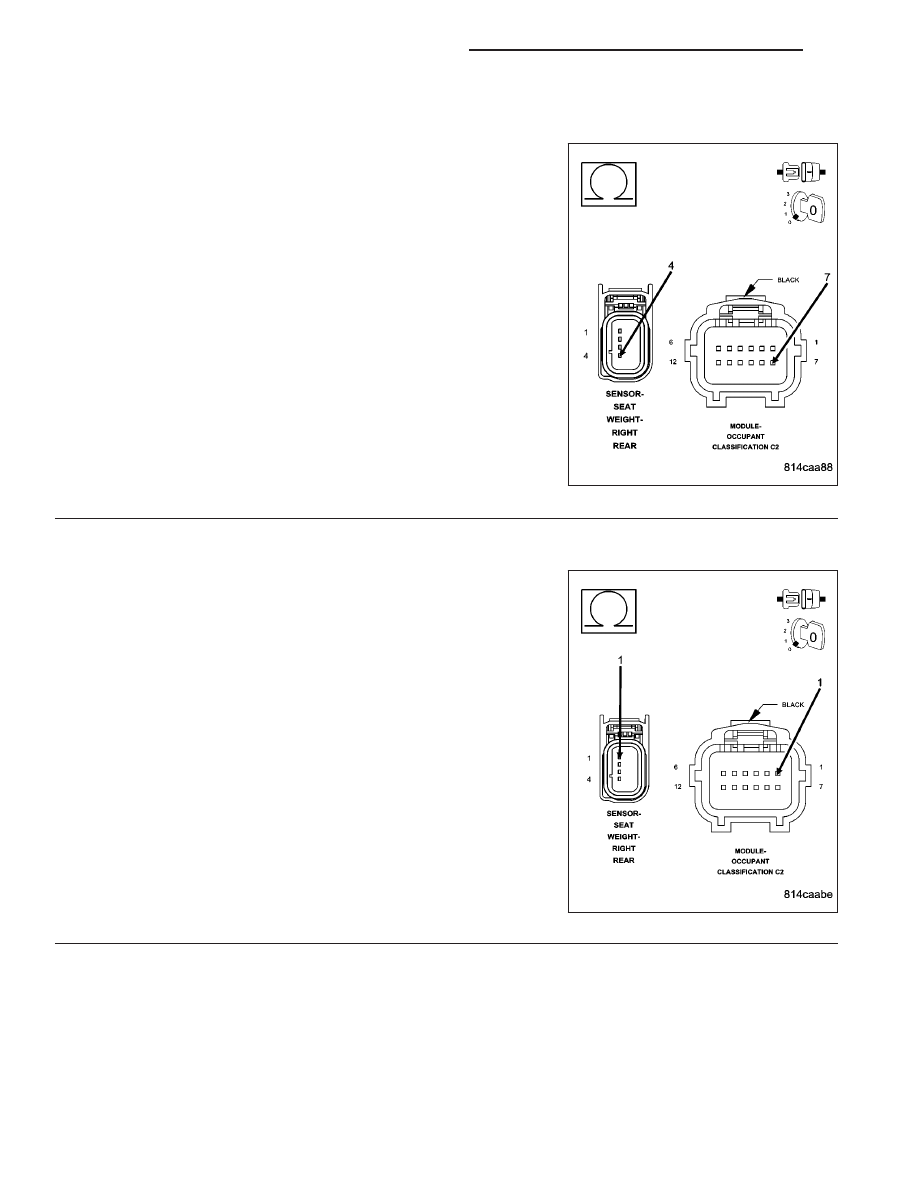

B1B88-PASSENGER SEAT WEIGHT SENSOR 1 - RIGHT REAR INPUT CIRCUIT LOW (CONTINUED) 8. CHECK (R706) RT-RR SEAT WEIGHT SENSOR SIGNAL CIRCUIT FOR AN OPEN Measure the resistance of the (R706) RT-RR Seat Weight Sensor Sig- Is the resistance below 5.0 ohms? Yes >> Replace the Right-Rear Seat Weight Sensor in accor- dance with the Service Information. Perform OCS VERIFI- Perform OCS VERIFICATION TEST - VER 1. No >> NOTE: Do not attempt to repair the Seat Harness. Replace the Replace the Passenger Seat Harness in accordance with Perform OCS VERIFICATION TEST - VER 1. 9. CHECK (R701) SEAT WEIGHT SENSOR 5 VOLT CIRCUIT FOR AN OPEN WARNING: To avoid personal injury or death, turn the ignition off, Measure the resistance of the (R701) Seat Weight Sensor 5 Volt cir- Is the resistance below 5.0 ohms? Yes >> Replace the OCM in accordance with the Service Informa- tion. Perform OCS VERIFICATION TEST - VER 1. No >> NOTE: Do not attempt to repair the Seat Harness. Replace the Replace the Passenger Seat Harness in accordance with Perform OCS VERIFICATION TEST - VER 1. 8O - 240 RESTRAINTS - ELECTRICAL DIAGNOSTICS ND |
