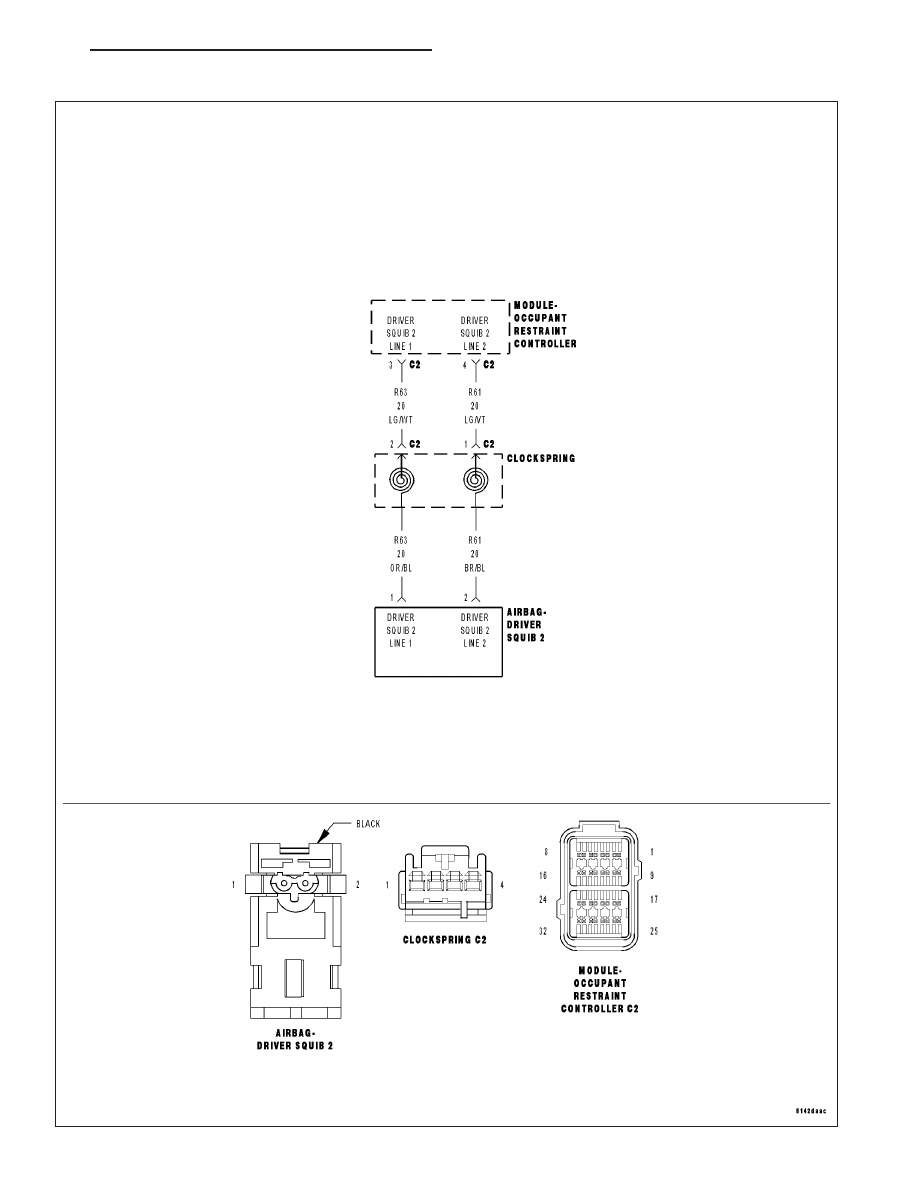

B1B05-DRIVER AIRBAG SQUIB 2 CIRCUIT HIGH (CONTINUED) 2. CHECK FOR SHORTED SQUIB CIRCUITS IN DRIVER AIRBAG WARNING: To avoid personal injury or death, turn the ignition off, WARNING: To avoid personal injury or death, do not place an NOTE: Check connectors - Clean and repair as necessary. WARNING: To avoid personal injury or death, turn the ignition on, Does the scan tool display: B1B05 DRIVER AIRBAG SQUIB 2 Yes >> Go To 3 No >> Replace the Driver Airbag in accordance with the Service Information. Perform ORC VERIFICATION TEST - VER 1 3. CHECK CLOCKSPRING SQUIB CIRCUITS FOR A SHORT TO WARNING: To avoid personal injury or death, turn the ignition off, Remove the Steering Control Module from the steering column in Disconnect the Steering Control Module connector. NOTE: Check connectors - Clean and repair as necessary. WARNING: To avoid personal injury or death, turn the ignition on, Does the scan tool display: B1B05 DRIVER AIRBAG SQUIB 2 Yes >> Go To 4 No >> Replace the Clockspring in accordance with the Service Information. Perform ORC VERIFICATION TEST - VER 1 8O - 48 RESTRAINTS - ELECTRICAL DIAGNOSTICS ND |
