B162F-RIGHT LOW BEAM CONTROL CIRCUIT LOW (CONTINUED)

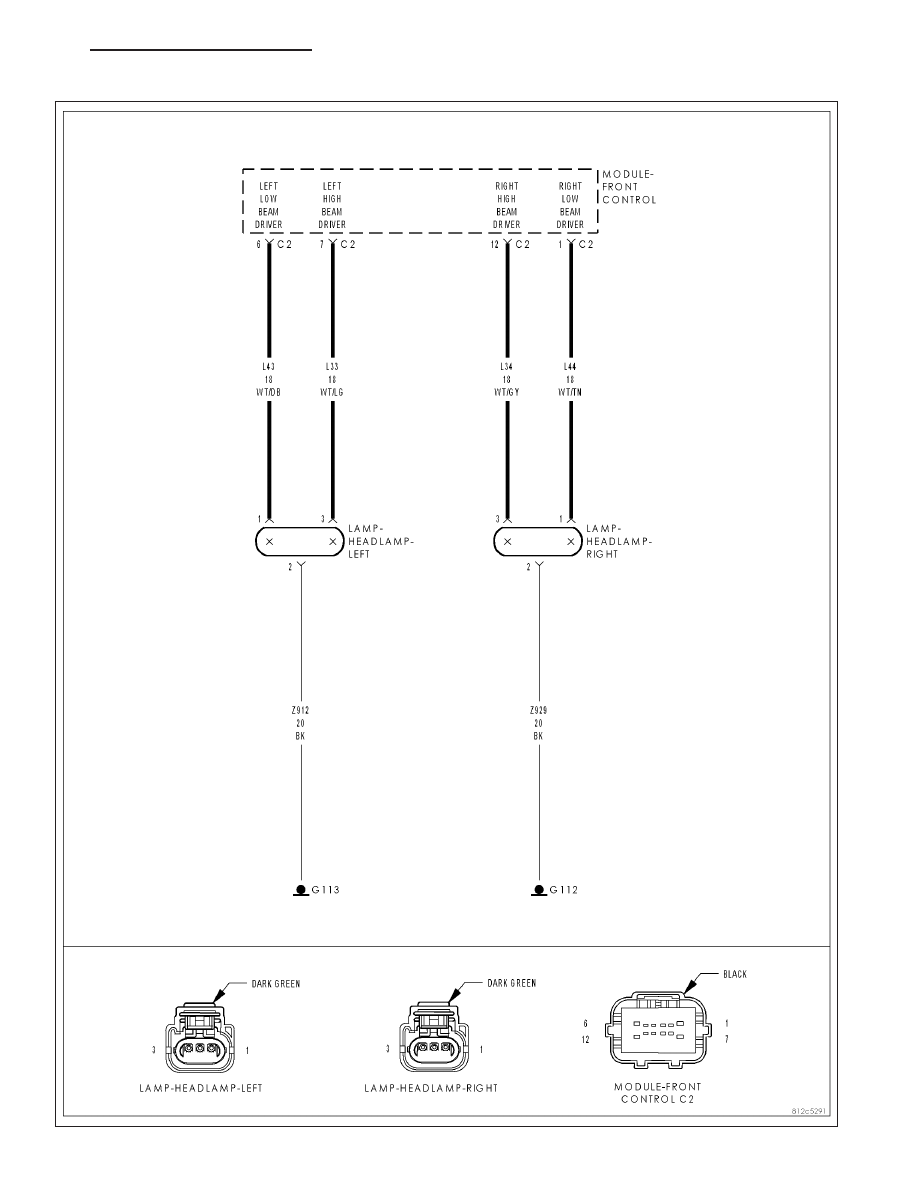

For the Exterior Lighting system circuit diagram (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERIOR -
SCHEMATICS AND DIAGRAMS).
For a complete wiring diagram Refer to Section 8W.
•
When Monitored:
•
With the Headlamps activated.
•
Set Condition:
•
When the FCM detects a LOW condition.
Possible Causes
(L44) RIGHT LOW BEAM CONTROL CIRCUIT
FRONT CONTROL MODULE
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.

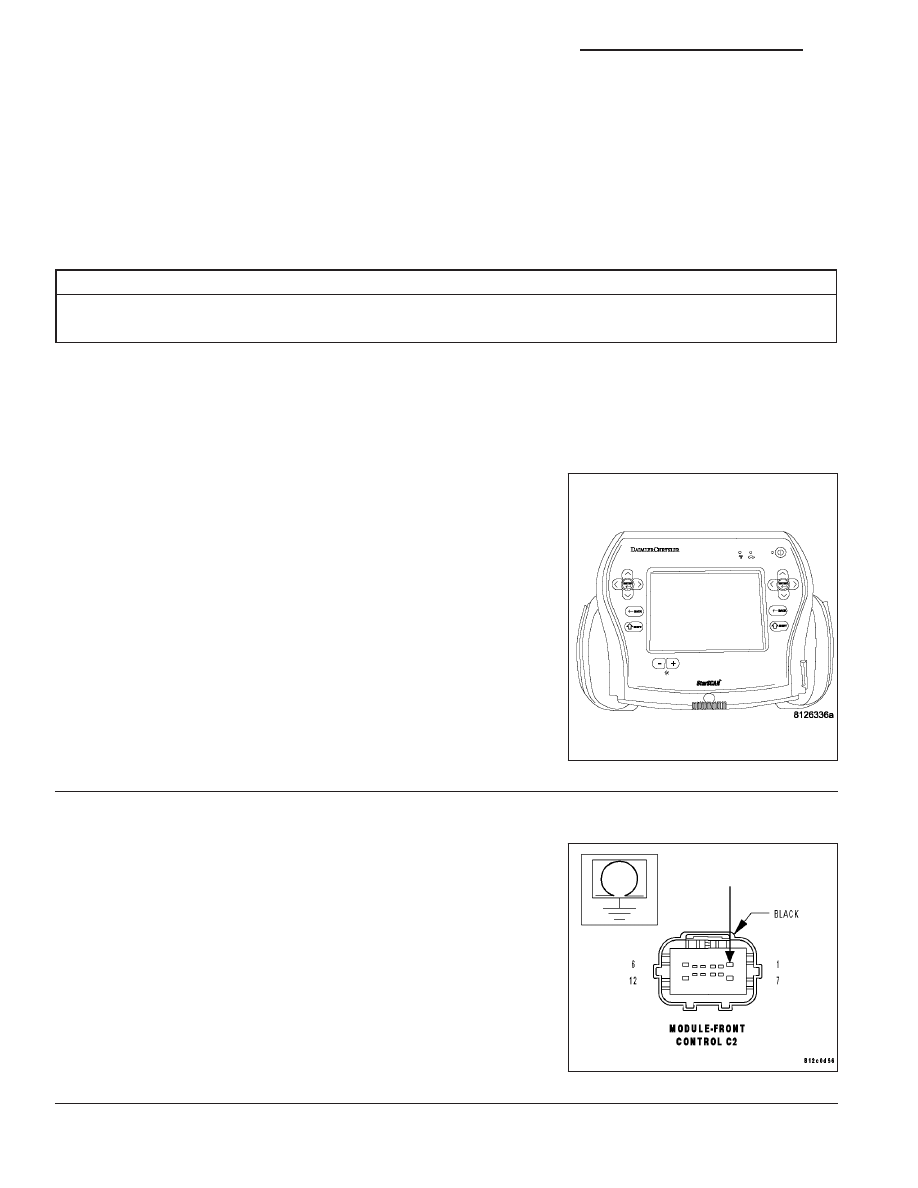

Diagnostic Test
1.
INTERMITTENT CONDITION
Turn the ignition on.
With the Scan Tool, clear all FCM DTC’s.
Turn the Headlamps on.
With the Scan Tool read the DTC information.
Does the Scan Tool read: B162F-RIGHT LOW BEAM CONTROL
CIRCUIT LOW?
Yes
>> Go To 2
No
>> The condition that caused the symptom is currently not
present. Inspect the related wiring for a possible intermit-
tent condition. Look for any chafed, pierced, pinched, or
partially broken wires.
Perform the BODY VERIFICATION TEST - VER 1.
2.
(L44) RIGHT LOW BEAM CONTROL CIRCUIT
Turn the ignition off.
Disconnect the FCM C2 harness connector.
Measure the resistance between ground and the (L44) Right Low
Beam Control circuit.
Is the resistance below 5.0 ohms?
Yes
>> Replace the Front Control Module (FCM) in accordance
with the service information.
Perform the BODY VERIFICATION TEST - VER 1.
No
>> Repair the (L44) Right Low Beam Control circuit for a
short to ground condition.
Perform the BODY VERIFICATION TEST - VER 1.
8L - 6
LAMPS/LIGHTING - EXTERIOR - ELECTRICAL DIAGNOSTICS
ND
