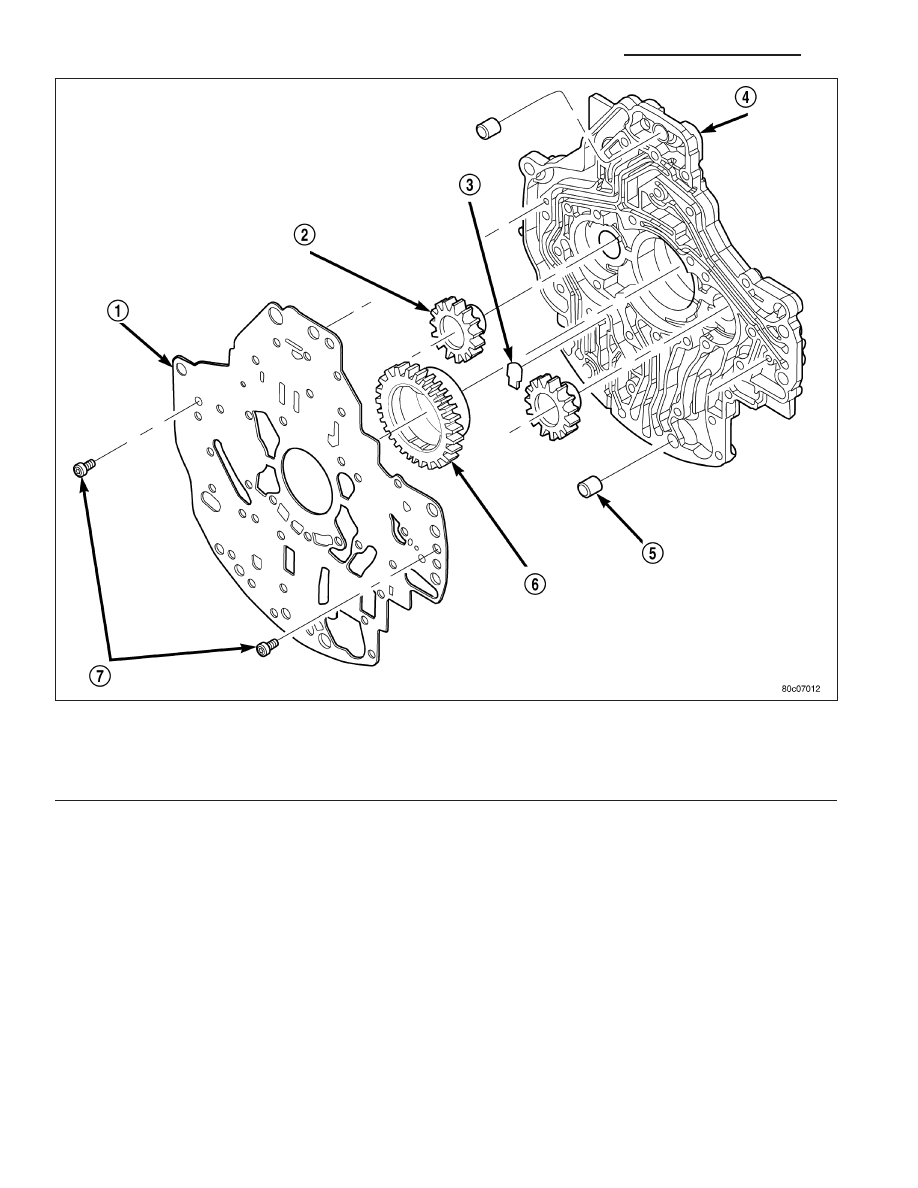

5. Remove the screws (7) holding the separator plate (1) onto the oil pump housing (4). 6. Remove the separator plate (1) from the oil pump housing (4). 7. Mark all gears for location. The gears are select fit and if the oil pump is to be reused, the gears must be returned to their original locations. 8. Remove the oil pump gears (2, 6) from the oil pump housing (4). Oil Pump Housing and Gears 1 - SEPARATOR PLATE 5 - DOWEL (2) 2 - DRIVEN GEAR (2) 6 - DRIVE GEAR 3 - CHECK VALVE 7 - SCREW 4 - PUMP HOUSING 21 - 788 AUTOMATIC TRANSMISSION 545RFE - SERVICE INFORMATION ND |
