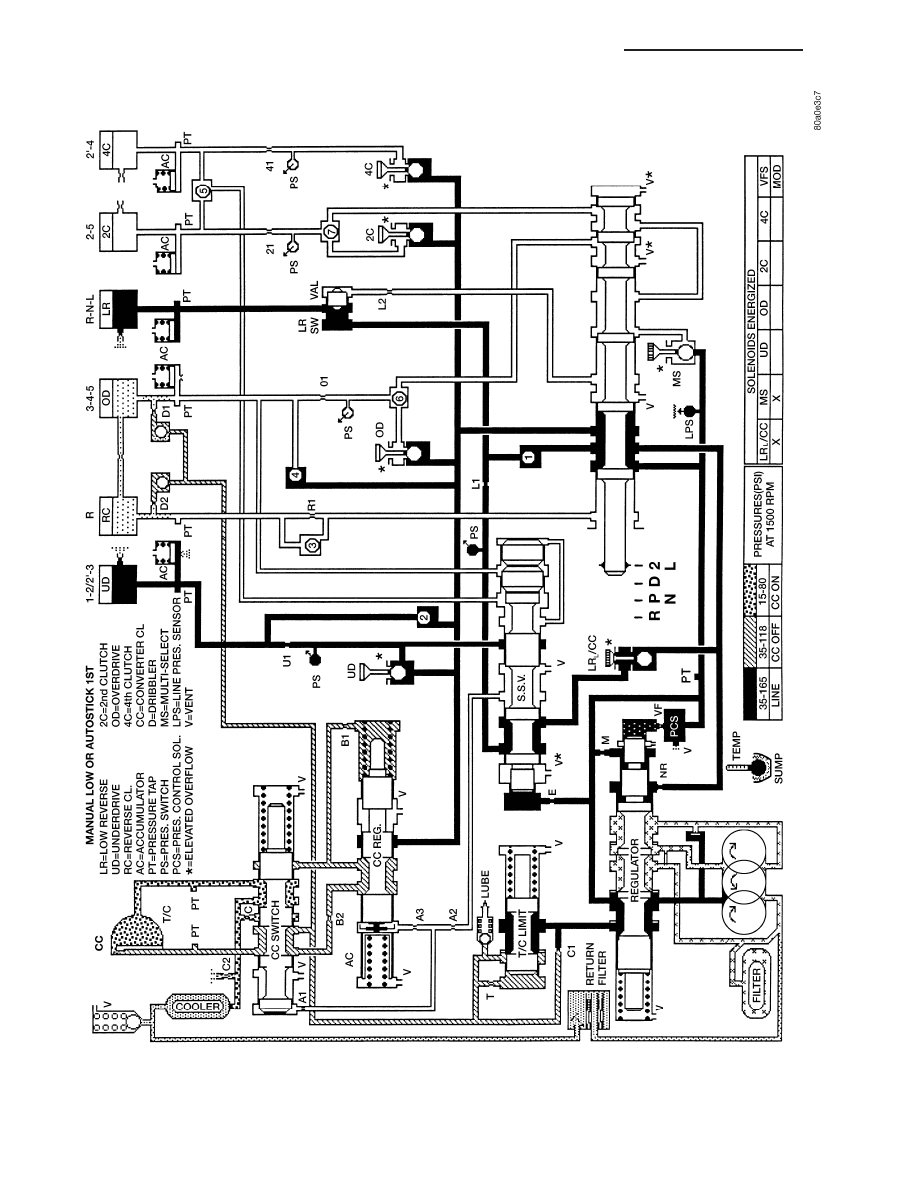

HYDRAULIC

FLOW

IN

MANUAL

LOW

OR

AUT

OSTICK

1ST

21 - 736

AUTOMATIC TRANSMISSION 545RFE - SERVICE INFORMATION

ND

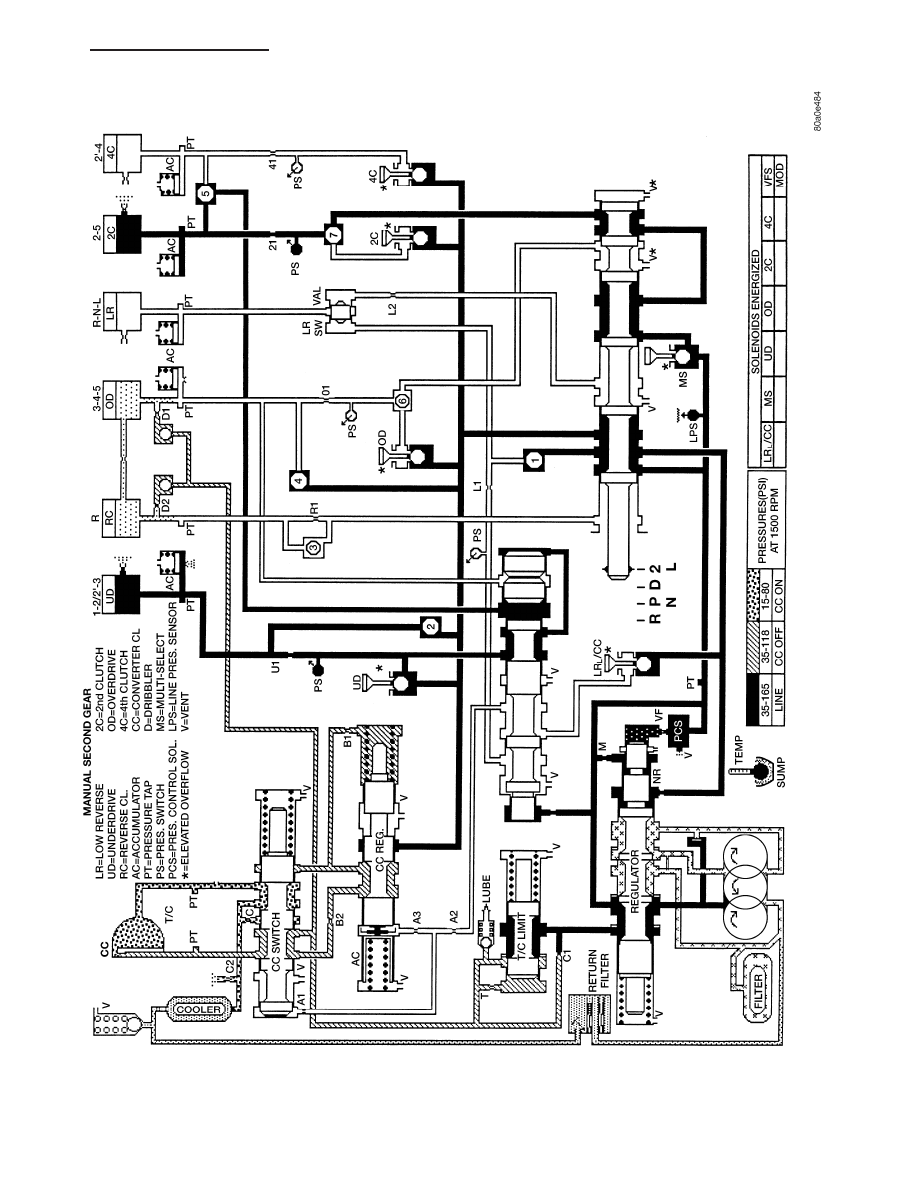

HYDRAULIC

FLOW

IN

MANUAL

SECOND

ND

AUTOMATIC TRANSMISSION 545RFE - SERVICE INFORMATION

21 - 737

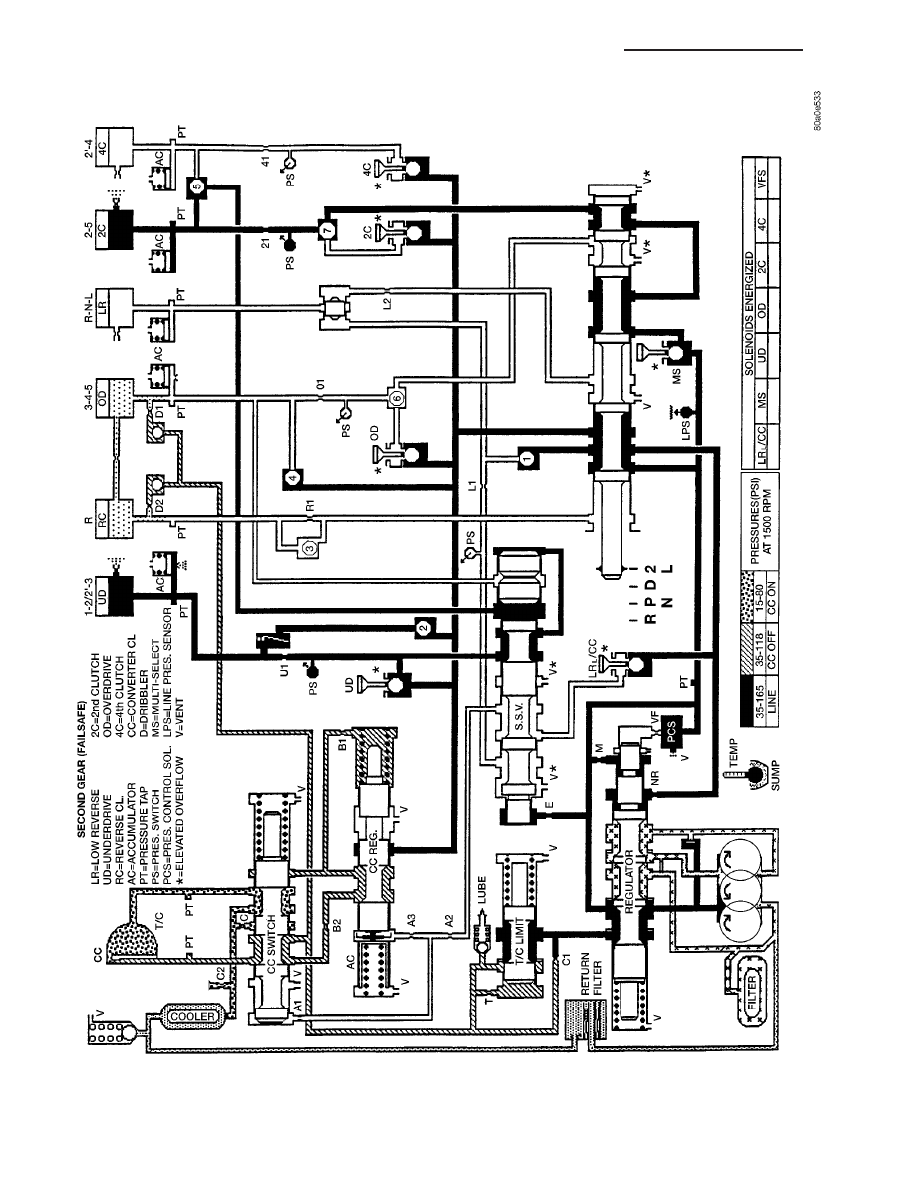

HYDRAULIC

FLOW

IN

MANUAL

SECOND

(F

AILSAFE)

21 - 738

AUTOMATIC TRANSMISSION 545RFE - SERVICE INFORMATION

ND

SPECIFICATIONS

TRANSMISSION

GENERAL

Component

Metric

Inch

Output Shaft End Play

0.22-0.55 mm

0.009-0.021 in.

Input Shaft End Play

0.46-0.89 mm

0.018-0.035 in.

2C Clutch Pack Clearance

0.455-1.335 mm

0.018-0.053 in.

4C Clutch Pack Clearance

0.770-1.390 mm

0.030-0.055 in.

L/R Clutch Pack Clearance

1.00-1.74 mm

0.039-0.069 in.

OD Clutch Pack Clearance

1.103-1.856 mm

0.043-0.073 in.

UD Clutch Pack Clearance

0.84-1.54 mm

0.033-0.061 in.

Reverse Clutch Pack Clearance

0.81-1.24 mm

0.032-0.049 in.

Recommended fluid

Mopar

T

ATF +4

GEAR RATIOS

1ST

3.00:1

2ND

1.67:1

2ND Prime

1.50:1

3RD

1.0:1

4TH

0.75:1

5TH

0.67:1

REVERSE

3.00:1
