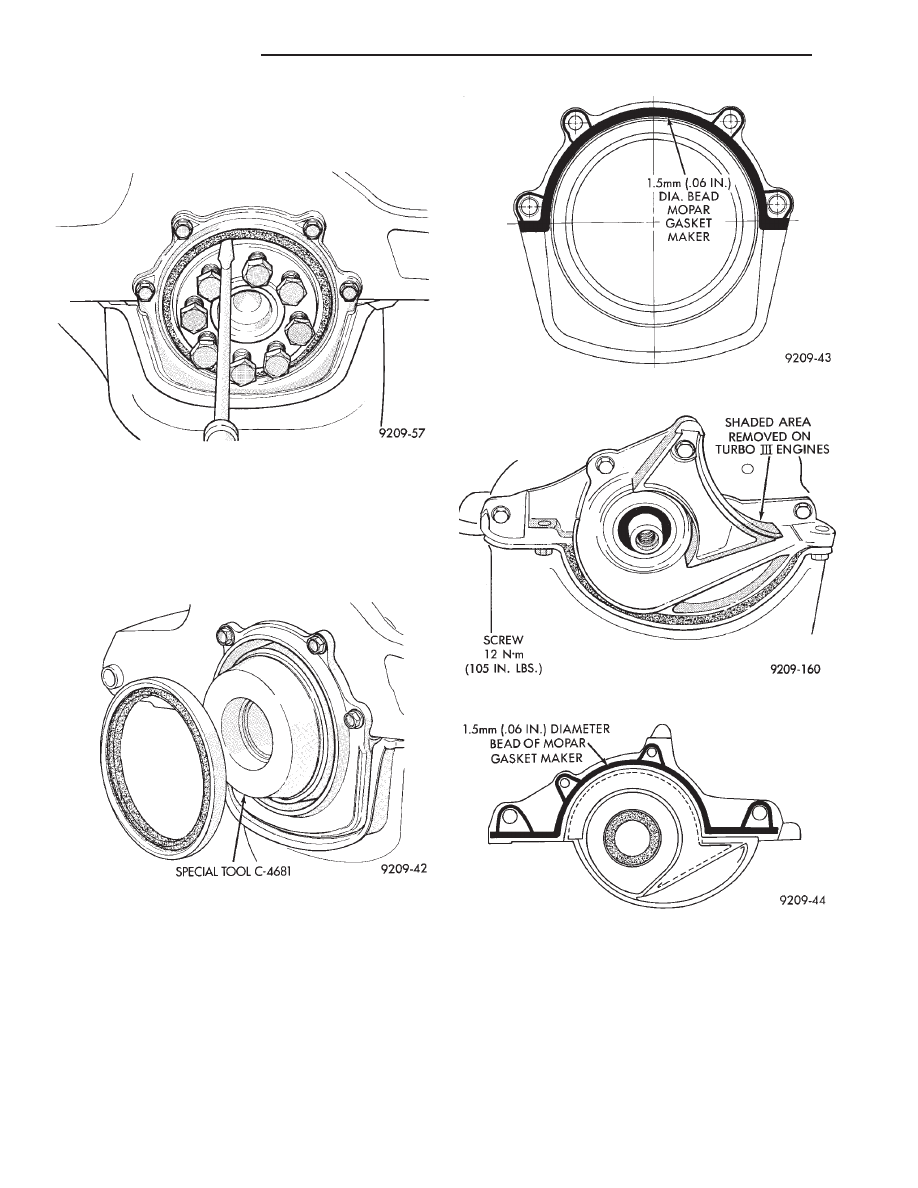

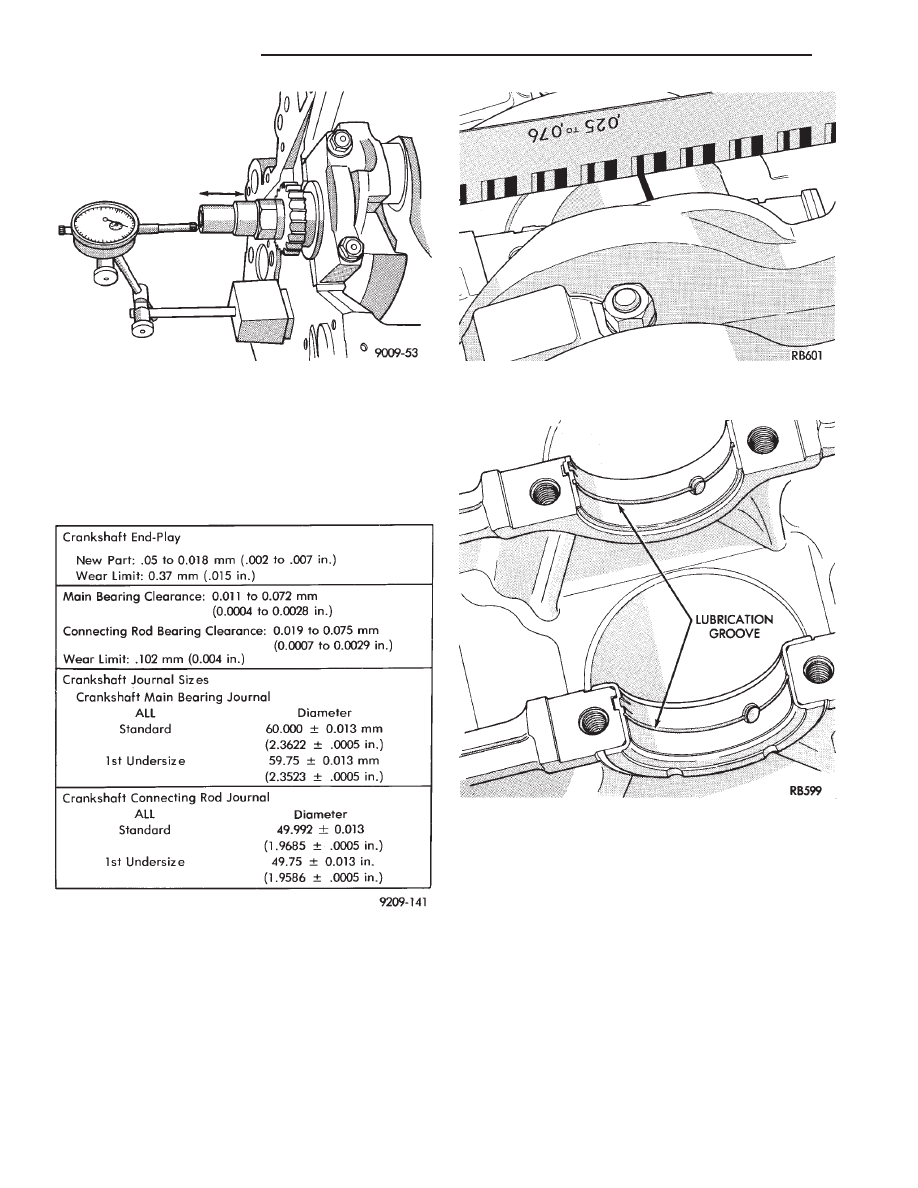

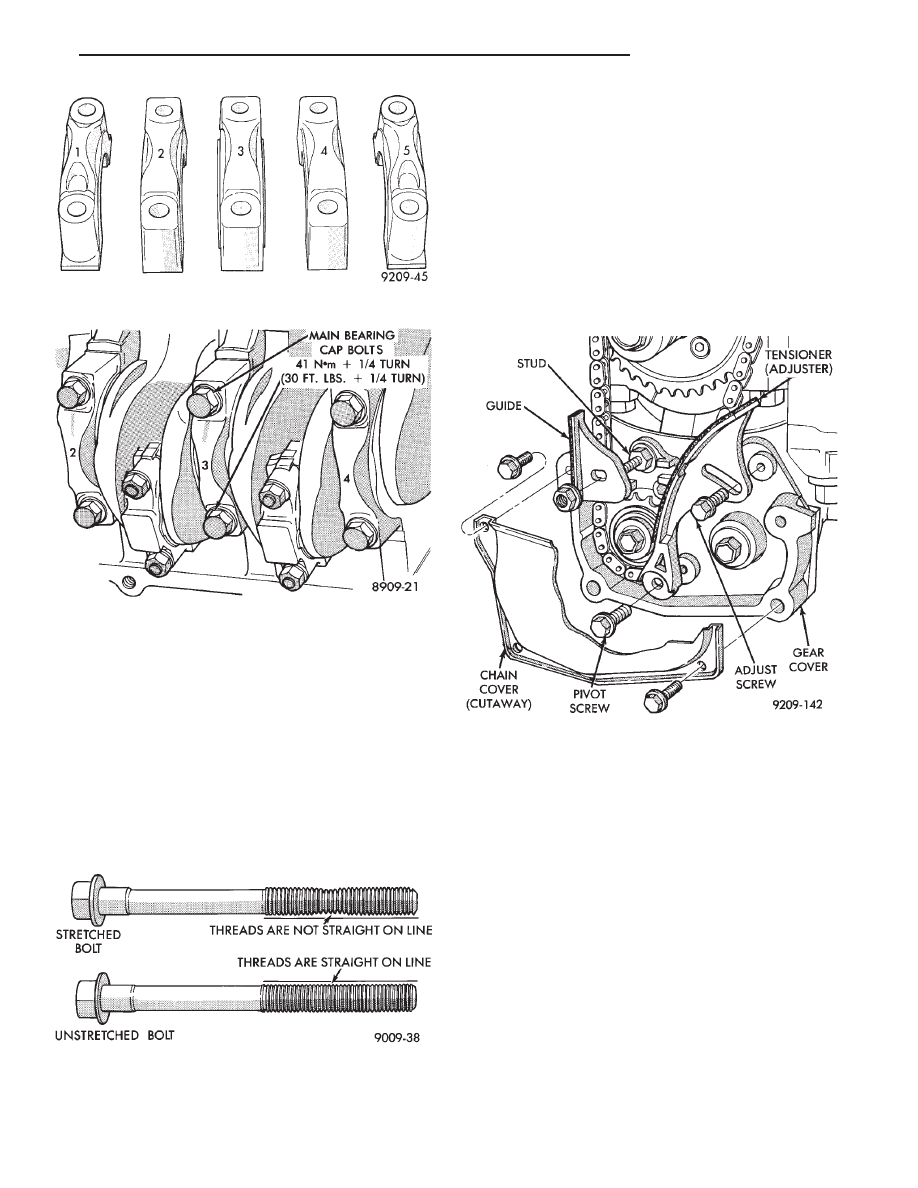

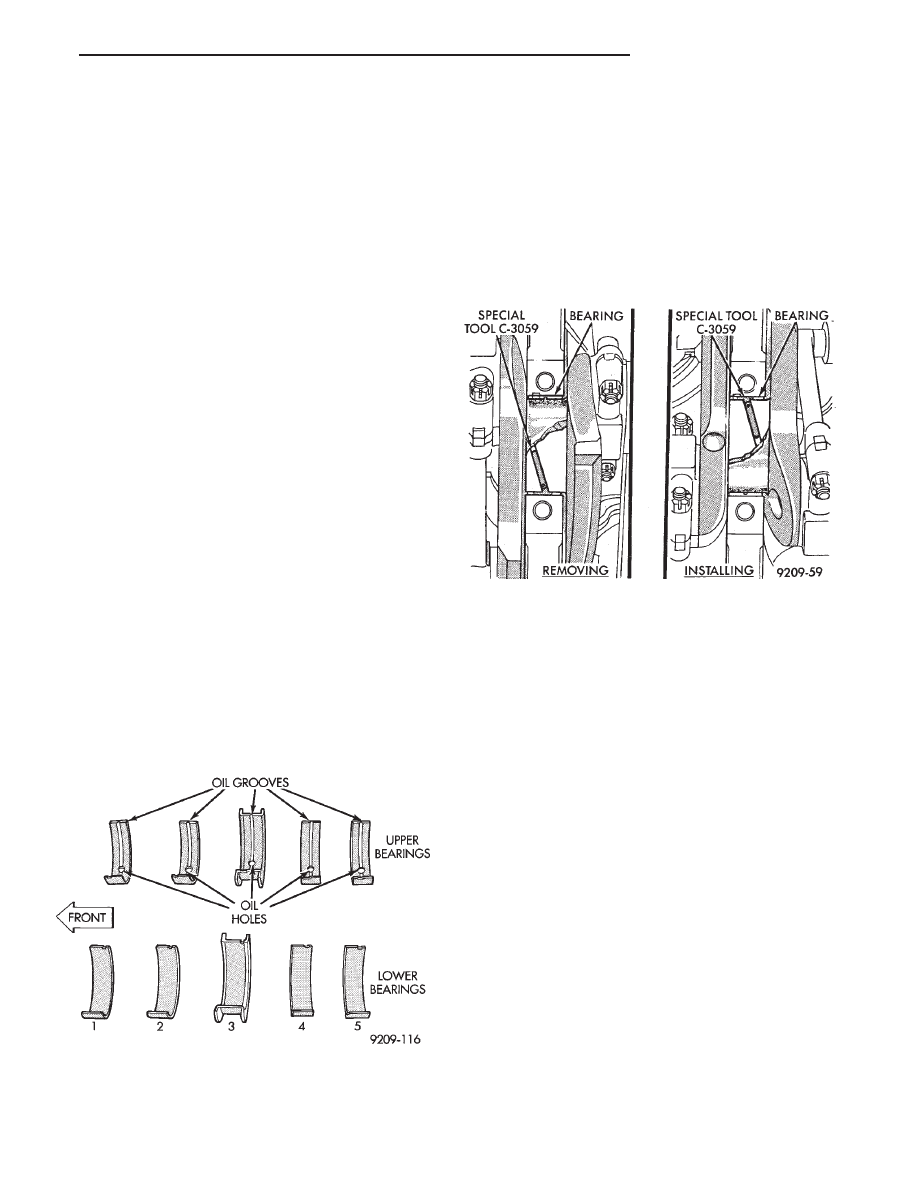

CRANKSHAFT OIL SEALS SERVICE (1) Pry out rear seal with screwdriver. Be careful not to nick or damage crankshaft flange seal surface (2) Place Special Tool C-4681 on crankshaft (Fig. 3). (3) Lightly coat seal O.D. with Loctite Stud N’ Bearing Mount or equivalent. (4) Place seal over Tool C-4681 and tap in place with a plastic hammer. REAR CRANKSHAFT SEAL RETAINER AND When retainer removal is required, use Mopar Gas- ket Maker applied as shown in (Fig. 4) to provide re- FRONT CRANKSHAFT SEAL RETAINER See Timing System and Seals Section for timing belt covers, belt, crankshaft sprocket and oil seals re- (1) Remove retainer screws (Fig. 5). For reassembly Mopar Gasket Maker is applied to the retainer as shown in (Fig. 6). This material cures (2) Install retainer and tighten screws to 12 N Im (105 in. lbs.). Fig. 2 Removing Rear Crankshaft Oil Seal Fig. 3 Installing Rear Crankshaft Oil Seal Fig. 4 Rear Crankshaft Seal Retainer Sealing Fig. 5 Front Crankshaft Oil Seal Retainer Fig. 6 Front Crankshaft Seal Retainer Sealing 9 - 42 2.2/2.5L ENGINE Ä |
