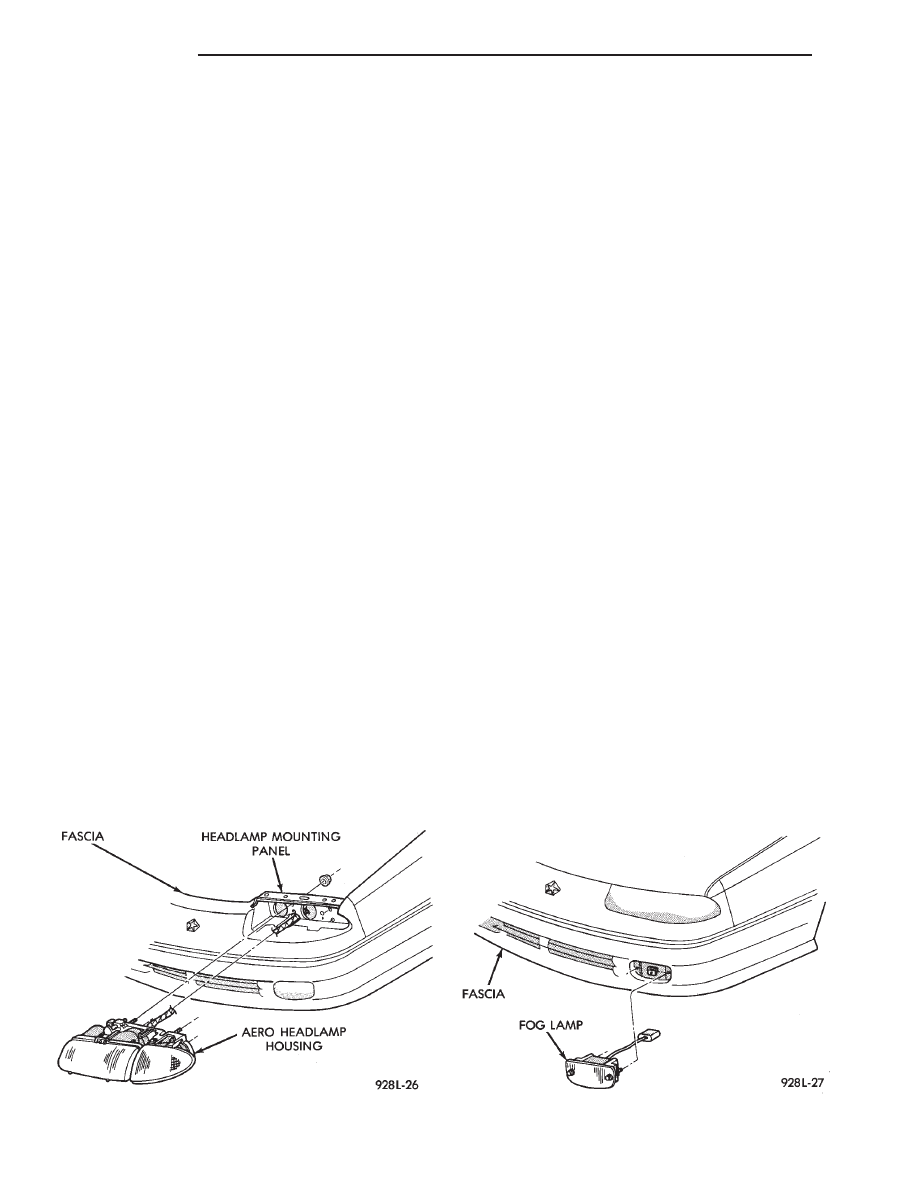

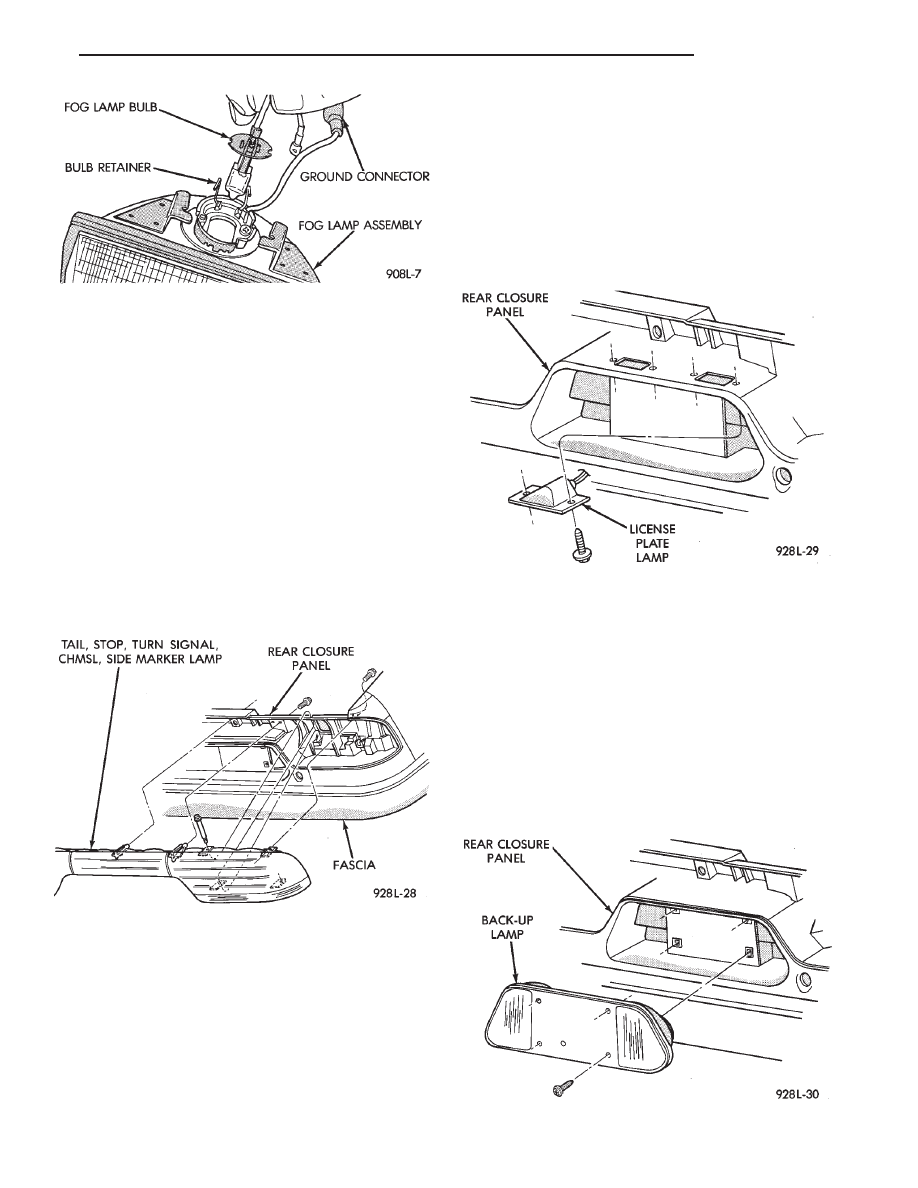

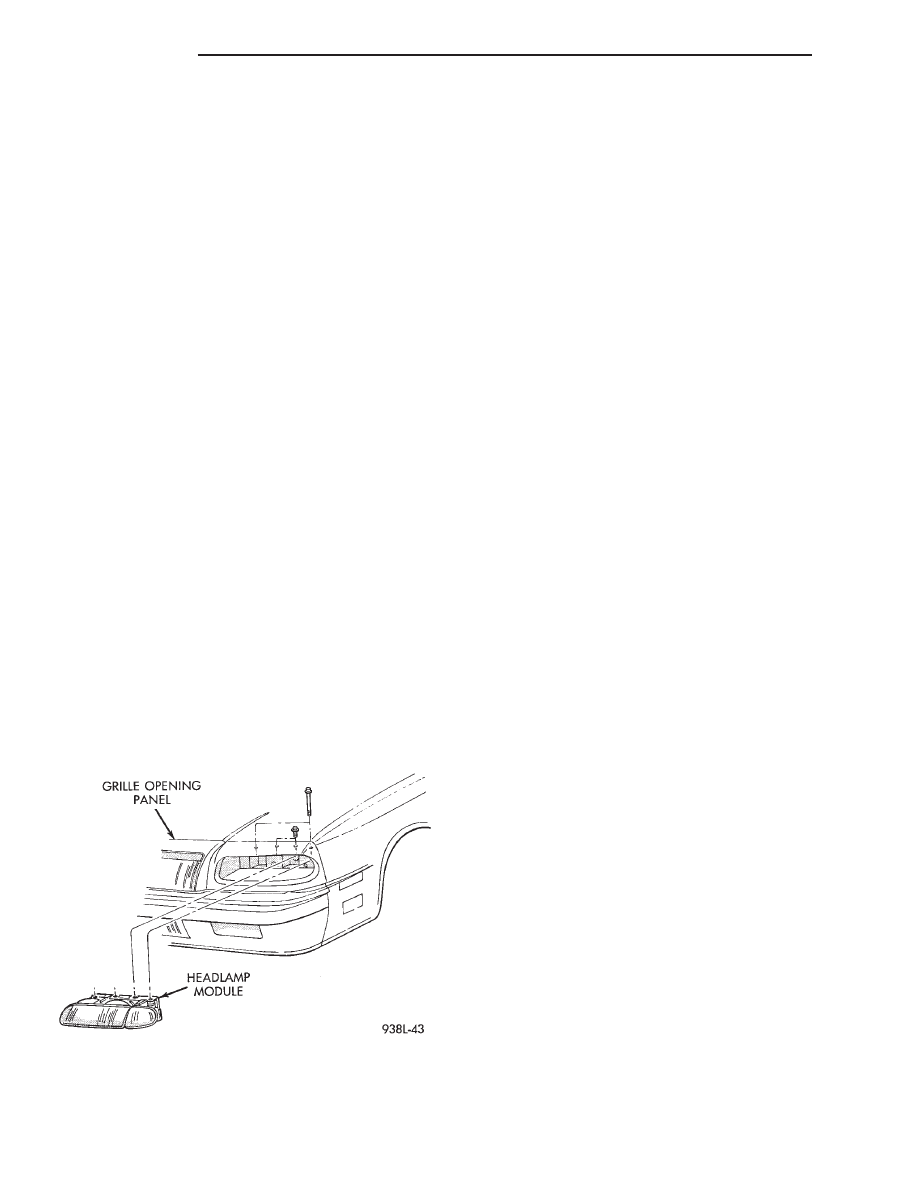

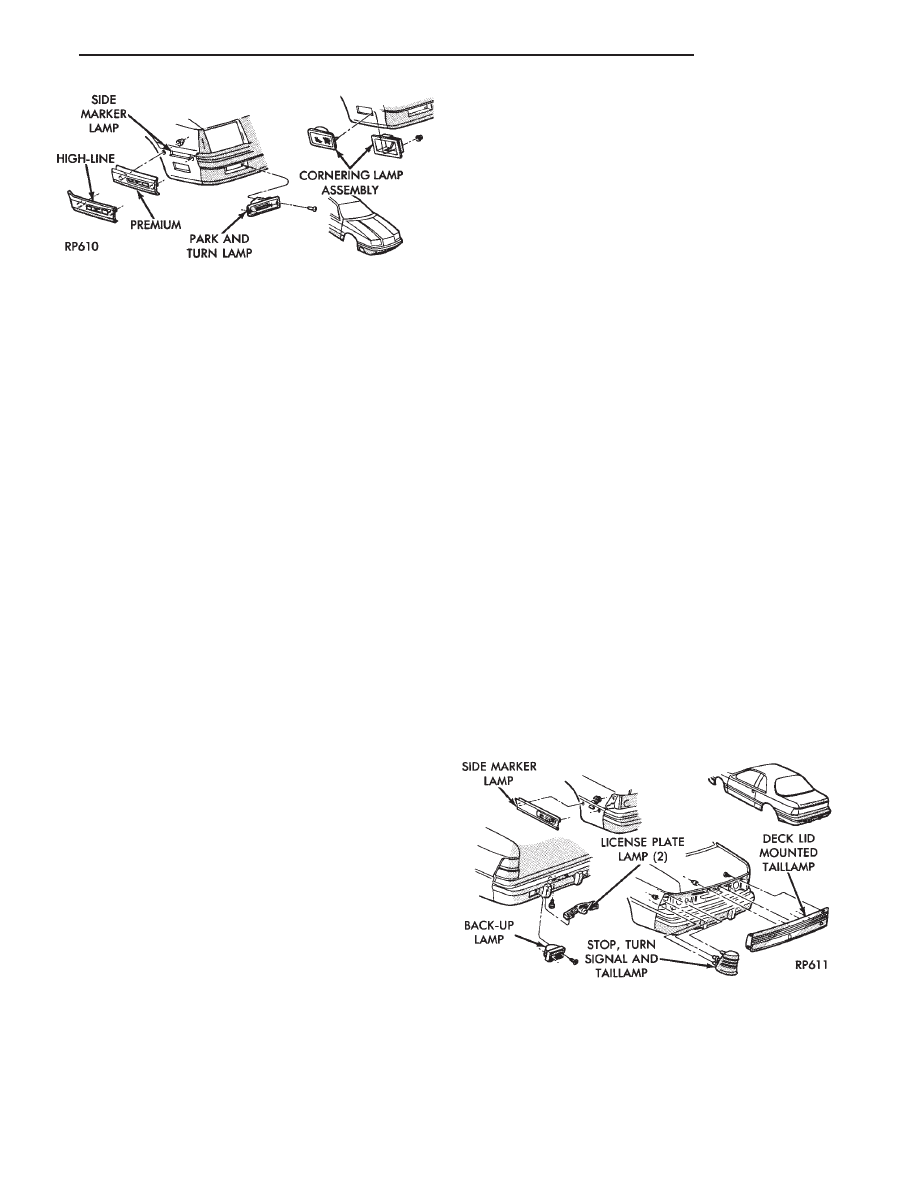

EXTERIOR LAMPS—AG BODY INDEX page page . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Center High Mounted Stop Lamp Bulb . . . . . . . . . . . . . . . . . . . . . . . . 14 . . . . . . . . . . . . . . . . . . . . . . 14 . . . . . . . . . . . . . . . . 14 . . . . . . . . . . . . . . . . 15 Park and Turn Signal Lamp or Bulb Tail, Stop, Turn Signal, Side Marker, Back-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 HEADLAMP DIAGNOSIS For headlamp diagnosis, refer to the Headlamp Di- agnosis at the beginning of this Group. Refer to Wir- HEADLAMP HOUSING AND BULB REMOVAL (FIG. 1) (1) Raise hood. to headlamp mounting panel. Refer to Group 23, (3) Remove nuts holding lamp housing to head- lamp mounting panel. (4) Separate lamp from mounting panel. behind lamp. (6) Separate lamp housing from vehicle. CAUTION: Do not touch the bulb glass with fingers (7) Rotate sockets counterclockwise and pull bulb unit from lamp. INSTALLATION Reverse the preceding operation. PARK AND TURN SIGNAL LAMP OR BULB REMOVAL (FIG. 1) (1) Remove headlamp housing. lamp. Pull bulb from socket if bulb replacement is re- (3) Remove screws holding park and turn signal lamp to headlamp housing. INSTALLATION Reverse the preceding operation. FOG LAMP OR BULB REMOVAL (FIG. 2 AND 3) (1) Remove screws holding fog lamp to front fascia. of lamp. Separate clip from lamp. (5) Pull bulb from lamp. CAUTION: Do not touch the bulb glass with fingers or INSTALLATION Reverse the preceding operation. Refer to Fog Lamp Alignment procedures in this group. Fig. 1 Aero Headlamp Fig. 2 Fog Lamp 8L - 14 LAMPS Ä |
