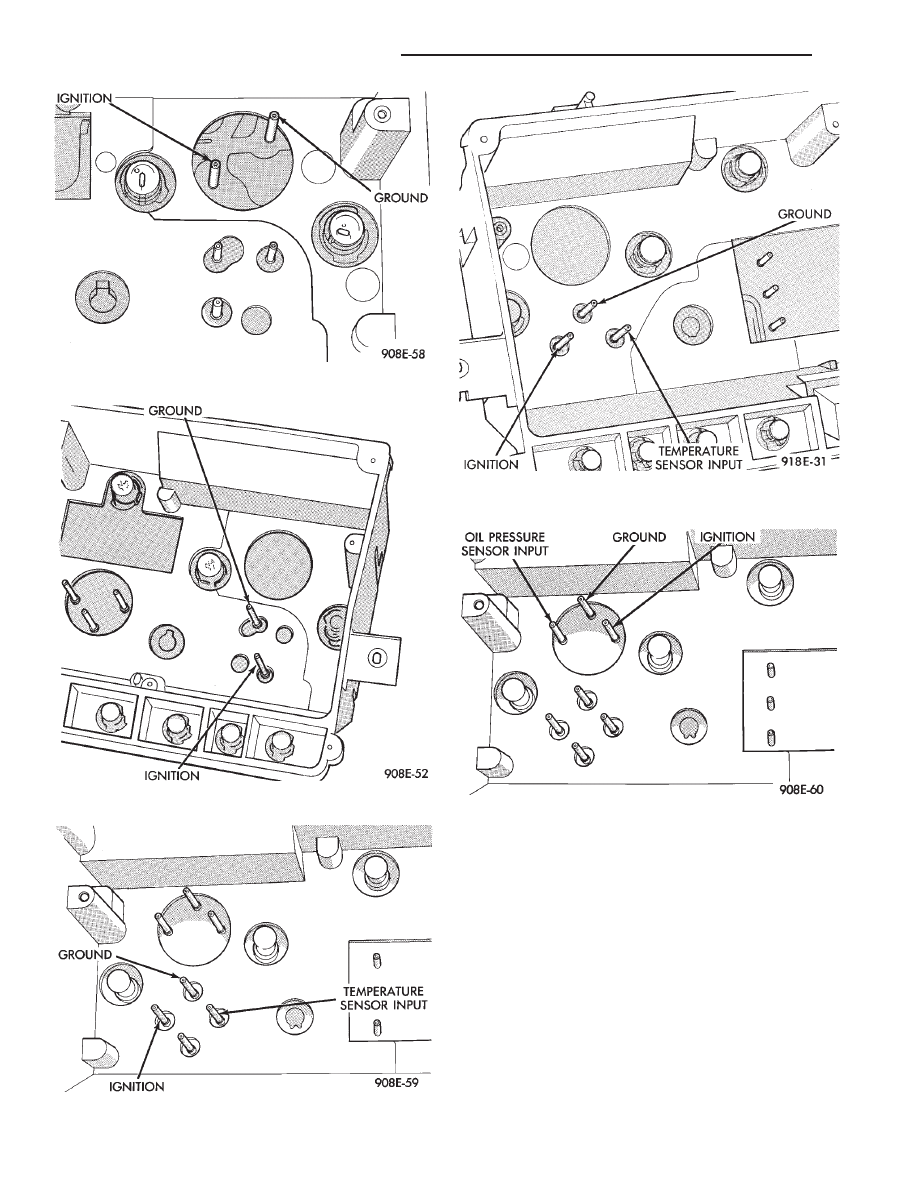

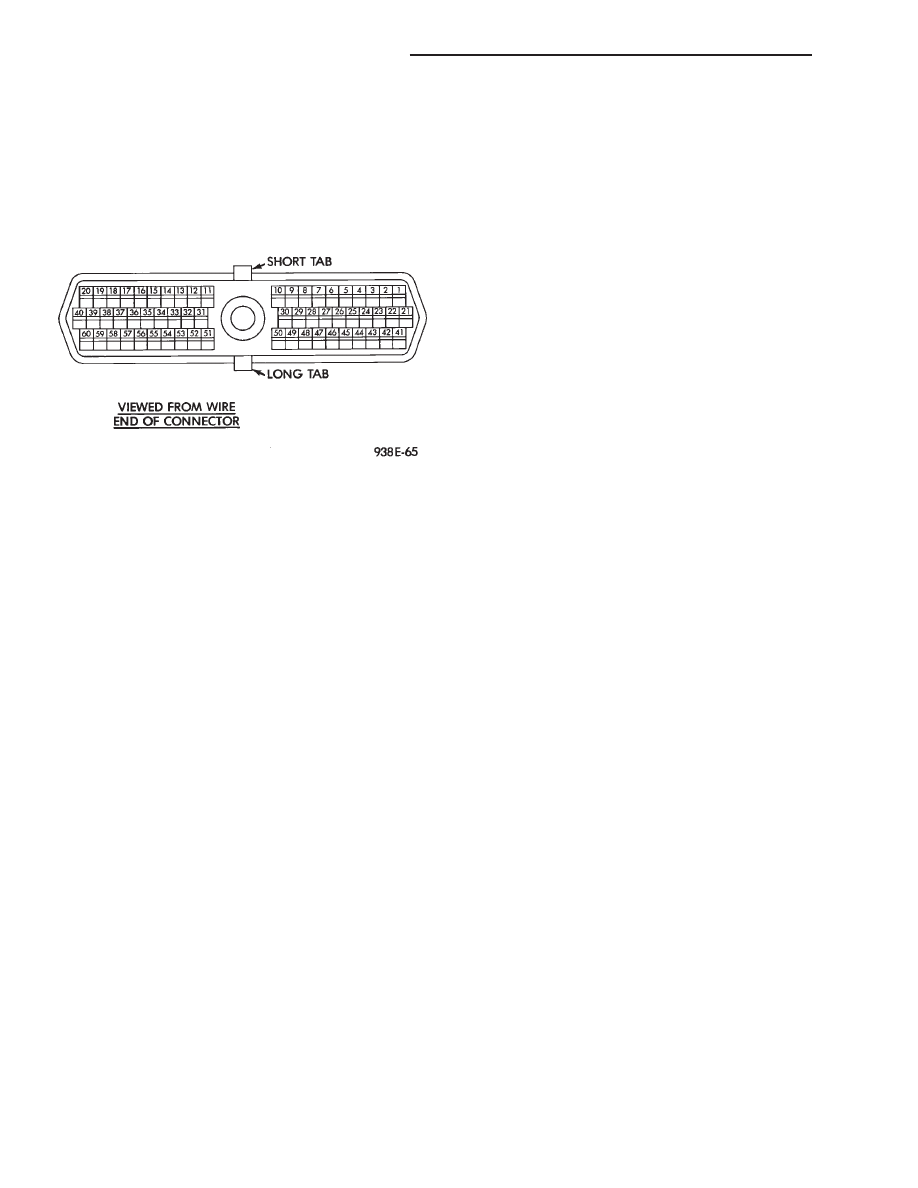

(2) With the ignition key ON, check for ignition voltage at ignition pin of gauge. Check for ground at (a) If voltage at pin, replace gauge. for ignition voltage and ground at cluster harness (c) If no voltage or ground, repair as necessary. Refer to 8W, Wiring Diagrams. (d) If there is voltage or ground, check cluster for distorted terminals. If terminals are OK, replace Fig. 19 Voltmeter Pins—With Tachometer Fig. 20 Voltmeter Pins—Without Tachometer Fig. 21 Temperature Gauge Pins—With Tachometer Fig. 22 Temperature Gauge Pins—Without Tachometer Fig. 23 Oil Pressure Gauge Pins—With Tachometer 8E - 8 INSTRUMENT PANEL AND GAUGES Ä |
