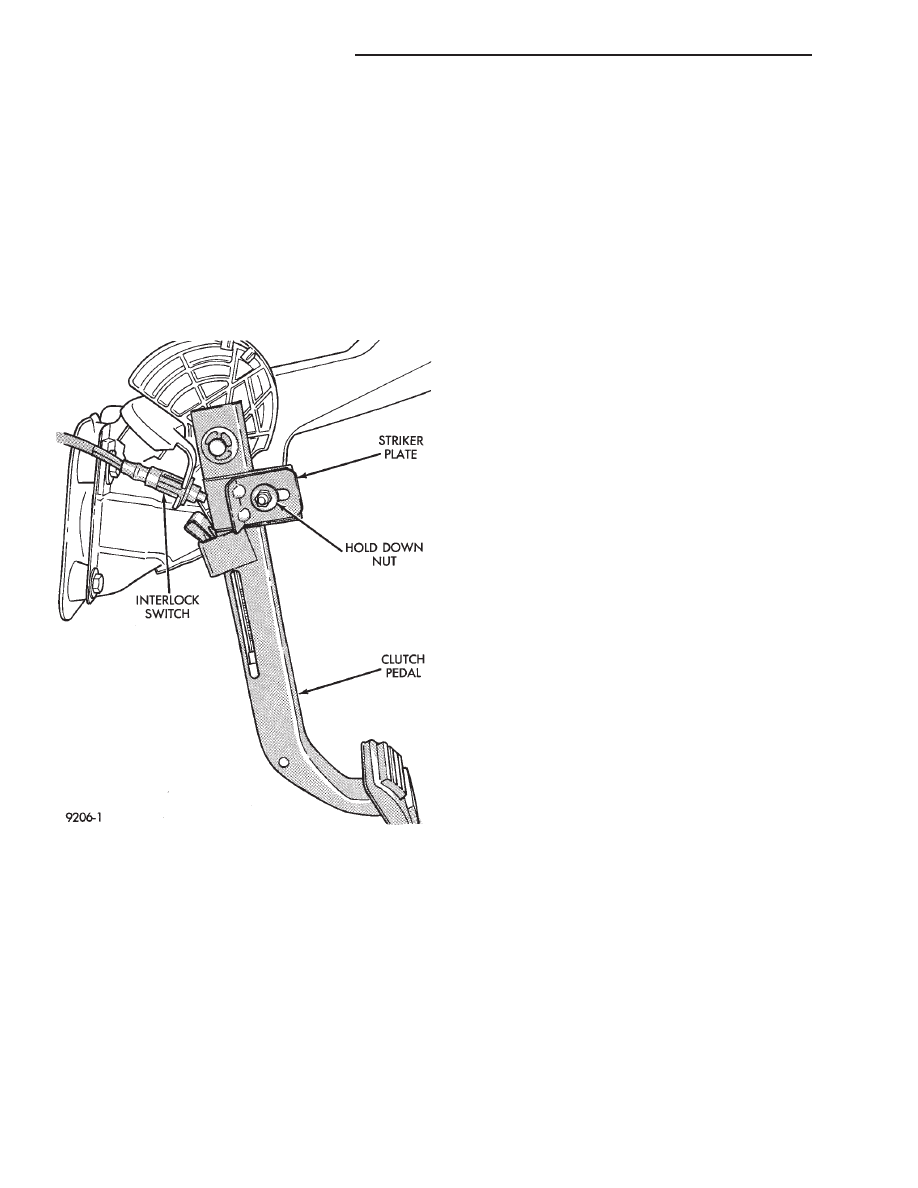

CLUTCH PEDAL POSITION SWITCH The clutch pedal position switch functions as a safety interlock device. It prevents possible engine The clutch pedal position switch is wired in series between the starter relay coil and the ignition The clutch pedal position switch is mounted to a bracket located next to the clutch pedal. The switch The clutch pedal position switch has an adjustable striker plate. The striker plate is located on the left DIAGNOSIS Disconnect clutch pedal position switch harness from instrument panel wiring harness. Using a ohm If all ohm meter readings are correct and the switch does not operate correctly, adjustment is re- REMOVAL (1) Disconnect electrical harness to switch connec- tor. (2) Depress wing tabs on switch and push switch out of mounting bracket. Then slide wires through slot in INSTALLATION (1) Slide switch wires through slot in switch bracket. and push switch into position. Do not pull on the switch (3) After installation, the switch must be adjusted and checked for proper operation. Refer to Switch ADJUSTMENT PROCEDURE When performing switch adjustment, the floor mat should be removed before beginning adjustment proce- (1) Set the park brake. the cable. (3) Depress clutch pedal, loosen adjusting nut and slide the striker plate forward to fully compress the (4) Tighten adjusting nut to 12 N Im (105 in. lbs.). (5) Reconnect clutch cable. justed. A final check is required to insure that the (1) With the park brake set and the vehicle IN NEUTRAL turn the key to the start position. The (2) With the park brake set and the vehicle IN GEAR turn the key to the start position. WARNING: BEFORE PERFORMING STEP THREE BE (3) Slowly depress the clutch pedal and feel for any vehicle motion when the starter is energized. If there is Fig. 3 Clutch Pedal Position Switch and Components 6 - 4 MANUAL TRANSAXLE CLUTCH Ä |
